Hauslane UC-B018 30 Inch Under Cabinet Range Hood Instruction Manual

1. Product Overview

The Hauslane UC-B018 is a 30-inch under cabinet range hood designed to maintain a clean and fresh kitchen environment. This unit effectively removes cooking odors, fumes, and chemicals. It features a versatile 3-way ventilation system, energy-saving LED lighting, and a sleek stainless steel design that complements various kitchen styles. The hood can be configured for both ducted and ductless (recirculating) operation.

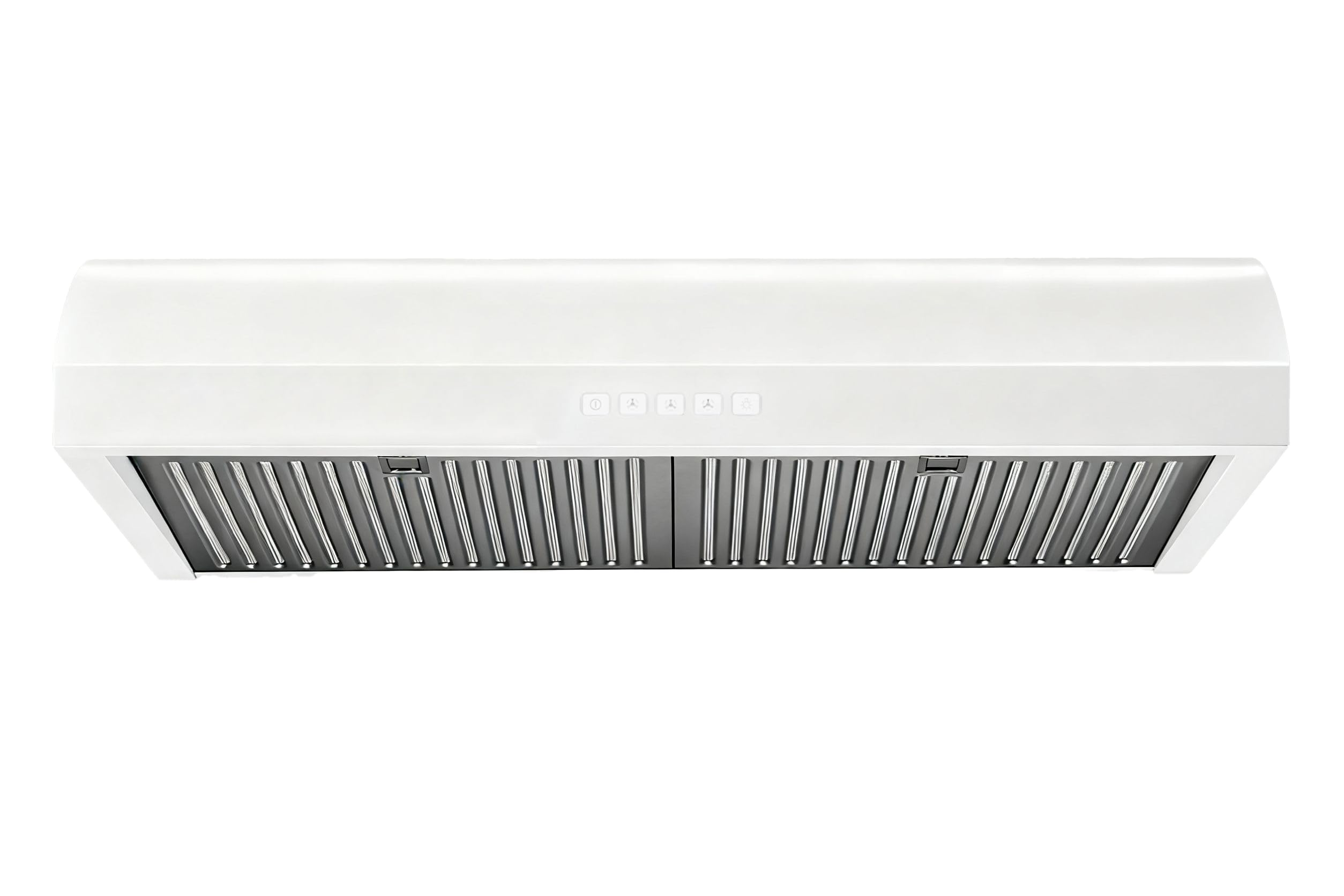

Figure 1: Hauslane UC-B018 30 Inch Under Cabinet Range Hood.

2. Safety Information

Before installation or use, read all instructions thoroughly. Ensure the unit is properly grounded. Disconnect power before servicing or cleaning. Do not use for general ventilating purposes only. Observe all local codes and ordinances. Always use safety glasses during installation. In case of a grease fire, turn off the hood and stove, then use a Class ABC extinguisher. Never pick up a flaming pan. Do not use water on grease fires. If the hood is damaged, contact customer support before attempting to install or operate.

3. What's in the Box

Verify that all components are present before beginning installation:

• 30 inch range hood (1)
• Dishwasher-safe baffle filters (2)
• 3-1/4” x 10” rectangular exhaust adapter (1)
• 7” round exhaust adapter (1)

Figure 2: Included components for the Hauslane UC-B018 range hood.

Video 1: An unboxing video for a Hauslane range hood, demonstrating the initial product appearance and included accessories.

4. Installation

The UC-B018 range hood offers a versatile 3-way ventilation system, allowing for vertical 6-inch round, vertical 3-1/4 x 10 rectangular, or horizontal 3-1/4 x 10 rectangular venting. This flexibility eliminates the need for new ductwork in many installations. The unit can also be easily converted to a ductless range hood by installing optional charcoal filters (sold separately).

Figure 3: Illustration of the versatile 3-way venting options for the range hood.

Figure 4: The three types of exhaust adapters included for different venting configurations.

For detailed installation steps, refer to the included user manual. Ensure proper alignment and secure fastening to the underside of your cabinet.

5. Operation

The range hood features an LED-lit control panel for easy operation. It includes multiple fan speed settings to adjust ventilation power based on your cooking needs. The bright white LED lights illuminate your cooking area, enhancing visibility.

Figure 5: Close-up of the LED-lit control panel for fan speed and lighting.

• Fan Control: Select from multiple fan speeds to effectively remove smoke, odors, and steam.
• Light Control: Toggle the bright white LED lights to illuminate your cooktop.

6. Maintenance

Regular cleaning of the baffle filters is essential for maintaining optimal performance. The hybrid filters feature aluminum layers designed to trap grease particles effectively.

• Baffle Filters: The included baffle filters are dishwasher-safe for easy cleaning. Simply remove them and place them in your dishwasher.
• Ductless Operation: If operating in ductless mode, charcoal filters (sold separately) are required to trap grease particles and fumes. These filters should be replaced periodically as per the charcoal filter instructions.

Figure 6: View of the hybrid baffle filters designed for efficient grease capture.

Figure 7: Illustration highlighting the dishwasher-safe feature of the baffle filters.

7. Specifications

8. Warranty and Support

Hauslane is confident in the craftsmanship of the UC-B018 range hood. It comes with a two-year limited warranty and a lifetime warranty on the motor. For any questions, concerns, or support needs, our US-based support team is available to assist you.

Please refer to the detailed warranty information provided in your product literature for full terms and conditions.
