OKD NRPC56CM30 56-inch Corner Fireplace TV Stand User Manual

Introduction

This manual provides essential information for the safe and efficient use of your OKD NRPC56CM30 56-inch Corner Fireplace TV Stand. Please read all instructions carefully before assembly and operation. Retain this manual for future reference.

The OKD NRPC56CM30 is a versatile farmhouse-style entertainment center designed to accommodate TVs up to 65 inches. It features a 30-inch electric fireplace, ample storage with glass-door cabinets, adjustable shelves, and a hidden flip-up cubby. The unit's unique design allows for placement in a corner or flush against a flat wall thanks to a removable back extension panel.

Important Safety Information

• Do not exceed the maximum weight limit of 120 pounds on the TV stand.
• Always secure the unit to the wall using appropriate anchoring hardware to prevent tip-over, especially in households with children or pets.
• Keep all flammable materials, such as curtains, bedding, and paper, at a safe distance from the electric fireplace.
• Allow the electric fireplace unit to cool completely before touching or attempting to move it.
• Ensure proper ventilation around the fireplace to prevent overheating.
• Do not block the air intake or exhaust vents of the electric fireplace.
• Only use the electric fireplace with a properly grounded electrical outlet.

Product Features

• Dimensions: 56 inches (W) x 36 inches (H) x 15.6 inches (D) with extended panel.
• TV Compatibility: Supports TVs up to 65 inches.
• Material: Constructed from durable engineered wood with an Antique Brush White finish.
• Weight Capacity: Maximum load of 120 pounds.
• Electric Fireplace: Integrated 30-inch electric fireplace with 7 flame colors and 10 heat settings.
• Heating: 5000 BTU/hour, capable of heating areas up to 400 sq ft. Features quiet operation, overheat protection, and a 1-8 hour timer.
• Control: Remote control included for convenient operation of the fireplace.
• Storage: Includes glass-door cabinets with adjustable shelves and a hidden flip-up cubby for media devices and accessories.
• LED Lighting: Synchronized LED lighting within the cabinets, with colors that change along with the fireplace flames.
• Versatile Placement: Features a removable back extension panel for flexible placement in a corner or against a flat wall.

Setup and Assembly

Your OKD Fireplace TV Stand is designed for user-friendly assembly. The unit is shipped in two separate packages (Box A for most components, Box B for the fireplace insert), which may arrive on different days. Please ensure you have received both packages before beginning assembly.

Detailed assembly instructions are included with your product. Please refer to these instructions for step-by-step guidance on putting together your TV stand.

Unpacking and Inspection

1. Carefully open both packages and remove all components.
2. Verify that all parts listed in the included assembly manual are present and undamaged. Contact customer support immediately if any parts are missing or damaged.
3. Lay out all hardware and components on a soft, clean surface to prevent scratches.

Assembly Steps (General Overview)

While specific steps are in the provided manual, assembly generally involves:

• Assembling the main frame of the TV stand.
• Installing the shelves and cabinet doors.
• Inserting the electric fireplace unit.
• Attaching the removable back extension panel if placing the unit in a corner.
• Securing the unit to the wall using the provided anti-tip hardware.

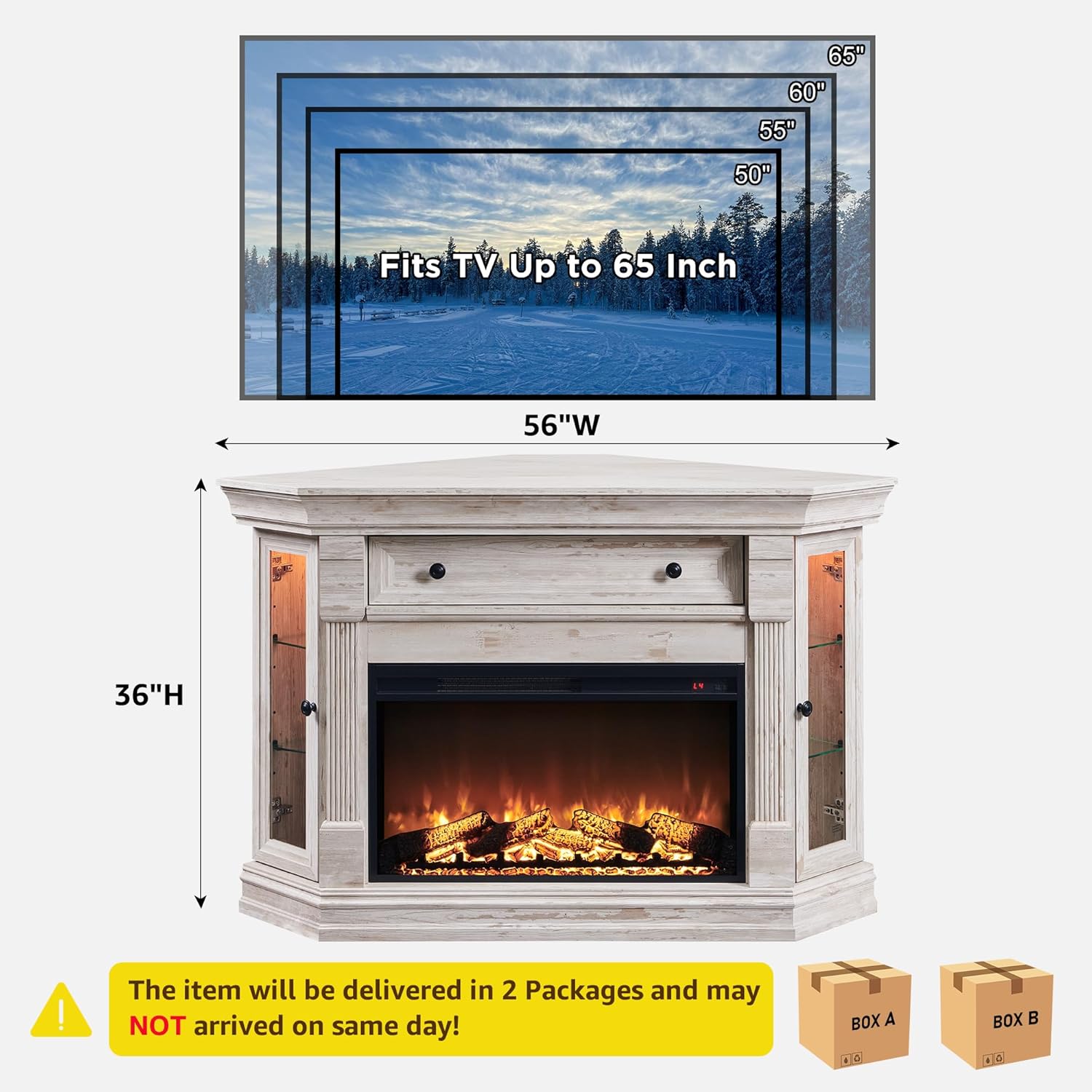

Image: Product dimensions and packaging information. The stand measures 56 inches wide and 36 inches high. It is delivered in two separate boxes, Box A and Box B.

Image: Two modes for various rooms. The top image shows the stand configured for a corner with a detachable panel, highlighting the 31.2-inch depth. The bottom image shows the stand without the panel, suitable for a flat wall, featuring a weathered woodgrain finish.

Image: Detachable panel. A screwdriver and screws are used to install the detachable panel on the back to increase the countertop area for corner placement.

Operating Instructions

Electric Fireplace Operation

The 30-inch electric fireplace can be operated using either the control panel on the unit or the included remote control.

• Power On/Off: Press the power button on the control panel or remote to turn the fireplace on or off.
• Flame Colors: Cycle through 7 different flame colors using the dedicated button on the control panel or remote.
• Heat Settings: Adjust the heat output (10 settings) to warm areas up to 400 sq ft. The fireplace provides 5000 BTU/hour of heat.
• Timer Function: Set the automatic shut-off timer for 1 to 8 hours.
• Quiet Operation: The fireplace is designed to operate quietly.
• Overheat Protection: The unit includes built-in overheat protection for safety.

Image: 30-inch Electric Fireplace with 7 Flame Colors. Features include 3D log embers, separate flame and heating functions, two control methods (control panel and remote), and quiet operation. Various flame colors are displayed.

LED Lighting

The cabinet LED lighting is synchronized with the fireplace flames, enhancing the ambiance. Refer to the fireplace operating instructions for controlling the lighting effects.

Storage Features

• Hidden Flip-Up Cubby: Located above the fireplace, this compartment provides discreet storage for media accessories.
• Glass-Door Cabinets: The side cabinets feature tempered glass doors and adjustable shelves for displaying or storing items.
• Magnetic Door Catches: Doors are equipped with magnetic catches to ensure secure closure and reduce impact noise.

Image: Hidden Flip-top Storage Compartment and Glass Cabinet Door with Metal Handle. The cubby measures 10 inches high and 29 inches wide. The glass cabinet features height-adjustable and detachable shelves.

Maintenance and Care

Proper maintenance ensures the longevity and appearance of your OKD Fireplace TV Stand.

• Cleaning the Surface: Wipe the engineered wood surfaces with a damp cloth to remove dust and light spills. Follow immediately with a dry cloth to prevent moisture damage.
• Cleaning Glass Doors: Use a glass cleaner on the tempered glass doors. Apply cleaner to a cloth, not directly to the glass, to avoid overspray on wood surfaces.
• Fireplace Maintenance: Regularly check the air intake and exhaust vents of the electric fireplace for dust accumulation. Clean with a soft brush or vacuum cleaner attachment. Ensure the fireplace is unplugged and cool before cleaning.
• Hardware Check: Periodically check all assembly hardware and tighten any loose screws to maintain structural integrity.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or polishes that may damage the finish.
• Sunlight Exposure: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration of the finish.

Troubleshooting

Specifications

Warranty and Customer Support

For warranty information, please refer to the documentation included with your purchase or contact OKD customer support directly. OKD is committed to ensuring a positive experience with their products.

If you have any questions regarding assembly, operation, or require assistance with your product, please contact OKD customer support. Contact details can typically be found on the product packaging or the official OKD website.

Returnable until Jan 31, 2026 (as per product information at time of data extraction).

Additional Resources

Product Videos

The following videos provide visual demonstrations of the OKD Fireplace TV Stand's features and functionality.
