Walfront Ultrasonic Level Meter 666RP User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the Walfront Ultrasonic Level Meter, Model 666RP. This device is designed for accurate and reliable measurement of material and liquid levels in various industrial applications. Please read this manual thoroughly before installation and operation to ensure proper use and optimal performance.

2. Product Overview

The Walfront Ultrasonic Level Meter 666RP is a digital sensor featuring a user-friendly design. It offers comprehensive material/liquid level measurement, data transfer, and human-machine communication functions. Its robust construction includes an engineering plastic ABS waterproof housing, ensuring durability in challenging environments.

Key features include:

• Digital Design: Fully digital and user-friendly interface.
• Waterproof Housing: Equipped with an engineering plastic ABS waterproof housing (IP65 protection grade).
• Intelligent Control: Utilizes an industrial-grade microcontroller with digital temperature compensation, ultra-wide voltage input, and linear voltage regulation.
• Accurate Measurement: Modular circuit design with a multi-layer PCB ensures stringent hardware structure and accurate measurements.
• Flexible Output: 4-20mA output mode.
• Display: LCD display with a minimum resolution of 1mm.

3. Specifications

Figure 1: Walfront Ultrasonic Level Meter with detailed dimensions. The total height is approximately 233.47mm (9.19in), with the upper housing being 109.97mm (4.33in) and the transducer section 117.50mm (4.63in). The maximum width is 96.50mm (3.8in) and the G2 thread is 60mm (2.36in).

4. Installation (Setup)

Proper installation is crucial for accurate measurement. Follow these guidelines:

1. Mounting Location: At the time of installation, maintain a distance of at least 200mm between the meter and the container wall. It is recommended that the size of the container opening be larger than 500mm.
2. Transducer Orientation: The transducer should be perpendicular to the appearance of the measured medium (liquid surface). The instrument should not be installed in the middle of an arched tank roof to avoid multiple reflections.
3. Avoid Obstacles: The instrument should avoid obstacles (e.g., pipes, stirrers) within the measurement path.
4. Inlet Position: Do not install the instrument directly above the inlet, as the real liquid level may not be detected accurately due to turbulence or incoming flow.
5. Outdoor Installation: For outdoor installations, take shading and rain prevention measures to protect the device.

Figure 2: Visual guide for correct and incorrect installation practices. This includes maintaining distance from tank walls, ensuring perpendicularity to the liquid surface, avoiding installation above inlets, and preventing interference from internal obstacles.

5. Wiring

The electrical connections are made via the terminal block located inside the device. Ensure all connections are secure and correct before powering on the unit. Please tighten the inlet and outlet cables.

• Power Supply: Connect DC 24V to the designated positive terminal.
• Signal Output: Connect the 4-20mA signal positive to the corresponding terminal.
• Ground: Connect the ground wire to the ground terminal.

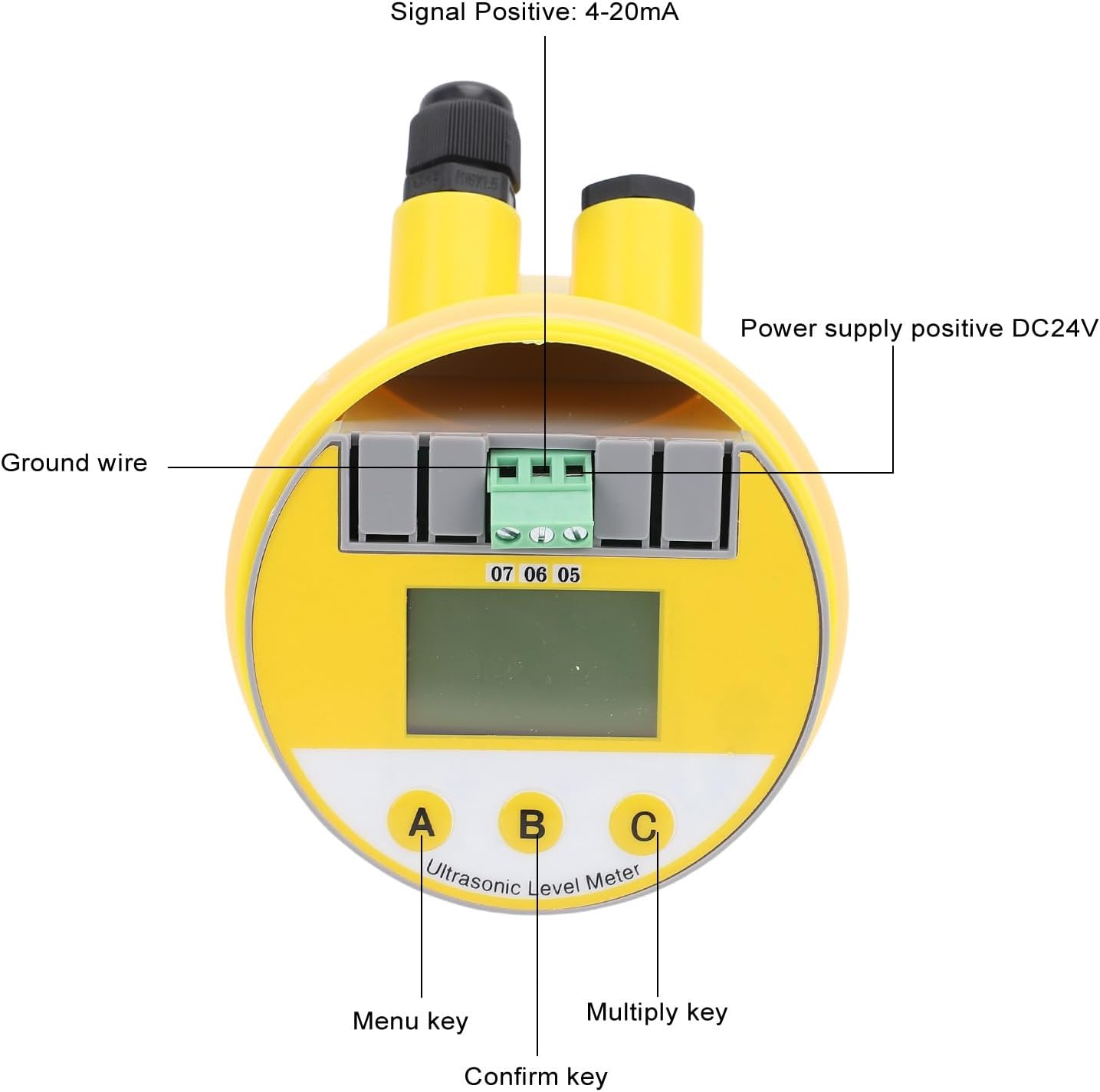

Figure 3: Internal view showing the terminal block for electrical connections. Labels indicate 'Signal Positive: 4-20mA', 'Power supply positive DC24V', and 'Ground wire'. The image also shows the three light touch keys: 'Menu key' (A), 'Confirm key' (B), and 'Multiply key' (C).

6. Operation

The Walfront Ultrasonic Level Meter features an LCD display and three light touch keys (A, B, C) for configuration and operation.

6.1 Key Functions

• Key A (Menu): Used to access the menu and navigate through options.
• Key B (Confirm): Used to confirm selections or enter values.
• Key C (Multiply): Used for adjusting values or specific functions within the menu.

6.2 Configuration Options

The device offers several configurable settings:

• Level/Liquid Level Mode Selection: Choose between different measurement modes based on the application.
• Output Range Setting: The start and end of the 4-20mA output range can be set arbitrarily to match your system requirements.
• HART Communication: HART communication protocol is available for advanced configuration and data retrieval.
• Restore Settings: Supports restoring factory settings if needed.
• Digital Filtering: Built-in digital filtering to enhance measurement stability.
• Dynamic Recognition: Features dynamic recognition capabilities for improved performance.

7. Measurement Principles

The ultrasonic level meter operates by emitting ultrasonic pulses towards the liquid surface and measuring the time it takes for the echo to return. This time-of-flight measurement is then converted into a distance, which corresponds to the liquid level.

• Dead Zone: This is the minimum distance from the sensor face within which accurate measurements cannot be made. Ensure the liquid level does not enter this zone.
• Measuring Range: The total distance over which the sensor can accurately measure the liquid level (0-10m for this model).
• Current Liquid Level (H): The calculated distance from the sensor to the liquid surface.

Figure 4: Diagram illustrating the ultrasonic measurement principle, including the 'Dead zone', 'Maximum liquid level', 'Measuring distance L', and 'Current liquid level H'. The ultrasonic waves are shown reflecting off the liquid surface.

8. Applications

The Walfront Ultrasonic Level Meter is suitable for a wide range of industrial applications due to its robust design and accurate measurement capabilities.

• Water and Wastewater Treatment: Ideal for pumping stations, collecting wells, biochemical reaction tanks, and sedimentation tanks.
• Electric Power and Mining: Suitable for gray slurry pools, coal slurry pools, and water treatment facilities.
• Industrial Tanks: Monitoring liquid levels in various industrial tanks, including those containing strong acidity and alkali.
• River Reservoirs: Can be used for monitoring water levels in river reservoirs.

Figure 5: Examples of multi-occasion applications, including River Reservoirs, Sewage Treatment, Strong Acidity And Alkali tanks, and general Tank Liquid Level monitoring.

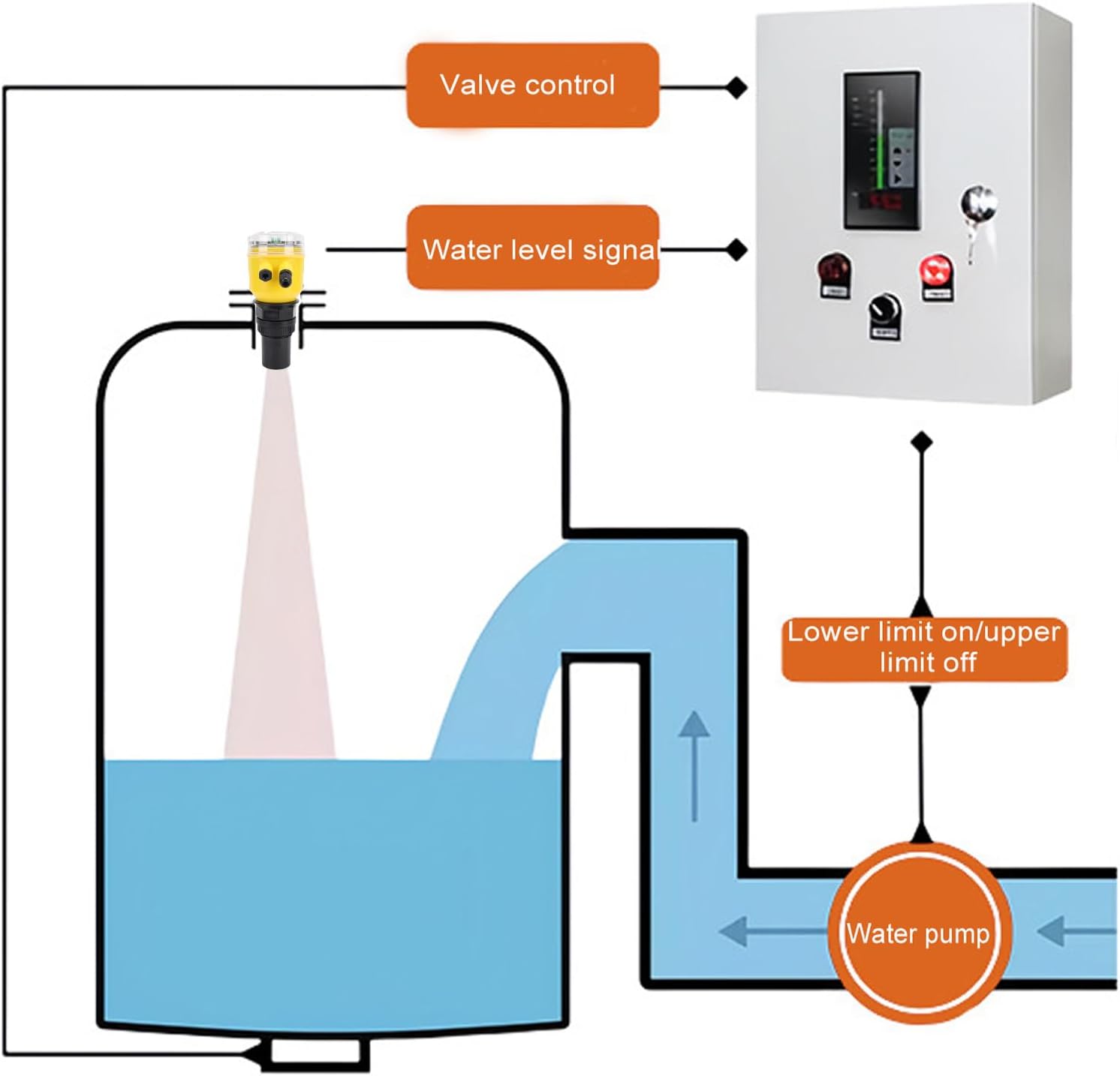

Figure 6: An application diagram demonstrating how the ultrasonic level meter can integrate with a control system for valve control and water pump operation based on water level signals, managing lower and upper limits.

9. Maintenance

The Walfront Ultrasonic Level Meter is designed for minimal maintenance. However, regular checks can ensure its longevity and accuracy.

• Cable Connections: Periodically check and ensure all inlet and outlet cables are securely tightened. Loose connections can lead to intermittent operation or signal loss.
• Sensor Surface: Keep the transducer surface clean from excessive buildup or debris, which could interfere with ultrasonic wave transmission and reception.
• Housing Integrity: Inspect the ABS waterproof housing for any signs of damage or cracks that could compromise its IP65 protection.
• Environmental Conditions: Ensure the operating environment remains within the specified normal temperature and pressure ranges.

10. Troubleshooting

If you encounter issues with your Walfront Ultrasonic Level Meter, consider the following general troubleshooting steps:

• No Reading/Inaccurate Reading:
  • Check power supply (DC 24V).
  • Verify cable connections are secure.
  • Ensure the transducer surface is clean.
  • Review installation guidelines (distance from wall, perpendicularity, obstacles, inlet position) as per Section 4.
  • Check if the liquid level is within the blind zone or beyond the measuring range.
• No Output Signal (4-20mA):
  • Confirm wiring for the 4-20mA output.
  • Check the output range settings in the device configuration.
• Display Issues:
  • Ensure power supply is stable.
  • If the display is blank, check power and internal connections.

For persistent issues or complex problems, please contact Walfront customer support for assistance.

11. Warranty and Support

For information regarding product warranty, technical support, or service, please refer to the documentation provided with your purchase or contact Walfront directly through their official channels. Ensure you have your product model (666RP) and any relevant purchase details available when seeking support.
