Introduction
This manual provides detailed instructions for the safe and effective use of your Preciva Hot Knife Foam Cutter, Model 960 VIII+. This electric tool is designed for precise cutting of various materials such as PE foam, XPS, rope, and fabric, featuring a digital display for temperature control and overheat protection.

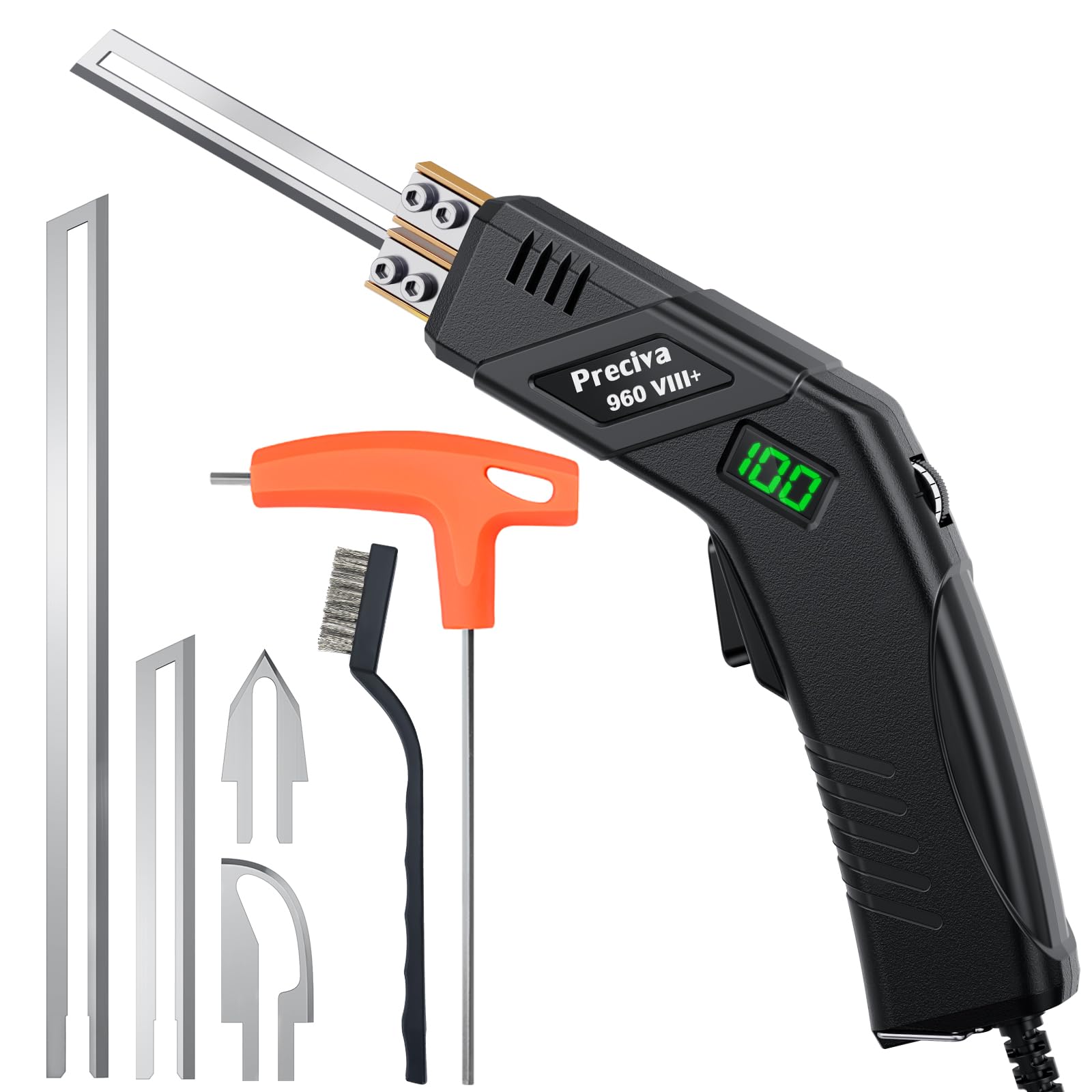

Figure 1: Preciva Hot Knife Foam Cutter, Model 960 VIII+
Safety Information
Please read and understand all safety warnings and instructions before operating this tool. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.
- Ventilation: Always operate the hot knife in a well-ventilated area. Cutting foam with heat can release fumes that may be harmful if inhaled. Consider using a fume hood or working outdoors.
- Hot Surfaces: The blade and surrounding components become extremely hot during operation. Avoid contact with skin and flammable materials. Allow the tool to cool completely before storing.
- Overheat Protection: The tool features an overheat protection system (displaying "OTT"). If activated, allow the tool to cool down. It will automatically restore operation within 30 seconds. This system protects the tool from damage.
- Blade Installation: Ensure blades are securely fastened with the included wrench. Loose blades can lead to poor performance and potential hazards.
- Power Source: Use only with a 110V-127V power supply.
- Storage: Store the tool and accessories in a dry, safe place, out of reach of children.
Product Components
The Preciva Hot Knife Foam Cutter kit includes the following items:
- Hot Knife Cutter (1 unit)
- 20cm Nickel-Chromium Blade (1 unit)
- 10cm Nickel-Chromium Blade (1 unit)
- Scimitar Blade (1 unit)
- Spearhead Blade (1 unit)
- Wrench (1 unit)
- Wire Brush (1 unit)

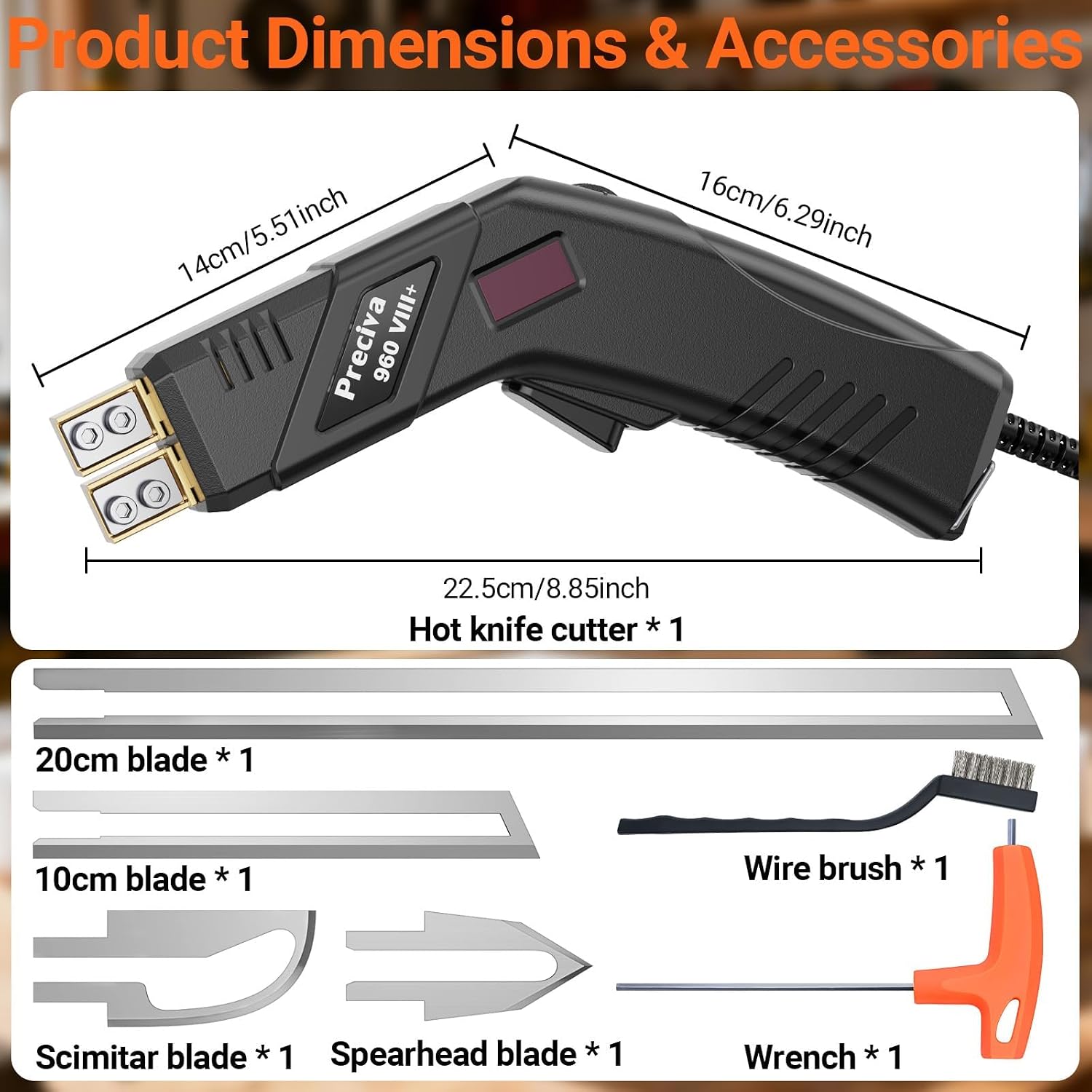

Figure 2: Product Components and Dimensions
Setup Instructions
Follow these steps to prepare your hot knife for use:
- Loosen Screws: Use the included wrench to loosen the screws on the knife holder.
- Insert Blade: Carefully insert the desired blade into the knife holder. Ensure it is seated correctly.
- Tighten Screws: Securely tighten all screws with the wrench to ensure proper electrical contact and blade stability. A loose blade will not heat effectively and can be dangerous.
Figure 3: Blade Installation Steps
Operating Instructions
Operating the Preciva Hot Knife Foam Cutter is straightforward. Always ensure you are in a well-ventilated area.
- Connect Power: Plug the tool into a standard 110V-127V power outlet.
- Adjust Temperature: Use the temperature control roller to select the desired heat setting. The digital display will show the current temperature. The temperature scale rises from top to bottom. Start with lower settings and gradually increase as needed for your material.
- Temperature Range: 200-600°C (392°F-1112°F)
- Temperature Conversion: Display value × 9 + 212 = °F
- Heat Up: Press the switch to activate heating. The tool heats up rapidly, reaching 200°C (392°F) in approximately 6 seconds.
- Cutting: Once the blade is hot, gently guide it through the material. Apply steady, even pressure. The hot knife provides clean cuts and automatically seals edges, preventing fraying.
- Overheat Protection: If the display shows "OTT", the overheat protection is active. Release the switch and allow the tool to cool. Operation will resume automatically within 30 seconds.
Figure 4: Digital Temperature Control

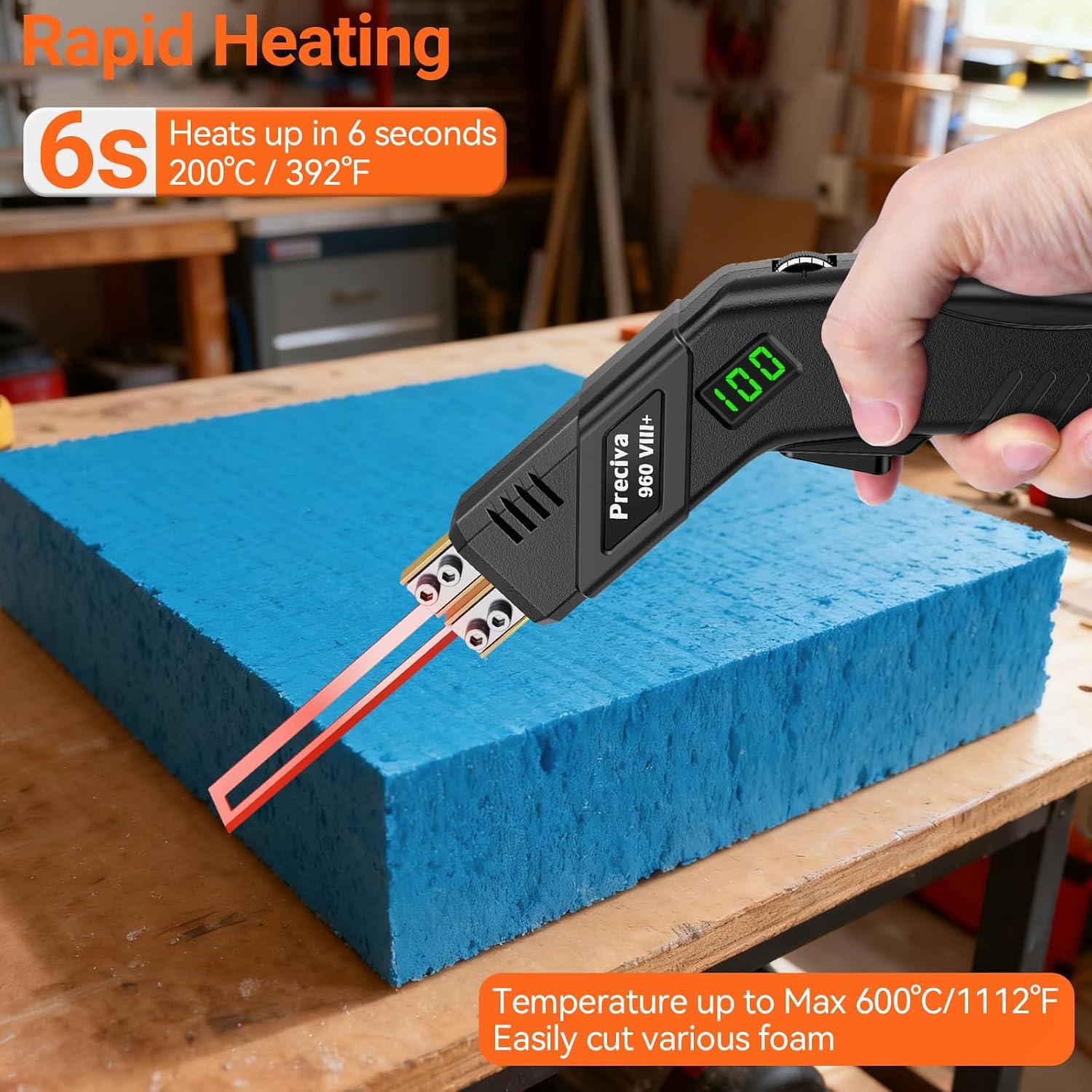

Figure 5: Rapid Heating and Cutting Action

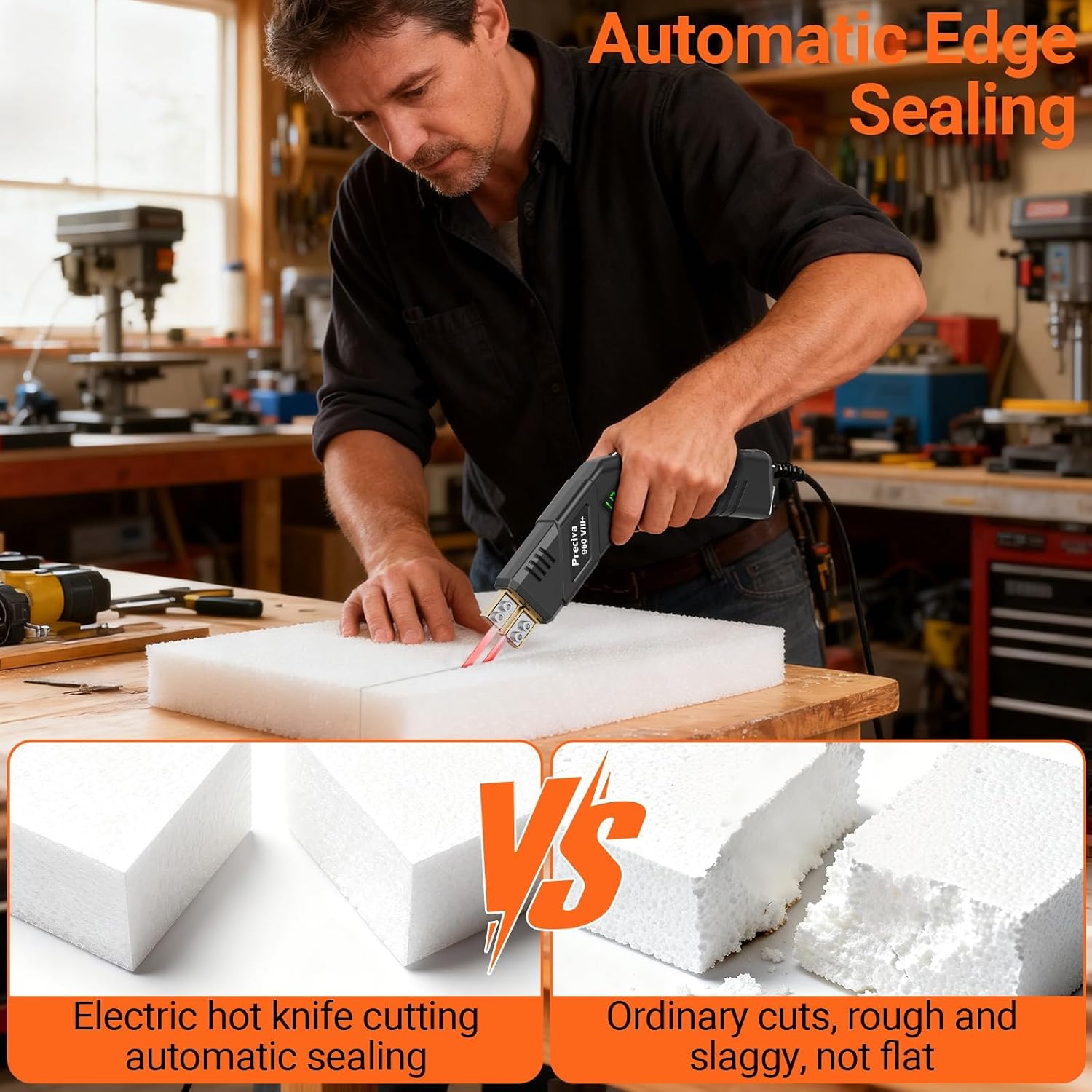

Figure 6: Automatic Edge Sealing Comparison
Maintenance
Proper maintenance ensures the longevity and performance of your hot knife.
- Blade Cleaning: After use, and once the blade has cooled sufficiently but is still warm, use the included wire brush to clean any residue from the blade. This prevents buildup and maintains cutting efficiency.
- Storage: Ensure the tool is completely cool and clean before storing it in its case or a safe, dry location.
- Inspection: Periodically inspect the power cord and blades for any signs of damage or wear. Replace damaged blades immediately.
Refer to Step 6 in Figure 3 for a visual guide on cleaning the blade.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not heat up. | Not plugged in; loose blade connection; power issue. | Check power connection. Ensure blade screws are tightened securely. Verify power outlet is functional. |
| "OTT" displayed on screen. | Overheat protection activated. | Release the switch and allow the tool to cool down. It will reset automatically within 30 seconds. |
| Cuts are rough or uneven. | Incorrect temperature setting; dull or dirty blade; improper technique. | Adjust temperature (increase for harder materials, decrease for softer). Clean the blade with the wire brush. Use a steady hand and a guide for straight cuts. |
| Blade twists or bends during cutting. | High temperature setting; inherent blade characteristic (especially long blades). | Reduce temperature. Ensure blade is securely fastened. Consider using a shorter blade for more stability or a guide for long cuts. |
Specifications
- Model Number: 960 VIII+
- Power Rating: 80W
- Voltage: 110V-127V
- Temperature Range: 200-600°C (392°F-1112°F)
- Blade Material: Nickel-Chromium
- Handle Material: Rubber
- Base Material: Pure Copper
- Item Length: 30 Centimeters (approx. 11.8 inches)
- Item Weight: 699 g (approx. 1.54 lbs)
- Color: Black
Applications
The Preciva Hot Knife Foam Cutter is suitable for cutting a wide range of materials, including but not limited to:
- PE Foam
- Foam Boards
- XPS Insulation Materials
- Rope
- Fabrics
- Sponge
- Leather
- KT Board / Extruded Board
- Polyethylene Nylon Rope
- Hollow Board / PP Plastic
Figure 7: Wide Range of Applications
Warranty and Support
Specific warranty details are not provided in the product information. For warranty claims, technical support, or inquiries regarding your Preciva Hot Knife Foam Cutter, please contact Preciva customer service or visit the official Preciva store on Amazon:
