Alpicool KGS58 46L Dual-Zone Portable Car Refrigerator User Manual

1. Introduction

Thank you for purchasing the Alpicool KGS58 46L Portable Car Refrigerator. This appliance is designed to provide efficient cooling and freezing for your food and beverages, whether you are on the road, camping, or at home. It features a dual-zone design with independent temperature control, rapid cooling capabilities, and multiple power options for versatile use. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.

2. Safety Information

• Ensure the power supply voltage matches the specifications of the refrigerator.
• Do not operate the appliance if the power cord is damaged. Contact customer support for replacement.
• Keep the ventilation openings clear of obstructions.
• Do not use electrical appliances inside the storage compartments unless they are of the type recommended by the manufacturer.
• Avoid exposing the refrigerator to direct sunlight or heat sources.
• Do not immerse the appliance in water or expose it to heavy rain.
• Always disconnect the power supply before cleaning or performing maintenance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

3. Package Contents

Please check the package for the following items:

• Alpicool KGS58 Refrigerator Unit
• AC Power Cord with Adapter (approx. 2.2m)
• DC Power Cord (approx. 2.5m)
• User Manual (Japanese version included, English version provided here)

Figure 3.1: Refrigerator components and included accessories. This image shows the main unit with labels for the control panel, power input, compressor compartment, LED light, and handles. Below it are illustrations of the AC power cord, DC power cord, and the user manual.

4. Product Features

• Dual-Zone, Dual-Lid Independent Temperature Control: The 46L capacity is divided into two compartments, each with its own lid and temperature setting. This allows for simultaneous freezing and cooling, preventing cold air loss and flavor mixing.
• Low Noise & Rapid Freezing: Equipped with a variable speed DC compressor for efficient and quiet operation (approx. 45dB). The MAX rapid cooling mode can reach 0°C from 25°C in approximately 15 minutes.
• Large Capacity & Compact Design: Despite its compact exterior, the 46L interior can hold a significant amount of items, such as 64 cans (330ml), 52 PET bottles (500ml), or 9 wine bottles (750ml).
• Easy Touch Panel Operation: Features a clear LCD touch panel for real-time temperature display and precise 1°C increment adjustments. A memory function retains settings after power off.
• 3-Way Power Compatibility: Supports DC power (12V/24V from car cigarette lighter), AC power (100V household outlet), and portable power sources (sold separately).
• Low Voltage Protection: Automatically stops the compressor if the car battery voltage drops too low, preventing vehicle battery drain.
• Interior LED Light: Provides illumination inside the compartments for easy access in dark conditions.
• Built-in Bottle Opener: For convenience during outdoor activities.

Figure 4.1: The Alpicool KGS58 portable car refrigerator in an outdoor setting, highlighting its dual-zone temperature control feature. The inset shows the two compartments with different items and temperature ranges.

Figure 4.2: An internal view of the Alpicool KGS58 refrigerator, illustrating its 46L capacity and how many 330ml cans, 500ml PET bottles, or 750ml wine bottles it can hold. Key dimensions are also shown.

Figure 4.3: This image demonstrates the rapid cooling and freezing capabilities of the Alpicool KGS58. It shows the refrigerator cooling items from 25°C to 0°C in approximately 15 minutes, with visual examples of refrigerated fruits and frozen shrimp.

5. Setup

5.1 Unpacking

1. Carefully remove the refrigerator from its packaging.
2. Inspect the appliance for any damage during transit. If damaged, do not operate and contact customer support.
3. Remove all packing materials, including any protective films or tapes.

5.2 Placement

• Place the refrigerator on a flat, stable surface.
• Ensure there is adequate ventilation around the unit, especially around the compressor area. Maintain at least 10 cm of space from walls or other objects.
• Avoid placing the unit in direct sunlight or near heat sources.
• The refrigerator is designed with a shock-resistant structure, allowing stable operation even at a 45-degree tilt.

Figure 5.1: The top panel illustrates the refrigerator's shock-resistant design, showing a car on rough terrain with the cooler. The bottom panel highlights its quiet operation, depicting a sleeping baby, indicating a low noise level of 45dB.

5.3 Power Connection

The Alpicool KGS58 supports three power input methods:

• DC 12V/24V (Car): Connect the DC power cord to the refrigerator's DC input port and then to your vehicle's cigarette lighter socket.
• AC 100V (Household): Connect the AC power cord to the refrigerator's AC input port and then to a standard household electrical outlet.
• Portable Power (Optional): The unit is compatible with portable power stations (sold separately). Connect using the appropriate cable.

Figure 5.2: This image displays the three power options for the Alpicool KGS58: portable power, connection to a car's cigarette lighter socket, and a standard household AC outlet, demonstrating its versatility.

6. Operating Instructions

6.1 Control Panel Overview

The refrigerator features an intuitive LCD touch panel. Refer to the diagram below for button functions:

Figure 6.1: Close-up of the control panel, showing the temperature adjustment buttons (+/-), power button, and settings button. The display shows current temperatures for both zones and battery protection level.

• Power Button: Press to turn the unit ON/OFF.
• Temperature Adjustment Buttons (+/-): Press to increase or decrease the temperature setting for the selected compartment.
• Settings Button: Press to cycle through settings such as temperature unit (°C/°F), battery protection level (H/M/L), and operating mode (MAX/ECO).

6.2 Setting Temperature

1. Turn on the refrigerator by pressing the Power Button.
2. The display will show the current temperature of each compartment.
3. To adjust the temperature for a specific compartment, press the corresponding +/- buttons. The temperature can be adjusted in 1°C increments.
4. The set temperature will flash briefly and then stabilize. The unit will begin cooling/freezing to the set temperature.

6.3 Operating Modes (MAX/ECO)

The refrigerator offers two operating modes:

• MAX Mode: Provides rapid cooling/freezing. Ideal when you need to quickly reach the desired temperature.
• ECO Mode: Energy-saving mode. The compressor operates at a lower power, consuming less electricity. Suitable for maintaining temperature over longer periods.

To switch between modes, press the Settings Button until 'MAX' or 'ECO' appears on the display, then use the +/- buttons to select your desired mode.

Figure 6.2: This image illustrates the energy consumption difference between ECO mode (approx. 450Wh/day) and MAX mode (approx. 600Wh/day), showing that total daily consumption is less than 1 kWh.

6.4 Low Voltage Protection

The unit features a 3-level battery protection system (H - High, M - Medium, L - Low) to prevent your vehicle's battery from draining. When the input voltage drops below the set level, the compressor will automatically shut off. It will resume operation when the voltage returns to a safe level.

To adjust the battery protection level, press the Settings Button until the battery icon appears, then use the +/- buttons to select H, M, or L. It is recommended to use 'H' for car batteries and 'L' for portable power sources.

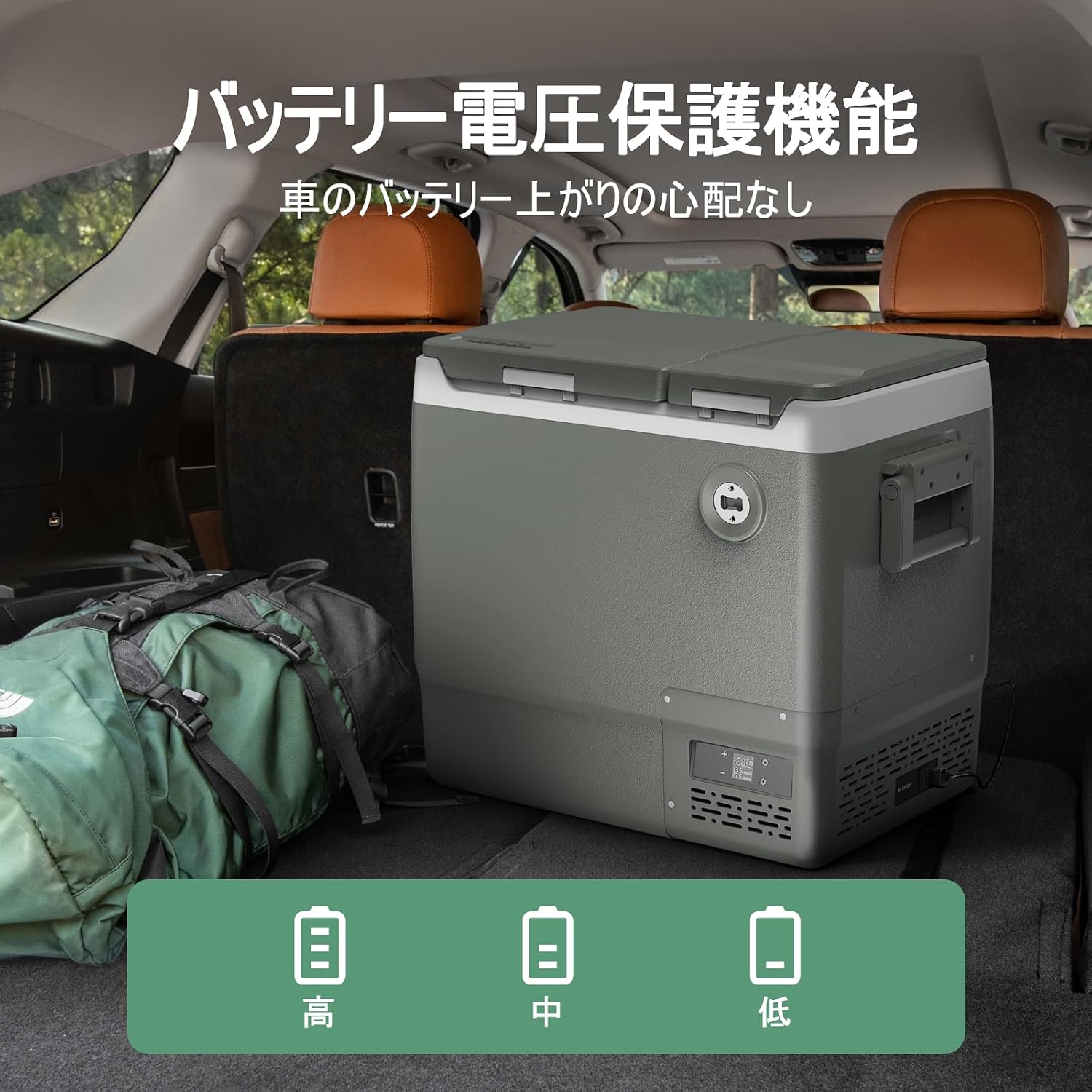

Figure 6.3: The Alpicool KGS58 refrigerator placed in a car trunk, demonstrating its battery voltage protection feature. Icons for High, Medium, and Low battery protection levels are displayed.

7. Maintenance

7.1 Cleaning

• Always unplug the refrigerator before cleaning.
• Clean the interior and exterior surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners or solvents.
• Ensure the unit is completely dry before reconnecting power.
• Regularly clean the ventilation grilles to ensure proper airflow and efficiency.

7.2 Storage

• If storing for an extended period, ensure the unit is clean and dry.
• Leave the lids slightly ajar to prevent odors and mold growth.
• Store in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.

8. Troubleshooting

9. Specifications

10. Warranty and Support

10.1 Warranty Information

• Compressor: 3-year warranty from the date of purchase.
• Other Accessories: 1-year warranty from the date of purchase.

Please retain your proof of purchase for warranty claims.

10.2 Customer Support

If you have any questions, concerns, or require assistance with your Alpicool KGS58 refrigerator, please do not hesitate to contact our customer support team. We aim to provide prompt assistance within 24 hours.

For support, please visit the Alpicool store on Amazon or refer to the contact information provided with your purchase documentation.

Figure 10.1: Alpicool customer support is available to assist with product inquiries and issues.
