Aoxun 16' x 10' Gazebo Pergola Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Aoxun 16' x 10' Gazebo Pergola. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper assembly and care will ensure the longevity and safe use of your gazebo.

Safety Information

• Always follow the assembly instructions carefully.
• Use expansion bolts and ground nails to secure the gazebo to a stable wall and ground.
• Do not attempt to assemble or disassemble the gazebo alone.
• Keep children and pets away from the assembly area.
• Do not use the gazebo in high winds or heavy snow until properly secured.

Product Dimensions

The Aoxun 16' x 10' Gazebo Pergola is designed to provide ample outdoor living space. Refer to the diagram below for detailed measurements.

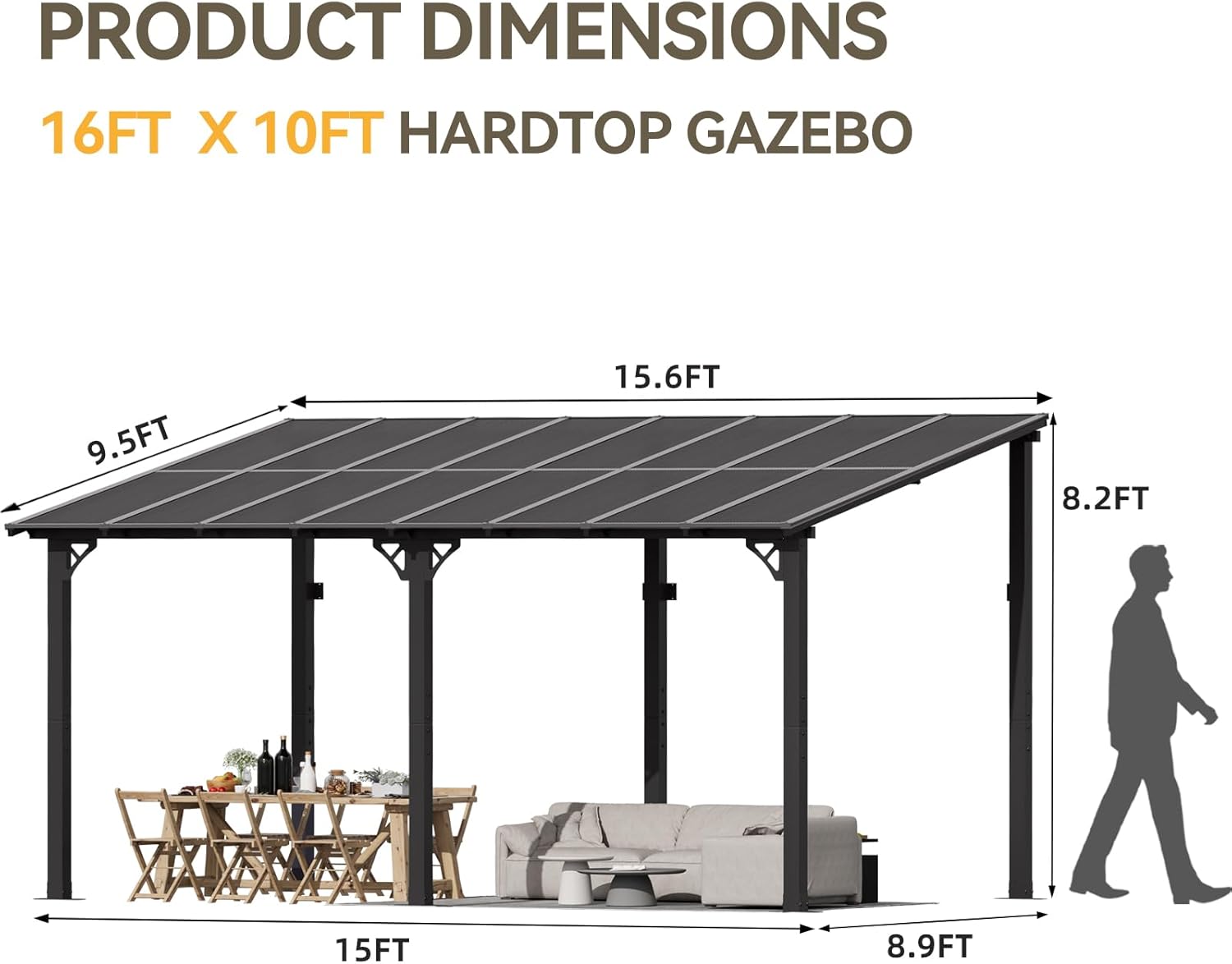

Figure 1: Product Dimensions. The gazebo measures approximately 15.6 feet in length, 9.5 feet in width, and 8.2 feet in height at its tallest point.

Product Features

Premium Material & Excellent Load-bearing

The pergola's top has a load-bearing capacity of 55 lbs/ft², designed to withstand various weather conditions when properly wall-mounted with expansion bolts. The polycarbonate top reflects 99% of UV rays, offering UV protection. With ground nails and expansion bolts installed, it can resist winds up to Grade 7 (31-38 mph) and support a maximum snow loading depth of 4 inches.

Stable and Solid Construction

Carbon steel frames and a triangular metal structure ensure the durability, stability, and sturdiness of the patio pergola. It is designed to provide partial shade and define an outdoor area. This unit is wall-mounted and requires installation on a suitable wall for proper function.

Figure 2: Product Detail highlighting key structural elements like triangular supports, pre-drilled metal supports, multiple column supports, and wall-mounting hardware.

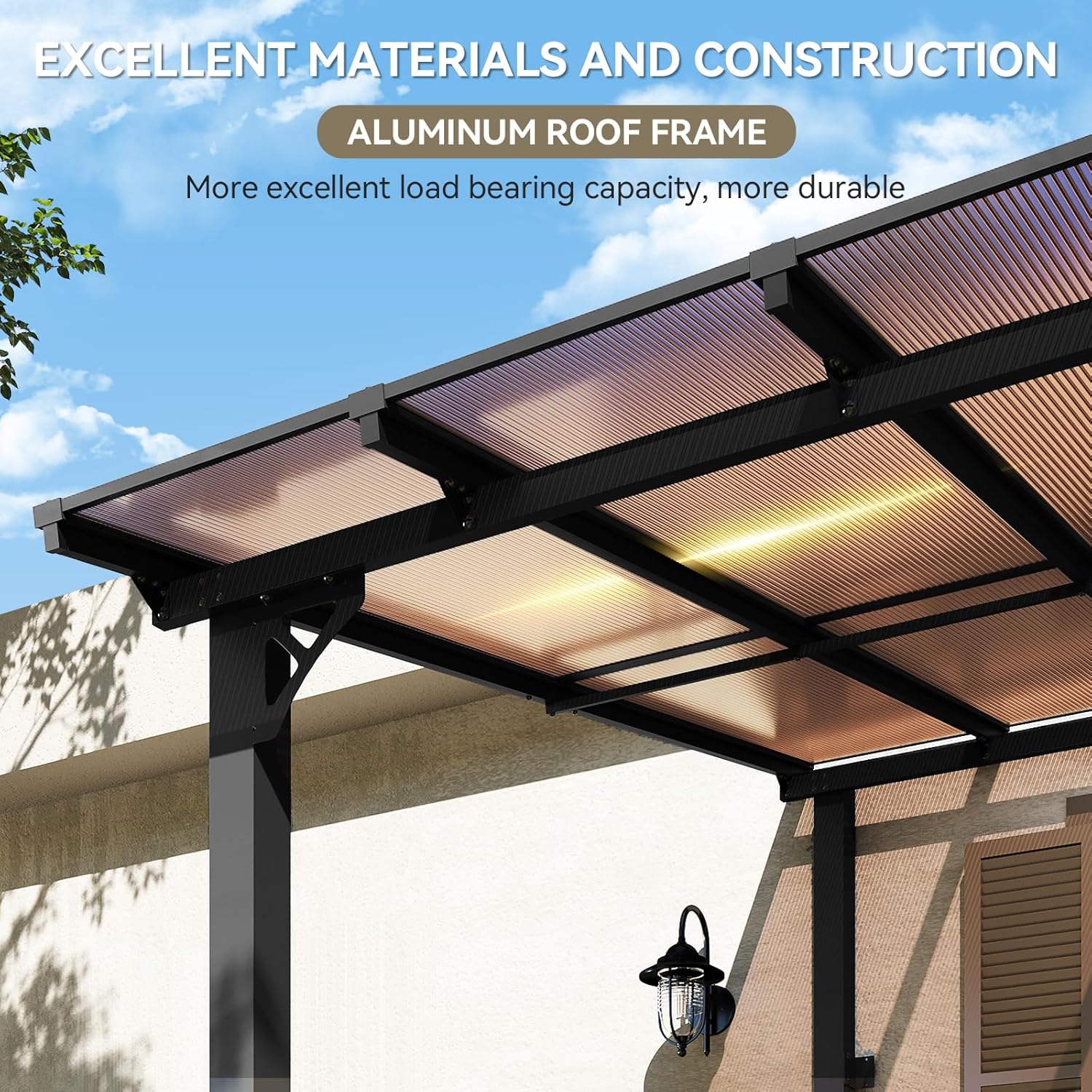

Figure 3: Excellent Materials and Construction, featuring the aluminum roof frame for enhanced load-bearing capacity and durability.

Sloped Roof and Gap Drainage

The sloped roof design facilitates smooth and easy rainwater runoff, preventing water accumulation. This patio pergola also incorporates gap drainage to further assist in efficient water removal.

Figure 4: Drainage System. Rainwater is quickly drained along the eaves, preventing accumulation.

Weather Resistance

The gazebo is designed to be 99% UV resistant in summer and has a maximum snow depth capacity of 7 inches in winter, with a wind resistance rating of Level 7 (31-38 mph).

Figure 5: Wind Resistance Rating of Level 7. The gazebo offers 99% UV resistance in summer and can handle a maximum snow depth of 7 inches in winter.

Practical and Versatile

This pergola is suitable for various outdoor settings, including areas near a pool, hot tub, or as an outdoor dining or entertainment space. It can be customized with string lights, hanging plants, or outdoor furniture to enhance its ambiance.

Figure 6: Key attributes including Fire Resistance, Sturdy Frame, Exceptional Ventilation, and Water Resistance. Installation against adjacent walls helps withstand strong winds.

Setup and Assembly

Assembly of the Aoxun Gazebo Pergola requires careful attention to the provided instructions. We recommend that 2-3 persons work together to complete the assembly, which typically takes about 2-3 hours.

1. Unpack and Identify Parts: Carefully unpack all components and verify against the parts list in your assembly guide. Organize parts for easy access.
2. Prepare the Installation Area: Ensure the wall and ground where the gazebo will be installed are level and stable. Clear any obstructions.
3. Assemble the Frame: Follow the step-by-step illustrations to connect the carbon steel frame components. Pay close attention to the orientation of each piece.
4. Install Roof Panels: Carefully place and secure the polycarbonate roof panels onto the assembled frame. Ensure all panels are correctly seated and fastened to prevent leaks.
5. Wall-Mounting: Securely attach the gazebo to your wall using the provided expansion bolts. This step is crucial for stability and safety.
6. Ground Anchoring: Use ground nails to anchor the gazebo's posts to the ground, enhancing its wind resistance.
7. Final Checks: Double-check all bolts and connections to ensure they are tight and secure. Verify the stability of the entire structure.

For visual guidance, refer to the detailed illustrations in your physical instruction manual.

Maintenance

• Regular Cleaning: Clean the roof panels and frame periodically with mild soap and water. Avoid abrasive cleaners or tools that could scratch surfaces.
• Inspect Fasteners: Annually inspect all bolts, screws, and anchors for tightness. Re-tighten as necessary to maintain structural integrity.
• Snow Removal: In areas with heavy snowfall, regularly remove accumulated snow from the roof to prevent excessive load and potential damage.
• Drainage System: Keep the drainage channels clear of debris (leaves, dirt) to ensure efficient water runoff.
• Seasonal Checks: Before and after seasons with extreme weather (heavy winds, snow), perform a thorough inspection of the entire structure.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Aoxun website. Keep your purchase receipt as proof of purchase.
