1. Introduction
Thank you for purchasing the IMUSA LP-1213 Ultrasonic Humidifier. This manual provides important information for the safe and efficient use of your new humidifier. Please read it thoroughly before use and keep it for future reference.
This humidifier features a 2.5L capacity, top-fill design, 3-level mist adjustment, a timer, quiet operation, sleep mode, dry-burn protection, an LED panel, and remote control. It is designed to provide powerful humidification for areas up to 32 tatami mats (approximately 53 square meters) and can operate continuously for up to 32 hours.
Image: The humidifier highlights its 32-hour continuous operation and 2.5L tank capacity, suitable for extended use.
2. Safety Precautions
To ensure safe operation and prevent damage, please observe the following precautions:
- Always place the humidifier on a firm, flat, water-resistant surface.
- Do not block the mist outlet or air inlet.
- Do not immerse the unit in water or other liquids.
- Unplug the humidifier before filling, cleaning, or moving it.
- Keep out of reach of children and pets.
- Use only clean tap water. Distilled or demineralized water is recommended to prevent mineral buildup.
- Do not add essential oils directly into the water tank. Use the designated aroma tray if available.
- The humidifier is equipped with an automatic shut-off feature that activates when the water level is too low (dry-burn prevention).
- This product is PSE certified, meeting Japanese electrical safety standards.
Image: The humidifier features a timer function and dry-burn prevention for enhanced safety and peace of mind, automatically shutting off when water is low.
3. Package Contents
Please check the package for the following items:
- IMUSA LP-1213 Humidifier Unit
- Remote Control
- User Manual (this document)
Image: The humidifier unit and its retail packaging, indicating the contents and basic dimensions.
4. Product Overview
Familiarize yourself with the components of your IMUSA LP-1213 Humidifier.
4.1 Main Components
- Water Tank: 2.5L capacity for extended operation.
- Mist Outlet: 360° rotatable nozzle for directing mist.
- Control Panel: Touch-sensitive buttons for power, mist level, timer, LED light, and brightness.
- Base Unit: Contains the ultrasonic transducer and electronic components.
- Aroma Tray: For adding water-soluble essential oils.
4.2 Control Panel and Remote Control
The humidifier can be operated via the touch panel on the unit or the included remote control.
Image: Detailed view of the humidifier's touch control panel and the remote control, showing button functions.
| Icon | Function | Description |
|---|---|---|
| ⏻ | Power / Mist Mode | Short press to turn ON/OFF and cycle through mist modes (Low, Medium, High). Long press to turn OFF. |
| ⏱ | Timer / Sleep Mode | Short press to set off-timer (2, 4, 8 hours). Long press to activate Sleep Mode. |
| 💡 | Light | Short press to turn on RGB light and cycle through colors. |
| ☼ | Brightness | Short press to adjust LED light brightness. |
Note: The remote control offers the same functions as the touch panel for convenient operation from a distance.
5. Setup
5.1 Initial Placement
Place the humidifier on a flat, stable surface at least 15 cm (6 inches) away from walls and furniture. Ensure the mist outlet is not directed towards walls or electronic devices.
5.2 Filling the Water Tank
The IMUSA LP-1213 features a convenient top-fill design.
- Ensure the humidifier is unplugged.
- Remove the top cover.
- Pour clean tap water directly into the water tank up to the MAX fill line. Avoid overfilling.
- Alternatively, you can remove the entire water tank and fill it directly from a faucet.
- Replace the top cover securely.
Image: Instructions for water supply, showing top-fill without removing the lid, top-fill by removing the lid, and direct filling of the tank from a faucet.
5.3 Adding Aroma Oils (Optional)
If your model includes an aroma tray, you can add water-soluble essential oils for a pleasant fragrance.
- Locate the aroma tray (usually a small compartment on the side or back of the base unit).
- Add a few drops of water-soluble essential oil onto the aroma pad.
- Do not add oil directly into the water tank, as this can damage the unit.
Image: A person adding aroma oil to the designated aroma tray of the humidifier.
6. Operating Instructions
6.1 Power On/Off and Mist Level Adjustment
- Plug the humidifier into a power outlet. The unit will beep once.
- Press the Power/Mist Mode button (⏻) once to turn on the humidifier at the default mist level (Low).
- Press the Power/Mist Mode button repeatedly to cycle through mist levels: Low (approx. 160ml/h), Medium (approx. 260ml/h), High (approx. 400ml/h).
- To turn off the humidifier, long press the Power/Mist Mode button.

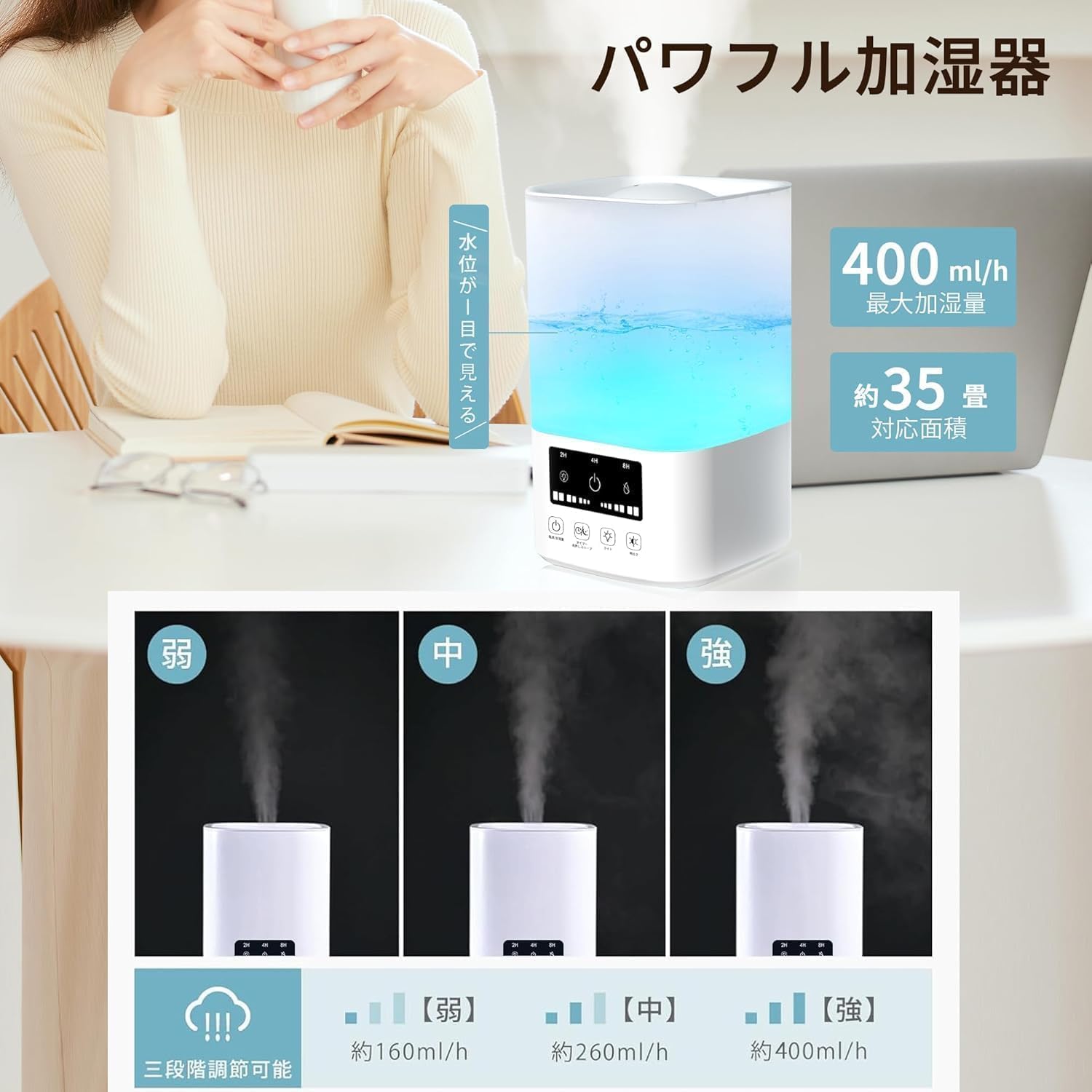

Image: Visual representation of the three adjustable mist levels: Low, Medium, and High, with corresponding output rates.
6.2 360° Rotating Nozzle
The mist outlet can be rotated 360 degrees to direct the mist flow in any desired direction.
Image: A hand demonstrating the 360-degree rotation of the mist nozzle for directional humidification.
6.3 Timer Function
Set the humidifier to automatically turn off after a specified period.
- Press the Timer/Sleep Mode button (⏱) repeatedly to set the timer for 2, 4, or 8 hours.
- The corresponding indicator light on the LED panel will illuminate.
- To cancel the timer, press the button until no timer indicator is lit.
6.4 Sleep Mode
Activate Sleep Mode for quiet operation and dimmed lights, ideal for nighttime use.
- Long press the Timer/Sleep Mode button (⏱) to enter Sleep Mode.
- In Sleep Mode, the humidifier operates quietly (approx. 24dB), and the LED display lights are dimmed or turned off.
- Long press the button again to exit Sleep Mode.
Image: The humidifier in Sleep Mode, demonstrating its quiet operation (24dB) suitable for a bedroom environment.
6.5 LED Mood Light
The humidifier features an 8-color gradient LED mood light.
- Press the Light button (💡) to turn on the LED light.
- Press repeatedly to cycle through different colors or activate the automatic color-changing mode.
- Long press the Light button to turn off the LED light.
Image: The humidifier showcasing its 8-color mood light feature, enhancing the ambiance of a room.
7. Maintenance
Regular cleaning is essential for optimal performance and hygiene.
7.1 Daily Maintenance
- Empty any remaining water from the tank and base unit.
- Rinse the water tank with fresh water.
- Wipe the base unit and mist outlet with a clean, damp cloth.
7.2 Weekly Cleaning
To prevent mineral buildup and ensure clean mist output:
- Unplug the humidifier and disassemble the water tank from the base.
- Fill the water tank with a mixture of equal parts white vinegar and water. Let it soak for 30 minutes.
- Use a soft brush or cloth to clean the inside of the tank and the ultrasonic transducer in the base unit.
- Rinse all components thoroughly with clean water until the vinegar smell is gone.
- Dry all parts completely before reassembling.
Image: The humidifier disassembled into its main components for easy cleaning and maintenance, highlighting the removable water tank.
8. Troubleshooting
If you encounter any issues, please refer to the following table before contacting customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No mist or weak mist | Low water level Mineral buildup on transducer Mist outlet blocked | Refill water tank Clean transducer with vinegar solution Clear any obstructions from mist outlet |
| Unit does not turn on | Not plugged in Power outage Water tank not properly seated | Check power connection Check household power Ensure water tank is correctly placed on the base |
| Unusual odor | Stagnant water Dirty water tank/base | Empty and refill with fresh water daily Clean the water tank and base thoroughly |
| Water leakage | Water tank not properly sealed Overfilled tank | Ensure tank is correctly seated and lid is secure Do not exceed the MAX fill line |
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | LP-1213 |
| Brand | IMUSA |
| Capacity | 2.5 Liters |
| Power Supply | AC100-240V, 50/60Hz |
| Power Consumption | 20W |
| Max Humidification | Approx. 400ml/h |
| Dimensions (L x W x H) | 18 x 17 x 29 cm |
| Weight | Approx. 1.2 kg |
| Noise Level | Approx. 24dB |
| Features | Aroma Diffuser, Remote Control, Constant Humidity, Leak Prevention, Adjustable Humidity Control |
Image: Diagram showing the humidifier's dimensions and a table listing its technical specifications.
10. Warranty & Support
10.1 Product Warranty
This IMUSA humidifier comes with a 1-year product warranty from the date of purchase. We also offer a 30-day free exchange policy from the purchase date. The product has undergone strict quality tests and is PSE certified, ensuring compliance with electrical safety standards.
10.2 Customer Support
If you have any questions or concerns regarding your humidifier, please do not hesitate to contact our customer support team. We aim to respond to inquiries within 24 hours on weekdays.
How to Contact Support:
- Go to your Amazon account service.
- Navigate to "Order History".
- Select your order for this product.
- Click on "Problem with order" and then "Contact Seller".
