1. Introduction
Thank you for choosing the Haier HWD90-BP14929A Washer Dryer. This appliance is designed to provide efficient and convenient laundry care with its advanced features and robust construction. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new washer dryer.
The Haier HWD90-BP14929A is a front-loading, freestanding washer dryer with a 9 kg washing capacity and a 5 kg drying capacity. It features a maximum spin speed of 1400 revolutions per minute (rpm) and incorporates Inverter Technology for quiet and energy-efficient performance. The appliance is rated Class A for washing energy efficiency and Class D for combined wash and dry cycles.
2. Safety Information
Please read all safety instructions carefully before using the appliance to prevent personal injury or damage to the unit. Keep this manual for future reference.
- Electrical Safety: Ensure the appliance is connected to a properly grounded electrical outlet. Do not use extension cords or adapters. Disconnect power before cleaning or maintenance.
- Water Safety: Ensure water inlet and drain hoses are securely connected to prevent leaks. Do not operate the machine if there is a water leak.
- Child Safety: Keep children away from the appliance during operation. Activate the child lock feature to prevent accidental program changes.
- Flammable Materials: Do not wash or dry items that have been soiled with flammable substances (e.g., oil, paint, gasoline).
- Ventilation: Ensure adequate ventilation around the appliance, especially during drying cycles, to prevent overheating.
- Overloading: Do not overload the machine beyond its specified capacities (9 kg wash, 5 kg dry) to ensure optimal performance and prevent damage.
3. Setup and Installation
Proper installation is crucial for the performance and longevity of your washer dryer. It is recommended to have the appliance installed by a qualified technician.
3.1 Unpacking and Transport Bolts
Before use, remove all packaging materials and transport bolts from the rear of the machine. These bolts secure the drum during transit and must be removed to prevent damage during operation. Store the transport bolts for future use if the appliance needs to be moved.
3.2 Location and Leveling
Place the appliance on a firm, level surface. Adjust the leveling feet at the bottom of the machine to ensure it is perfectly stable. An unstable machine can cause excessive vibration and noise during operation.
3.3 Water Connection
Connect the water inlet hose to a cold water tap. Ensure the connections are tight to prevent leaks. Position the drain hose into a suitable drain pipe or sink, ensuring it is securely fixed and not kinked.
3.4 Electrical Connection
Plug the power cord into a grounded electrical outlet (220-240 V AC). Ensure the outlet is easily accessible.

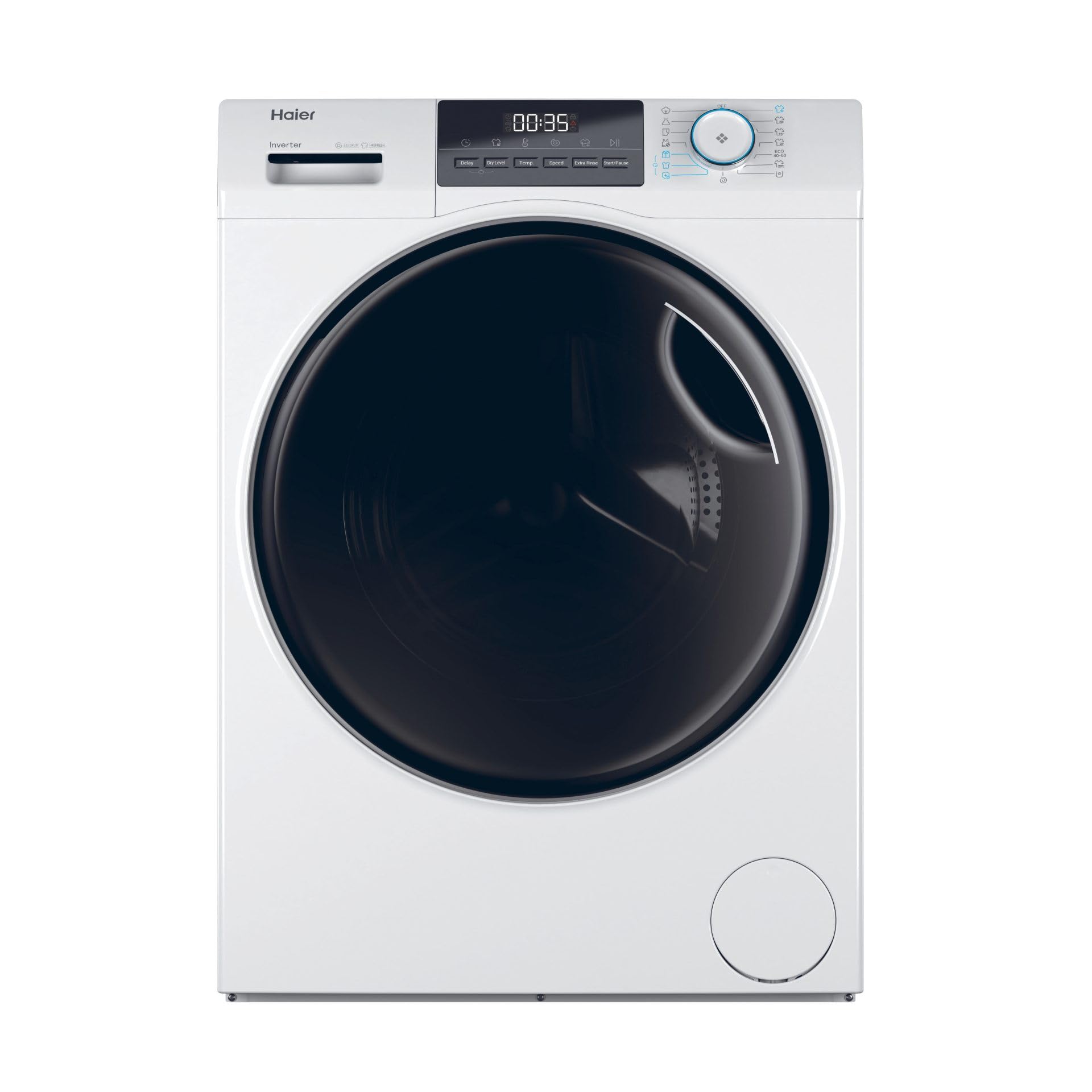

Figure 1: Front view of the Haier HWD90-BP14929A Washer Dryer.
4. Operating Instructions
4.1 Control Panel Overview
Figure 2: Close-up of the control panel and door.
The control panel features a central program selection knob, a digital display, and touch-sensitive buttons for various functions such as Delay, Dry Level, Temp, Speed, Extra Rinse, and Start/Pause.
4.2 Loading Laundry
Open the door (hinged on the left) and load your laundry into the stainless steel drum. Do not exceed the maximum load capacities: 9 kg for washing and 5 kg for drying. Close the door firmly.
4.3 Adding Detergent
Pull out the detergent dispenser drawer. Add the appropriate amount of detergent and fabric softener to their respective compartments. The appliance features an integrated dispenser.
4.4 Selecting a Program
Turn the program selection knob to choose your desired wash or dry program. The digital display will show the default settings for the selected program. You can adjust options like temperature, spin speed, and additional functions using the touch buttons.
4.5 Starting a Cycle
Press the Start/Pause button to begin the selected program. The remaining time indicator will show the estimated duration of the cycle.
4.6 Delay Start Function
To delay the start of a cycle, select your program and then press the Delay button repeatedly to set the desired delay time (up to 24 hours). Press Start/Pause to confirm.
4.7 Child Lock
To activate the child lock, refer to the specific instructions in your appliance's full manual. This feature prevents children from accidentally changing settings or opening the door during operation.
5. Programs Overview
The Haier HWD90-BP14929A offers a variety of programs to suit different fabric types and laundry needs:
- Baby Care: For thorough cleaning of baby clothes.
- Cotton: Standard program for cotton items.
- Cotton 20°C: Energy-saving program for lightly soiled cotton.
- Eco 40-60°C: Optimized program for cotton items normally washable at 40°C or 60°C, designed for energy and water efficiency.
- Quick 15min: Fast wash for small loads of lightly soiled items.
- Drum: Program for cleaning the appliance drum.
- Sport: For sportswear and synthetic fabrics.
- Synthetic: For synthetic and mixed fabric items.
- Refresh (Drying): A drying program to refresh clothes without a full wash.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your appliance.
6.1 Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
6.2 Cleaning the Detergent Dispenser
Periodically remove and clean the detergent dispenser drawer to prevent residue buildup. Rinse it under running water and dry thoroughly before reinserting.
6.3 Cleaning the Drum
Use the dedicated 'Drum' program with a suitable drum cleaner to remove any residue or odors from the stainless steel drum.
6.4 Cleaning the Pump Filter
The pump filter should be cleaned regularly to prevent blockages. Refer to the full manual for detailed instructions on how to access and clean the filter. Ensure the machine is drained and unplugged before attempting this.
6.5 Door Seal Maintenance
After each wash, wipe the door seal to remove any lint or moisture. This helps prevent mold and unpleasant odors.
Figure 3: View of the stainless steel drum with the door open.
7. Troubleshooting
If you encounter issues with your appliance, consult the following common problems and solutions before contacting customer service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not start | No power, door not closed, program not selected. | Check power supply, ensure door is latched, select a program and press Start. |
| Water not filling | Water tap closed, inlet hose kinked, water pressure low. | Open water tap, straighten hose, check water supply. |
| Water not draining | Drain hose kinked/blocked, pump filter blocked. | Check and clear drain hose, clean pump filter. |
| Excessive vibration/noise | Transport bolts not removed, appliance not level, uneven load. | Remove transport bolts, adjust leveling feet, redistribute laundry. |
| Clothes not drying properly | Overloaded, wrong drying program, lint filter blocked. | Reduce load, select appropriate drying program, clean lint filter (if applicable). |
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | HWD90-BP14929A |
| Type of Load | Front-loading |
| Appliance Placement | Freestanding |
| Product Color | White |
| Door Hinge | Left |
| Built-in Display | Yes |
| Inverter Technology | Yes |
| Control Type | Rotary knob |
| Drum Material | Stainless Steel |
| Washing Capacity | 9 kg |
| Drying Capacity | 5 kg |
| Maximum Spin Speed | 1400 RPM |
| Spin-drying Efficiency Class | B |
| Noise Emission Class | A |
| Noise Level (Spin) | 72 dB |
| Wash Cycle Duration | 228 min |
| Wash & Dry Cycle Duration | 480 min |
| Number of Wash Programs | 15 |
| Delay Start | Up to 24 h |
| Remaining Time Indicator | Yes |
| Child Lock | Yes |
| Energy Efficiency Class (Wash) | A |
| Energy Efficiency Class (Wash & Dry) | D |
| Water Consumption (Wash) | 42 L/cycle |
| Energy Consumption (Wash) | 40 kWh/100 cycles |
| Water Consumption (Wash & Dry) | 62 L/cycle |
| Energy Consumption (Wash & Dry) | 266 kWh/100 cycles |
| AC Input Voltage | 220-240 V |
| Depth | 550 mm |
| Width | 600 mm |
| Height | 850 mm |
| Weight | 71 kg |
