1. Introduction
Thank you for choosing the Sinbo SMX-2769 Stand Mixer. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read these instructions thoroughly before first use and keep them for future reference.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
- Read all instructions carefully before operating the appliance.
- Do not immerse the motor unit, cord, or plug in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use, before assembling or disassembling parts, and before cleaning.
- Avoid contact with moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to prevent injury and/or damage to the mixer.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter.
- Do not let cord contact hot surfaces, including the stove.
- Always ensure the appliance is switched off and unplugged before changing accessories or approaching parts that move in use.
- This appliance is intended for household use only.
3. Product Overview
The Sinbo SMX-2769 is a powerful stand mixer designed for various kitchen tasks, including whipping, mixing, and kneading. It features a robust 1300W motor and an 8-speed control for precise mixing.
Key Features:
- Powerful 1300W Motor: Ensures efficient mixing, kneading, and whipping.
- 6-Liter Stainless Steel Bowl: Large capacity for various recipes.
- 8-Speed Control: Offers precise control for different mixing functions.
- Hinged Tilt-Back Head: Allows easy access to the bowl and attachments.
- Non-Slip Feet: Provides stability during operation.
- Splash Guard: Prevents ingredients from splashing out during mixing.
Components:
Familiarize yourself with the main components of your stand mixer:
- Motor Unit / Head
- Mixing Bowl (Stainless Steel)
- Dough Hook
- Beater (Flat Beater)
- Whisk (Wire Whisk)
- Splash Guard
- Speed Control Knob
- Head Release Lever

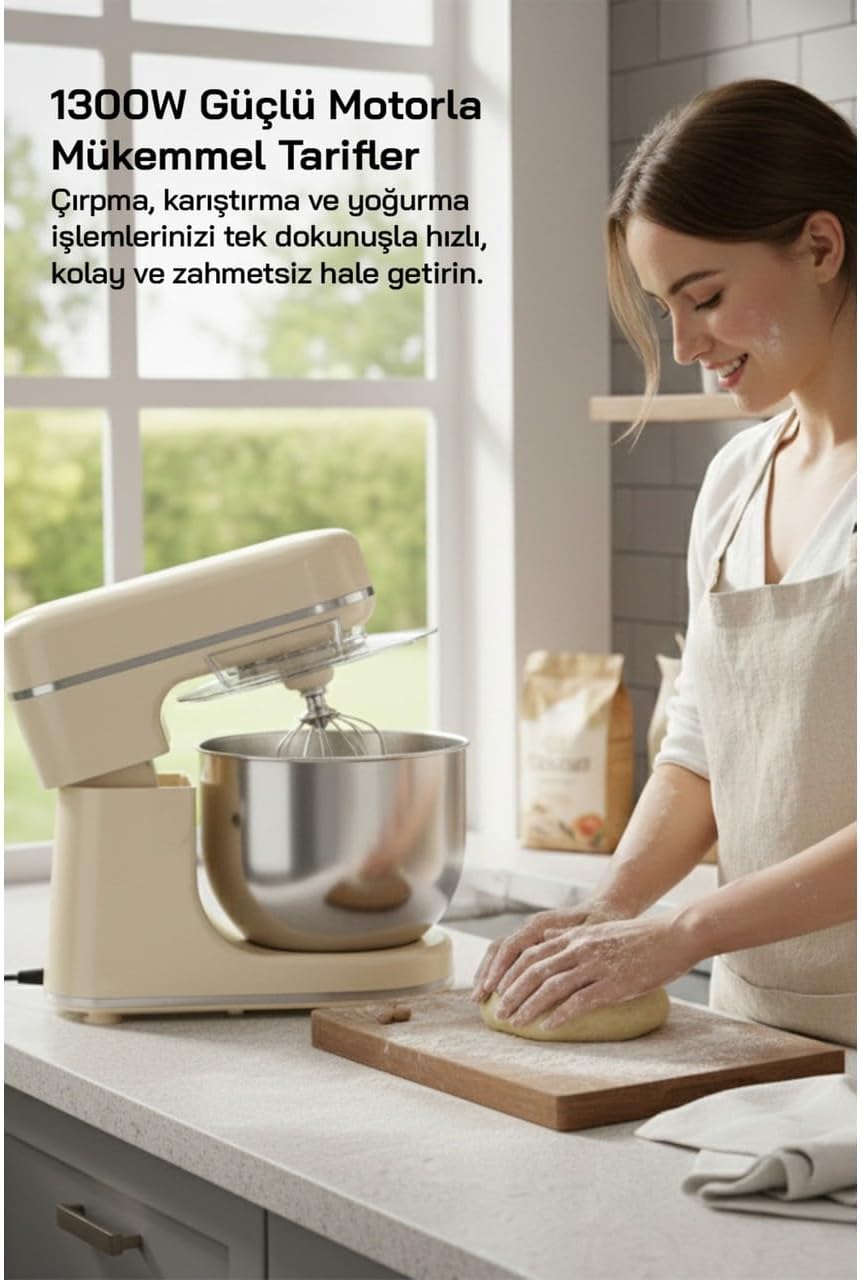

Figure 3.1: The Sinbo SMX-2769 Stand Mixer in operation, demonstrating its powerful 1300W motor for various recipes. A person is shown kneading dough, highlighting the mixer's versatility.

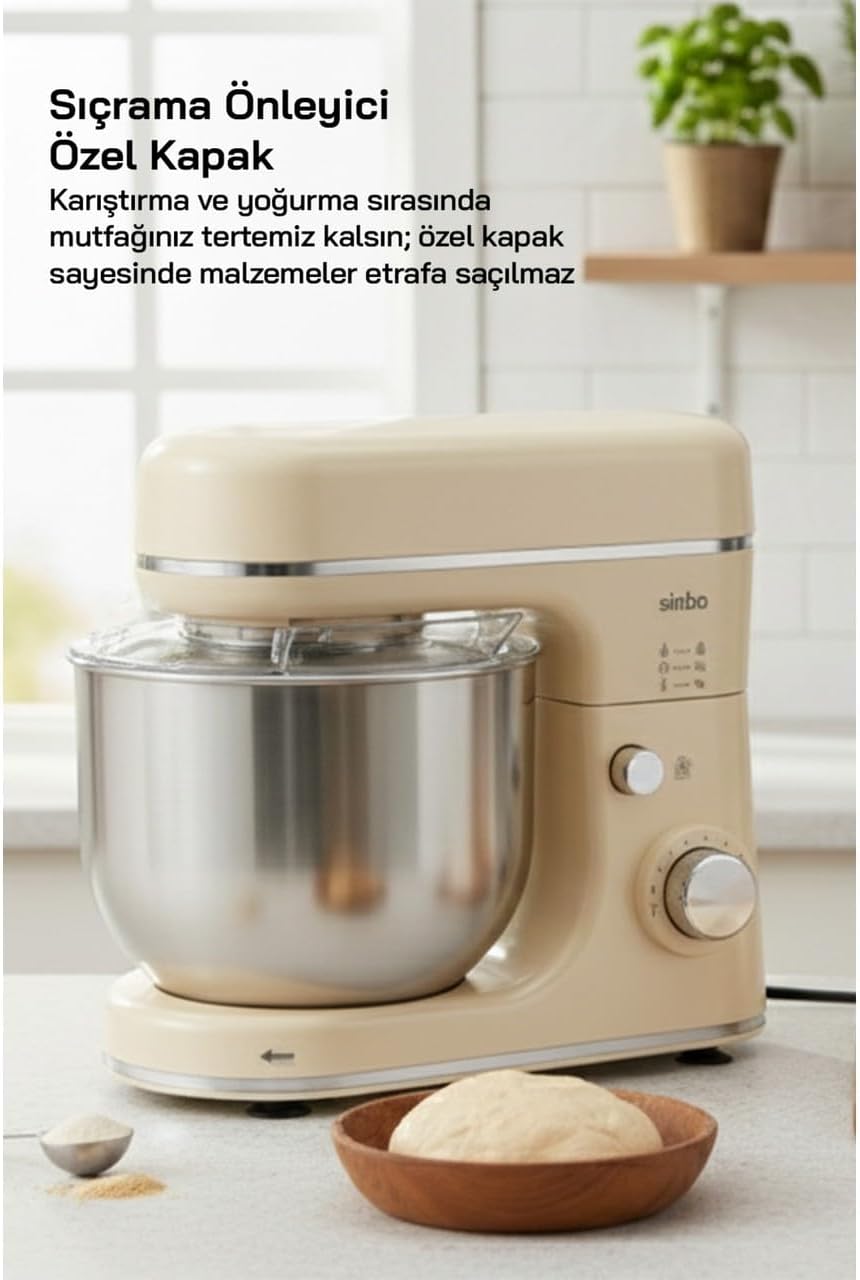

Figure 3.2: The Sinbo SMX-2769 Stand Mixer featuring its special splash guard, designed to keep your kitchen clean during mixing and kneading processes by preventing ingredients from scattering.
Figure 3.3: The Sinbo SMX-2769 Stand Mixer equipped with the beater attachment. This accessory is ideal for practical preparation of salads, achieving smooth mashed potatoes, and effortlessly kneading raw meatballs.
Figure 3.4: The Sinbo SMX-2769 Stand Mixer with the dough hook attachment. This powerful accessory is your strong helper for all dough-related tasks, including pizza dough, bread, pasta, and more.
4. Setup and Assembly
- Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
- Cleaning Before First Use: Before using your mixer for the first time, clean the mixing bowl, splash guard, and all attachments (dough hook, beater, whisk) with warm soapy water. Rinse thoroughly and dry. Wipe the motor unit with a damp cloth.
- Placement: Place the mixer on a stable, flat, and dry surface. Ensure there is enough space around the mixer for safe operation.
- Attaching the Mixing Bowl: Place the stainless steel mixing bowl onto the base of the mixer. Turn it clockwise until it locks securely into place.
- Attaching an Accessory:
- Ensure the mixer is unplugged and the speed control is set to '0' (OFF).
- Press the head release lever to tilt the motor head upwards.
- Insert the desired attachment (dough hook, beater, or whisk) into the accessory shaft. Push upwards and turn counter-clockwise until it locks into place.
- Lower the motor head by pressing the head release lever again until it clicks into its operating position.
- Attaching the Splash Guard: Once the bowl and attachment are in place and the head is lowered, slide the splash guard onto the motor head, aligning it over the bowl.
5. Operating Instructions
Follow these steps for safe and effective operation of your Sinbo SMX-2769 Stand Mixer.
General Operation:
- Ensure the mixer is correctly assembled with the bowl, desired attachment, and splash guard in place.
- Add your ingredients to the mixing bowl.
- Plug the mixer into a suitable power outlet.
- Turn the speed control knob to the desired speed setting (1-8). Start with a low speed and gradually increase as needed to prevent splashing.
- During operation, you can add ingredients through the opening in the splash guard.
- When finished, turn the speed control knob back to '0' (OFF) and unplug the mixer from the power outlet.
- Press the head release lever to tilt the motor head upwards. Remove the attachment by pushing upwards and turning clockwise.
- Remove the mixing bowl by turning it counter-clockwise.
Recommended Uses for Attachments:
- Whisk: Ideal for whipping eggs, cream, meringues, and light batters. Use higher speeds for best results.
- Beater (Flat Beater): Suitable for mixing cakes, cookies, pastries, frostings, and mashing potatoes. Use medium speeds.
- Dough Hook: Designed for kneading heavy mixtures like bread dough, pizza dough, and pasta dough. Use lower speeds (1-3) to prevent overworking the motor.
6. Cleaning and Maintenance
Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your stand mixer.
- Always unplug the mixer from the power outlet before cleaning.
- Motor Unit: Wipe the exterior of the motor unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the motor unit in water.
- Mixing Bowl, Attachments (Dough Hook, Beater, Whisk), and Splash Guard: These parts can be washed in warm soapy water. Rinse thoroughly and dry immediately. They are generally dishwasher-safe, but hand washing is recommended to prolong their lifespan.
- Stubborn Residue: For dried-on food, soak the bowl and attachments in warm soapy water for a few minutes before cleaning.
- Storage: Store the mixer and its accessories in a clean, dry place when not in use.
7. Troubleshooting
If you encounter any issues with your Sinbo SMX-2769 Stand Mixer, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Mixer does not start. | Not plugged in; power switch off; head not locked down. | Ensure the power cord is securely plugged into a working outlet. Check that the speed control knob is not at '0'. Make sure the motor head is fully lowered and locked into place. |
| Motor sounds strained or stops. | Overloaded with ingredients; mixture too thick; incorrect speed setting. | Reduce the amount of ingredients. Add liquids if the mixture is too thick. Use a lower speed setting for heavy doughs. Allow the mixer to cool down if it has been running for a long time. |
| Attachments do not reach the bottom of the bowl. | Attachment not fully inserted. | Ensure the attachment is pushed up and twisted securely into the shaft. |
| Excessive vibration or noise. | Mixer not on a flat surface; bowl or attachment not properly secured. | Place the mixer on a stable, flat surface. Ensure the mixing bowl is locked into the base and the attachment is securely fastened. |
If the problem persists after trying these solutions, please contact customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | SMX-2769 |
| Brand | Sinbo |
| Power | Max 1300W |
| Bowl Capacity | 6 Liters |
| Bowl Material | Stainless Steel |
| Speed Settings | 8 Speeds + Pulse |
| Dimensions (D x W x H) | 32.5 cm x 22.5 cm x 32.5 cm |
| Color | Beige |
9. Warranty and Support
Information regarding specific warranty terms and conditions for the Sinbo SMX-2769 Stand Mixer was not provided in the product data. Please refer to the warranty card included with your purchase or contact Sinbo customer service for detailed warranty information.
For technical support, spare parts, or service inquiries, please contact your local Sinbo authorized service center or visit the official Sinbo website.
Sinbo Official Website: www.sinbo.com.tr
