FOTING FT-PRO150C-RD-NEW5 5000PSI Pressure Washer Instruction Manual

Product Overview

The FOTING FT-PRO150C-RD-NEW5 Electric Pressure Washer is designed for powerful and efficient cleaning of various outdoor surfaces. With a maximum pressure of 5000 PSI and a flow rate of 3.3 GPM, it provides robust cleaning performance for tasks ranging from washing vehicles to cleaning driveways and fences.

Key Features:

• 5000 PSI Max Pressure: Delivers powerful water pressure at 3.3 GPM for maximum cleaning power.
• Upgraded Touchscreen Interface: Features 8 pressure levels (2500PSI to 5000PSI) controlled by a user-friendly waterproof touch screen.
• Versatile Cleaning: Includes a soap bottle and 4 quick-connect nozzles (0°, 15°, 25°, 40°) for various cleaning tasks.
• Enhanced Design: Wider base for stability, padded rounded handles for comfort, 16ft cable, and 23ft hose for extended reach.
• TSS System & Safety Features: Total Stop System automatically shuts off when not in use, high-pressure hose with inner layer for protection, and child safety switch.
• Convenient Storage: Wheeled trolley for easy maneuverability, mesh stock for spray gun, cable hook for tidy storage, and space for nozzles and hose.

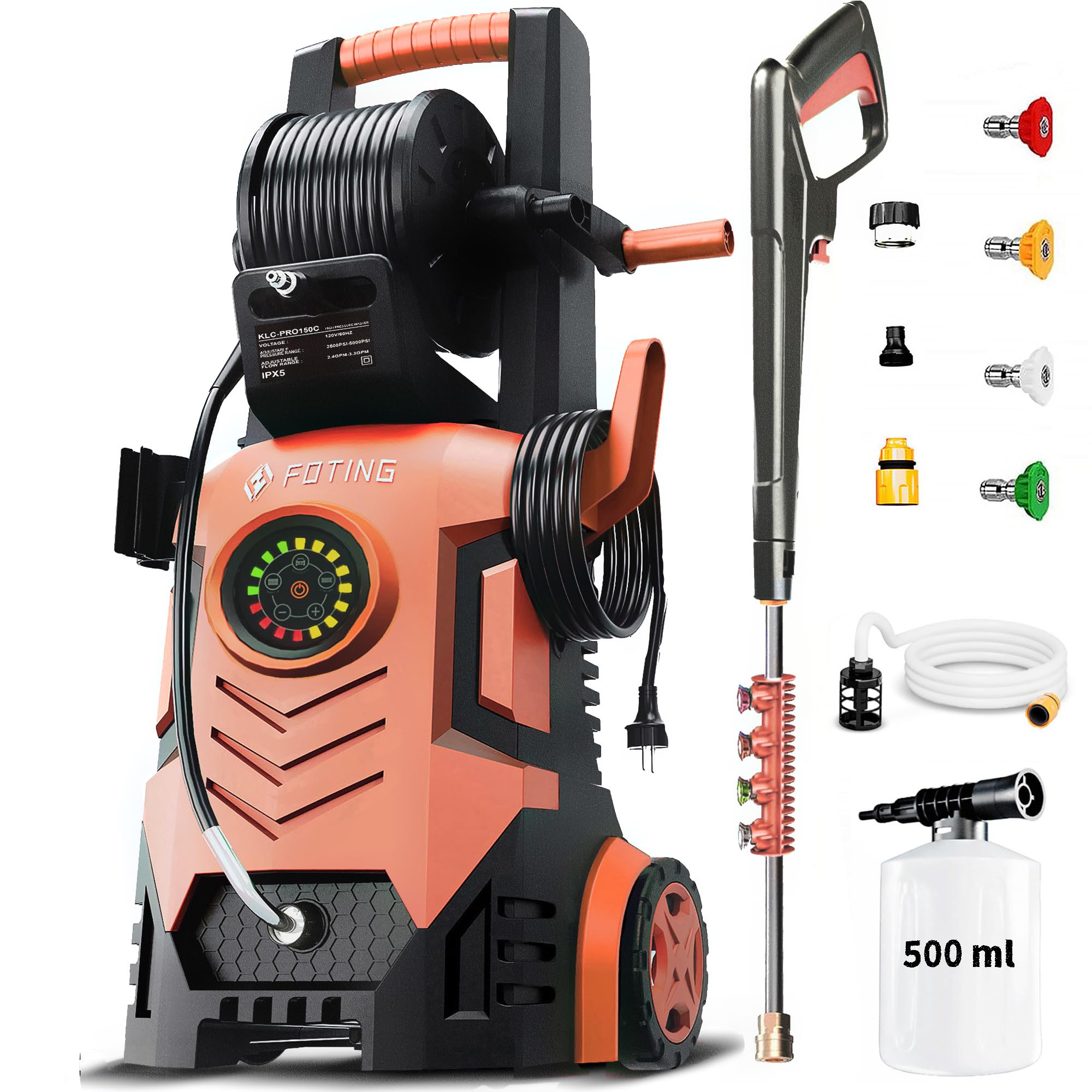

The FOTING FT-PRO150C-RD-NEW5 Pressure Washer in Red, showcasing its compact design and integrated hose reel.

Setup and Assembly

Follow these steps to correctly assemble your FOTING Pressure Washer:

1. Attach the Mounting Handle: Secure the mounting handle to the top of the main unit.
2. Install the Mounting Bracket: Attach the mounting bracket for the wand and nozzle to the side of the unit.
3. Connect the High-Pressure Hose: Connect one end of the high-pressure hose to the main unit and the other end to the spray gun. Ensure a secure, watertight connection.
4. Install the Water Inlet Pipe: Connect your garden hose to the water inlet on the pressure washer. Ensure the filter is in place.
5. Attach the Spray Wand: Connect the spray wand to the spray gun.
6. Select and Attach Nozzle: Choose the appropriate quick-connect nozzle for your task and attach it to the spray wand.

The integrated hose reel helps keep the high-pressure hose neatly organized and prevents entanglement.

Detailed view of the padded ergonomic handle, child safety switch, anti-tilt design, and Total Stop System (TSS) for enhanced safety and user comfort.

Operating Instructions

The FOTING Pressure Washer features an intuitive touchscreen interface for easy operation:

1. Connect Water Supply: Ensure the pressure washer is connected to a water source and the water is turned on.
2. Plug In: Connect the power cord to a suitable electrical outlet.
3. Power On: Turn the main power switch to the 'ON' position.
4. Select Pressure Mode: Use the touchscreen to select your desired pressure level (Gentle, Moderate, Strong) or adjust PSI from 2500 to 5000 PSI using the '+' and '-' buttons.
5. Engage Spray Gun: Point the spray gun at the cleaning surface and press the trigger. The Total Stop System (TSS) will activate the motor only when the trigger is pressed.
6. Apply Detergent (Optional): If using detergent, attach the foam cannon filled with appropriate cleaning solution.

The LED touchscreen allows free control of 8 levels of water pressure, with modes for Gentle, Moderate, and Strong cleaning.

The smart touch control allows pressure adjustment with 8 levels and scenario-based modes for fences, walls, and cars.

Nozzles and Accessories

The FOTING Pressure Washer comes with a variety of quick-connect nozzles and a foam cannon to tackle different cleaning needs:

• 0° (Red) Nozzle: For powerful jet cleaning, ideal for cracks, stubborn stains, and metal surfaces.
• 15° (Yellow) Nozzle: For focused cleaning on concrete, asphalt, and bricks.
• 25° (Green) Nozzle: Suitable for general use on decks, fences, and terraces.
• 40° (White) Nozzle: For general cleaning of vehicles, windows, and outdoor furniture.
• 500ml Foam Cannon: For applying detergent and creating rich foam for effective cleaning.

The 4 quick-connect nozzles offer various spray patterns for different cleaning applications.

The quick-connect nozzles and detergent bottle allow for tailored spray patterns and soap application.

The foam cannon provides a rich foam spray effect for thorough cleaning.

The durable stainless steel gun barrel offers powerful and reliable performance compared to plastic lances.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your pressure washer:

• Clean Nozzles: Regularly inspect and clean nozzles to prevent blockages and maintain consistent spray patterns.
• Drain Water: After each use, drain all water from the pump and hoses to prevent freezing in cold weather and mineral buildup.
• Store Hoses and Cords: Utilize the integrated hose reel and cable hook for tidy storage, preventing kinks and damage.
• Check Connections: Periodically check all hose and nozzle connections for leaks or wear and replace seals if necessary.
• Store in Dry Place: Store the pressure washer in a dry, protected area away from extreme temperatures.

Troubleshooting

If you encounter issues with your pressure washer, consider the following common solutions:

• No Power: Ensure the power cord is securely plugged in and the outlet is functional. Check for tripped circuit breakers.
• No Water Pressure: Verify that the water supply is fully open and the garden hose is not kinked. Check the water inlet filter for blockages.
• Motor Runs Continuously: This may indicate a leak in the system. Check all connections and hoses for damage.
• Pulsating Pressure: This can be caused by air in the pump or a partially blocked nozzle. Purge air from the system by running water through it without the nozzle attached, then check/clean the nozzle.
• Detergent Not Dispensing: Ensure the foam cannon is correctly attached and filled with detergent. Check for blockages in the detergent intake.

Product Specifications

Warranty and Support

For warranty information, product support, or to purchase protection plans, please refer to the documentation included with your product or visit the FOTING official website.

Available Protection Plans:

• 2-Year Protection Plan
• 3-Year Protection Plan
• Complete Protect: One plan covers all eligible past and future purchases
