VINGLI Full Bed Frame with Storage and LED Lights Instruction Manual

Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your VINGLI Full Bed Frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Safety Information

• Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
• Assemble the bed frame on a soft, clean surface to prevent scratches.
• Do not overtighten screws during assembly, as this may cause damage.
• Keep small parts away from children during assembly.
• Periodically check all connections and tighten as necessary to ensure stability.
• The bed frame is designed to support a maximum weight of 880 lbs. Do not exceed this limit.
• Use a mattress within 10-12 inches thickness for optimal fit.

Package Contents

Verify that all components listed below are included in your package. Refer to the assembly video for visual identification of parts.

A detailed list of parts and hardware is typically included in the physical manual. Please consult that document for specific part numbers and quantities.

Assembly Instructions

Follow these steps carefully for proper assembly. It is recommended to have two people for assembly.

1. Headboard Assembly

1. Attach the wooden panels to the headboard frame using the provided screws. Ensure the charging station cutout is correctly oriented.
2. Install the charging station into the designated slot on the headboard panel. Secure it with screws.
3. Assemble the headboard shelves. The position of the shelves can be adjusted to your preference.
4. Secure all headboard components firmly.

Image: The headboard features a built-in charging station with AC outlets, USB ports, and a Type-C port, along with integrated LED lighting.

Image: The headboard LED lights can display over 6000 colors and offer adjustable brightness, rhythm modes, speed control, and timing functions.

2. Bed Frame Assembly

1. Connect the side rails to the assembled headboard and footboard using the provided hardware.
2. Install the central support beams and legs. Ensure all connections are secure and the support legs are adjusted to touch the floor.
3. Place the metal slats across the frame. These slats provide mattress support and eliminate the need for a box spring.
4. Attach the anti-slip mattress design components to prevent mattress movement.

Image: Detailed dimensions of the full-size bed frame and its components, including a weight limit of 880 lbs for the frame and 55 lbs per drawer.

Image: The anti-slip mattress design, highlighted in blue, helps keep the mattress securely in place on the bed frame.

3. Storage Drawer Assembly and Installation

1. Assemble the four under-bed storage drawers. Attach the wheels to the bottom of each drawer.
2. Slide the assembled drawers into the designated spaces under the bed frame. The drawers are designed with keyhole slots for smooth gliding.
3. Ensure the drawers are properly aligned and can be easily opened and closed.

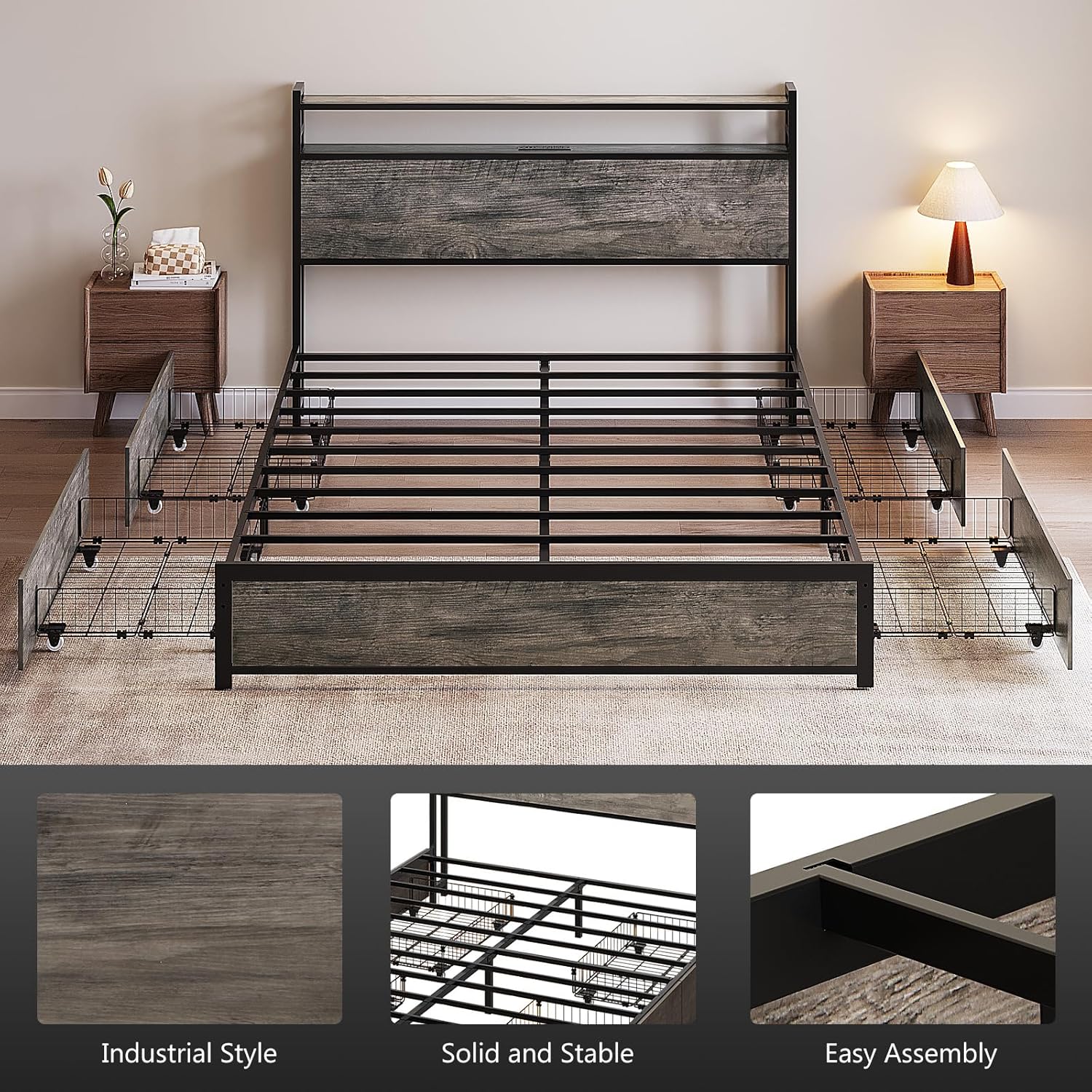

Image: Four large capacity under-bed storage drawers on wheels, designed for smooth gliding and maximizing bedroom space.

Operating Instructions

LED Lights Operation

• The RGB LED light strips offer over 6000 colors and various brightness levels.
• Control the lights using the provided remote control, a mobile application, or the integrated switch.
• Explore different scene modes and music sync features to customize your room's ambiance.

Charging Station Usage

• The headboard includes 2 AC outlets (120V/12A), 2 USB ports (5V/2A), and 1 Type-C port (5V/2A).
• Plug in your electronic devices such as phones, tablets, or laptops for convenient charging.
• Ensure devices are compatible with the provided voltage and current specifications.

Image: The integrated charging station provides easy access to power for various electronic devices.

Storage Drawers

• The four large under-bed drawers are suitable for storing clothes, books, toys, and other items.
• Each drawer has a weight capacity of 55 lbs. Do not overload the drawers.
• The wheels and keyhole slot design ensure smooth operation when opening and closing the drawers.

Adjustable Headboard Shelf

• The headboard features an adjustable shelf, allowing you to customize its height to suit your storage needs.
• Use this shelf for placing items like alarm clocks, books, or decorative elements.

Image: The headboard includes an adjustable shelf for convenient storage and display of personal items.

Maintenance

• Cleaning: Wipe the metal and wood surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Noise Reduction: The bed frame includes EVA mute strips to reduce friction noise. If noise occurs, check all connections and ensure they are tight.
• Electrical Components: Ensure the charging station and LED lights are kept dry. Do not attempt to repair electrical components yourself.

Troubleshooting

Specifications

Warranty and Support

For warranty information, product support, or to order replacement parts, please contact VINGLI customer service. Refer to your purchase documentation for specific warranty terms and contact details.

You can also visit the official VINGLI store for more information: VINGLI Store
