Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your VINGLI 70-inch Fireplace TV Stand. Please read all instructions carefully before assembly and use to ensure proper function and safety.
Image: The VINGLI 70-inch Fireplace TV Stand, fully assembled, featuring an electric fireplace insert, side shelving, and a television placed on top. The stand is presented in a distressed white and barnwood finish.
Safety Information
- Read all instructions before using this appliance.
- Do not operate any fireplace with a damaged cord or plug, or if the heater malfunctions or has been dropped or damaged in any manner.
- Do not run power cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
- Always unplug the fireplace when not in use.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
- To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
- This TV stand is designed to support televisions up to 80 inches and a maximum weight of 100 lbs (45 kg). Ensure your television's weight and size are within these limits.
- Assembly requires two adults. Follow all assembly steps carefully to ensure structural integrity.
Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.
- 70-inch Mantel Cabinet (Main TV Stand Structure)
- 23-inch Electric Fireplace Insert
- Remote Control for Fireplace Insert
- Assembly Instruction Manual
- Hardware Kit (Screws, dowels, connectors, etc.)
Assembly Instructions
Assembly of the VINGLI Fireplace TV Stand requires careful attention to detail. It is recommended that two adults perform the assembly. Please refer to the included detailed assembly instruction booklet and hardware kit for step-by-step guidance.
- Unpack and Identify Parts: Carefully unpack all components and hardware. Lay them out on a clean, soft surface to prevent scratches. Compare all parts against the parts list in the assembly manual.
- Assemble the Main Cabinet: Follow the diagrams in the assembly manual to construct the main mantel cabinet structure. Ensure all connections are secure.
- Install Shelves: Insert the adjustable shelves into the side cubbies as desired.
- Integrate Cable Management: Utilize the pre-drilled cable management holes to route wires neatly, preventing tangles and ensuring safety.
- Install Electric Fireplace Insert: Carefully slide the 23-inch electric fireplace insert into the designated opening in the main cabinet. Ensure it is seated correctly and secured according to the instructions.
- Final Checks: Verify that all screws are tightened, and the stand is stable before placing a television or other items on it.

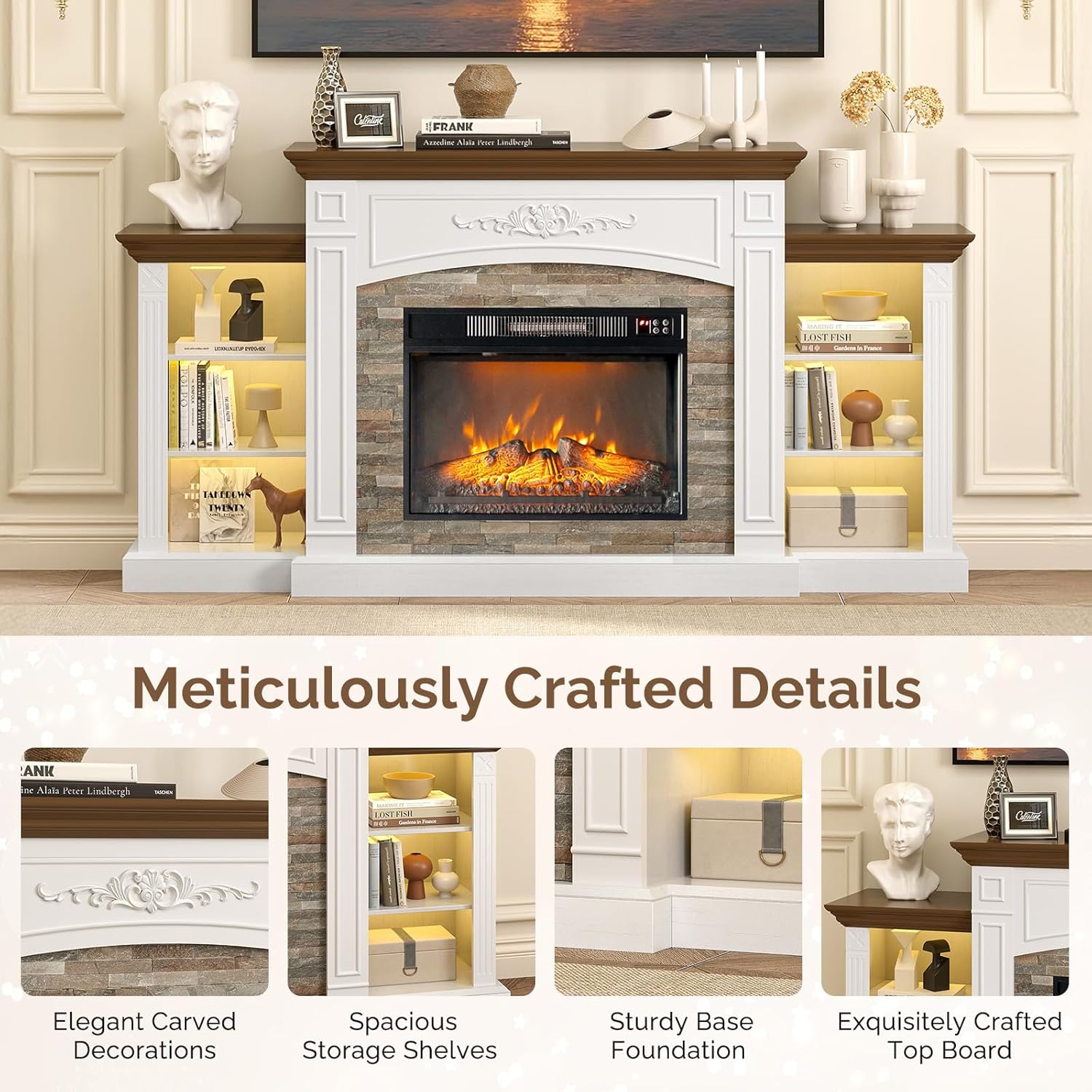

Image: Detailed views highlighting the elegant carved decorations, spacious storage shelves, sturdy base foundation, and exquisitely crafted top board of the VINGLI Fireplace TV Stand.
Operating Instructions
Electric Fireplace Operation
The electric fireplace insert can be operated using the control panel on the unit or the included remote control.
Image: Overview of the 23-inch electric fireplace insert and its remote control, detailing features such as authentic flame effect, six mesmerizing flame colors, adjustable timer, overheating protection, and a temperature range of 62-82°F.
- Power On/Off: Press the power button on the unit or remote to turn the fireplace on or off.
- Temperature Control: Use the temperature buttons to adjust the heat output between 65°F and 95°F. The unit has a heat output of 1400 Watts.
- Flame Brightness: Cycle through 3 levels of flame brightness using the flame button on the remote or control panel.
- Flame Colors: Select from 6 backlight colors to customize the flame effect. Options include Orange, Red, Red & Orange, Red & Blue, Orange & Blue, Red & Orange & Blue, and an Auto (Color Cycling) mode.
- Timer Function: Set an automatic shut-off timer for 0 to 6 hours.
- Overheating Protection: The fireplace is equipped with an automatic shut-off feature if it detects overheating, ensuring safety.
Image: Display of the six distinct flame color options available for the electric fireplace, including an automatic color cycling mode.
LED Lighting Operation
The integrated LED strips can be controlled via a dedicated APP or the included remote control.
Image: Features of the APP/remote-controlled full-color adjustable LED strip, including an auto-off timer, music rhythm mode, and mic-sync dynamic lighting.
- Color Selection: Choose from a wide range of full colors to match your ambiance.
- Music Rhythm Sync: The LED lights can synchronize with music, creating dynamic lighting effects.
- Mic-Sync Dynamic Modes: Lights respond to sound detected by a microphone, offering interactive lighting.
- Auto-Off Timers: Set the LED lights to turn off automatically after a specified period.
Maintenance
- Cleaning the TV Stand: Dust the surfaces regularly with a soft, dry cloth. For deeper cleaning, use a slightly damp cloth and mild detergent, then wipe dry immediately. Avoid abrasive cleaners.
- Fireplace Insert: Ensure the fireplace is unplugged and cool before cleaning. Wipe the exterior with a soft, damp cloth. Do not spray water directly onto the unit. Keep the air intake and exhaust vents clear of dust and debris. The internal components are not user-serviceable.
- LED Strips: Gently wipe the LED strips with a dry cloth if needed. Do not use liquids directly on the strips.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace does not turn on. | No power, power switch off, or overheating protection activated. | Check power cord connection and wall outlet. Ensure main power switch is ON. Unplug and allow unit to cool for 15-20 minutes, then plug back in. |
| No heat output. | Heater function is off, or temperature setting is too low. | Ensure heater function is activated. Increase the temperature setting. |
| Remote control not working. | Dead batteries, obstruction, or remote out of range. | Replace batteries. Ensure no obstructions between remote and fireplace sensor. Operate remote within recommended range. |
| LED lights not responding. | Power issue, APP/remote control issue. | Check power connection to LED strips. Ensure APP is connected or remote batteries are functional. |
Specifications
Image: Dimensional drawing of the VINGLI Fireplace TV Stand, indicating overall measurements and internal compartment sizes, suitable for TVs up to 80 inches.
| Feature | Detail |
|---|---|
| Brand | VINGLI |
| Model Number | BL0SD7S |
| Product Dimensions | 70"W x 15.75"D x 35.83"H |
| Material | Engineered Wood |
| Color | Distressed White & Barnwood |
| Power Source | Corded Electric |
| Heat Output | 1400 Watts |
| Fireplace Insert Size | 23 Inches |
| Flame Settings | 3 Brightness Levels, 6 Color Options |
| Temperature Range | 65°F-95°F |
| Timer | 0-6 Hours |
| Special Features | Adjustable Flame, Overheating Protection, APP/Remote Controlled LED Strips, Music Rhythm Sync, Mic-Sync Dynamic Lighting |
| Item Weight | 163.3 Pounds |
| Installation Type | Freestanding |
| Certifications | CSA Certified (Fireplace Insert) |
Warranty and Support
This VINGLI product comes with a limited warranty. VINGLI is committed to providing quality service and stands behind its products.
- Warranty Type: Limited Warranty.
- Quality Service: Enjoy 1-year quality service from the date of purchase.
- Customer Support: VINGLI offers 24/7 professional customer service. For any issues, questions, or to claim warranty service, please refer to the contact information provided with your purchase documentation or visit the official VINGLI website.
Image: VINGLI's customer support information, emphasizing 1-year quality service and 24/7 professional support.
