VOWNER 43" Makeup Vanity Desk with LED Mirror and RGB Drawers (Model VOWNER-685) User Manual

1. Product Overview

The VOWNER 43" Makeup Vanity Desk is designed to provide a functional and aesthetically pleasing space for your beauty routine. It features a tempered glass tabletop, LED mirror lighting with adjustable brightness and color modes, RGB LED lights in the drawers, and integrated power outlets for convenience.

Image 1.1: The VOWNER 43-inch Makeup Vanity Desk, showcasing its LED mirror, glass top, and illuminated drawers.

2. Safety Information

Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Always unplug the vanity from the power source before assembly, disassembly, or cleaning.
• Exercise caution with sharp edges and the overall weight of the vanity during assembly and movement.
• Keep all electrical components dry and away from heat sources.
• Do not exceed the weight limit of the vanity top or drawers.
• Ensure all screws and fasteners are securely tightened during assembly. Periodically check for loose connections.

3. Assembly Instructions

This vanity desk comes with easy-to-follow assembly instructions. It is recommended to assemble the unit on a soft, clean surface to prevent scratches. Two people are recommended for assembly.

3.1 Assembly Overview Video

Video 3.1: An overview of the assembly process for the VOWNER Fluted Vanity with Mirror. This video demonstrates the step-by-step construction of the vanity desk, including attaching panels, installing drawer slides, and securing the mirror unit.

3.2 Key Assembly Steps

1. Prepare Drawer Slides: Attach the drawer slides to the side panels (parts 10, 11, 12, 13) using screws (C). Ensure correct orientation for left (CL) and right (CR) slides.
2. Assemble Side Units: Connect the vertical support pieces (14, 15, 18) to the base panels (10, 11, 12, 13) using dowels (D) and screws (B).
3. Construct Central Frame: Assemble the central frame using panels (16, 19, 20, 21) and screws (J). Install the power outlet (F) into the designated slot on the right side panel.
4. Attach Mirror Unit: Secure the mirror unit (6) to the top of the assembled frame using screws (A). Connect the LED light wiring (F and Q) as shown.
5. Assemble Drawers: Construct the drawer boxes using panels (22, 23, 24, 28) and screws (J). Attach the drawer bottom (29) and the front panel (27) with its handle (E) and rollers (R).
6. Install Drawers: Insert the assembled drawers into the vanity frame, ensuring they slide smoothly on the installed rails.
7. Final Touches: Attach the hair dryer holder (S) to the side of the vanity. Cover all exposed screw holes with decorative caps (L).

4. Operating Instructions

4.1 LED Mirror Lighting

The vanity mirror is equipped with 14 Hollywood-style LED bulbs offering customizable lighting for your makeup application.

• Color Modes: Tap the touch button on the mirror to cycle through 3 color lighting modes: Warm White, Natural White, and Cool White.
• Adjustable Brightness: Long-press the touch button to seamlessly adjust the brightness level from dim to bright, allowing you to achieve optimal lighting for any environment.

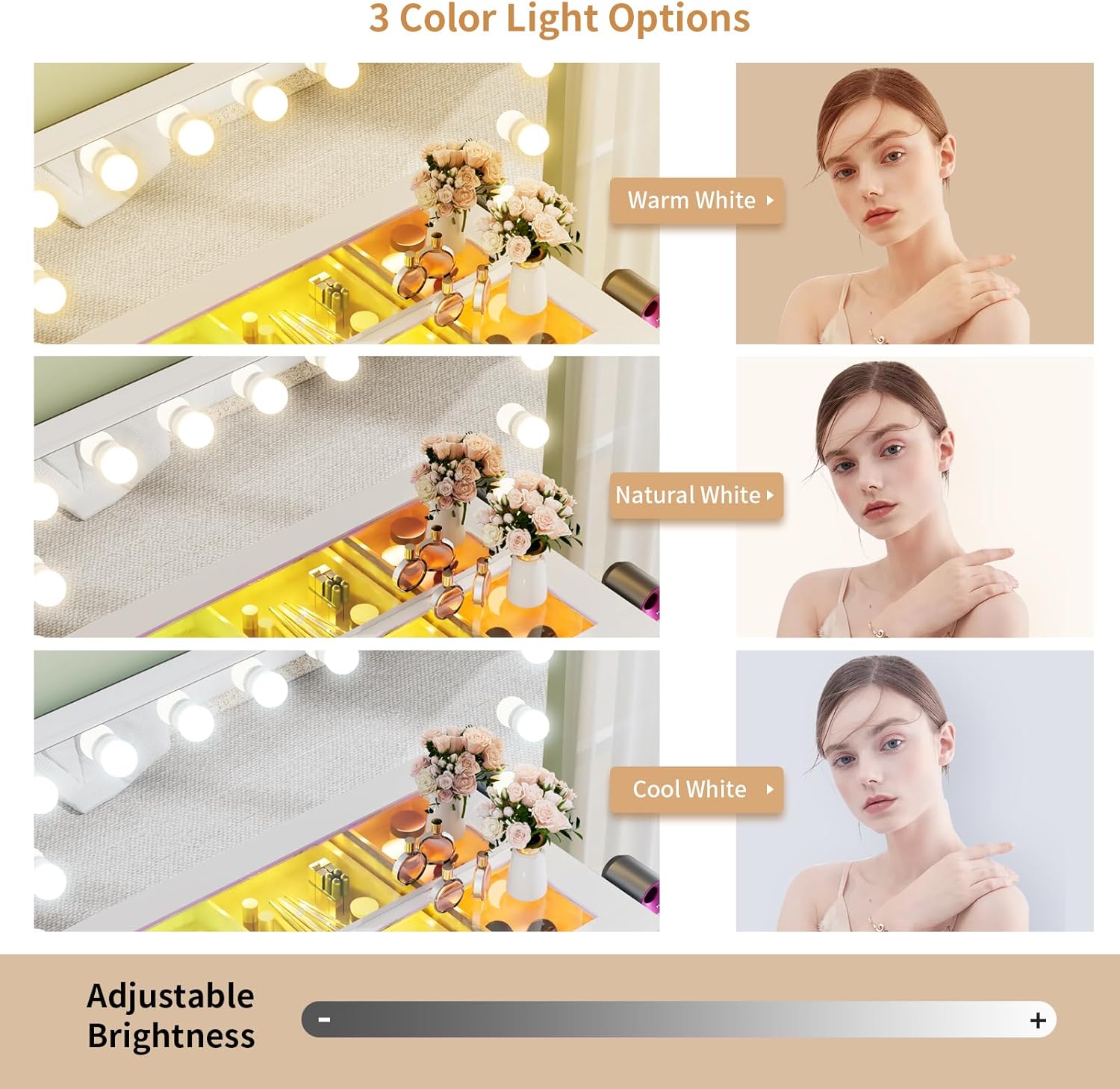

Image 4.1: Demonstrates the three color light options (Warm, Natural, Cool White) and adjustable brightness feature of the LED mirror.

4.2 RGB Drawer Lighting

The vanity features built-in smart RGB LED lights within the drawers, offering dynamic lighting effects.

• Control: The RGB lights can be controlled via a mobile application or the included remote control.
• Dynamic Modes: Choose from 25 dynamic modes to create various visual experiences.
• Music Sync: Activate the music sync mode for lights to flash and change color in rhythm with your music.
• Timer Function: Utilize the timer function for automated lighting control.

Image 4.2: The vanity desk with its drawers open, showcasing the vibrant RGB LED lighting illuminating stored items.

4.3 Built-in Power Outlet

The vanity desk includes a convenient built-in power strip for charging devices and powering beauty tools.

• Outlets: Features 2 standard AC plug sockets (125V/12A).
• USB Ports: Includes 1 USB port and 1 USB-C port (5V/2A) for charging mobile devices.
• Usage: Plug in your hair dryer, curling iron, phone, or other electronic devices directly into the vanity for easy access.

Image 4.3: A detailed view of the integrated power strip, highlighting the AC outlets and USB ports for convenient device charging and power.

4.4 Product Features Video

Video 4.4: This video highlights various features of the VOWNER Vanity Makeup Desk with Lights, including the RGB drawer lighting, adjustable mirror lights, spacious storage, and integrated power outlets.

5. Maintenance

To ensure the longevity and appearance of your VOWNER Vanity Desk, follow these simple maintenance guidelines:

• Cleaning: Wipe the surfaces with a dry, soft cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Spills: Immediately wipe up any spills to prevent staining or damage to the wood and glass surfaces.
• Electrical Components: Keep all electrical parts, including the mirror lights and power outlets, dry. Do not spray liquids directly onto these components.
• Drawer Slides: Periodically check drawer slides for smooth operation. If needed, clean any dust or debris and apply a small amount of silicone lubricant.

6. Troubleshooting

If you encounter any issues with your VOWNER Vanity Desk, please refer to the following common troubleshooting tips:

• Mirror Lights Not Working:
  • Ensure the vanity is properly plugged into a working power outlet.
  • Check if the power switch for the mirror lights is turned on.
  • Verify that all electrical connections within the mirror unit are secure.
• RGB Drawer Lights Not Responding:
  • Check the connection of the RGB light strip to its power source.
  • Ensure the remote control has fresh batteries and is pointed directly at the receiver.
  • If using the mobile app, ensure Bluetooth is enabled and the app is correctly paired with the vanity.
• Drawers Sticking or Not Sliding Smoothly:
  • Ensure the drawer slides are properly aligned and free of obstructions.
  • Check that all screws securing the drawer slides are tightened.
  • Apply a silicone-based lubricant to the drawer slides if necessary.
• Power Outlets Not Working:
  • Confirm the main power cord for the vanity is securely plugged in.
  • Test the outlet with another device to ensure it is functional.
  • Check for any tripped circuit breakers in your home.

If these steps do not resolve the issue, please contact VOWNER customer support for further assistance.

7. Specifications

Detailed specifications for the VOWNER 43" Makeup Vanity Desk:

Image 7.1: Dimensional drawing of the VOWNER Vanity Desk, including measurements for the overall unit and individual drawers.

8. Warranty and Support

VOWNER stands behind the quality of its products. For any warranty claims, technical support, or questions regarding your vanity desk, please contact VOWNER customer service directly. Please have your purchase information and model number (VOWNER-685) ready when contacting support.

You can find contact information on the VOWNER official website or through your original point of purchase.
