Important Safety Information
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be hazardous or fatal. This product must be installed in accordance with all applicable installation codes by a qualified electrician or a person familiar with the construction and operation of the product and the hazards involved.
- Turn off power at the circuit breaker or fuse box before installing or servicing.
- Do not use with a standard dimmer switch unless specified as dimmable.
- Ensure all connections are secure and correct.
- Do not modify the fixture. Any modifications may void the warranty and create safety hazards.
- This fixture is intended for indoor use only.
Package Contents
Verify that all parts listed below are included in your package:
- LED Ceiling Light Fixture (1)
- Mounting Hardware (Screws, Wire Nuts)
- Instruction Manual (1)
Image: Packaging for the Feit Electric 14-inch LED Ceiling Light, showing the product features and branding.
Setup and Installation
Follow these steps to properly install your Feit Electric LED Ceiling Light.
- Prepare for Installation: Turn off the power at the main circuit breaker or fuse box. Ensure the power is off before proceeding.
- Mounting Bracket Installation: Attach the mounting bracket to the junction box using the provided screws. Ensure it is securely fastened.
- Wiring Connections: Connect the fixture wires to the house wires using the provided wire nuts. Match the black wire from the fixture to the black (live) wire from the junction box, the white wire from the fixture to the white (neutral) wire from the junction box, and the green (ground) wire from the fixture to the bare copper (ground) wire from the junction box. Ensure all connections are tight and secure.

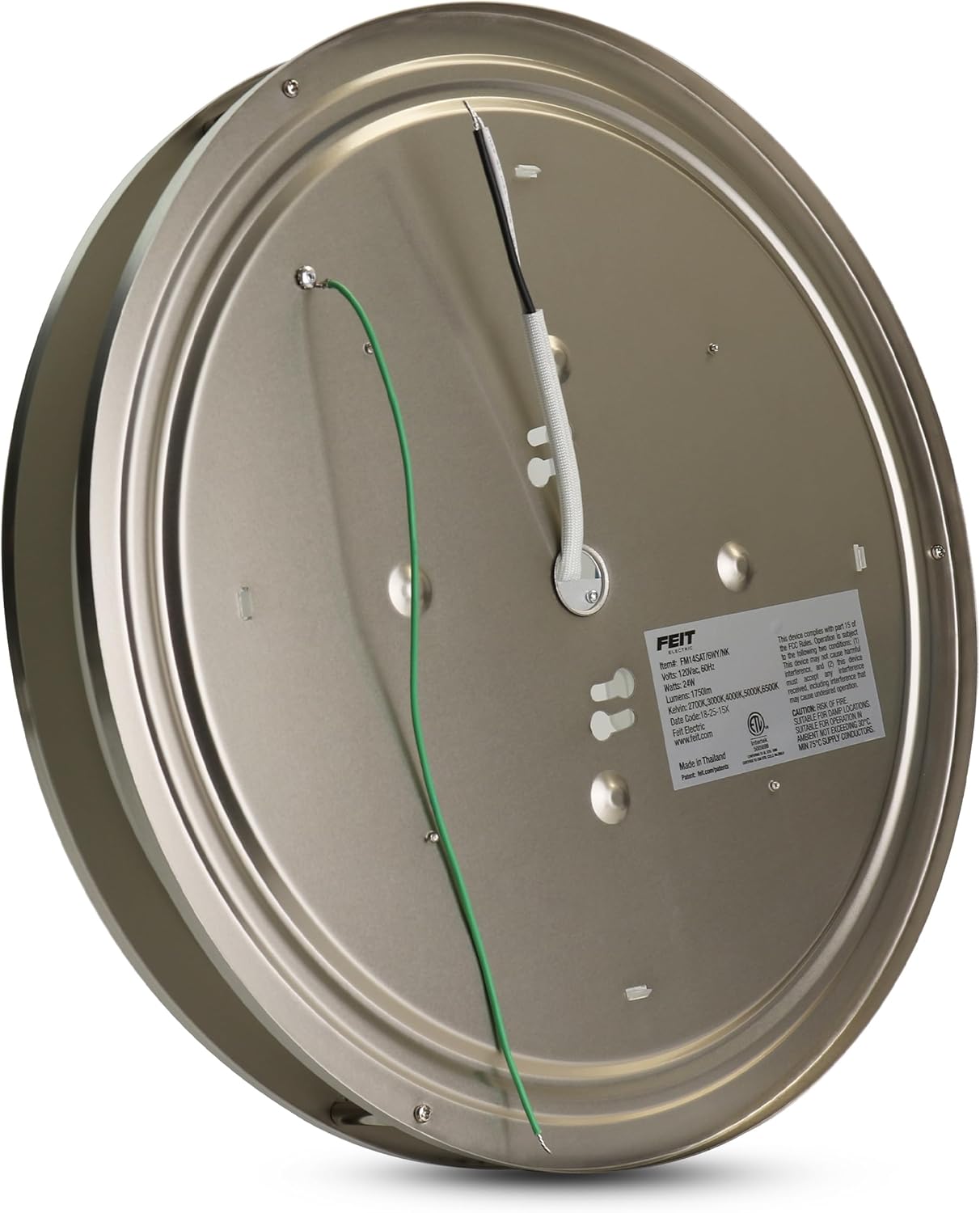

Image: Underside of the ceiling light fixture, illustrating the wiring connections (black, white, and green ground wires).
- Fixture Attachment: Carefully push the fixture up to the mounting bracket, aligning the screw holes. Secure the fixture to the mounting bracket with the decorative nuts or screws provided.
- Restore Power: Once the fixture is securely installed, restore power at the circuit breaker.
Image: Diagram showing the dimensions of the 14-inch ceiling light: 14 inches in width and 3.2 inches in height.
Operating Instructions
This fixture offers adjustable color temperature and dimming capabilities.
Color Temperature Adjustment
The fixture allows you to select from five color temperatures (2700K, 3000K, 4000K, 5000K, 6500K).
- Using the Switch on the Fixture: Before installation, locate the small switch on the side of the fixture. Slide the switch to your desired color temperature setting. This will be the default setting when the light is turned on.
- Using a Wall Switch: If the switch on the fixture is set to 'Switch', you can cycle through the five color temperatures by quickly toggling your standard wall switch OFF and ON. The fixture will remember the last selected color temperature if left OFF for more than 10 seconds.
Image: Visual representation of the five adjustable color temperatures (Soft White 2700K to Daylight Deluxe 6500K) and instructions for changing them via a switch on the fixture or a wall switch.
Dimming Function
This LED ceiling light is dimmable. To utilize the dimming feature, ensure you are using a compatible LED dimmer switch (sold separately). Adjust the dimmer switch to achieve your desired brightness level.
Maintenance
The Feit Electric LED Ceiling Light requires minimal maintenance.
- Cleaning: Ensure the power is off before cleaning. Wipe the fixture with a soft, dry, or slightly damp cloth. Do not use harsh chemicals, abrasive cleaners, or solvents, as these may damage the finish or electrical components.
- No Bulb Replacement: This fixture uses integrated LEDs, which are designed for long life and do not require bulb replacement.
Troubleshooting
If you experience issues with your ceiling light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. Loose wiring connection. Faulty wall switch. | Check circuit breaker or fuse. Ensure all wire connections are secure. Test the wall switch. |
| Light flickers or dims improperly. | Incompatible dimmer switch. Loose wiring. | Ensure a compatible LED dimmer is used. Check all wiring connections. |
| Color temperature does not change. | Switch on fixture not set to 'Switch' mode. Wall switch not toggled correctly. | Verify the switch on the fixture is set to 'Switch'. Toggle the wall switch OFF and ON quickly to cycle through colors. |
Specifications
Detailed technical specifications for the Feit Electric 14-inch Adjustable White LED Ceiling Light.
| Feature | Specification |
|---|---|
| Model Number | FM14SAT/6WY/NK |
| Dimensions | 14"L x 14"W x 3.2"H |
| Light Output | 1750 Lumens (Max) |
| Wattage | 24W |
| Color Temperature | 2700K, 3000K, 4000K, 5000K, 6500K (Adjustable) |
| Dimmable | Yes (with compatible LED dimmer) |
| Lifespan | 50,000 Hours |
| Voltage | 120 Volts |
| Material | Metal |
| Finish Type | Brushed Nickel |
| Installation Type | Flush Mount |
| Indoor/Outdoor Usage | Indoor |
| Item Weight | 2.4 Pounds |
| UPC | 017801731507 |
Warranty and Support
This Feit Electric product is covered by a 3-year manufacturer's warranty.
For 24/7 customer support or additional assistance, please visit the Feit Electric support website:
Image: Information for Feit Electric 24/7 customer support, including a website address and QR code.
