Fenamx MJX 14208 RC Truck Instruction Manual

Introduction

Welcome to your Fenamx MJX 14208 RC Truck. This manual provides essential information for the safe and effective setup, operation, and maintenance of your high-performance remote control vehicle. Please read this manual thoroughly before operating the truck to ensure optimal performance and longevity.

The Fenamx MJX 14208 RC Truck, a 1/14 scale 4WD high-speed remote control vehicle, ready for action.

Package Contents

Verify that all items listed below are included in your package:

• Fenamx MJX 14208 RC Truck
• Remote Control
• 2S 2000mAh LiPo Battery
• USB Charging Cable
• Spare Tires (2 sets)
• Product Manual
• Play Mat (if included with your specific package)

Contents of the Fenamx MJX 14208 RC Truck package, including the truck, remote control, battery, and other accessories.

Product Features

The Fenamx MJX 14208 RC Truck is engineered with advanced features for an exhilarating driving experience:

• Insane Speed Control: Equipped with a 2852 4400KV brushless motor and a 45A waterproof ESC for high speed and agile performance.
• Perfect for All Skill Levels: Features an adjustable throttle, powerful 6KG digital servo, and a 2S 2000mAh LiPo battery, capable of speeds up to 45 mph. 3S LiPo battery compatible for increased speed (sold separately).
• Smooth Reliable Control: 6-channel receiver and 2.4GHz 4-channel remote provide precise control up to 150 meters.
• Tough Stylish Design: Durable aluminum chassis, carbon steel gears, and realistic details for robust off-road handling.
• Built for Precision: Powder-metal differential gears, adjustable CNC aluminum motor mount, and full-metal hydraulic shocks ensure top-notch control.
• Smooth Steady Handling: Sealed differentials and a central limited-slip system for stable cornering and drivetrain protection.
• Compact Ready for Adventure: 1/14 scale, lightweight, and portable for on-the-go fun.

Detailed view of the internal components of the Fenamx MJX 14208 RC Truck, highlighting the brushless motor, ESC, and battery compartment.

Initial Setup

Charging the Battery

Before first use, fully charge the included 2S 2000mAh LiPo battery using the provided USB charging cable. Ensure the battery is placed on a non-flammable surface and never leave it unattended during charging. Charging time may vary.

Installing the Battery

Open the battery compartment on the underside of the vehicle. Connect the fully charged battery to the ESC connector. Secure the battery in place and close the compartment. Ensure all wires are tucked away safely.

Remote Control Preparation

Install 4 AA batteries (not included) into the remote control. Turn on the remote control, then turn on the vehicle. The remote and vehicle should automatically pair. If pairing fails, refer to the remote control section for specific pairing instructions.

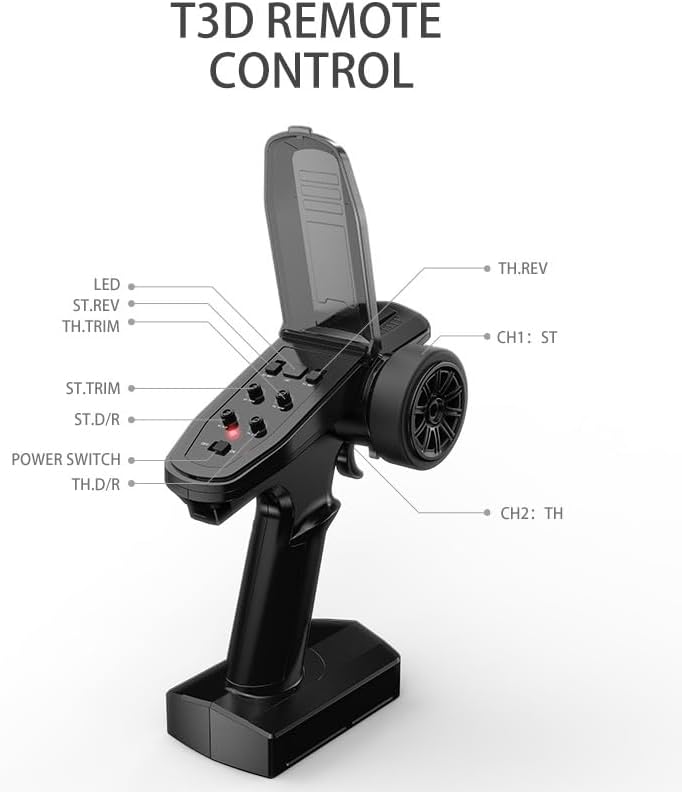

Diagram illustrating the features and controls of the T3D remote control for the Fenamx MJX 14208 RC Truck.

Operating Instructions

Basic Controls

• Throttle Trigger: Pull to accelerate forward, push to brake/reverse.
• Steering Wheel: Turn left or right to steer the vehicle.
• Steering Trim (ST.TRIM): Adjust to ensure the vehicle drives straight when the steering wheel is centered.
• Throttle Trim (TH.TRIM): Adjust to ensure the vehicle remains stationary when the throttle trigger is released.
• Steering Dual Rate (ST.D/R): Adjust the maximum steering angle.
• Throttle Dual Rate (TH.D/R): Adjust the maximum throttle output.

Driving Tips

Start with low throttle settings to familiarize yourself with the controls. Gradually increase speed as you gain confidence. Avoid driving in deep water or extreme conditions to prevent damage to electronic components. Always maintain a safe distance from people and objects.

Maintenance Guidelines

Regular maintenance is crucial for the longevity and performance of your RC truck:

• Cleaning: After each use, clean the vehicle to remove dirt, dust, and debris. Use a soft brush or compressed air.
• Inspection: Regularly inspect all moving parts, including wheels, suspension components, and gears, for wear or damage.
• Lubrication: Apply appropriate lubricant to moving parts as needed to ensure smooth operation and prevent premature wear.
• Battery Care: Store batteries in a cool, dry place. Do not overcharge or over-discharge LiPo batteries.

The Fenamx MJX 14208 RC Truck navigating rough terrain, demonstrating its robust build suitable for various environments.

Troubleshooting Common Issues

If you encounter any issues, refer to the following troubleshooting guide:

Vehicle Not Responding

• Check if the battery is fully charged and properly connected.
• Ensure the remote control batteries are installed correctly and have sufficient power.
• Verify that both the vehicle and remote control are powered on and paired.

Poor Performance

• Inspect wheels and tires for damage or debris.
• Check suspension components for proper function.
• Ensure all gears are clean and free of obstructions.

Overheating

• Allow the motor and ESC to cool down between runs.
• Avoid continuous high-speed driving or driving in thick grass/mud for extended periods.

Product Specifications

A dynamic shot of the Fenamx MJX 14208 RC Truck, highlighting its design and performance capabilities.

Important Safety Information

To prevent injury or damage, always adhere to these safety guidelines:

• Always operate the RC truck in open areas, away from people, pets, and obstacles.
• Do not operate near public roads or in wet conditions. The ESC is waterproof, but other components may not be.
• Adult supervision is recommended for users under 14 years of age.
• Never touch moving parts (wheels, gears, motor) during operation.
• Disconnect the battery when not in use, during maintenance, or when storing the vehicle.
• Use only approved charging equipment and batteries. Improper charging can lead to fire or injury.

Warranty and Customer Support

For warranty information, technical support, or replacement parts, please refer to the official Fenamx website or contact their customer service. Keep your purchase receipt as proof of purchase. Product protection plans are available for extended coverage.
