1. Introduction
Thank you for purchasing the DICTAC Corner Twin Bed Frame with Storage and Charging Station. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
2. Safety Information
To ensure safe use and prevent injury or damage, please adhere to the following safety guidelines:
- Do not exceed the maximum weight capacity of 450 lbs.
- Exercise caution around sharp edges and corners during assembly and use.
- Follow all assembly instructions precisely to prevent instability or collapse of the bed frame.
- Keep all electrical components (charging station) dry and away from heat sources.
- Unplug the charging station from the wall outlet when not in use or during cleaning.
- Ensure all connections are securely tightened after assembly and periodically check for any loosening.
3. Package Contents
Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support immediately.
- Assembly Instructions Manual
- Corner Bed Frame Components
- Two Storage Drawers
- Integrated Charging Station (Power Strip with USB ports and AC outlets)
- Simple Assembly Tools
4. Product Specifications
| Feature | Specification |
|---|---|
| Size | Twin |
| Product Dimensions (L x W x H) | 87.9" x 45.7" x 31.6" |
| Weight Capacity | 450 lbs |
| Recommended Mattress Thickness | 8-12 inches |
| Material | Engineered Wood, Linen, Metal |
| Color | Black |
| Model Number | CBF-05 |
| Special Features | No Box Spring Needed, Squeak Resistant, 2 Storage Drawers, Storage Shelves, Charging Station, Upholstered Backrest, Hidden Storage Space |
Note: All dimensions are approximate and may vary slightly.
5. Assembly Instructions
Assembly typically requires two adults and can take approximately 4-5 hours. All parts are clearly labeled and numbered for ease of installation. An extra hand during assembly can be helpful.
5.1. Preparation
- Clear a spacious area for assembly.
- Unpack all components and lay them out, matching them with the parts list in your included assembly guide.
- Ensure all necessary tools are available.
5.2. Frame Assembly
- Begin by assembling the main metal frame components as per the detailed diagrams in your separate assembly guide. The buckle design facilitates simplified installation.
- Install the embedded metal slats into the frame. These slats provide strong support for your mattress without the need for a box spring.
- Attach the upholstered backrest sections to the frame.
5.3. Guardrail and Shelf Installation
The bed frame offers two assembly methods, allowing you to install the U-shaped guardrail and shelves on either the left or right side, depending on your room layout.
Figure 5.3.1: Two Assembly Methods for Guardrail and Shelves
- Follow the specific instructions in your assembly guide to attach the 2-layer storage shelves and the upholstered guardrail to your preferred side of the bed frame.
- Ensure all connections are tight and stable.
5.4. Drawer and Charging Station Installation
- Assemble the two wire netting storage drawers according to the instructions. These drawers feature easy-glide casters for smooth operation.
- Slide the assembled drawers into the designated under-bed storage space.
- Integrate the built-in charging station into the designated slot on the storage headboard. Connect the power cord to a wall outlet.
5.5. Final Touches
Figure 5.5.1: Enhanced Stability and Security Features
- Install the two mattress slide stoppers on the bed frame to prevent the mattress from shifting. Position them as needed.
- Attach the four plastic corner protectors to the corners of the bed frame to prevent accidental bumps.
- Place your twin-size mattress (recommended thickness 8-12 inches) onto the bed frame.
6. Operating Instructions
6.1. Using the Charging Station

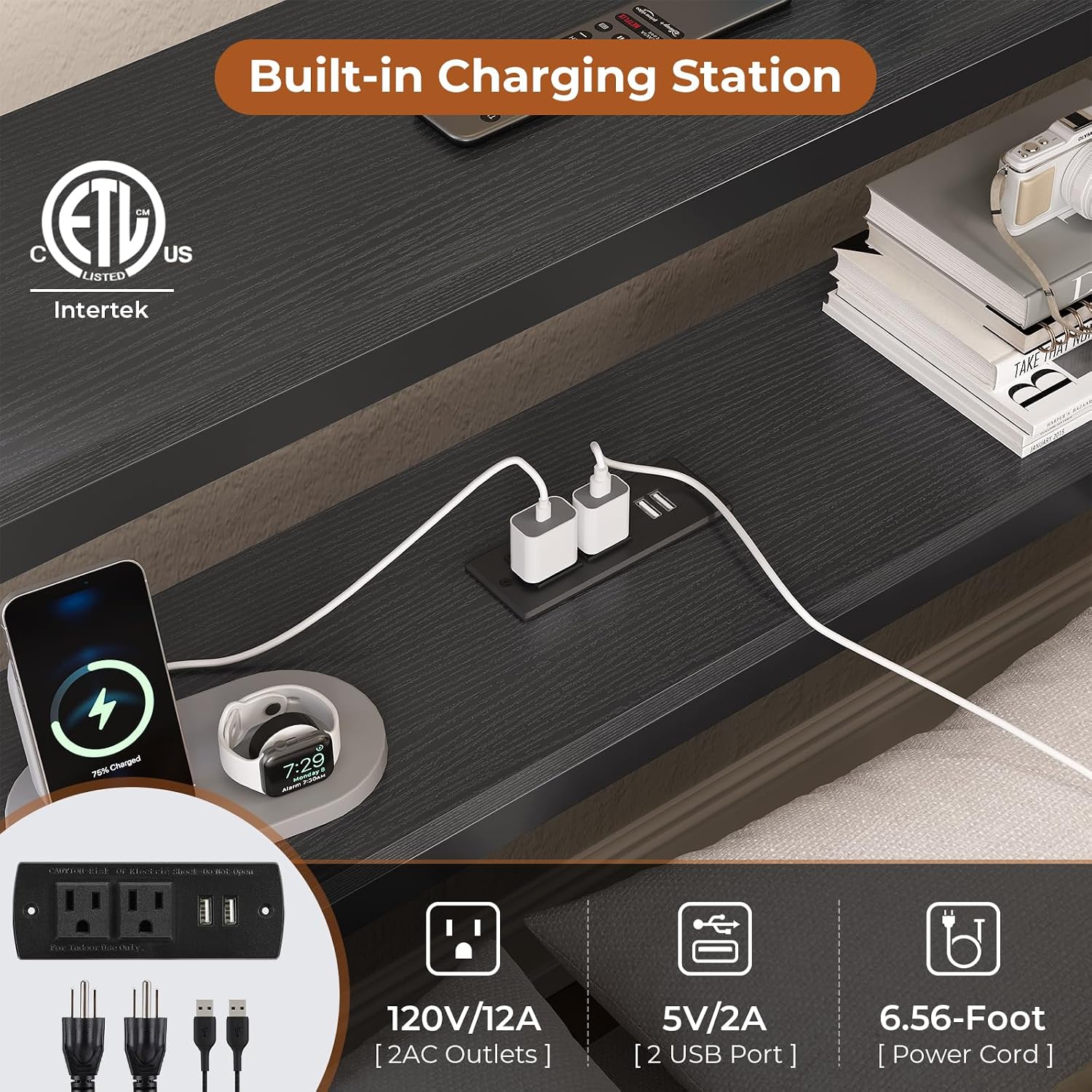

Figure 6.1.1: Built-in Charging Station
- The upholstered headboard features a built-in power strip with 2 AC outlets (120V/12A) and 2 USB ports (5V/2A).
- Plug the bed frame's power cord (6.56-foot) into a standard wall outlet.
- Connect your mobile phone, tablet, or other electronic devices to the USB ports or AC outlets for convenient charging.
- Always unplug the charging station when not in use.
6.2. Utilizing Storage Features
Figure 6.2.1: Under-bed Storage Drawers
The bed frame is designed with multiple storage options:
- Under-bed Drawers: Two large wire netting storage drawers are located beneath the bed. These are ideal for storing linens, clothing, toys, or other items. The non-woven drawer bottom prevents items from falling through.
- Hidden Storage Headboard: The upholstered backrest conceals two large hidden storage compartments. These are suitable for storing magazines, books, or personal items, keeping them out of sight.
- Side Shelves: The 2-layer side shelves provide open storage for decorative items, books, phones, or other frequently accessed belongings.
Video 6.2.2: Overview of DICTAC Daybed with Drawers and Hidden Storage Space
7. Maintenance
Regular maintenance helps prolong the life and appearance of your bed frame.
- Cleaning: Wipe metal surfaces with a soft, damp cloth. For upholstered parts, use a fabric cleaner suitable for linen, following the product's instructions. Avoid harsh chemicals.
- Inspection: Periodically check all bolts, screws, and connections to ensure they remain tight. Re-tighten if necessary.
- Electrical Components: Ensure the charging station is kept clean and free of dust. Do not expose it to liquids.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is squeaking | Loose connections or uneven assembly. | Check and re-tighten all bolts and screws. Ensure the frame is level on the floor. |
| Mattress slides off the frame | Mattress stoppers not installed or improperly positioned. | Ensure the mattress slide stoppers are correctly installed and positioned to secure the mattress. |
| Charging station not working | Power cord unplugged, wall outlet issue, or device incompatibility. | Verify the power cord is securely plugged into a working wall outlet. Test the outlet with another device. Ensure your device is compatible with the charging station's specifications. |
| Drawers do not slide smoothly | Obstruction or misaligned casters. | Check for any items obstructing the drawer path. Inspect casters for damage or misalignment and adjust if necessary. |
9. Warranty and Support
DICTAC is committed to providing quality products and customer satisfaction. If your bed frame arrives damaged, scratched, or with missing parts, or if you encounter any other issues, please do not hesitate to contact our customer support team.
We aim to resolve your concerns within 24 hours.
For support, please visit the DICTAC store on Amazon or refer to the contact information provided in your purchase documentation.
