VINGLI Solid Wood Twin Over Twin Bunk Bed User Manual

1. Introduction

Thank you for choosing the VINGLI Solid Wood Twin Over Twin Bunk Bed. This bunk bed is designed for safety, convenience, and space optimization, featuring integrated LED lighting and a USB charging station. Please read this manual thoroughly before assembly and use to ensure proper setup and safe operation.

VINGLI Solid Wood Twin Over Twin Bunk Bed in black with blue LED lights activated, showing the top and bottom bunks.

Image: VINGLI Solid Wood Twin Over Twin Bunk Bed with LED lights.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or death.

Always follow the assembly instructions carefully to prevent instability or collapse.
Do not exceed the weight capacity of 330 lbs (approximately 150 kg) per layer.
Ensure all connections are securely tightened before use and periodically check for tightness.
The top bunk is not suitable for children under 6 years of age.
Use only mattresses that are 75 inches long and 39 inches wide. The maximum mattress thickness for the top bunk should not exceed 6 inches to ensure adequate guardrail height.
The bunk bed features a 14.5-inch high guardrail on the top bunk for added protection.
The ladder rungs are designed with anti-slip scoring for secure climbing.
Keep children away from the assembly area until assembly is complete.

Diagram highlighting safety features of the bunk bed, including 14.6 inch guardrail height, 14 inch wide open entrance, and grooves in steps for no slip.

Image: Safety features of the VINGLI bunk bed, including guardrail height and grooved ladder steps.

3. Package Contents

Before beginning assembly, ensure all parts are present and undamaged. Refer to the included installation manual for a detailed list of components.

Guardrails
Slats (heavy-duty wood)
Ladder
Bed frames and support beams
Hardware pack (screws, bolts, nuts, etc.)
LED light strip with remote control
USB/Type-C charging station module
Installation Manual

4. Assembly Instructions

Assembly is required for this bunk bed. Please follow the step-by-step instructions provided in the separate Installation Manual included with your product. It is recommended to have two adults for assembly.

Clear a spacious area for assembly.
Identify all parts and hardware before starting.
Do not overtighten screws during initial assembly; tighten fully once the structure is stable.
The ladder can be attached to either side of the bunk bed.
This bunk bed can be converted into two separate twin beds. Refer to the installation manual for conversion steps.

Diagram showing the bunk bed with a transparent overlay indicating the removable ladder can be placed on either side.

Image: Removable ladder can be attached to either side.

Two images side-by-side. The left image shows two separate twin beds. The right image shows the bunk bed configuration with blue LED lights.

Image: The bunk bed can be configured as two separate twin beds.

5. Operating Instructions

5.1. LED Lights

The integrated LED lights offer over 6000 color options, adjustable brightness, and timing functions. They can be controlled via the included remote or a compatible mobile application.

Remote Control: Point the remote at the LED receiver to change colors, adjust brightness, or set timers.
Mobile App: Download the specified app (refer to the LED light manual for details), connect via Bluetooth, and control the lights from your smartphone.
The LED strip can be easily attached to any part of the bed frame to create a desired ambiance.

Image showing the bunk bed with various LED light colors and a remote control in the foreground, illustrating color changing, timing, brightness, and custom style features.

Image: LED lights with remote control for color, brightness, and timing adjustments.

5.2. USB Charging Station

The bunk bed includes a charging station with 2 USB ports (5V/2.1A) and 1 Type-C port, conveniently located on the guardrail for easy access.

Connect the charging station's 5.2-foot power cord to a standard wall outlet.
Plug your devices into the USB or Type-C ports for charging.

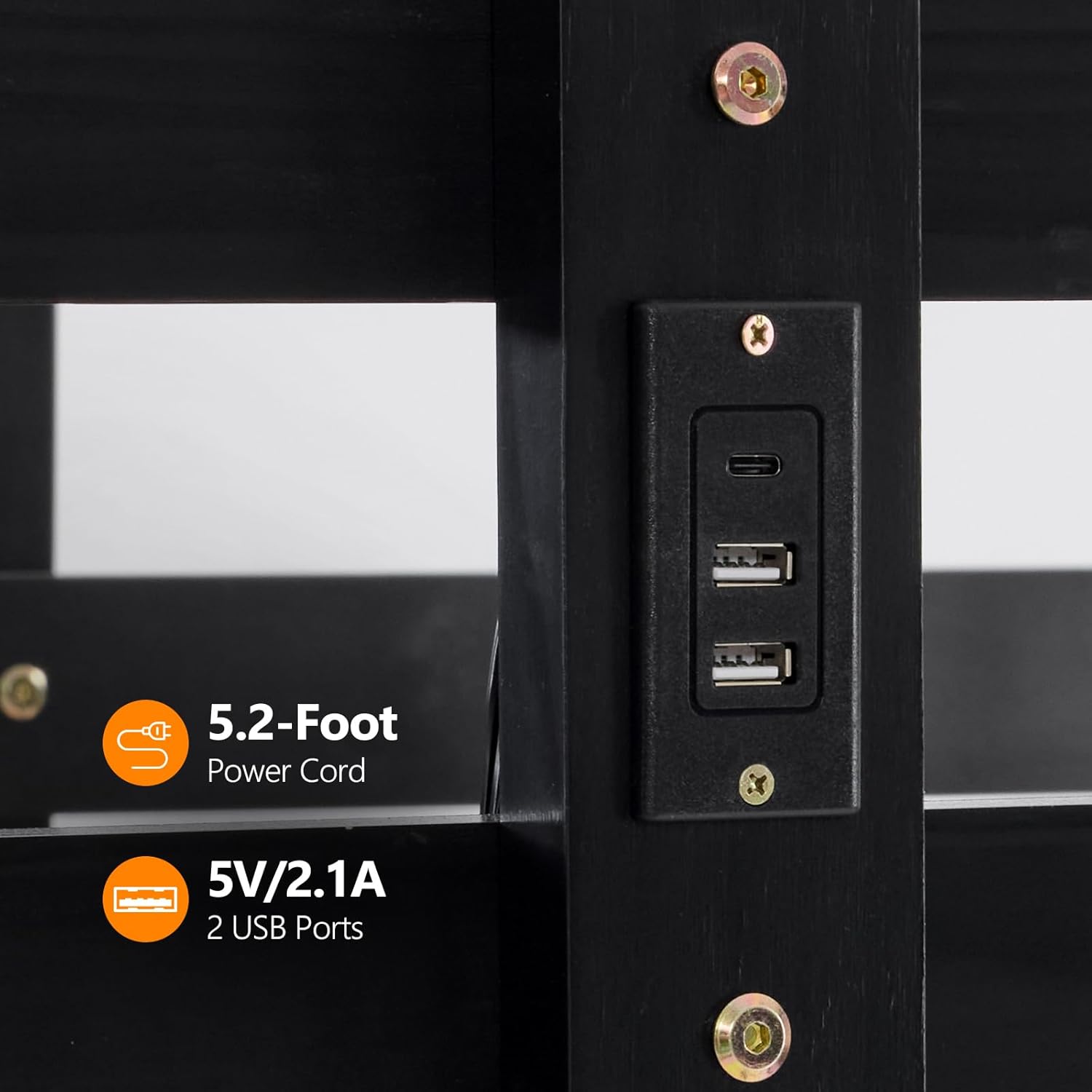

Close-up image of the charging station embedded in the bunk bed guardrail, showing two USB-A ports and one USB-C port, with text indicating a 5.2-foot power cord and 5V/2.1A output.

Image: Integrated USB and Type-C charging station.

Video: Demonstration of the bunk bed's features, including the ladder, guardrail, charging station, and LED lights. Note: This video shows the white version of the bunk bed.

6. Maintenance

Cleaning: Wipe down the wooden surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
Hardware Check: Periodically inspect all bolts, screws, and connections to ensure they remain tight. Retighten as necessary.
Slats: Ensure all wooden slats are properly seated and undamaged to maintain mattress support.
LED Lights: If LED lights malfunction, check connections. Refer to the LED light manual for specific troubleshooting.
Charging Station: Keep the charging ports free of dust and debris.

7. Troubleshooting

Missing Parts: If any parts are missing upon delivery, contact VINGLI customer support immediately for assistance.
Holes Not Aligning: During assembly, if holes do not align, ensure all pieces are oriented correctly according to the manual. Sometimes, slight adjustments or loosening previously tightened screws can help. Check for any sawdust or debris obstructing the holes.
Bed Feels Unstable: Ensure all hardware is fully tightened. Verify that the bed is on a flat, level surface.
LED Lights Not Working: Check the power connection to the LED strip. Ensure the remote control has working batteries and is pointed correctly. If using the app, verify Bluetooth connection.
USB Ports Not Charging: Ensure the charging station's power cord is securely plugged into a working wall outlet. Try a different device or cable to rule out device-specific issues.

8. Specifications

Feature	Detail
Model Number	VWB-B
Size	Twin Over Twin
Product Dimensions	78"L x 42"W x 65"H
Weight Capacity (per layer)	330 lbs
Material	Pine Wood
Color	Black
Finish Type	Painted
Guardrail Height	14.5 inches (top bunk)
Under-bed Clearance	10 inches
Charging Station	2 USB ports (5V/2.1A), 1 Type-C port
LED Lights	RGB, 6000+ colors, remote & app control
Assembly Required	Yes
Compatible Mattress Size	Twin
Item Weight	182 pounds

Diagram showing the dimensions of the VINGLI bunk bed: 78.35 inches length, 42.13 inches width, 65.57 inches height. Also indicates a weight capacity of 551 lbs per bunk.

Image: Product dimensions and weight capacity.

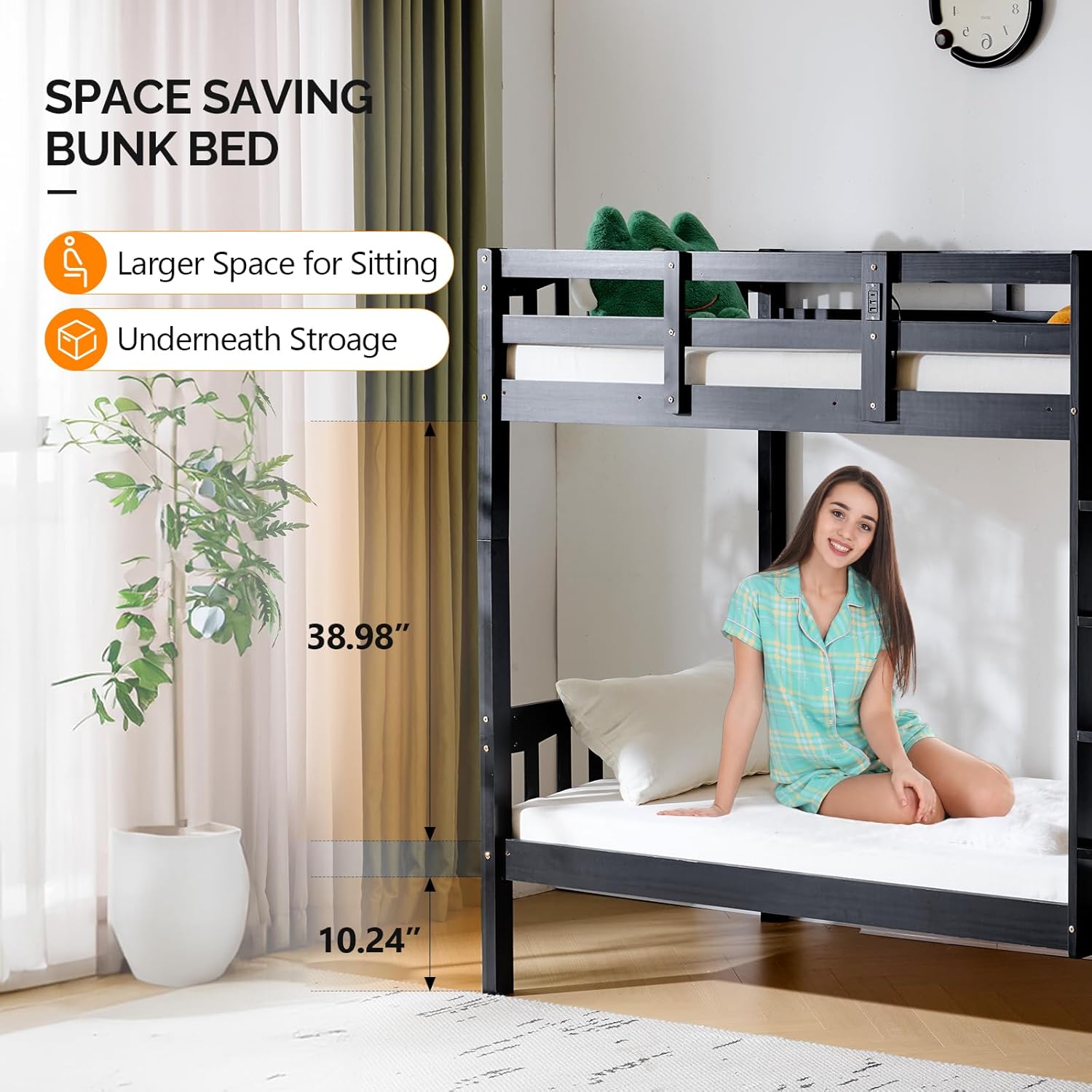

Image illustrating the space-saving features of the bunk bed, showing 38.98 inches of sitting space on the bottom bunk and 10.24 inches of under-bed storage clearance.

Image: Space-saving design with under-bed clearance and ample sitting space.

Close-up images detailing the sturdy construction of the bunk bed, including solid wood slats, a noise-free design with non-woven strips, and a sturdy center beam for extra support.

Image: Details of the bunk bed's sturdy construction, including slats and center beam.

9. Warranty Information

VINGLI products are manufactured with quality and care. For specific warranty details, please refer to the warranty card included with your product packaging or visit the official VINGLI website. Keep your proof of purchase for any warranty claims.

10. Customer Support

If you have any questions, concerns, or require assistance with your VINGLI bunk bed, please contact our customer support team. You can find contact information on the VINGLI website or in your product's documentation.
