Important Safety Instructions
Please read all instructions carefully before using this appliance. Keep this manual for future reference.
- Ensure the power supply voltage matches the rating label on the fan.
- Do not operate the fan with a damaged cord or plug. Contact authorized service personnel for repairs.
- Avoid placing the fan near curtains, plants, or other objects that could interfere with its operation.
- Do not insert fingers or any objects into the fan guards when the fan is operating.
- Unplug the fan from the power outlet before cleaning or performing any maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
Product Overview
The SONA SFW 9586DC is an 18-inch remote-controlled DC wall fan designed for efficient air circulation. It features a brushless DC motor, offering energy efficiency and quiet operation. The fan includes 10 speed settings, 2 wind modes, a 7-hour timer, and a smart memory function for personalized comfort.
Image: The SONA SFW 9586DC wall fan installed in a home environment.
Key Features:
- Brushless DC Motor: Operates at 42W for energy efficiency and powerful airflow.
- 10 Speed Control: Offers a wide range of airflow intensity.
- 2 Wind Modes: Provides different airflow patterns for various preferences.
- 7 Hours Timer: Allows for automatic fan shut-off.
- Smart Memory Function: Recalls previous settings upon restart.
- Left-Right Oscillation: Distributes air across a wider area.
- Adjustable Neck: For up and down tilting adjustment.
- Infra-Red Remote Control: Convenient operation from a distance.
- Plastic Front Guard: Designed to prevent rusting.

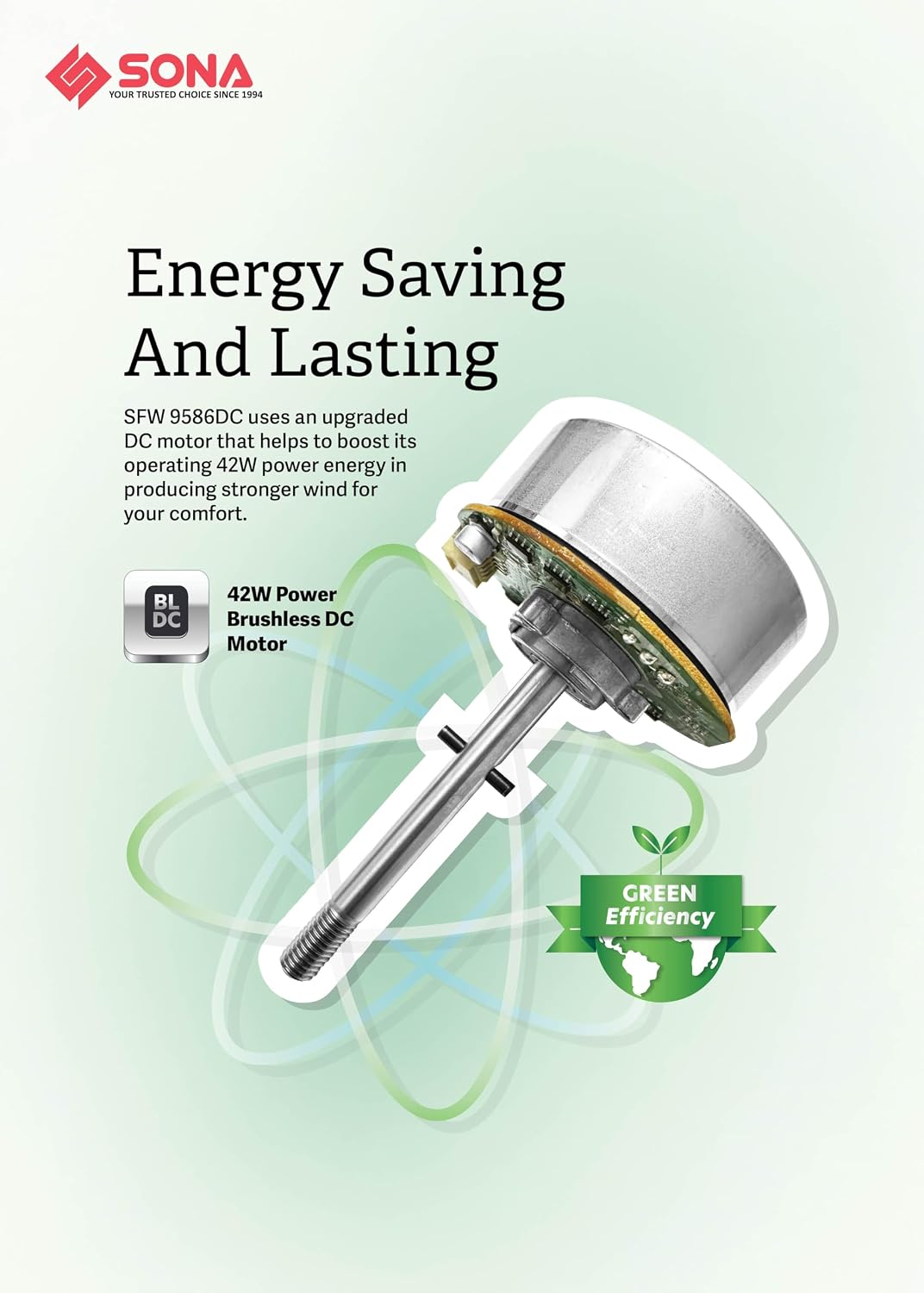

Image: Internal view of the fan's brushless DC motor, emphasizing energy efficiency.
Package Contents
- SONA 18-inch DC Wall Fan Unit (SFW 9586DC)
- Infra-Red Remote Control
- Mounting Hardware (brackets, screws)
- User Manual
Installation
The SFW 9586DC fan offers two ways for wall installation. Ensure the mounting location is sturdy enough to support the fan's weight and allows for proper air circulation and oscillation.
Wall Mounting Steps:
- Choose a suitable wall location, ensuring it is free from obstructions and has access to a power outlet.
- Use the provided mounting brackets as a template to mark drilling points on the wall.
- Drill holes and insert appropriate wall anchors if necessary.
- Securely attach the mounting brackets to the wall using the provided screws.
- Carefully mount the fan unit onto the installed brackets, ensuring it is stable and locked into place.
- Connect the fan to a power supply.
Image: Illustration of the two-way installation options and fan adjustment capabilities.
Operating Instructions
The fan can be operated using the included infra-red remote control.
Remote Control Functions:
- Power Button: Turns the fan On or Off.
- Speed Control: Adjusts fan speed from 1 to 10.
- Mode Button: Cycles through 2 wind modes (e.g., Normal, Natural, Sleep).
- Timer Button: Sets the automatic shut-off timer up to 7 hours.
- Oscillation Button: Activates or deactivates left-right oscillation.
Image: Visual guide to the 10 speed settings and 2 wind modes.
Smart Memory Function:
The fan is equipped with a smart memory function. When the fan is turned off and then back on, it will resume operation with the last used speed and mode settings.
Timer Function:
Press the Timer button on the remote control to set the desired operating duration. The fan will automatically switch off after the set time (up to 7 hours).
Image: Icons highlighting the 7-hour timer and smart memory features.
Adjustable Neck:
Manually adjust the fan head up or down to direct airflow as needed.
Maintenance and Cleaning
Regular cleaning helps maintain the fan's performance and extends its lifespan. Always unplug the fan before cleaning.
Cleaning Instructions:
- Detach Guards: The plastic front guard can be detached for easy cleaning of the blades and internal components. Refer to the diagram for detachment points.
- Wipe Surfaces: Use a soft, damp cloth to wipe the exterior surfaces of the fan. Do not use abrasive cleaners or solvents.
- Clean Blades: Gently wipe the fan blades with a damp cloth to remove dust and debris. Ensure blades are dry before reassembling.
- Reassemble: Once all parts are clean and dry, reattach the front guard securely.
Image: Detachable guards for simplified cleaning and maintenance.
Troubleshooting
If you encounter issues with your fan, please refer to the following common problems and solutions:
- Fan does not turn on:
- Check if the power cord is securely plugged into a working outlet.
- Ensure the power button on the remote or fan unit is pressed.
- Remote control not working:
- Replace the batteries in the remote control.
- Ensure there are no obstructions between the remote and the fan's receiver.
- Fan makes unusual noise:
- Unplug the fan and check for any foreign objects caught in the blades or guards.
- Ensure the fan guards are securely attached.
If the problem persists, please contact customer support.
Specifications
- Brand: Sona
- Model Number: SFW 9586DC
- Colour: Grey/Black
- Product Dimensions (D x W x H): 32D x 51W x 57H centimetres
- Mounting Type: Wall Mount
- Voltage: 100-240V~ (50/60Hz)
- Power: 42W (Brushless DC Motor)
- Included Components: Remote
- Country of Origin: Singapore
Warranty and Support
Your SONA SFW 9586DC fan comes with a manufacturer's warranty.
- Motor Warranty: 3 Years
- Return Policy: 15 days (refer to retailer's policy for details)
For technical support, service, or warranty claims, please contact your local Sona authorized service center or the retailer where the product was purchased. Please retain your proof of purchase for warranty purposes.
