Sinbo SMX-2769

Sinbo SMX-2769 Stand Mixer User Manual

Model: SMX-2769 | Brand: Sinbo

1. Introduction

Thank you for choosing the Sinbo SMX-2769 Stand Mixer. This appliance is designed to simplify your baking and cooking tasks with its powerful motor and versatile attachments. Please read this manual carefully before first use to ensure safe and optimal operation. Keep this manual for future reference.

2. Safety Instructions

  • Always ensure the appliance is unplugged from the power outlet before assembly, disassembly, or cleaning.
  • Do not immerse the motor unit, cord, or plug in water or any other liquid.
  • Keep hands, hair, clothing, as well as spatulas and other utensils away from moving parts during operation to prevent injury.
  • Never operate the mixer with a damaged cord or plug, or if the appliance malfunctions or has been damaged in any way.
  • This appliance is for household use only. Do not use outdoors.
  • Supervise children closely when the appliance is in use.
  • Do not use attachments not recommended or sold by the manufacturer.
  • Place the mixer on a stable, flat, and dry surface during operation.
  • Avoid touching hot surfaces, especially after prolonged use.

3. Product Overview

The Sinbo SMX-2769 Stand Mixer comes with several components designed for various culinary tasks.

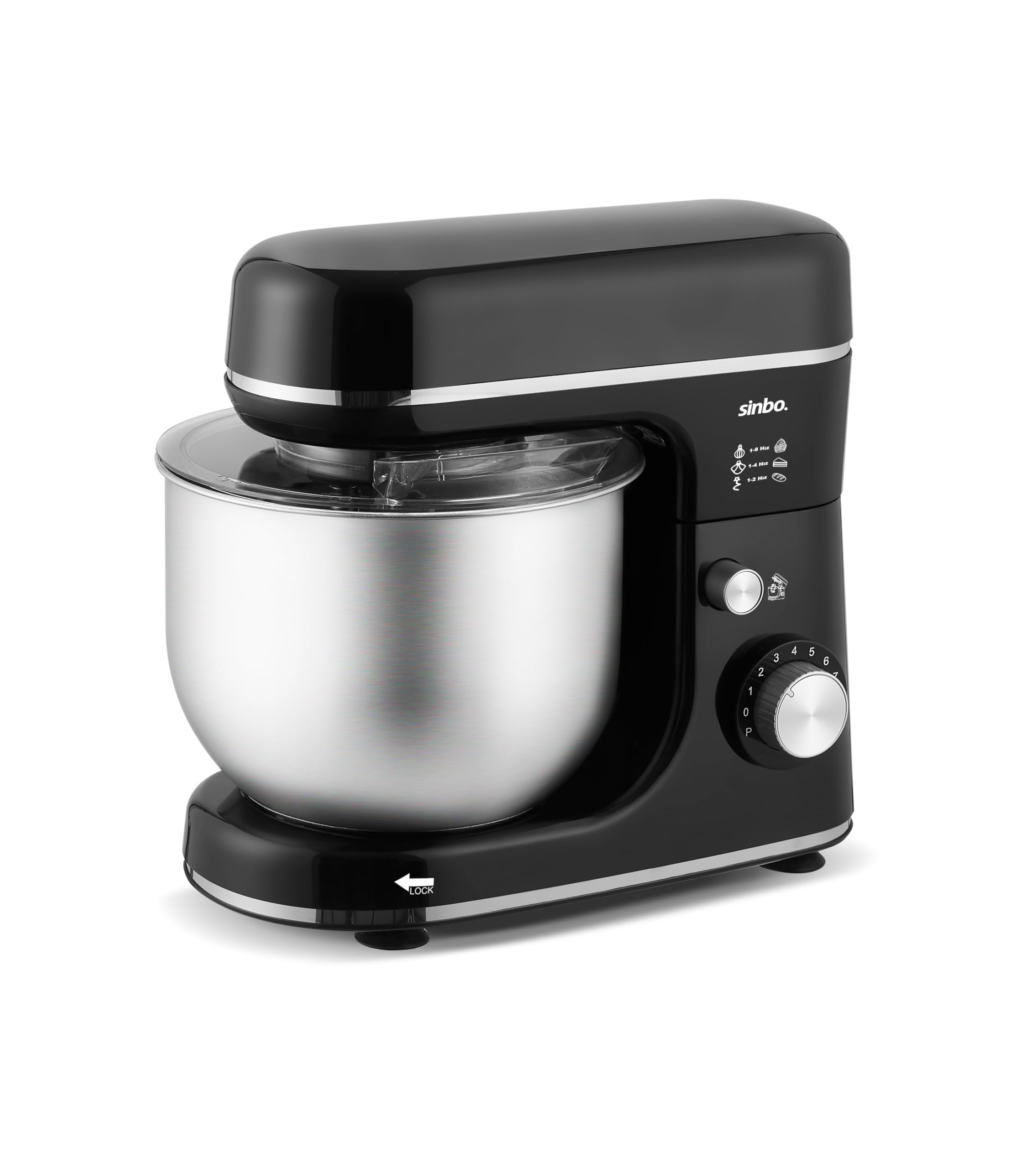

Sinbo SMX-2769 Stand Mixer with whisk attachment and key features

Figure 1: Sinbo SMX-2769 Stand Mixer with whisk attachment, highlighting 1300W motor, 6L stainless steel bowl, and 8 speed settings.

Components:

  • Motor Unit: The main body housing the motor and control panel.
  • Mixing Head: Tilts up for easy access to the bowl and attachments.
  • Speed Control Dial: Adjusts the mixing speed (0-8 speeds + Pulse).
  • Head Release Button: Used to tilt the mixing head.
  • 6-Liter Stainless Steel Bowl: Large capacity bowl for ingredients.
  • Splash Guard: Prevents ingredients from splashing out during operation.
  • Whisk Attachment: Ideal for whipping cream, egg whites, and light batters.
  • Flat Beater Attachment: Suitable for mixing cakes, cookies, and general batters.
  • Dough Hook Attachment: Designed for kneading heavy doughs like bread and pizza.
  • Suction Cup Feet: Provides stability during operation.

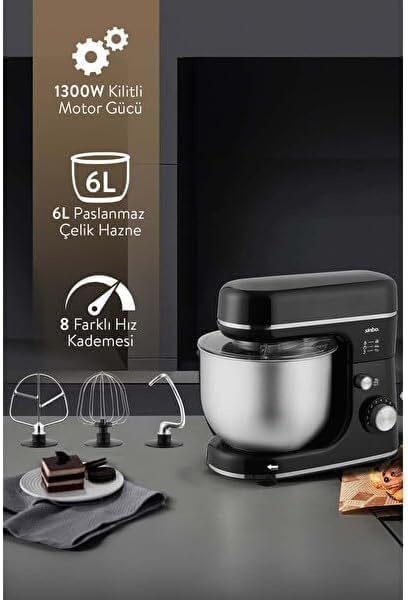

Sinbo SMX-2769 Stand Mixer with all three attachments

Figure 2: The Sinbo SMX-2769 Stand Mixer shown with its three primary attachments: whisk, flat beater, and dough hook.

4. Setup

  1. Unpack: Carefully remove all components from the packaging.
  2. Clean: Before first use, wash the stainless steel bowl, splash guard, and all attachments (whisk, flat beater, dough hook) in warm soapy water. Rinse thoroughly and dry. Wipe the motor unit with a damp cloth.
  3. Position: Place the mixer on a clean, dry, and stable countertop. Ensure the suction cup feet are firmly attached to the surface for stability.
  4. Attach Bowl: Press the head release button to tilt the mixing head upwards. Place the stainless steel bowl onto the base, aligning the grooves, and turn it clockwise until it locks securely in place.
  5. Attach Accessory: Select the desired attachment (whisk, flat beater, or dough hook). Insert the attachment into the shaft and turn it counter-clockwise until it locks into place.
  6. Lower Head: Press the head release button again and gently lower the mixing head until it clicks into its locked position.
  7. Attach Splash Guard: Slide the splash guard onto the mixing head from the front, ensuring it covers the bowl opening.

5. Operating Instructions

5.1. General Operation

  1. Ensure the mixer is properly assembled with the bowl, attachment, and splash guard in place.
  2. Add your ingredients to the stainless steel bowl.
  3. Plug the power cord into a suitable electrical outlet (220V).
  4. Turn the speed control dial to the desired speed setting (1-8). Start with a lower speed and gradually increase to prevent splashing.
  5. For short bursts of maximum power, turn the dial to the 'P' (Pulse) setting and hold. Release to stop.
  6. When finished, turn the speed control dial back to '0' (Off) and unplug the mixer from the power outlet.
  7. Press the head release button to tilt the mixing head up. Remove the attachment by turning it clockwise and pulling it down. Remove the bowl by turning it counter-clockwise.

5.2. Attachment Usage Guidelines

  • Whisk Attachment: Use for aerating mixtures such as egg whites, cream, meringues, and light batters. Recommended speeds: 6-8.
    • Sinbo SMX-2769 Stand Mixer with whisk attachment

    Figure 3: The whisk attachment is ideal for whipping and aerating ingredients.

  • Flat Beater Attachment: Ideal for medium to heavy mixtures like cake batters, cookie dough, frostings, and mashed potatoes. Recommended speeds: 3-5.

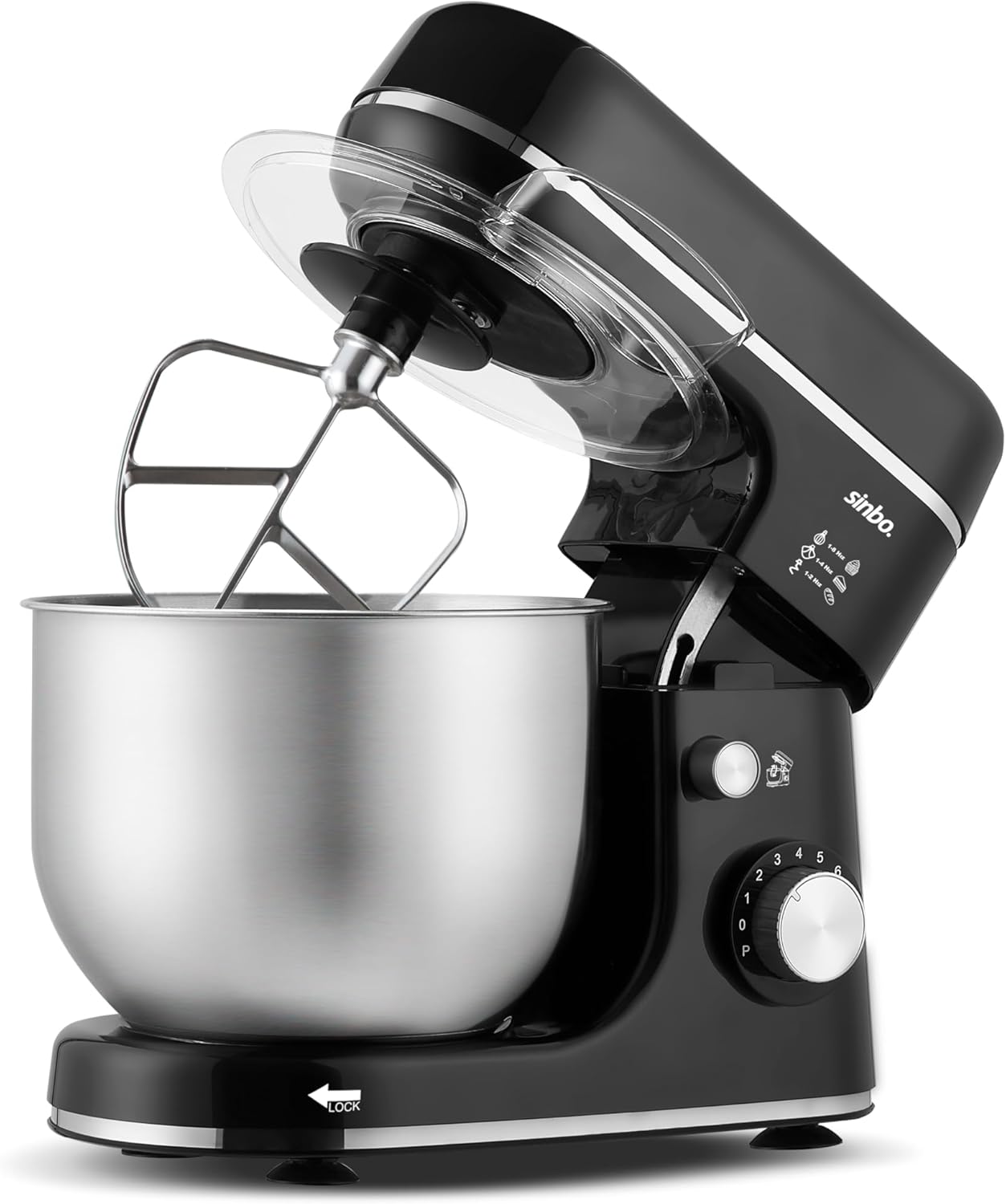

    • Sinbo SMX-2769 Stand Mixer with flat beater attachment

    Figure 4: The flat beater attachment is used for general mixing tasks.

  • Dough Hook Attachment: Best for kneading heavy doughs such as bread, pizza, and pasta dough. Recommended speeds: 1-2.
    • Sinbo SMX-2769 Stand Mixer with dough hook attachment

    Figure 5: The dough hook attachment is specifically designed for kneading heavy doughs.

6. Cleaning and Maintenance

Regular cleaning ensures the longevity and hygiene of your stand mixer.

  1. Always Unplug: Before cleaning, ensure the mixer is unplugged from the power outlet and has cooled down.
  2. Bowl and Attachments: The stainless steel bowl, splash guard, whisk, flat beater, and dough hook are dishwasher safe or can be washed by hand in warm soapy water. Rinse thoroughly and dry immediately to prevent water spots or corrosion.
  3. Motor Unit: Wipe the exterior of the motor unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the motor unit in water.
  4. Storage: Store the mixer and its accessories in a clean, dry place.

7. Troubleshooting

If you encounter any issues with your Sinbo SMX-2769 Stand Mixer, please refer to the following common problems and solutions:

ProblemPossible CauseSolution
Mixer does not start.Not plugged in; power switch off; safety lock not engaged.Check power connection; ensure speed dial is not at '0'; ensure mixing head is fully lowered and locked.
Attachments are difficult to install/remove.Incorrect alignment; food residue.Ensure attachment is aligned with the shaft; clean any residue from the shaft or attachment.
Excessive noise or vibration.Mixer not on a stable surface; bowl or attachment not properly secured; overloading.Ensure mixer is on a flat, stable surface; check if bowl and attachment are locked; reduce ingredient quantity.
Motor stops during operation.Overheating protection activated; motor overload.Turn off and unplug the mixer. Let it cool down for 20-30 minutes. Reduce load if overloading was the cause.

8. Specifications

  • Model: SMX-2769
  • Brand: Sinbo
  • Power: 1300 W
  • Voltage: 220 V
  • Bowl Capacity: 6 Liters
  • Speed Settings: 8 speeds + Pulse function
  • Material: Stainless Steel (bowl), Durable Plastic/Metal (body)
  • Dimensions (Product): 22.8D x 33.5W x 29.7H cm
  • Special Features: Adjustable Speed Control, Low Noise Operation, Safety Lock, Removable Bowl

9. Warranty and Support

For warranty information, please refer to the warranty card included with your product or contact your local Sinbo distributor. For technical support or service inquiries, please visit the official Sinbo website or contact their customer service department.

Sinbo Customer Service: Please refer to your product packaging or the official Sinbo website for contact details in your region.

© 2025 Sinbo. All rights reserved.
