VENTION 65W USB C Fast Charger (Model FCB) User Manual

1. Introduction

The VENTION 65W USB C Fast Charger (Model FCB) is a versatile and compact charging solution designed for a wide range of electronic devices. Utilizing advanced GaN (Gallium Nitride) technology, this charger delivers high-power output efficiently while maintaining a small form factor. It features three charging ports (two USB-C and one USB-A) and includes interchangeable US, UK, and EU plugs, making it an ideal travel companion for international use.

This manual provides essential information on setting up, operating, maintaining, and troubleshooting your VENTION 65W USB C Fast Charger to ensure optimal performance and longevity.

2. Safety Information

• Read all instructions carefully before using the product.
• Keep the charger away from water, moisture, and high humidity environments.
• Do not disassemble, modify, or attempt to repair the charger. This will void the warranty and may cause electric shock or fire.
• Avoid exposing the charger to extreme temperatures (hot or cold) or direct sunlight.
• Use only original or certified charging cables with the charger to prevent damage to devices or the charger itself.
• Ensure the charger is properly ventilated during use. Do not cover it with cloth or other materials.
• Unplug the charger from the power outlet when not in use or during electrical storms.
• Keep out of reach of children.

3. Package Contents

Verify that all items are present in your package:

• 1 x VENTION 65W USB C Fast Charger (Model FCB)
• 1 x User Manual
• 1 x EU Plug Adapter
• 1 x UK Plug Adapter

4. Product Overview

The VENTION 65W USB C Fast Charger is engineered for high performance and portability. Its ultra-slim design and GaN V Technology allow for efficient power delivery in a compact form factor.

Key Features:

• 65W GaN Dash Pro Fast Charging: Delivers up to 65W of power for rapid charging of compatible devices.
• Ultra-Slim & Global Ready: Compact design with foldable US plug and interchangeable UK/EU travel plugs.
• Tri-Port Smart Power Sharing: Features two USB-C ports and one USB-A port for simultaneous charging of up to three devices.
• Safety & Temperature Control: Equipped with NTC Temperature Control and multiple safeguards including short circuit, overvoltage, overcurrent, over-discharge, and reverse polarity protection.
• GaN V Technology: Ensures compact size, lightweight design, cooler operation, and high efficiency.

Port Layout:

The charger features two USB-C output ports (USB-C1 and USB-C2) and one USB-A output port.

Figure 1: VENTION 65W USB C Fast Charger showing its compact design and three charging ports.

Figure 2: The VENTION 65W charger's compact size, demonstrating its portability and ability to fit into tight spaces.

5. Setup

Attaching/Changing Plugs:

The VENTION 65W charger comes with a foldable US plug integrated and includes interchangeable UK and EU plug adapters for international compatibility.

1. For US Plug: Simply unfold the integrated US prongs from the charger body.
2. For UK/EU Plugs:
   • First, ensure the integrated US plug is folded into the charger body.
   • Align the desired UK or EU plug adapter with the slots on the charger.
   • Gently press the adapter onto the charger until it clicks securely into place.
3. To Remove UK/EU Plugs: Press the release button (if present, typically on top of the plug adapter) and slide the adapter off.

Figure 3: Visual guide for installing and replacing the interchangeable plug adapters.

Connecting to Power Outlet:

Once the correct plug is attached, insert the charger firmly into a compatible wall outlet or power strip.

Connecting Devices:

Use appropriate USB charging cables (not included) to connect your devices to the charger's USB-C or USB-A ports.

6. Operating Instructions

The VENTION 65W USB C Fast Charger operates automatically once connected to a power source and your devices. It intelligently detects the connected devices and optimizes power delivery.

1. Ensure the charger is securely plugged into a live power outlet.
2. Connect your device(s) to the appropriate USB-C or USB-A port using a compatible charging cable.
3. The charger will automatically begin charging your device(s).
4. For optimal fast charging, use high-quality USB-C to USB-C cables that support Power Delivery (PD) protocols.

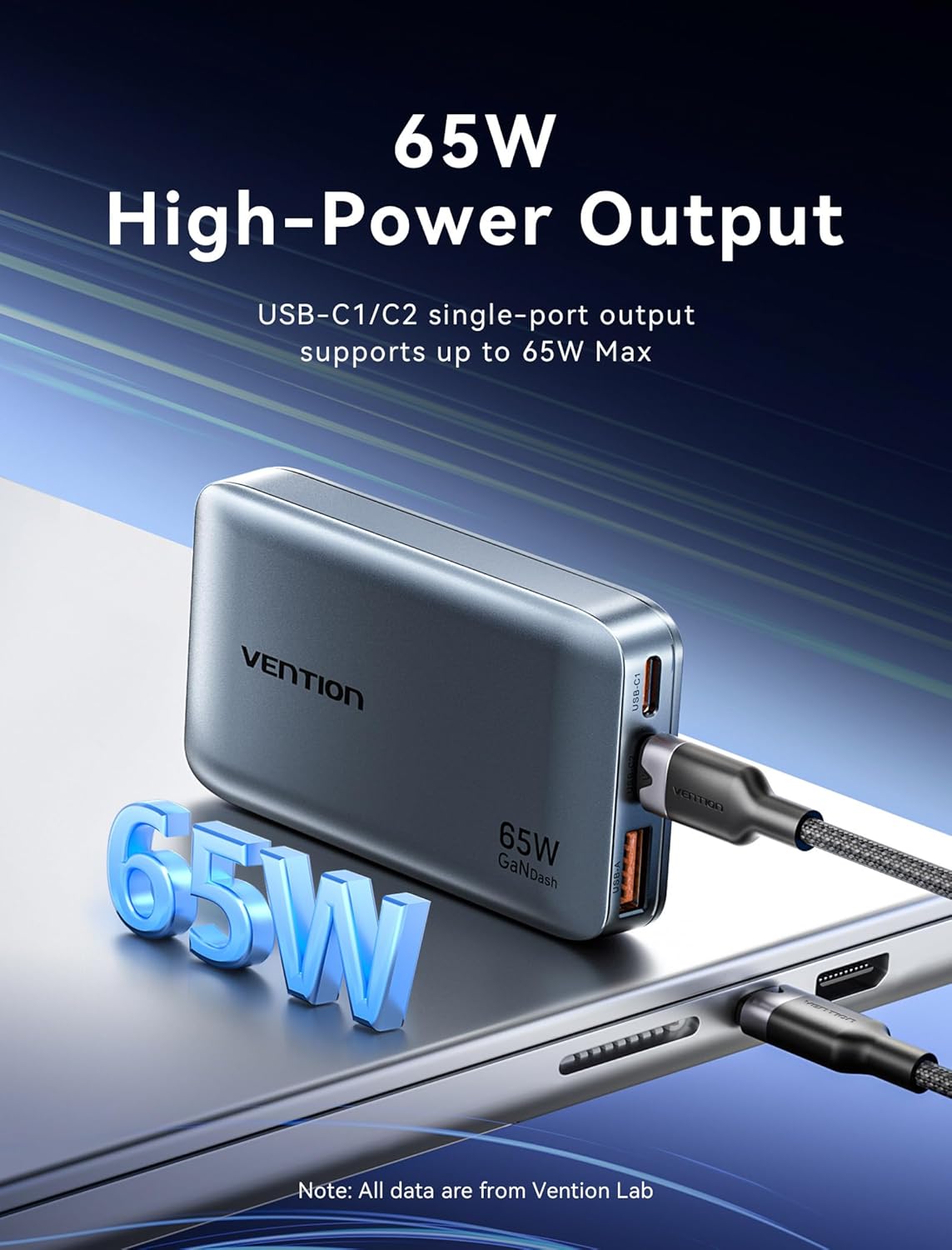

Figure 4: The charger delivering 65W high-power output to a laptop.

Figure 5: The charger's capability to charge three devices concurrently.

7. Power Distribution

The VENTION 65W USB C Fast Charger features intelligent power distribution, automatically adjusting output based on the number and type of connected devices. Below is a guide to the typical power output scenarios:

Single Port Usage:

• USB-A: Up to 18W
• USB-C1: Up to 65W
• USB-C2: Up to 65W

Dual Port Usage:

• USB-A + USB-C2: 7.5W + 7.5W
• USB-C2 + USB-C1: 20W + 45W
• USB-A + USB-C1: 18W + 45W

Triple Port Usage:

• USB-A + USB-C2 + USB-C1: 7.5W + 7.5W + 45W

Figure 6: Detailed intelligent power distribution chart for various port combinations.

8. Maintenance

• Cleaning: Disconnect the charger from the power outlet and all devices before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquid cleaners or aerosols.
• Storage: Store the charger in a cool, dry place away from direct sunlight and extreme temperatures.
• Handling: Avoid dropping or subjecting the charger to strong impacts.

9. Troubleshooting

Common Issues and Solutions:

• Device not charging:
  • Ensure the charger is securely plugged into a working power outlet.
  • Verify that the charging cable is properly connected to both the charger and your device.
  • Try a different charging cable to rule out cable malfunction.
  • Test the charger with a different device to confirm charger functionality.
  • Check if your device is compatible with the charger's output specifications.
• Slow charging:
  • Ensure you are using a high-quality cable that supports fast charging protocols (e.g., Power Delivery for USB-C).
  • Refer to the Power Distribution section (Section 7) to understand how power is shared when multiple devices are connected. Disconnecting other devices may increase charging speed for a single device.
  • Confirm your device supports the fast charging wattage provided by the charger.
• Charger feels warm:
  • It is normal for the charger to become warm during operation, especially during high-power charging.
  • If the charger becomes excessively hot, disconnect it immediately and allow it to cool down. Ensure it is in a well-ventilated area and not covered.
  • The charger includes NTC Temperature Control for safety. If overheating persists, discontinue use and contact support.

Figure 7: The charger's integrated NTC Temperature Control and comprehensive safety features.

10. Specifications

11. Warranty and Support

Warranty Information:

This VENTION 65W USB C Fast Charger is covered by a 2-year manufacturer warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or external causes.

Customer Support:

For technical assistance, warranty claims, or any questions regarding your VENTION product, please contact the Vention Official Store where you purchased the product. Please have your purchase receipt and product model number (FCB) ready when contacting support.

12. Product Demonstration Video

Watch the official product video for a visual guide on the VENTION 65W USB C Fast Charger's features and usage.
