Apple Watch Series 11 GPS + Cellular 46mm User Manual

Introduction

Welcome to your Apple Watch Series 11. This manual provides essential information for setting up, operating, and maintaining your device. The Apple Watch Series 11 combines advanced health monitoring, comprehensive fitness tracking, and seamless cellular connectivity, all within a durable and elegant design.

Key features include:

• Advanced Health Insights: Monitor your heart rate, take an ECG, track blood oxygen levels, and receive notifications for irregular rhythms. The Vitals app provides overnight health metrics.
• Comprehensive Fitness Tracking: Utilize advanced metrics for various workouts, including Pacer, Heart Rate Zones, and training load.
• Sleep Score: Understand and improve your sleep quality with detailed sleep tracking and scoring.
• Extended Battery Life: Enjoy up to 24 hours of normal use, with fast charging capabilities providing up to 8 hours of use in just 15 minutes.
• Cellular Connectivity: Stay connected, make calls, and stream music directly from your watch, even without your iPhone nearby.

What's in the Box

Verify that all items are present in your Apple Watch Series 11 package:

• Apple Watch Series 11 Case (Slate Titanium, 46mm)
• Milanese Loop Band (Slate, S/M - fits 130–180mm wrists)
• 1m Magnetic Charging Cable (USB-C)

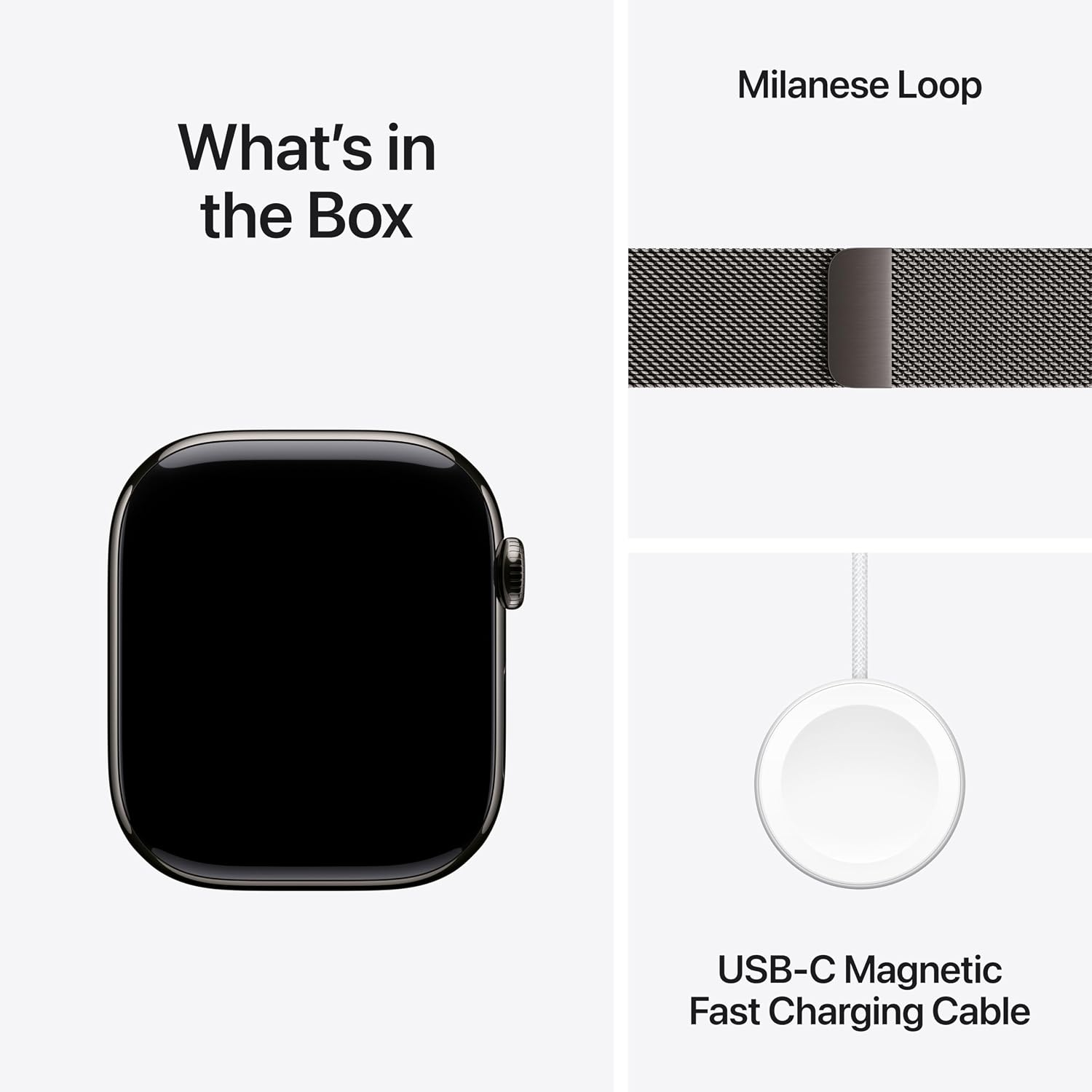

Image: The Apple Watch Series 11 box contents, including the watch case, Milanese Loop band, and the USB-C magnetic fast charging cable.

Setup

1. Charging Your Apple Watch

Before initial use, fully charge your Apple Watch. Connect the 1m Magnetic Charging Cable to a USB-C power adapter (sold separately) and plug it into a power outlet. Place the back of your Apple Watch on the magnetic charger. The watch will display a charging indicator.

2. Powering On and Pairing

1. Press and hold the Side Button until the Apple logo appears.
2. Bring your iPhone (running the latest iOS) near your Apple Watch. A pairing animation will appear on your iPhone.
3. Tap 'Continue' on your iPhone and follow the on-screen instructions to pair your watch. You may need to position your iPhone's camera over the animation on your watch.
4. Choose to set up for yourself or a family member.
5. Follow the prompts to set up cellular, Apple Pay, and other features.

3. Adjusting the Milanese Loop Band

The Milanese Loop band uses a magnetic closure for a secure and adjustable fit. Wrap the band around your wrist and adjust the magnetic end until the watch feels snug but comfortable. Ensure the watch is not too tight or too loose for accurate sensor readings.

Operating Your Apple Watch Series 11

Basic Navigation

• Digital Crown: Rotate to scroll, zoom, or adjust values. Press once to go to the watch face or app list. Double-press to switch between your last two apps. Press and hold for Siri.
• Side Button: Press once to open the Dock (recently used apps). Double-press for Apple Pay. Press and hold for Emergency SOS or to power off.
• Touch Display: Tap to select, swipe to navigate, force touch for additional options (on supported apps).

Health Monitoring

Your Apple Watch Series 11 provides advanced health insights:

• Heart Rate: The watch continuously monitors your heart rate. View current, resting, and walking average heart rates in the Heart Rate app. Receive notifications for high or low heart rates.
• ECG App: Take an electrocardiogram (ECG) to record your heart's electrical activity. Open the ECG app and follow the instructions.
• Blood Oxygen App: Measure your blood oxygen saturation. Ensure a snug fit and remain still during measurement.
• Sleep Tracking: Wear your watch to bed to track your sleep stages and receive a daily sleep score in the Sleep app.
• Vitals App: Access overnight health metrics, including heart rate, blood oxygen, and respiratory rate, to understand your overall health trends.

Image: The Apple Watch screen showing current heart rate (68 BPM) and the Overnight Vitals display, indicating typical readings from 10:08 PM to 6:05 AM.

Fitness Tracking

The Activity app tracks your daily movement, exercise, and stand goals. The Workout app offers various workout types with advanced metrics:

• Activity Rings: Close your Move, Exercise, and Stand rings daily to achieve your fitness goals.
• Workout App: Select from a wide range of workouts. Features like Pacer, Heart Rate Zones, and training load provide detailed performance insights.
• Workout Buddy: Powered by Apple Intelligence from your nearby iPhone, this feature enhances your workout experience.

Image: Two Apple Watch screens. One shows the Activity Rings interface, tracking daily movement. The other shows the Workout app, specifically an 'Outdoor Run' in progress.

Cellular Connectivity

With GPS + Cellular, your Apple Watch can make calls, send messages, and use apps that require a data connection, even when your iPhone is not with you. This requires an active cellular plan from your carrier that supports Apple Watch.

Image: A person wearing an Apple Watch on their wrist, interacting with the screen, illustrating the device's 5G connectivity capabilities.

Maintenance

Cleaning Your Apple Watch

To clean your Apple Watch, wipe it with a non-abrasive, lint-free cloth. If necessary, lightly dampen the cloth with fresh water. Do not use soaps, cleaning products, abrasive materials, or compressed air. The Milanese Loop band can be wiped clean with a damp cloth.

Water Resistance

Apple Watch Series 11 is water resistant, but not waterproof. It can be used for shallow-water activities like swimming in a pool or ocean. It should not be used for scuba diving, waterskiing, or other activities involving high-velocity water or submersion below shallow depths. Water resistance may decrease over time.

Software Updates

Keep your Apple Watch software updated to ensure optimal performance and access to the latest features. Updates can be installed via the Watch app on your iPhone.

Troubleshooting

Watch Not Turning On

If your Apple Watch does not turn on, ensure it is fully charged. Connect it to the magnetic charging cable and allow it to charge for at least 30 minutes. If it still doesn't turn on, try a force restart by holding both the Side Button and the Digital Crown for at least 10 seconds until the Apple logo appears.

Pairing Issues

If your watch fails to pair with your iPhone:

• Ensure both devices have Bluetooth enabled.
• Restart both your Apple Watch and iPhone.
• Make sure your iPhone is running the latest iOS version.
• If the issue persists, unpair the watch (if previously paired) and try pairing again.

Inaccurate Sensor Readings

For accurate heart rate, blood oxygen, and activity tracking, ensure your Apple Watch is worn snugly on your wrist, but not uncomfortably tight. Clean the back crystal regularly to remove any debris that might interfere with the sensors.

Battery Draining Quickly

If your battery drains faster than expected:

• Check for apps running in the background.
• Reduce screen brightness.
• Disable 'Always On Display' if not needed.
• Limit notifications from less important apps.
• Ensure your watchOS is up to date.

Specifications

Warranty and Support

Warranty Information

Your Apple Watch Series 11 is covered by Apple's standard limited warranty. For detailed terms and conditions, please refer to the warranty documentation included with your product or visit the official Apple support website. Optional extended protection plans, such as AppleCare, may be available for purchase separately.

Customer Support

For technical assistance, service, or further information, please contact Apple Support:

• Online Support: Visit support.apple.com
• Phone Support: Refer to the contact numbers provided on Apple's official website for your region.
• Manufacturer: Apple Inc, One Apple Park Way, Cupertino, CA 95014, USA.
• Importer (India): Apple India Private Limited, 13th Floor, Prestige Minsk Square, Municipal No. 6, Cubbon Road, Bengaluru, Karnataka - 560001, India.
