VINGLI 63-inch 10-Tier Leaf-Shaped Plant Stand with LED Grow Lights

Introduction

Thank you for purchasing the VINGLI 63-inch 10-Tier Leaf-Shaped Plant Stand with LED Grow Lights. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure optimal use and longevity of your plant stand. Please read this manual thoroughly before assembly and use, and retain it for future reference.

Safety Information

• Ensure all components are securely fastened before placing plants on the stand.
• Do not overload the shelves. Distribute weight evenly.
• Use the included anti-tip straps to secure the plant stand to a wall, especially in homes with children or pets, to prevent accidental tipping.
• Keep electrical components (LED grow lights and power adapter) away from water to prevent electric shock.
• Do not attempt to modify the product or its electrical components.
• Place the stand on a flat, stable surface.
• Unplug the grow lights from the power source before cleaning or performing any maintenance.

Package Contents

Please verify that all parts are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• Metal Frame Components (Leaf-shaped main frame, base supports, vertical supports)
• Wooden Shelf Boards (10 pieces)
• 5 LED Grow Light Strips
• LED Light Controller with Timer and Brightness Adjustment
• Power Adapter for LED Lights
• Assembly Hardware (Screws, nuts, Allen wrench)
• Anti-Tip Straps and Wall Anchors
• Small Hooks for hanging plants (if applicable)

Assembly Instructions

Follow these steps carefully to assemble your VINGLI Plant Stand.

Step 1: Assemble the Base Frame

Connect the base supports to the main leaf-shaped metal frame using the provided screws and Allen wrench. Ensure all connections are finger-tight at this stage.

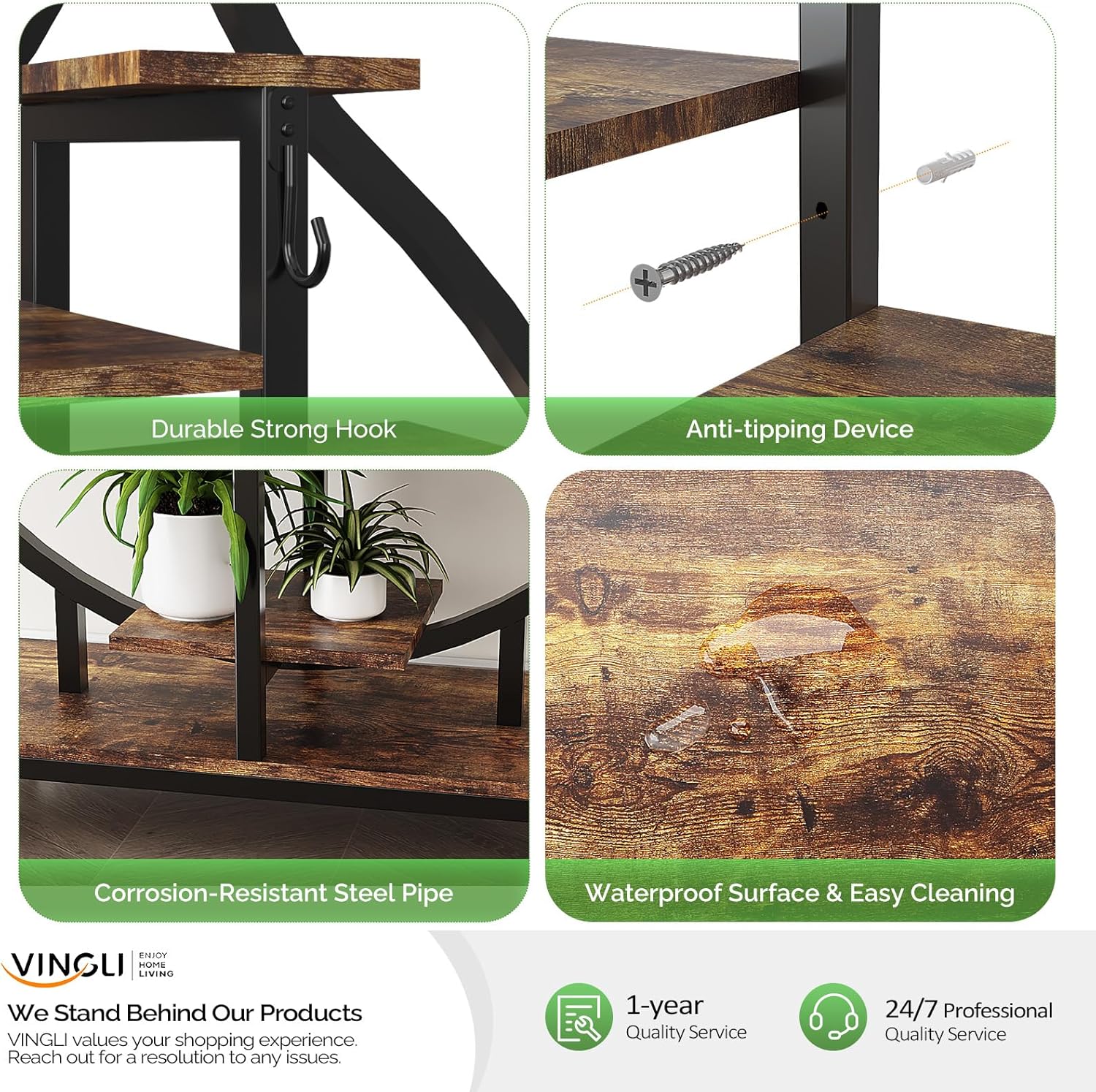

Image: Details of the plant stand's construction, including a durable hook, anti-tipping device, corrosion-resistant steel pipe, and waterproof shelf surface.

Step 2: Attach Vertical Supports and Shelves

Attach the vertical support bars to the main frame. Then, place the wooden shelf boards onto their designated positions on the frame. The shelves are staggered to create the leaf-shaped design. Secure each shelf with screws.

Image: The fully assembled plant stand, showcasing its leaf-shaped design and multiple tiers for plants.

Step 3: Final Tightening and Anti-Tip Installation

Once all components are in place, tighten all screws firmly. Position the plant stand in its desired location. Attach the anti-tip straps to the top of the stand and secure them to a wall stud or using appropriate wall anchors. This step is crucial for stability.

Image: The plant stand in a home environment, demonstrating its placement and capacity for various plants.

Step 4: Install LED Grow Lights

Attach the 5 LED grow light strips to the underside of the shelves where desired. The strips typically have adhesive backing or clips for easy installation. Connect the light strips to the LED controller, then connect the controller to the power adapter. Plug the power adapter into a standard electrical outlet.

Image: Illustration of the LED grow light system, detailing its full-spectrum capability, brightness levels, and timer functions. A visual comparison highlights plant growth with and without the lights.

Operating Instructions for LED Grow Lights

The VINGLI Plant Stand includes 5 full-spectrum LED grow light strips designed to support plant growth. Use the inline controller to manage the lights.

• Power ON/OFF: Press the power button on the controller to turn the lights on or off.
• Brightness Adjustment: Use the brightness buttons (usually marked with '+' and '-') to select from 10 brightness levels (10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%).
• Timer Function: Press the timer button to set an automatic ON/OFF cycle. Available settings are 3 hours, 9 hours, or 12 hours. The lights will automatically turn off after the set duration and turn on again at the same time the next day.

For optimal plant growth, consult specific light requirements for your plant species. Generally, most plants benefit from 12-16 hours of light per day.

Maintenance

• Cleaning: Wipe the metal frame and wooden shelves with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Ensure the grow lights are unplugged before cleaning.
• Waterproof Shelves: The wooden shelves are designed to be waterproof. Promptly wipe up any spilled water to prevent potential damage over time.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary.
• Grow Lights: Keep the LED light strips free from dust and debris to maintain optimal light output.

Troubleshooting

Specifications

• Model: ZWJ0SYK
• Dimensions (L x W x H): 33.07 x 10.24 x 63 inches (84 x 26 x 160 cm)
• Material: Metal (Powder Coated Steel), Wood
• Color: Black
• Number of Tiers: 10
• Item Weight: Approximately 28 Pounds (12.7 kg)
• Grow Lights: 5 Full-Spectrum LED Strips
• Light Features: 10 Brightness Levels, 3/9/12 Hour Timer
• Assembly Required: Yes

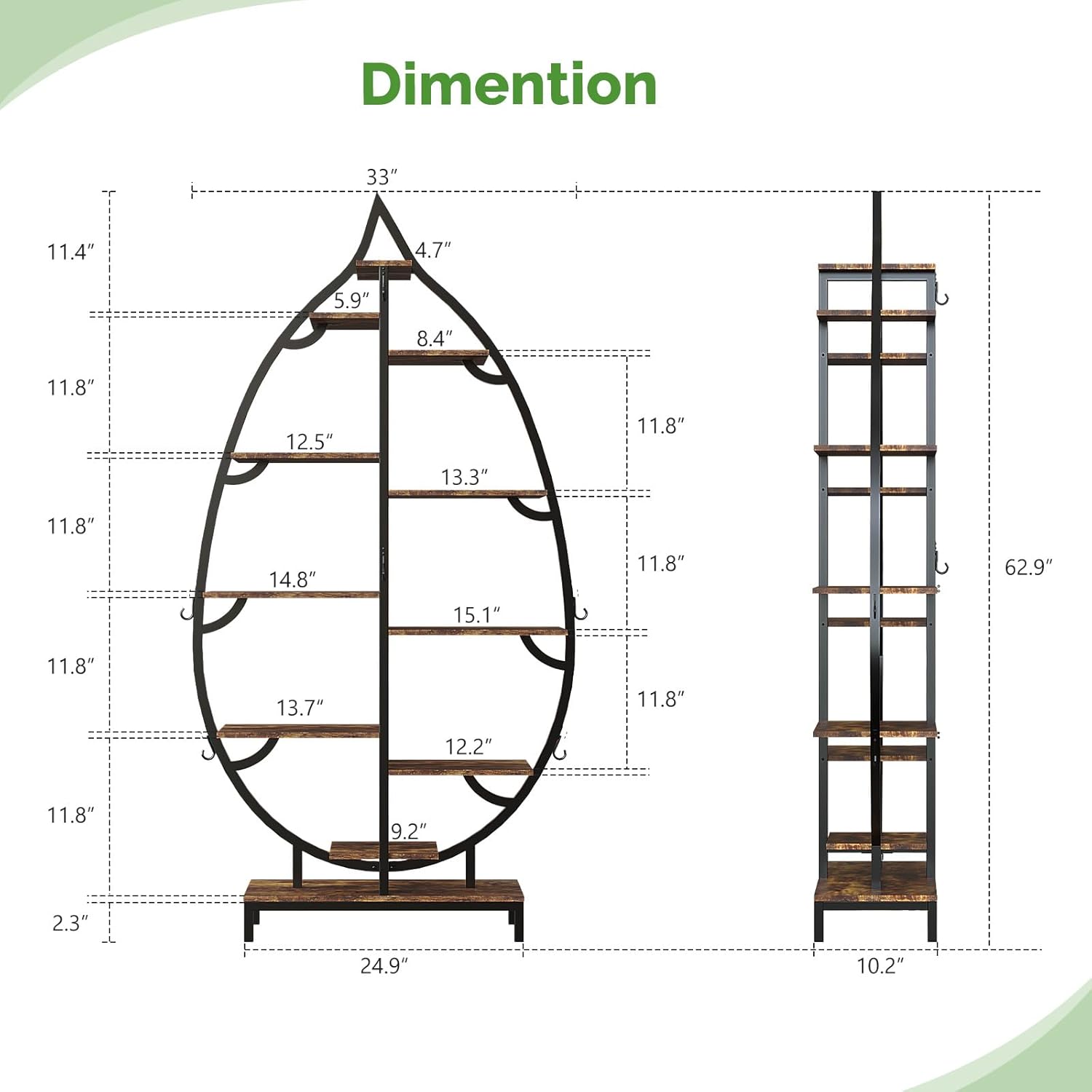

Image: Technical drawing illustrating the precise dimensions of the plant stand, including overall height, width, and individual shelf measurements.

Warranty and Support

VINGLI provides a 1-year quality assurance for this product. If you encounter any issues or have questions regarding your plant stand, please contact VINGLI customer support for assistance.

Customer Support: Refer to your purchase documentation or the VINGLI official website for contact information. Our team is available 24/7 to ensure a satisfactory experience.
