PhiloDeco 6000 BTU Window Air Conditioner User Manual

Introduction

This manual provides detailed instructions for the safe operation, installation, maintenance, and troubleshooting of your PhiloDeco 6000 BTU Window Air Conditioner. Please read this manual thoroughly before using the appliance and retain it for future reference.

Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Ensure the power supply matches the voltage requirements specified on the unit.
• Do not operate the air conditioner with a damaged power cord or plug.
• Do not insert fingers or objects into the air inlet or outlet.
• Keep the unit away from flammable materials.
• Always unplug the unit before cleaning or performing any maintenance.
• Do not attempt to repair or modify the unit yourself. Contact qualified service personnel.

Package Contents

Verify that all components are present in the package:

• Window Air Conditioner Unit
• Remote Control
• Remote Control Batteries (2)
• Insulation Strip (2)
• Window Sash Seal
• Foam Top Window Gasket
• Sash Lock
• Top Rail
• Lock Frame (2)
• Filler Panels (2)
• Screws (various sizes: 3/4" x 4, 3/8" x 4, 1/2" x 3)

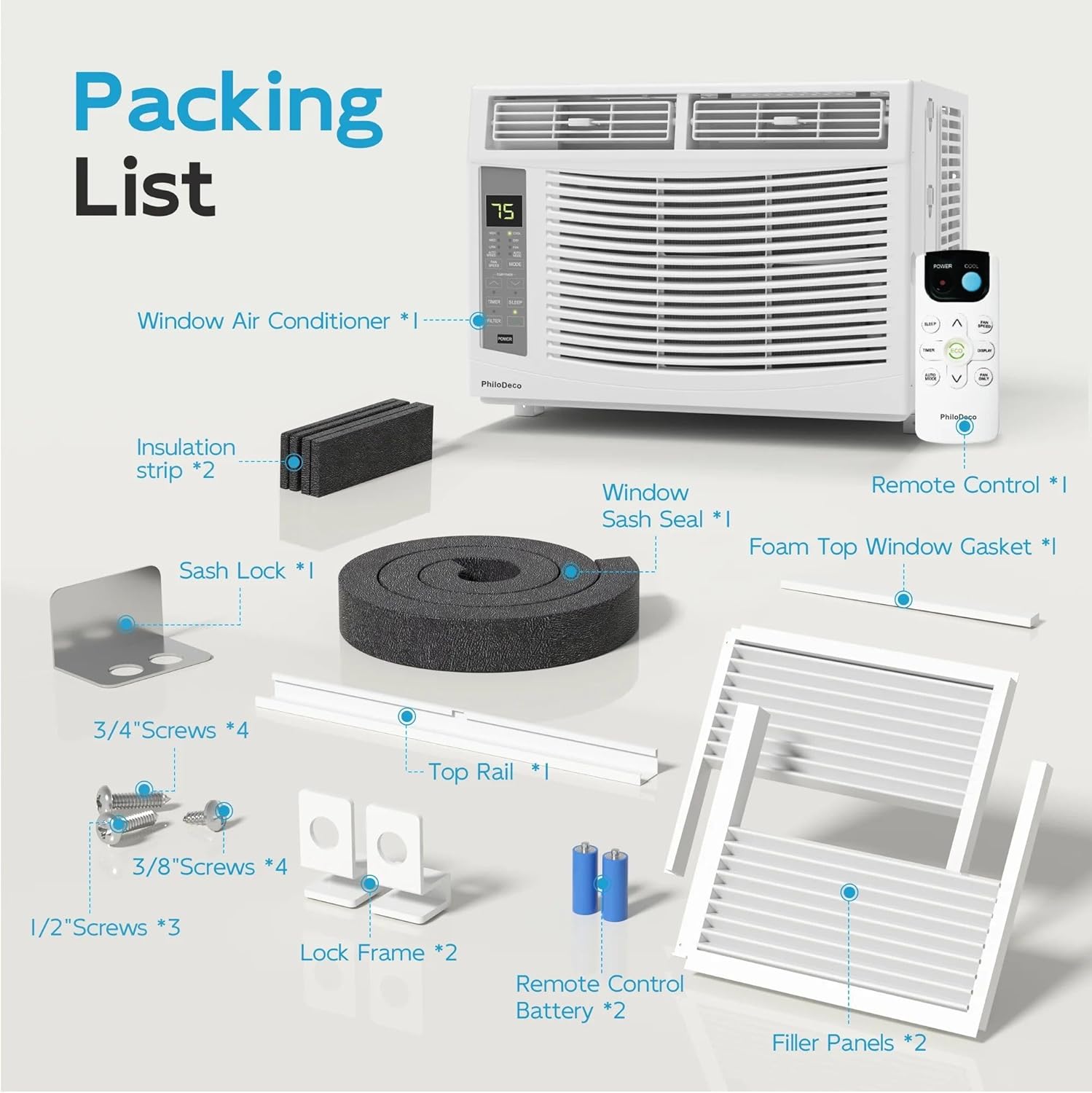

An exploded view of the PhiloDeco 6000 BTU Window Air Conditioner and all included components, such as the remote control, insulation strips, screws, and filler panels.

Setup and Installation

This PhiloDeco window air conditioner is designed for easy installation in standard double-hung windows. The window opening should be between 23-34 inches wide, with a minimum height of 14.5 inches.

Installation Steps:

1. Prepare the Window: Ensure the window frame is clean and clear of obstructions.
2. Attach Top Rail: Secure the top rail to the air conditioner unit according to the instructions in the full manual.
3. Install Filler Panels: Slide the filler panels into the side channels of the unit.
4. Place Unit in Window: Carefully lift the air conditioner and place it into the open window, ensuring the bottom rail rests securely on the window sill.
5. Extend and Secure Panels: Extend the pre-installed side railings and filler panels to fill the window opening. Secure them to the window frame using the provided screws.
6. Install Sash Lock and Seals: Install the sash lock to prevent the window from being opened from the outside. Apply the window sash seal and foam top window gasket to minimize air leakage.

Three-step visual guide for quick installation: placing the unit in an open window, extending side railings, and securing panels.

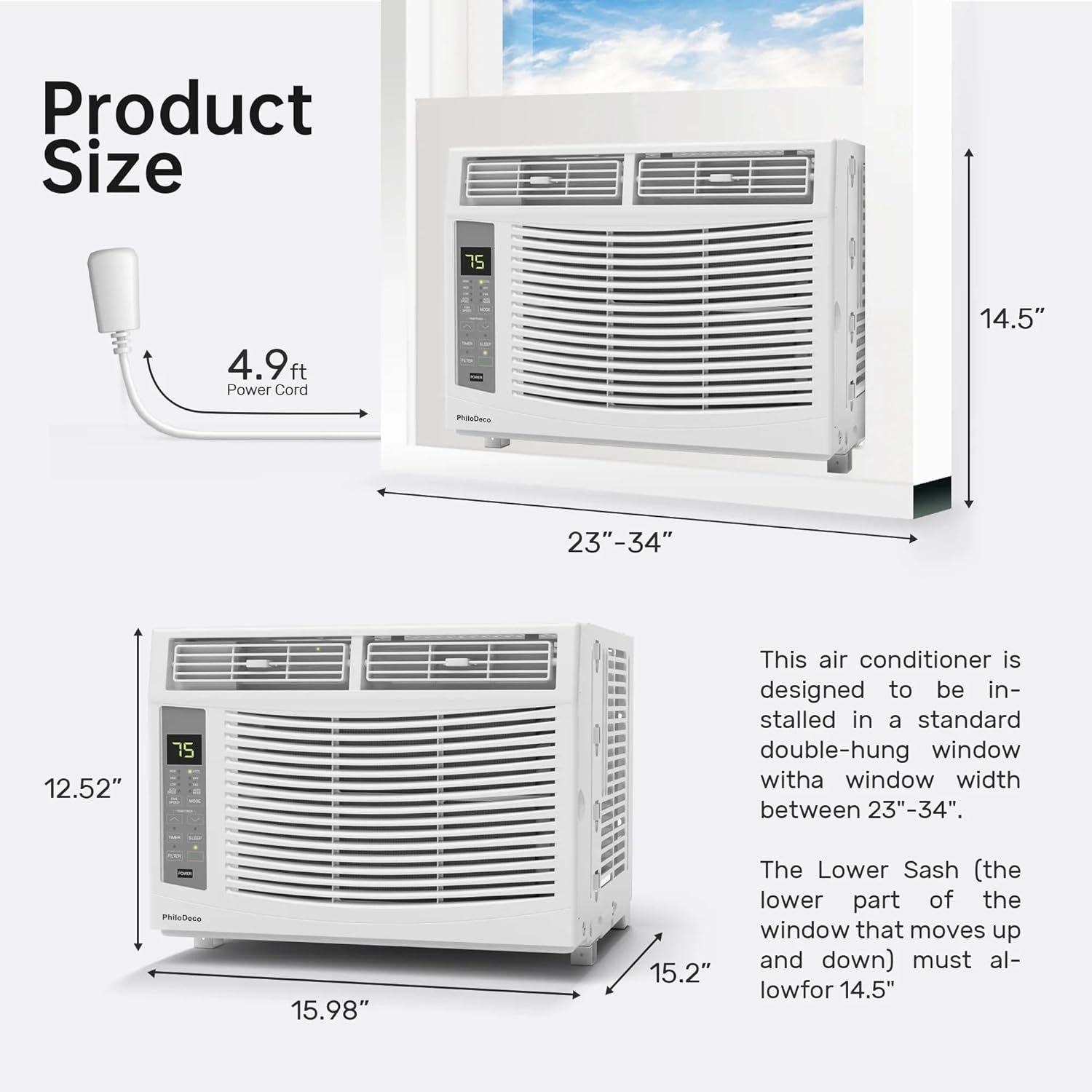

Detailed dimensions of the air conditioner unit and its power cord length, along with minimum window opening requirements.

Operating Instructions

Your PhiloDeco 6000 BTU Window Air Conditioner offers multiple operating modes and features for optimal comfort.

Control Panel and Remote Control:

The unit can be controlled via the integrated LED display panel or the included remote control. The remote control provides access to all functions from a distance.

The air conditioner installed in a window, with its remote control displaying icons for Sleep Mode, 3 Fan Speed, ECO Mode, Rapid Cooling, and Wind Direction.

Operating Modes:

• Cool Mode: Provides powerful cooling to maintain your desired temperature. Adjustable from 61°F to 88°F.
• Dry (Dehumidifier) Mode: Reduces humidity in the room without significant cooling.
• Fan Mode: Circulates air without cooling. Choose from multiple fan speeds (Low, Medium, High).
• ECO Mode: Optimizes energy consumption by cycling the compressor on and off to maintain the set temperature.
• Sleep Mode: Gradually increases the temperature setting over time and operates at a lower fan speed for quiet, comfortable sleep and energy saving.

Illustrates the three main operating modes: Cool, Dry, and Fan.

Additional Features:

• Timer Function: Set the unit to turn on or off automatically within a 24-hour period.
• Quiet Operation: Designed to operate at low noise levels, as low as 51dB in low mode.

Depicts the air conditioner operating quietly in a bedroom setting, highlighting its 24-hour timer and low noise features.

Maintenance

Regular maintenance ensures optimal performance and longevity of your air conditioner.

Cleaning the Air Filter:

The air filter should be cleaned regularly, typically every two weeks, or when the filter reminder light illuminates. A dirty filter can reduce cooling efficiency and airflow.

1. Remove the Filter: Gently pull the handle to slide out the air filter from the front of the unit.
2. Clean the Filter: Rinse the filter under running water (preferably warm, soapy water) to remove dust and debris. Do not use harsh detergents or abrasive cleaners.
3. Dry the Filter: Allow the filter to air dry completely before reinserting it. Do not expose it to direct sunlight or high heat.
4. Reinstall the Filter: Slide the dry filter back into its slot until it clicks into place.

Shows the air conditioner's control panel with a filter reminder and instructions for removing and cleaning the washable filter.

Cleaning the Unit Exterior:

Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.

Seasonal Storage:

If storing the unit for an extended period, clean the filter and exterior, then cover it with a plastic bag or cloth to protect it from dust.

Troubleshooting

Before contacting customer support, please refer to the following common issues and solutions:

Specifications

Warranty and Support

Warranty Information:

This PhiloDeco Window Air Conditioner comes with a Limited 1 Year Warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

Customer Support:

PhiloDeco provides lifelong technical support for its products. If you encounter any issues or have questions regarding your air conditioner, please refer to the contact information provided in the original user manual or on the product packaging. We also offer a 30-day no-reason return policy.
