1. Introduction
Thank you for purchasing the HUAHUU Fluted Vanity Desk with Mirror and Lights. This manual provides essential information for the safe assembly, setup, operation, and maintenance of your new vanity desk. Please read these instructions thoroughly before use and retain them for future reference.
This vanity desk features a fluted panel design, a glass top, five drawers for storage, a mirror with adjustable 3-color lighting, and an integrated power outlet with USB ports.

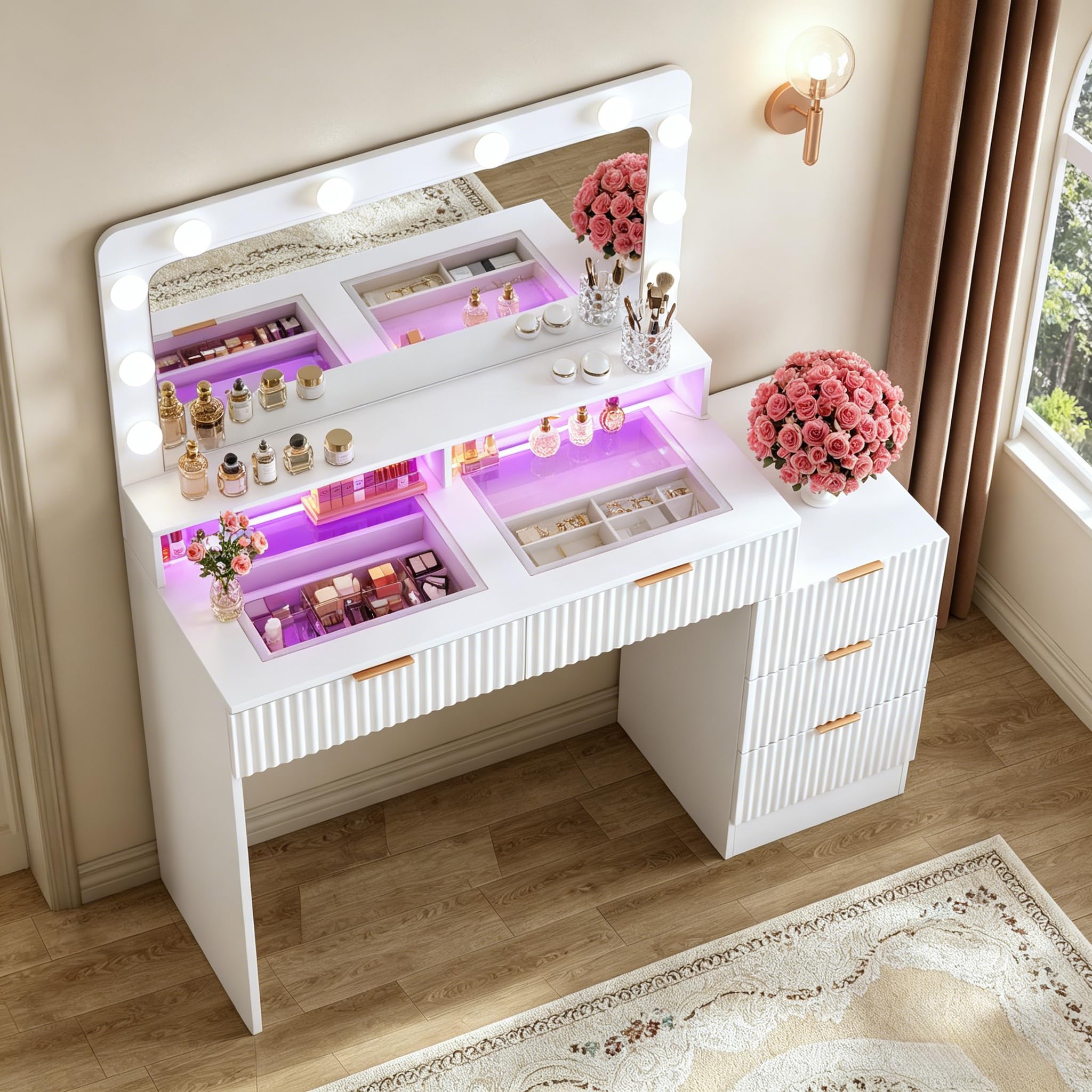

Figure 1.1: Overview of the HUAHUU Fluted Vanity Desk.
2. Safety Information
Please read and understand all safety warnings before assembly and use.
- Always unplug the vanity before assembly, disassembly, or cleaning.
- Be cautious of sharp edges and heavy weight during handling. It is recommended to have at least two people for assembly.
- Keep the glass top clean and dry to prevent breakage.
- Do not place heavy objects on the glass top to avoid damage.
- Keep the vanity away from heat sources and moisture to prevent damage to electrical components.
- Ensure all electrical connections are secure and comply with local electrical codes.
- Do not overload the power outlet.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer service immediately.
- Vanity Desk Panels (various sizes)
- Mirror with Integrated Lights
- Five Drawers (including glass-top drawers)
- Power Outlet Strip (pre-installed or separate)
- Hardware Pack (screws, dowels, cam locks, etc.)
- Assembly Tools (e.g., Allen wrench, screwdriver)
- Instruction Manual
4. Assembly Instructions
Assembly of the HUAHUU Fluted Vanity Desk is required. Please follow the detailed step-by-step instructions and diagrams provided in the separate assembly manual included with your product. All necessary tools and numbered accessories are supplied to facilitate the process.
Important Tips:
- Clear a spacious area for assembly.
- Organize all parts and hardware before starting.
- It is highly recommended to have two people for assembly, especially when handling larger panels and the mirror.
- Do not overtighten screws to avoid damaging the material.
Video 4.1: Product overview of the HUAHUU Vanity Desk, showcasing its features and design. This video may assist in understanding the product's components and overall structure during assembly.
5. Setup
5.1 Nightstand Placement
The nightstand component of your vanity desk offers flexible placement options. During assembly, you can customize its position to achieve three different overall vanity widths: 33 inches, 37 inches, or 41 inches. Choose the configuration that best suits your room layout and space requirements.
Figure 5.1: Illustrates the three customizable size options for the vanity desk by adjusting nightstand placement.
5.2 Power Connection
Once assembled, connect the vanity desk's main power cord to a standard electrical outlet. Ensure the connection is secure. The built-in power strip provides convenient access to two 125V/12A AC outlets and two 5V/2A USB ports for charging and powering your electronic devices.
Figure 5.2: Close-up view of the integrated power strip on the vanity desk.
6. Operating Instructions
6.1 Mirror Lighting
The vanity mirror is equipped with Hollywood-style bulbs offering three adjustable color lighting modes: Cold White, Warm White, and Warm Yellow. Use the touch controls or integrated switch to cycle through these modes and adjust the brightness to your preference for optimal makeup application.
Figure 6.1: Demonstration of the three adjustable color lighting modes for the mirror.
6.2 RGB Strip Lighting
The vanity desktop features an RGB LED strip with over 60,000 color options. This lighting can be controlled via a dedicated mobile application or the included physical controller. Functions include color selection, brightness adjustment, music synchronization mode, and a timing function for scheduled operation.
Figure 6.2: Overview of RGB lighting control features.
Figure 6.3: The vanity desk illuminated with RGB lighting.
7. Maintenance
Proper care will ensure the longevity and appearance of your HUAHUU Fluted Vanity Desk.
- Cleaning the Glass Top: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Avoid harsh chemicals that may damage the glass or surrounding materials.
- Cleaning Wood Surfaces: Wipe MDF and fluted panels with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Dry immediately with a clean cloth.
- Dusting: Regularly dust all surfaces with a dry, soft cloth to prevent buildup.
- Electrical Components: Ensure all electrical connections remain dry. Do not spray liquids directly onto the power outlet or light fixtures.
- Drawer Care: Periodically check drawer slides for smooth operation. Avoid overloading drawers to prevent damage.
8. Troubleshooting
If you encounter issues with your vanity desk, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Mirror lights not working | Power cord unplugged, bulb loose, power outage. | Check power connection. Ensure bulbs are securely screwed in. Verify power supply. |
| RGB strip lights not working or unresponsive | Power connection loose, controller battery dead, APP not connected. | Check power connection to the RGB strip. Replace controller battery if applicable. Re-pair APP with the lighting system. |
| Power outlets/USB ports not functioning | Vanity not plugged in, circuit breaker tripped, device not compatible. | Ensure the vanity is fully plugged into a working wall outlet. Check your home's circuit breaker. Test with a different device. |
| Drawers stick or do not slide smoothly | Overloaded drawer, debris in slides, improper assembly. | Reduce drawer contents. Clean drawer slides. Review assembly instructions for correct drawer runner installation. |
If the problem persists after attempting these solutions, please contact customer support for further assistance.
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | FVD-090501 |
| Color | Milky White |
| Overall Dimensions (D x W x H) | 15.7" x 41.1" x 53.5" (Width adjustable to 33", 37", or 41") |
| Item Weight | 47 pounds |
| Material | MDF, Tempered Glass |
| Number of Drawers | 5 |
| Mirror Lighting | 3 Colors (Cold White, Warm White, Warm Yellow), Adjustable Brightness |
| RGB Strip Lighting | 60,000+ Colors, APP/Controller Control, Music Mode, Timing Function |
| Power Outlet | 2 AC Outlets (125V/12A), 2 USB Ports (5V/2A) |
Figure 9.1: Dimensional diagram of the vanity desk.
10. Warranty and Support
HUAHUU products are manufactured to high-quality standards. For information regarding product warranty, please refer to the documentation included with your purchase or contact the retailer directly.
For any questions, concerns, or assistance with your HUAHUU Fluted Vanity Desk, please do not hesitate to contact our customer service team. You can typically find contact information through the retailer's platform where you purchased the product, or on the HUAHUU official website.
When contacting support, please have your model number (FVD-090501) and purchase date readily available.
