Casio W220H Illuminator Digital Watch User Manual

1. Introduction

This manual provides comprehensive instructions for the proper use and care of your Casio W220H Illuminator Digital Watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece. Keep this manual for future reference.

2. Product Overview

The Casio W220H is a durable digital watch designed for everyday use, featuring an Illuminator backlight, stopwatch, alarm functions, and water resistance. Its robust resin construction ensures reliability.

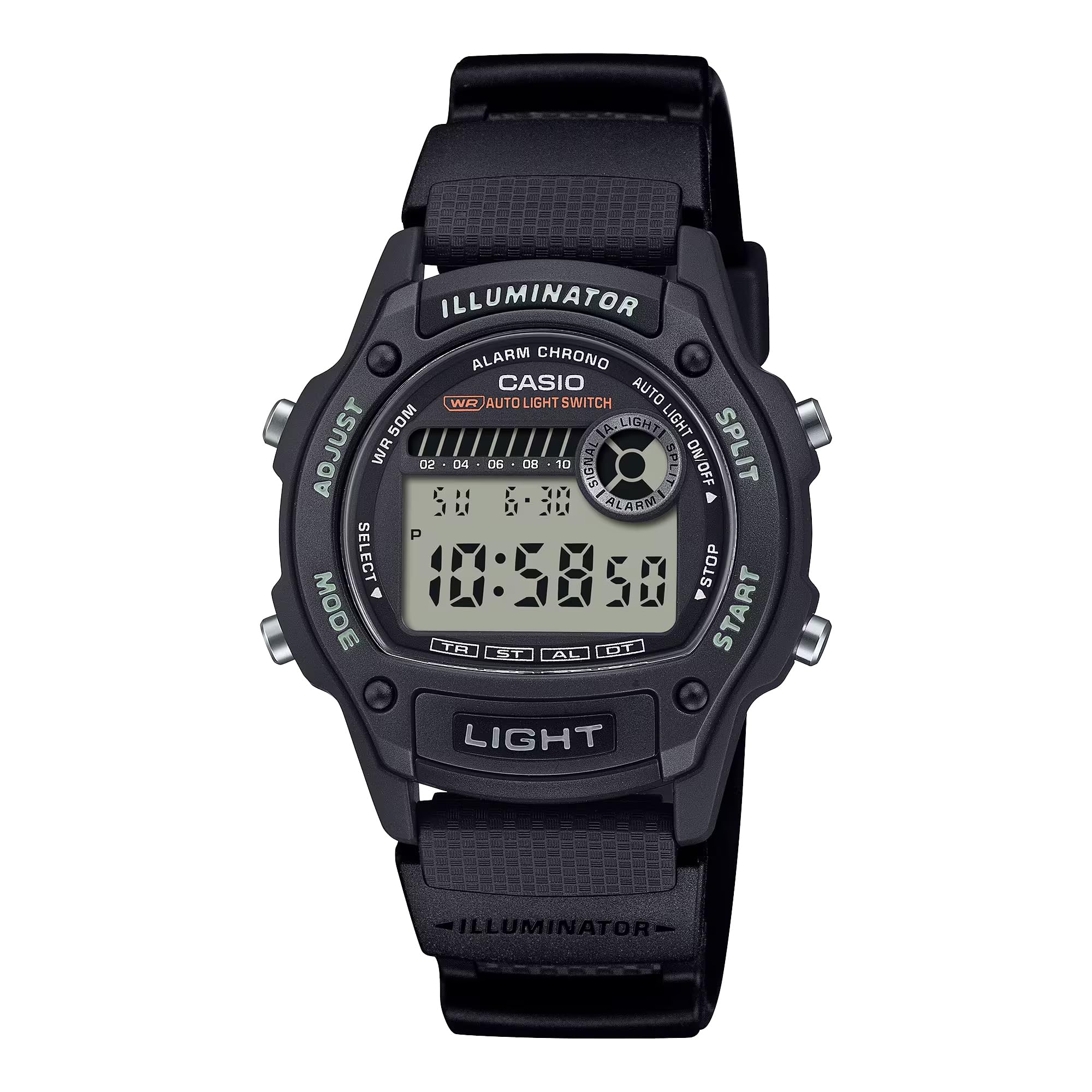

Figure 2.1: Front view of the Casio W220H Illuminator Digital Watch. The watch features a black resin case and band, with a clear digital display showing time and date. Buttons are visible on both sides of the case.

Button Functions:

• ADJUST Button (Top Left): Used to enter and exit setting modes, and to confirm selections.
• MODE Button (Bottom Left): Cycles through different watch modes (Timekeeping, Stopwatch, Countdown Timer, Alarm, Dual Time).
• LIGHT Button (Bottom Front): Activates the Illuminator backlight.
• START Button (Bottom Right): Used to start/stop stopwatch or timer, and to change settings in setting modes.
• SPLIT Button (Top Right): Used for split times in stopwatch mode, and to change settings in setting modes.

3. Initial Setup

3.1 Setting the Time and Date:

1. In Timekeeping Mode, press and hold the ADJUST button until the seconds digits begin to flash, indicating the setting screen.
2. Press the MODE button to cycle through the settings: Seconds → Hour → Minute → Year → Month → Day.
3. Use the START or SPLIT buttons to increase or decrease the flashing value.
4. Once all settings are correct, press the ADJUST button to exit the setting mode.

3.2 Auto Light Switch:

The watch features an auto light switch that illuminates the display when you angle the watch towards your face. This feature can be toggled on or off.

1. In Timekeeping Mode, press and hold the LIGHT button for approximately three seconds.
2. An indicator (e.g., "AUTO LIGHT ON") will appear or disappear on the display to confirm the change.
3. Note that the auto light switch automatically disables after approximately three hours to conserve battery life.

4. Operating Instructions

This section details the various modes and functions of your Casio W220H watch.

4.1 Mode Navigation:

Press the MODE button to cycle through the following modes:

• Timekeeping Mode
• Stopwatch Mode
• Countdown Timer Mode
• Alarm Mode
• Dual Time Mode

4.2 Stopwatch/Chronograph:

The stopwatch measures elapsed time, split times, and two finishes. It has a 1/100-second accuracy and can measure up to 23 hours, 59 minutes, 59.99 seconds.

1. Enter Stopwatch Mode by pressing the MODE button.
2. Press the START button to begin timing.
3. Press the START button again to stop timing.
4. Press the ADJUST button to reset the stopwatch to zero.
5. To record a split time, press the SPLIT button while the stopwatch is running. The display will show the split time while the internal timer continues. Press SPLIT again to return to elapsed time.

4.3 Daily Alarm & Hourly Time Signal:

The watch features a daily alarm and an hourly time signal.

1. Enter Alarm Mode by pressing the MODE button.
2. Press the ADJUST button to enter the alarm setting mode. The hour digits will flash.
3. Use the START or SPLIT buttons to set the hour.
4. Press the MODE button to move to the minute digits, then use START or SPLIT to set the minutes.
5. Press the ADJUST button to exit the alarm setting mode.
6. To toggle the alarm or hourly time signal on/off, press the START button in Alarm Mode (without holding ADJUST).

4.4 Illuminator Backlight:

The Illuminator backlight provides easy readability in low-light conditions.

1. Press the LIGHT button to illuminate the display.
2. The light will stay on for a few seconds.

5. Key Features

• Illuminator Backlight: Fully automatic LED backlight for clear visibility in any lighting condition.
• Long Battery Life: Approximately 3 years with the included CR1616 battery.
• Stopwatch/Chronograph: 1/100-second stopwatch functions for precise time measurement.
• Daily Alarm & Hourly Time Signal: Convenient alerts and time markers.
• 50M Water Resistance: Suitable for swimming and showering, but not for diving.
• Full Auto-Calendar: Pre-programmed calendar up to the year 2099, automatically adjusting for month lengths and leap years.

6. Maintenance

6.1 Water Resistance:

The Casio W220H is water resistant to 50 meters. This means it is suitable for everyday use and can withstand splashes, rain, and brief immersion in water. However, it is not recommended for prolonged underwater use or high-pressure water activities like diving. Do not operate buttons while the watch is wet or submerged.

6.2 Cleaning:

To clean your watch, wipe it with a soft, dry cloth. For stubborn dirt, use a soft cloth dampened with water and a mild neutral detergent, then wipe dry. Avoid using volatile agents like thinner, benzine, or alcohol, as they may damage the resin components.

6.3 Battery Replacement:

The watch uses a CR1616 battery. When the display becomes dim or functions become erratic, it is time to replace the battery. Battery replacement should ideally be performed by a qualified technician to ensure proper sealing and water resistance.

7. Troubleshooting

• Display is blank or dim: The battery may be low or depleted. Replace the battery.
• Time is incorrect: Re-set the time and date as described in the "Setting the Time and Date" section. Ensure the correct AM/PM setting is selected.
• Alarm does not sound: Check if the alarm is enabled in Alarm Mode. Ensure the volume is not muted if applicable (this model does not have volume control, but general advice).
• Water inside the watch: Immediately take the watch to an authorized service center. Do not attempt to open or dry the watch yourself, as this may cause further damage.

8. Specifications

9. Warranty & Support

Your Casio W220H watch comes with a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Casio website.

For technical support, service, or inquiries regarding your watch, please contact Casio customer service through their official website or the contact information provided in your product packaging.

Official Casio Website: www.casio.com
