BILT HARD 24-Inch Gas Powered Trencher Instruction Manual

1. Important Safety Information

Read and understand all safety warnings and instructions before operating this trencher. Failure to follow these instructions may result in serious injury or death.

• Always wear appropriate safety gear, including eye and ear protection.
• Keep hands and other body parts away from moving parts.
• Never operate the machine without proper grounding when working near electrical lines.
• Always turn off the engine and allow it to cool before refueling.
• Never leave the machine running unattended.
• Ensure the work area is clear of bystanders, children, and pets.
• Inspect the trencher for damage or loose parts before each use.

2. Product Overview

The BILT HARD 24-Inch Gas Powered Trencher is designed for efficient and precise trenching tasks. It features a powerful 15HP 420cc 4-cycle engine with electric start, a durable digging chain, and user-friendly controls.

Image: The BILT HARD 24-Inch Gas Powered Trencher, showcasing its 420cc 15HP engine, electric start, 24-inch maximum trench depth, 4-inch maximum trench width, 79-inch chain length, and 15x6-6 tubeless tires.

Key Components

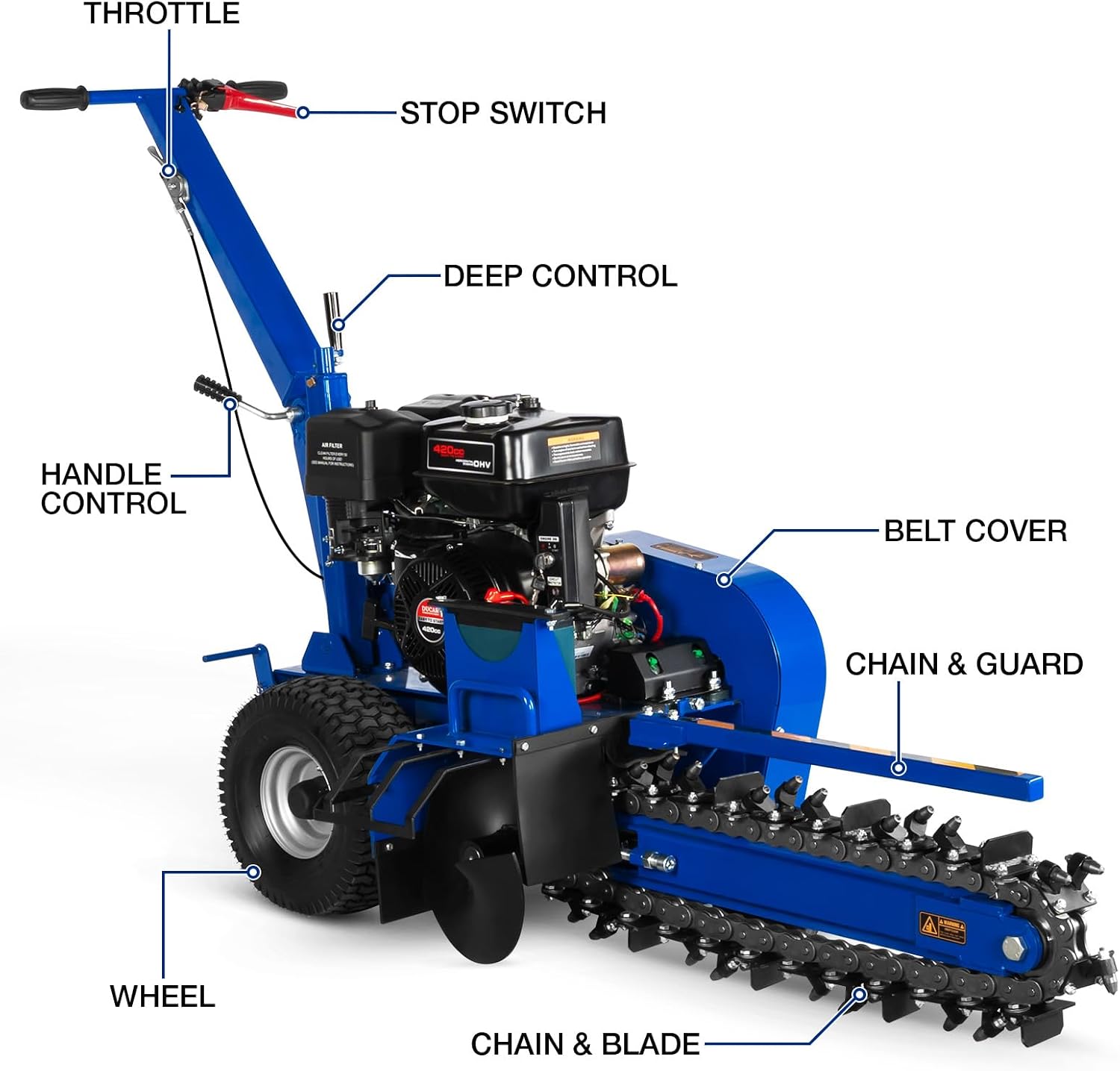

Image: An overhead view of the trencher with key components labeled, including the throttle, stop switch, deep control, handle control, belt cover, chain & guard, wheel, and chain & blade.

• Engine: 15HP 420cc 4-Cycle E-Start Gas Engine for robust power.
• Digging Chain: 79-inch chain with 27 carbide alloy teeth and 9 scrapers for efficient digging.
• Electric Start: Includes a 12V 20Ah battery for quick and easy starting.
• Wheels: Large 15-inch wheels (2 rear, 1 front) for stability and maneuverability.
• Depth Control: Intuitive depth control for precise trenching up to 24 inches deep.
• Safety: Features an anti-forward safety lock.

3. Setup and Assembly

Before operating the trencher, ensure all components are correctly assembled and fluids are at appropriate levels.

3.1 Initial Assembly

Refer to the detailed installation guide video for visual instructions on assembling the trencher components, including the digging chain and handles.

3.2 Engine Preparation

• Fuel: Fill the fuel tank with fresh, unleaded gasoline. Do not overfill.
• Oil: Check the engine oil level and fill with recommended engine oil (refer to engine manual for specific type and capacity).
• Battery Connection: Connect the 12V 20Ah battery for electric start. Ensure terminals are clean and secure.

Image: Close-up view of the electric start mechanism and the 12V 20Ah battery connection on the trencher, showing the engine switch and battery terminals.

4. Operating Instructions

Follow these steps for safe and effective operation of your BILT HARD trencher.

4.1 Starting the Engine

1. Ensure the trencher is on a level surface and the digging chain is clear of obstructions.
2. Turn the fuel valve to the ON position.
3. Set the choke to the START position (if engine is cold).
4. Insert the key into the ignition and turn to the START position. Release once the engine starts.
5. Once the engine warms up, gradually move the choke to the RUN position.

4.2 Trenching Operation

The trencher is designed to cut trenches up to 24 inches deep and 4 inches wide.

Animated Image: The trencher digging into the ground, illustrating its maximum trench depth capability of 24 inches.

1. Adjust the trenching depth using the depth control handle to your desired setting.
2. Engage the digging chain.
3. Slowly guide the trencher forward, allowing the chain to cut through the soil. Do not force the machine.
4. Maintain a steady pace. If the engine bogs down, reduce the forward speed.
5. Utilize the anti-forward control for precise and safe movement.

Image: The trencher in operation, actively digging a trench in a natural outdoor setting, showing soil being displaced by the digging chain.

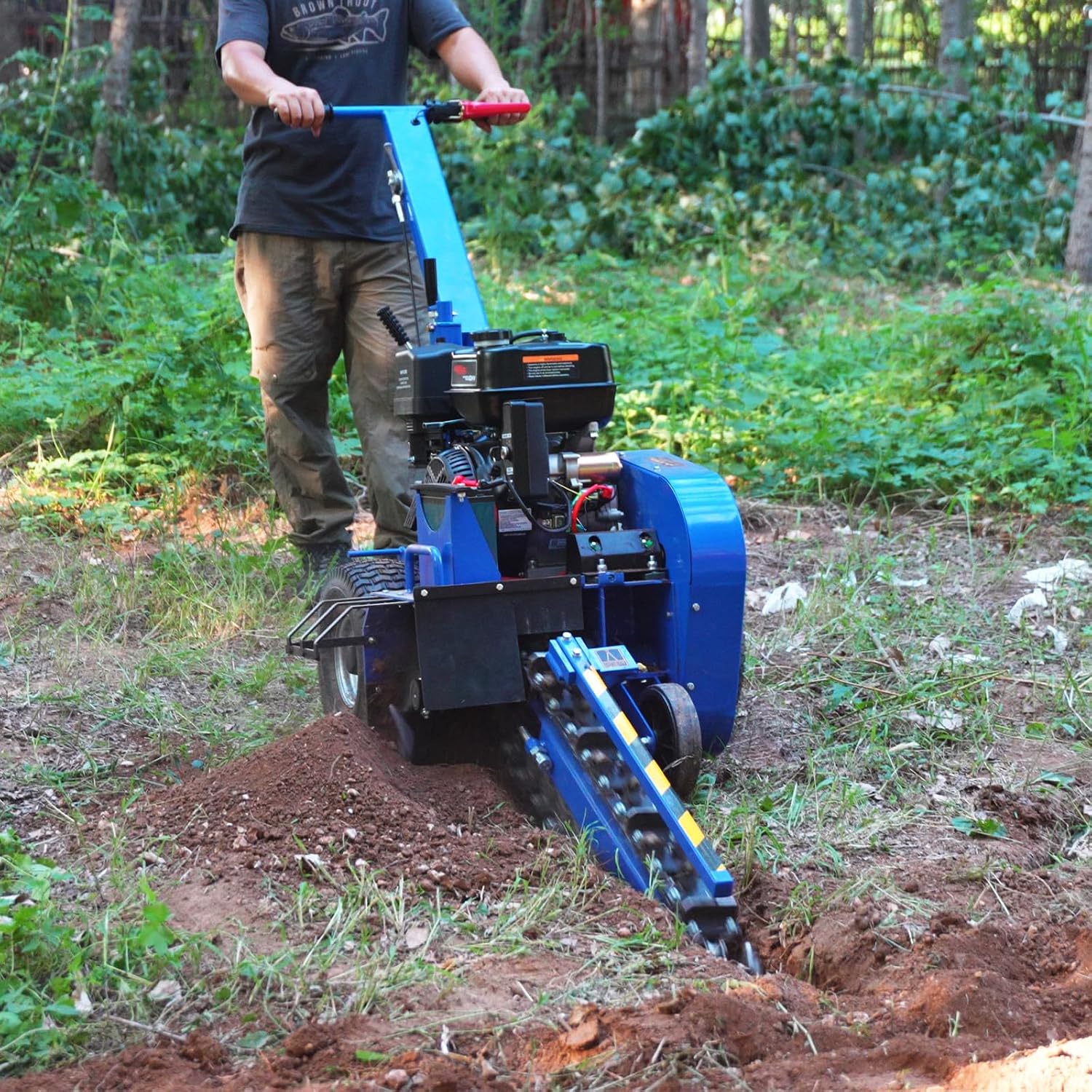

Image: A person operating the BILT HARD trencher in a wooded area, demonstrating the machine's maneuverability and ease of use during trenching tasks.

4.3 Stopping the Engine

1. Disengage the digging chain.
2. Move the throttle to the idle position.
3. Turn the engine switch to the OFF position.
4. Turn the fuel valve to the OFF position.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your trencher.

5.1 Engine Maintenance

• Oil Change: Change engine oil after the first 5 hours of operation, then every 25 hours or annually.
• Air Filter: Clean or replace the air filter regularly, especially in dusty conditions.
• Spark Plug: Inspect and clean the spark plug annually. Replace if necessary.
• Fuel System: Drain the fuel system before long-term storage.

5.2 Digging Chain and Teeth

• Inspection: Regularly inspect the digging chain and carbide alloy teeth for wear or damage.
• Replacement: Replace worn or broken teeth promptly. The trencher includes 8 replacement teeth.
• Lubrication: Keep the chain properly tensioned and lubricated according to the maintenance schedule.

Animated Image: A visual representation of the digging chain and its individual carbide alloy teeth, highlighting their design and quantity.

Animated Image: A display of the 8 replacement carbide alloy teeth included with the trencher, ready for installation.

5.3 Belt Maintenance

• Kevlar Belt: The reinforced Kevlar drive belt offers exceptional strength and wear resistance.
• Inspection: Periodically check the belt for signs of wear, cracks, or fraying.
• Replacement: Replace the belt if it shows significant wear to maintain optimal performance.

6. Troubleshooting

This section addresses common issues you might encounter during operation.

7. Specifications

Detailed technical specifications for the BILT HARD 24-Inch Gas Powered Trencher.

Image: A side view of the trencher with its overall dimensions (36"D x 80"W x 54"H) and weight (401 lbs) clearly indicated.

8. Warranty and Support

For warranty information, technical support, or replacement parts, please contact BILT HARD customer service.

• Customer Support: Refer to your purchase documentation or the BILT HARD official website for contact details.
• Online Resources: Visit the BILT HARD Store on Amazon for additional product information and support.
