CUSIMAX Espresso Machine Model 518K Instruction Manual

Introduction

Thank you for choosing the CUSIMAX Espresso Machine Model 518K. This single-serve coffee machine is designed for convenience and versatility, allowing you to enjoy barista-quality coffee at home. Compatible with Nespresso Original capsules and similar types, it features a 19-bar pressure pump for rich extraction and adjustable brewing sizes to suit your preference. Please read this manual thoroughly before use to ensure safe and optimal operation.

Safety Instructions

• Always ensure the machine is placed on a stable, flat surface away from heat sources.
• Do not immerse the appliance, power cord, or plug in water or other liquids.
• Unplug the machine from the power outlet before cleaning and when not in use.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Keep hands clear of hot surfaces and steam during operation.
• This appliance is for household use only.

Package Contents

Verify that all items are present in the package:

• CUSIMAX Espresso Machine Model 518K
• Removable Water Tank (20oz / 0.6L capacity)
• Drip Tray and Grate
• Capsule Adapter for Nespresso Original compatible pods
• Instruction Manual

Product Overview

Familiarize yourself with the main components of your espresso machine.

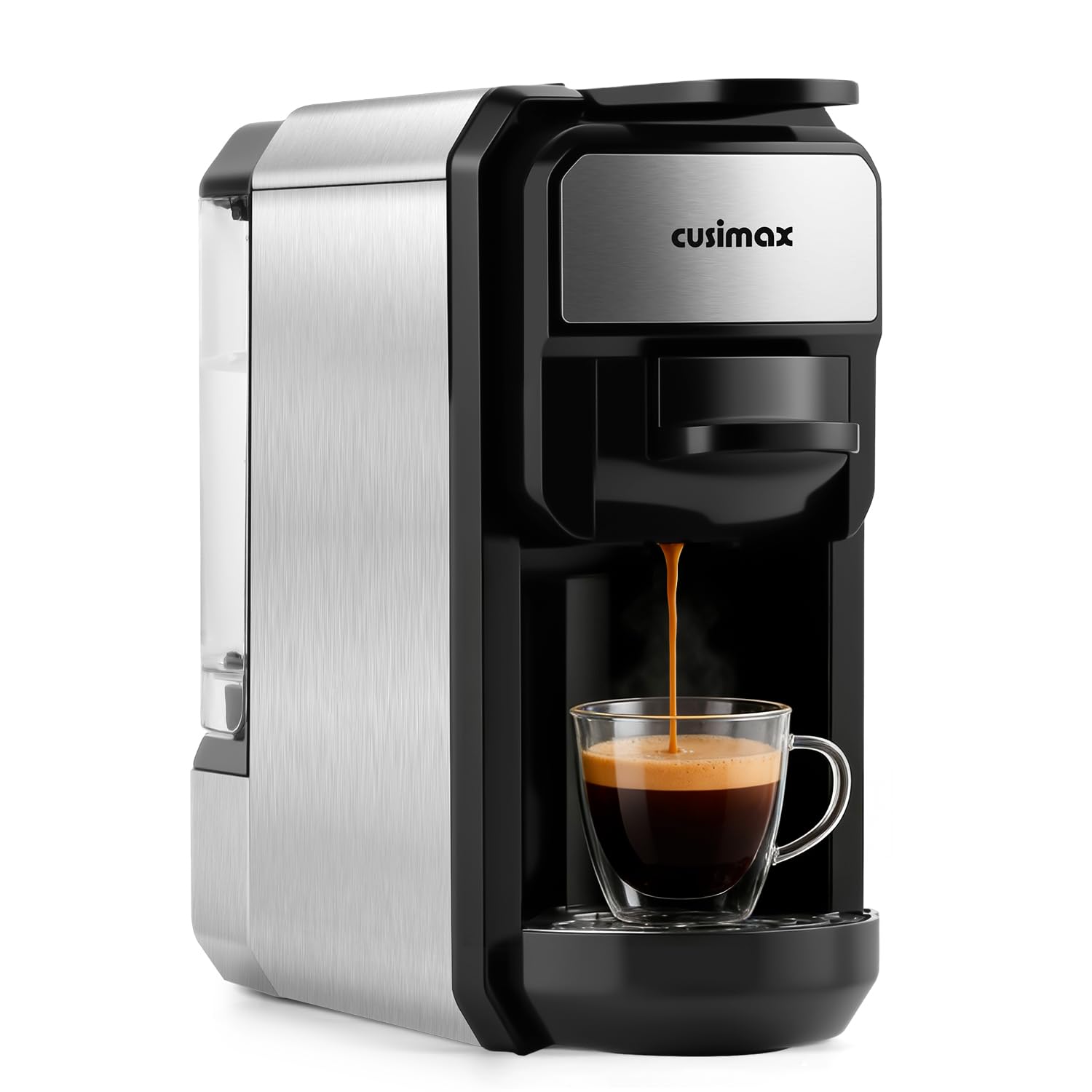

Image: CUSIMAX Espresso Machine Model 518K, a sleek black and silver single-serve coffee maker.

• Water Tank: Located at the back, removable for easy refilling.
• Capsule Slot: Top-loading compartment for inserting coffee capsules.
• Control Panel: Features Power, Short Espresso, and Lungo buttons.
• Brew Spout: Where the coffee dispenses into your cup.
• Drip Tray: Removable tray to catch drips and spills, with adjustable height for different cup sizes.

Image: Close-up of the CUSIMAX Espresso Machine showing the stainless steel side panel and the three control buttons (Power, Short Espresso, Lungo) on the top panel.

Setup

1. Unpack: Carefully remove all packaging materials and ensure all components are present.
2. Placement: Place the machine on a clean, dry, and stable countertop.
3. Rinse Water Tank: Remove the 20oz water tank from the back of the machine. Rinse it with clean water.
4. Fill Water Tank: Fill the water tank with fresh, cold water up to the 'MAX' line. Reinsert the tank securely into the machine.
5. Initial Rinse Cycle: Before first use, perform a rinse cycle without a capsule. Plug in the machine, press the Power button. Once the lights stop flashing, place a cup under the spout and press the Lungo button to run water through the system. Discard the water.

Image: A hand pouring water into the clear, removable 20oz water tank of the CUSIMAX Espresso Machine.

Operating Instructions

1. Power On: Ensure the water tank is filled and the machine is plugged in. Press the Power button. The lights will flash while heating up (approx. 20 seconds) and become steady when ready.
2. Insert Capsule: Lift the handle to open the capsule slot. Insert a Nespresso Original compatible capsule into the adapter. Close the handle firmly.
3. Place Cup: Place your desired cup on the drip tray. Adjust the drip tray height if necessary for taller cups.
4. Select Brew Size: Choose your desired brew size: Short Espresso or Lungo. Press the corresponding button.
5. Customize Brew Volume: To customize the volume (15-90 seconds), press and hold the Short Espresso or Lungo button. Release the button once your desired amount is reached. The machine will automatically save this setting for future use.
6. Brewing: The machine will begin brewing. Coffee will dispense into your cup.
7. Eject Capsule: After brewing, lift the handle to eject the used capsule into the internal collection bin. Close the handle.

Image: Diagram showing how to customize coffee volume by holding down the brew buttons, with examples of different coffee sizes.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and longevity of your machine.

• Water Tank: The removable 20oz water tank is easy to fill and clean. Wash it regularly with mild soap and water.
• Drip Tray: The drip tray and grate are removable. Empty and clean them after each use or as needed to prevent overflow.
• Used Capsule Bin: The internal bin collects used capsules. Empty it regularly to prevent blockages.
• Exterior: Wipe the stainless steel exterior with a damp cloth. Do not use abrasive cleaners.
• Descaling: Periodically descale the machine according to the instructions provided in the full product manual or manufacturer's website to remove mineral buildup.

Image: The CUSIMAX Espresso Machine showcasing its premium full-body stainless steel construction, emphasizing durability and compact design.

Troubleshooting

If you encounter issues, refer to the following common solutions:

• Machine not powering on: Ensure the power cord is securely plugged into a working outlet.
• No water dispensing: Check if the water tank is properly filled and correctly inserted. Ensure no air bubbles are trapped in the water line.
• Coffee not brewing or brewing slowly: The capsule might be incorrectly inserted, or the machine may need descaling.
• Weak coffee: Ensure you are using a fresh capsule and the correct brew size for your desired strength.

For more detailed troubleshooting, please consult the full product manual or contact customer support.

Specifications

Warranty and Support

The CUSIMAX Espresso Machine Model 518K comes with an 18-month after-sales service. For any assistance, questions, or warranty claims, please feel free to contact CUSIMAX customer support through the retailer's platform or the official CUSIMAX website. Please have your model number and purchase date available when contacting support.
