BBLOVE AES-U622 Automatic Blood Pressure Monitor User Manual

1. Safety Information

Please read this manual thoroughly before using the BBLOVE AES-U622 Blood Pressure Monitor. Keep it for future reference. This device is intended for adult home use to measure systolic and diastolic blood pressure and pulse rate. It is not intended for diagnosis or treatment of any medical condition. Consult your physician for interpretation of blood pressure measurements.

• Do not use this device on infants, children, or individuals who cannot express consent.
• Do not use this device if you have a serious arrhythmia.
• Avoid eating, drinking alcohol, smoking, exercising, and bathing for 30 minutes before measurement.
• Rest for at least 5 minutes before taking a measurement.
• Measurements should be taken in a quiet environment.
• Do not attempt to repair the device yourself. Contact customer support for assistance.

2. Product Overview

The BBLOVE AES-U622 is an automatic upper arm blood pressure monitor designed for accurate and convenient home use. It features a large, backlit display for easy reading, a comfortable cuff, and a color-coded indicator for quick interpretation of results. The device supports two users, storing multiple readings for each.

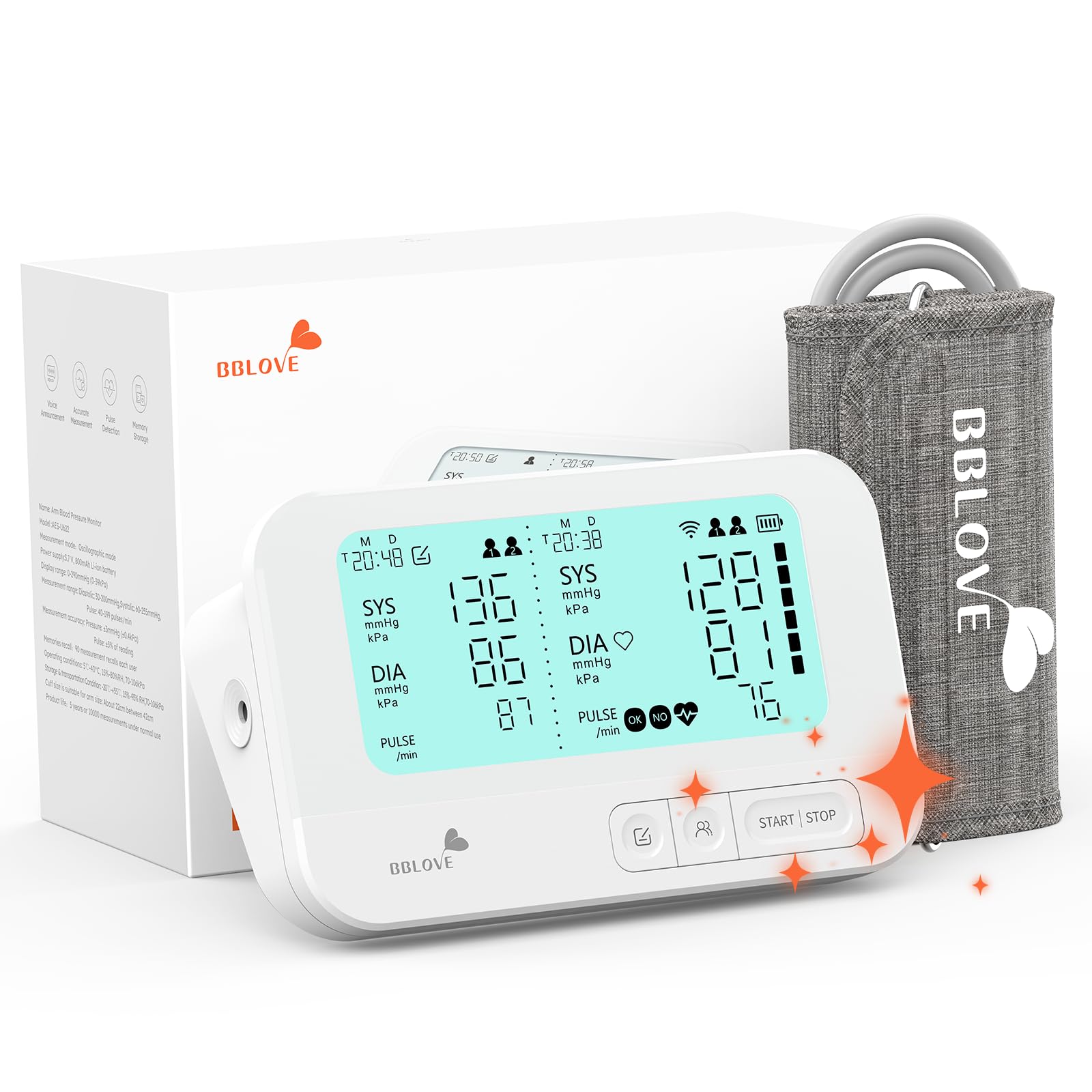

Figure 1: Main unit of the BBLOVE AES-U622 Blood Pressure Monitor. This image displays the large digital screen, control buttons, and the attached arm cuff, illustrating the primary components of the device.

Components:

• Main Unit: Contains the display, control buttons, and measurement electronics.
• Arm Cuff: Designed for comfortable fit on the upper arm.
• Air Tube: Connects the cuff to the main unit.
• Battery Compartment: Located on the back of the main unit.

3. Setup

3.1. Battery Installation

1. Open the battery compartment cover on the back of the main unit.
2. Insert four (4) AA alkaline batteries, ensuring correct polarity (+/-).
3. Close the battery compartment cover securely.

3.2. Connecting the Arm Cuff

• Locate the air jack on the side of the main unit.
• Firmly insert the air tube connector from the cuff into the air jack until it clicks into place.

3.3. Setting Date and Time (if applicable)

Refer to the specific instructions in your device's quick start guide for setting the date and time, as this may vary slightly by firmware version. Typically, this involves pressing a 'SET' button and using arrow keys to adjust values.

4. Operating Instructions

4.1. Applying the Arm Cuff

1. Sit comfortably with your back supported and feet flat on the floor.
2. Place the cuff directly on your bare upper arm, about 1-2 cm above the elbow joint. The air tube should run down the inside of your arm.
3. Wrap the cuff snugly around your arm, ensuring it is not too tight or too loose. The bottom edge of the cuff should be above the elbow.
4. Position your arm on a table so the cuff is at heart level.

4.2. Taking a Measurement

1. Press the START/STOP button to turn on the device.
2. The cuff will automatically inflate. Remain still and silent during the measurement.
3. Once the measurement is complete, the cuff will deflate, and your systolic pressure, diastolic pressure, and pulse rate will be displayed on the screen.
4. The device will automatically store the reading in the selected user's memory.
5. Press START/STOP again to turn off the device, or it will power off automatically after a period of inactivity.

4.3. Using the Two-User Memory Feature

The BBLOVE AES-U622 supports two distinct user profiles for tracking measurements. Before taking a measurement, ensure the correct user profile (e.g., User 1 or User 2) is selected. Refer to the device's specific buttons (often labeled 'User' or 'M') to switch between profiles and review past readings.

5. Understanding Your Readings

Your blood pressure reading consists of two numbers: systolic (the top number) and diastolic (the bottom number). The device also displays your pulse rate.

5.1. Color-Coded Indicator

The BBLOVE AES-U622 features a color-coded indicator (often green, yellow, red) to help you quickly understand your blood pressure category based on WHO guidelines. This is a general guide and not a substitute for medical advice.

• Green: Indicates blood pressure is within a healthy range.
• Yellow: Suggests elevated blood pressure; consult your doctor.
• Red: Indicates high blood pressure; seek immediate medical attention.

Always consult a healthcare professional for accurate diagnosis and treatment of blood pressure conditions.

6. Maintenance

6.1. Cleaning

• Wipe the main unit and cuff with a soft, dry cloth.
• If necessary, use a cloth lightly dampened with water or a mild detergent, then wipe dry.
• Do not use abrasive cleaners, alcohol, or solvents.
• Do not immerse the device or cuff in water.

6.2. Storage

• Store the device in a clean, dry place, away from direct sunlight and extreme temperatures.
• If the device will not be used for an extended period, remove the batteries to prevent leakage.
• Avoid folding the cuff too tightly or kinking the air tube.

7. Troubleshooting

8. Specifications

• Model: AES-U622
• Brand: BBLOVE
• Manufacturer: Alicn Medical Shenzhen Inc
• Measurement Method: Oscillometric
• Power Source: 4 x AA Batteries (not included)
• Unit Weight: Approximately 450 Grams (main unit only)
• UPC: 634052118972
• ASIN: B0FNRDR168

9. Warranty and Support

BBLOVE products are manufactured with high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact BBLOVE customer service through their official website or the retailer where the product was purchased. Please have your model number (AES-U622) and purchase date ready when contacting support.
