MLAY T11 IPL Laser Hair Remover User Manual

1. Introduction

The MLAY T11 IPL Laser Hair Remover utilizes advanced Intense Pulsed Light (IPL) technology to provide effective and long-lasting hair reduction for home use. Designed for comfort and ease of use, this device helps achieve up to 96% visible hair reduction after consistent use, offering a convenient alternative to salon treatments.

The MLAY T11 features a maximum energy output of 14.4 Joules (J) and a wavelength range of 510–1200 nm. Its wide treatment area of 3.5 cm² allows for efficient coverage of larger body parts. The device offers 3 adjustable energy levels and 2 operating modes (automatic and manual) to suit various body areas and individual sensitivities.

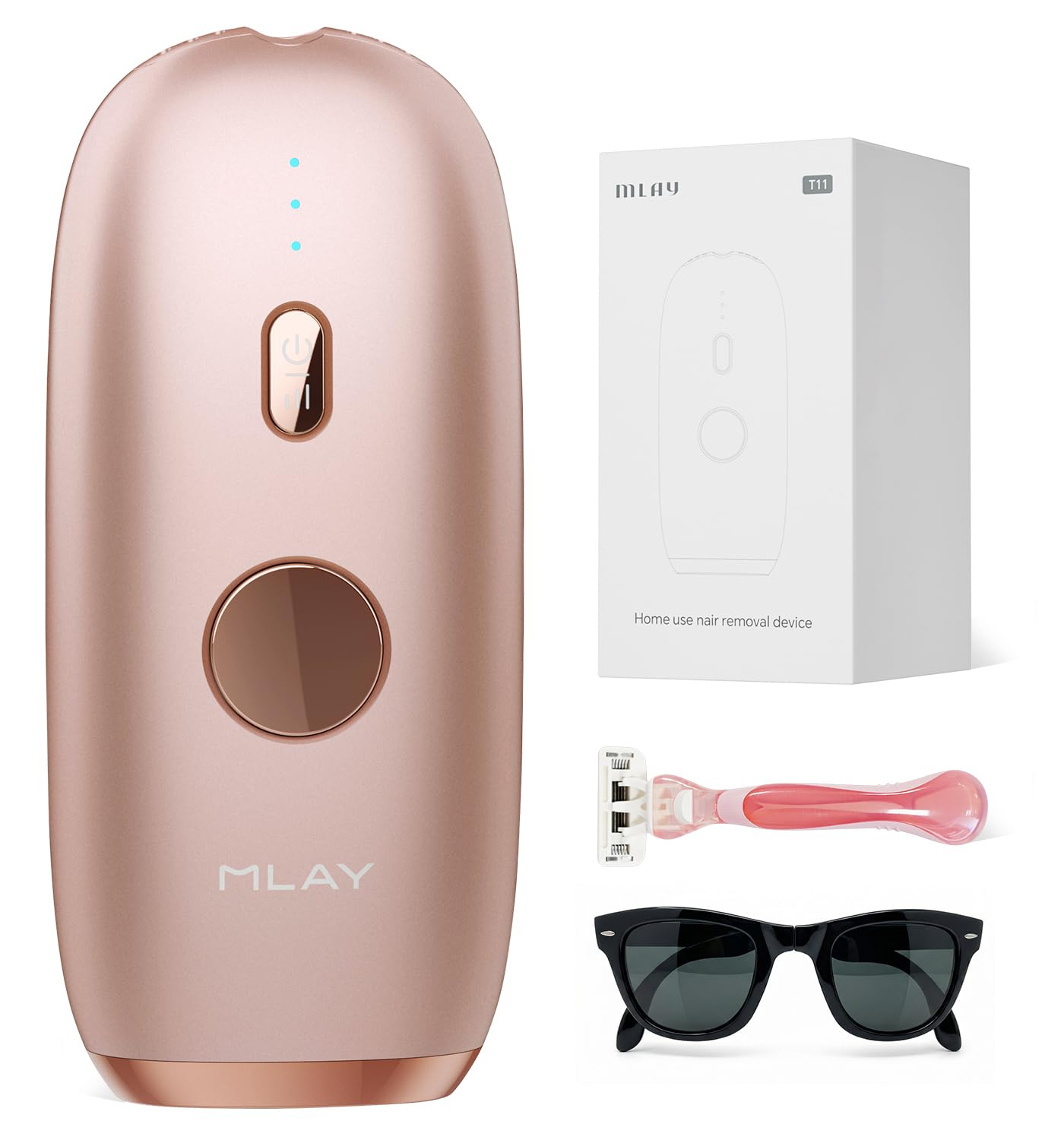

The MLAY T11 IPL Laser Hair Remover.

Diagram illustrating how IPL light targets hair follicles to reduce hair growth, comparing MLAY T11 to other devices.

Illustration of IPL technology targeting hair follicles for long-lasting hair reduction.

2. Important Safety Information

Please read all safety instructions carefully before using the MLAY T11 device. Failure to follow these instructions may result in injury or device damage.

2.1 Skin Tone and Hair Color Suitability

IPL technology is most effective on lighter skin tones with darker hair. It is not suitable for all skin tones and hair colors. Consult the suitability chart below before use.

Skin tone and hair color suitability chart for IPL hair removal, indicating suitable combinations with green checkmarks and unsuitable with red crosses.

IPL suitability chart based on skin tone and hair color.

2.2 Contraindications

Do not use the MLAY T11 device on the following areas or conditions:

Tattoos, permanent makeup, dark spots, birthmarks, or dermal fillers.
Sunburned skin or skin with active allergic reactions.
Not recommended for pregnant women.
Do not use near eyes without proper eye protection.

Visual guide showing contraindications for IPL use, including tattoos, moles, freckles, sunburn, and allergic skin.

Always wear the provided protective glasses during operation to shield your eyes from the intense pulsed light. The device is not water resistant; do not immerse it in water or use it in wet environments.

3. Package Contents

Your MLAY T11 IPL Laser Hair Remover package includes:

MLAY T11A IPL Laser Hair Remover (AC 100-240V)
Power Adapter
User Manual
Protective Glasses
Shaving Blade
Cotton Swabs

4. Setup

Before your first treatment, ensure your skin is clean, dry, and freshly shaved. Do not wax, pluck, or use depilatory creams, as these methods remove the hair follicle, which is necessary for IPL treatment to be effective.

Prepare the Area: Shave the desired treatment area.
Connect Power: Plug the power adapter into the device and then into an electrical outlet.
Wear Protection: Put on the protective glasses provided.

Visual guide showing three simple steps for achieving professional results with the MLAY T11: shaving, powering on, and applying the treatment.

Preparation steps: Shave, power on, and apply treatment.

5. Operating Instructions

5.1 Powering On/Off

To turn the device on or off, press and hold the Power button for more than 2 seconds.

5.2 Adjusting Energy Levels

Briefly press the Power button to cycle through the 3 intensity levels. Start with Level 1 and gradually increase as your skin tolerates it. The energy levels are approximately: Level 1 (7.2J), Level 2 (10.8J), Level 3 (14.4J).

Diagram showing recommended treatment frequency over weeks and the energy output for each of the three intensity levels (7.2J, 10.8J, 14.4J).

Recommended treatment frequency and energy levels.

5.3 Selecting Operating Modes

The MLAY T11 offers two modes: Automatic and Manual. Press and hold the flash button for 3 seconds to switch between these modes.

Manual Mode: Ideal for small, sensitive areas like the face, armpits, and bikini line. Press the flash button for each pulse.
Automatic Mode: Suitable for larger areas like legs, arms, and back. Hold the flash button, and the device will automatically emit pulses as you glide it over the skin.

Image showing the MLAY T11 device with an illustration of its automatic and manual modes and three intensity levels.

Automatic and Manual modes with intensity levels.

5.4 Application

Place the device's treatment window firmly against the skin, ensuring full contact at a 90-degree angle. The device will only emit a flash when it detects full skin contact, indicated by the indicator lights.

Three essential tips for using the MLAY IPL device, covering suitability, areas to avoid, and proper application technique.

Tips for proper device application.

5.5 Recommended Treatment Areas and Times

The MLAY T11 is suitable for use on various body areas. Adjust the energy level according to the area's sensitivity.

Face: Level 1 (approx. 1 minute)
Armpits: Level 3 (approx. 1 minute per armpit)
Arms: Level 2 (approx. 2 minutes per arm)
Bikini Line: Level 3
Legs: Level 2 (approx. 6 minutes per leg)
Back: Level 3 (approx. 8 minutes)

Diagram illustrating recommended energy levels for different body areas: Level 1 for face, Level 2 for legs and arms, Level 3 for armpits, bikini line, and back.

Personalized use for different body areas.

Diagram illustrating estimated treatment times for different body areas using the MLAY T11 IPL device, including face, armpits, arms, legs, and back.

Estimated treatment times for safe whole-body treatment.

5.6 Treatment Frequency

For optimal results, follow the recommended treatment schedule:

Weeks 1-3: 3 times per week.
Weeks 4-6: 2 times per week.
After 6 weeks: 1-2 times per month for maintenance.

Progression images showing armpit hair reduction from initial state to 4 weeks (2 times/week) and 8 weeks (1 time/week) of treatment.

Visible hair reduction progression over 4 and 8 weeks.

6. Care and Maintenance

Proper care ensures the longevity and performance of your MLAY T11 device:

Cleaning: After each use, wipe the treatment window and the device body with a dry, soft cloth or the provided cotton swabs.
Storage: Store the device in a cool, dry place, away from direct sunlight and moisture.
Avoid Liquids: Do not immerse the device in water or use abrasive cleaners, alcohol, or harsh chemicals.

7. Troubleshooting

If you encounter any issues with your MLAY T11, refer to the following common troubleshooting steps:

Device Not Turning On: Ensure the power adapter is securely connected to both the device and a working electrical outlet.
No Flash Emitted: Verify that the treatment window is in full and firm contact with your skin. The device has a built-in safety sensor that prevents flashing if contact is not complete. Also, confirm that your skin tone and hair color are suitable for IPL treatment as per the suitability chart.
Discomfort During Use: If you experience discomfort or pain, reduce the energy level. If discomfort persists, discontinue use and consult a healthcare professional.
Skin Redness/Irritation: Mild redness is normal after treatment and should subside within a few hours. If redness or irritation is severe or persists, apply a soothing lotion and avoid further treatment on the affected area until it heals.

For issues not covered here, please contact MLAY customer support.

8. Technical Specifications

Model Number: T11
Brand: MLAY
Dimensions: 21.2 x 12.2 x 0.1 cm
Weight: 860 g
Power Source: AC/DC
Voltage: 100-240 Volts
Energy Levels: 3 (approx. 7.2J, 10.8J, 14.4J)
Wavelength: 510-1200 nm
Treatment Area: 3.5 cm²
Water Resistance: Not water resistant
Color: Orange (as per specifications, actual product may vary)

9. Warranty and Customer Support

The MLAY T11 IPL Laser Hair Remover comes with a 12-month warranty from the date of purchase, covering manufacturing defects.

For any questions, concerns, or technical assistance, please contact MLAY customer support. Our professional support team is available to help you with your device.
