Thunelec U9 Wireless Earbuds Instruction Manual

1. Product Overview

The Thunelec U9 Wireless Earbuds are designed to provide a superior audio experience with advanced features such as Active Noise Cancellation (ANC), Environmental Noise Cancellation (ENC), Bluetooth 5.4 connectivity, and a multifunctional touch screen charging case. These earbuds are built for comfort, durability, and high-fidelity sound.

Image 1.1: Thunelec U9 Wireless Earbuds and Multifunctional Touch Charging Case.

Package Contents:

• U9 wireless earbuds (L&R) x 2
• Multifunctional touch charging case x 1
• Charging cable x 1
• User Manual x 1
• Ear tips (S/L/M) x 3 pairs

2. Setup and Initial Use

2.1 Charging the Earbuds and Case

Before first use, fully charge the earbuds and the charging case. Connect the provided charging cable to the charging case and a USB power source. The touch screen on the case will display the battery levels for both earbuds and the case in real-time.

• Charging Time: Approximately 1.5 hours for a full charge of the case.
• Playback Time: 6-8 hours on a single earbud charge, extended to 48 hours with the charging case.

Image 2.1: Illustration of charging times and battery life for the U9 earbuds and case.

2.2 Pairing with a Device

The Thunelec U9 earbuds feature one-step auto-pairing for convenience.

1. Open the charging case. The earbuds will automatically enter pairing mode.
2. On your device (smartphone, tablet, laptop), enable Bluetooth.
3. Search for available Bluetooth devices and select "U9" from the list.
4. Once connected, the earbuds will indicate successful pairing, and the device will show "U9 Connected."

Image 2.2: Visual guide for the one-step auto-pairing process with a mobile device.

2.3 Selecting Ear Tips

For optimal sound quality and comfort, choose the ear tips that best fit your ears. The package includes three sizes (S, M, L).

• Experiment with different sizes to find a secure and comfortable fit that creates a good seal in your ear canal.
• A proper seal enhances bass response and noise cancellation performance.

Image 2.3: Illustration of ergonomic design and included ear tip sizes for a comfortable and secure fit.

3. Operating Instructions

3.1 Smart Touch Controls

The earbuds feature intuitive touch controls for various functions:

• Answer/End Call: Single tap on either earbud.
• Play/Pause Music: Single tap on either earbud.
• Next Song: Double tap on the right earbud.
• Previous Song: Double tap on the left earbud.
• Activate Voice Assistant (Siri): Triple tap on either earbud.
• ANC Mode Switching: Long press on either earbud (cycles through ANC, Transparency, Normal modes).

3.2 Multifunctional Touch Screen Case

The charging case features a full-color touch display that provides additional controls and information:

• Music Playback Control: Play, pause, skip tracks directly from the screen.
• ANC/Transparency Mode Activation: Switch between noise cancellation, transparency, and normal modes.
• Volume Adjustment: Control audio volume.
• Camera Control: Use the case as a remote shutter for your phone's camera.
• Language Switching: Select from seven supported languages.
• Wallpaper Switching: Customize the screen background.
• Screen Brightness Adjustment: Modify display brightness.
• Headphone Search: Locate misplaced earbuds (see Troubleshooting section).
• Timer: Set a timer directly from the case.

Image 3.1: Overview of the LED full-color touch screen functions on the charging case.

3.3 Noise Cancellation and Transparency Modes

The U9 earbuds feature advanced audio modes:

• ANC (Active Noise Cancellation): Reduces external noise by up to 45dB, ideal for noisy environments like public transport.
• ENC (Environmental Noise Cancellation): Ensures clear call quality by filtering out background noise during conversations.
• Transparency Mode: Allows you to hear your surroundings clearly while listening to audio, enhancing safety during activities like cycling or driving.

Image 3.2: Visual representation of Normal, Noise Cancellation, and Transparent modes.

3.4 Sound Quality and EQ Modes

The earbuds are equipped with 14.2mm bio-carbon fiber dynamic coils for powerful bass and clear mid-high frequencies. Five adjustable equalizer (EQ) modes are available:

• Standard
• Classic
• Jazz
• Rock
• Pop

Switch between these modes via the touch screen on the charging case to optimize your listening experience for different music genres.

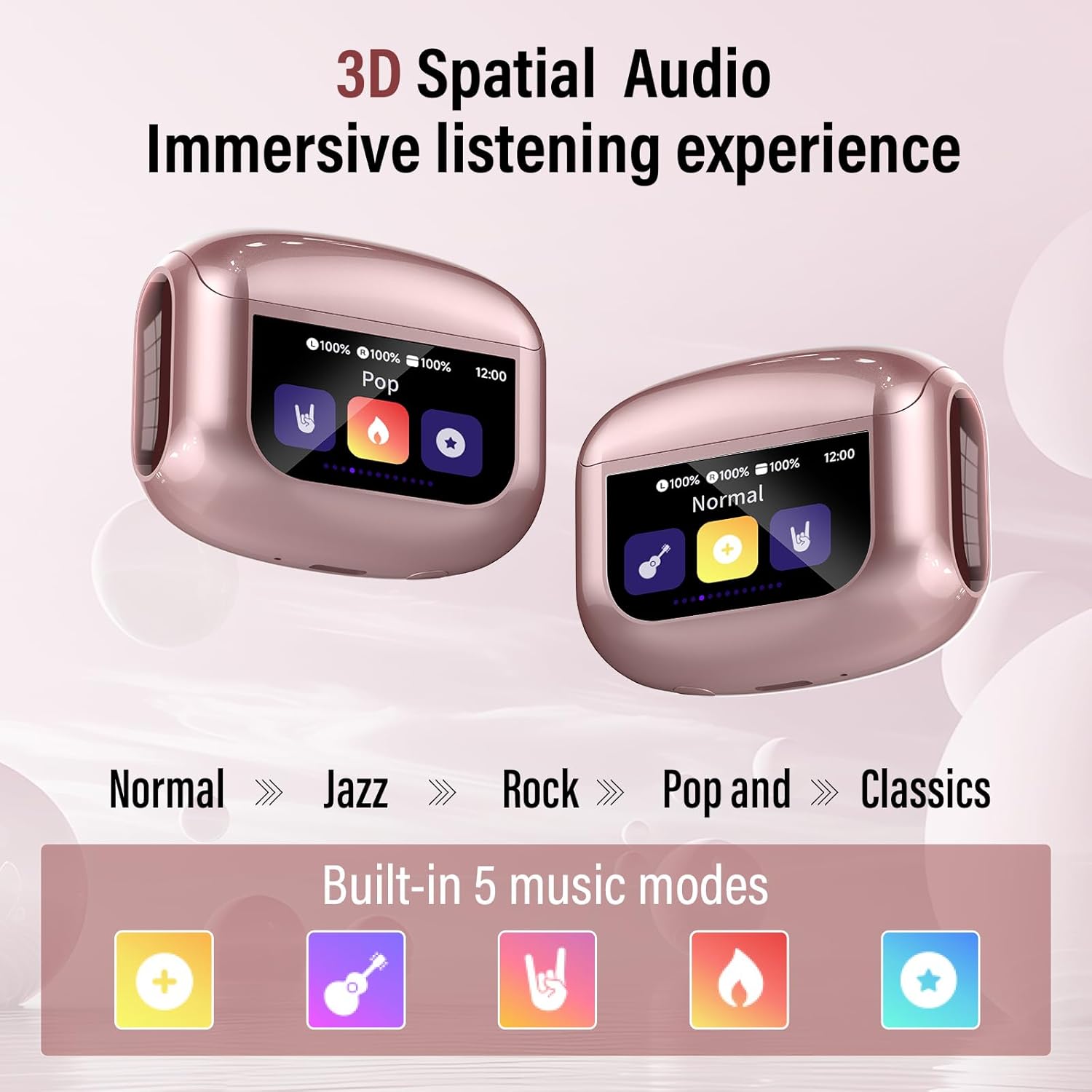

Image 3.3: Display of the five available music equalization modes.

4. Maintenance

4.1 Cleaning

Regular cleaning helps maintain optimal performance and hygiene:

• Gently wipe the earbuds and charging case with a soft, dry, lint-free cloth.
• Remove ear tips and clean them with mild soap and water, then dry thoroughly before reattaching.
• Use a cotton swab or a small, soft brush to carefully clean the speaker mesh and charging contacts.
• Avoid using abrasive materials, solvents, or harsh chemicals.

4.2 Water Resistance (IPX7)

The Thunelec U9 earbuds feature an IPX7 waterproof rating, meaning they are protected against immersion in water up to 1 meter for 30 minutes. This makes them suitable for workouts and use in light rain.

• Do not intentionally submerge the earbuds for extended periods or in depths greater than specified.
• The charging case is not waterproof. Keep it dry.
• Ensure earbuds are completely dry before placing them back into the charging case to prevent damage to charging contacts.

5. Troubleshooting

5.1 Earbuds Not Pairing or Connecting

• Ensure both earbuds are charged and removed from the charging case.
• Turn off and then on your device's Bluetooth.
• Forget "U9" from your device's Bluetooth list and attempt to re-pair.
• If issues persist, try resetting the earbuds (refer to the full user manual for specific reset instructions if available).

5.2 No Sound or Poor Sound Quality

• Check the volume level on both your device and the earbuds/charging case.
• Ensure the earbuds are properly seated in your ears with a good seal.
• Clean the speaker mesh to remove any debris that might be obstructing sound.
• Move closer to your connected device to avoid interference.

5.3 Earbud-Finding Function

If you misplace an earbud, use the "Find My Earphone" function on the charging case's touch screen. This will cause the selected earbud to emit a beeping sound to help you locate it.

Image 5.1: Illustration of the earbud-finding function on the charging case screen.

6. Specifications

7. Warranty and Support

7.1 Limited Warranty

Thunelec products are covered by a limited warranty against manufacturing defects from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

7.2 Customer Support

For technical assistance, warranty inquiries, or any questions regarding your Thunelec U9 Wireless Earbuds, please contact Thunelec customer support through the official channels. You can find more information and contact details by visiting the Thunelec Store on Amazon.
