Vicco 55805
Vicco Frank Filing Cabinet Instruction Manual
Model: 55805 | Color: Anthracite/Golden Oak
Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Vicco Frank Filing Cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image: The Vicco Frank Filing Cabinet, Anthracite/Golden Oak, integrated into a modern home office environment.
Safety Information
- Ensure all components are present and undamaged before assembly. Do not use damaged parts.
- Assemble the cabinet on a soft, clean surface to prevent scratches.
- Always use the provided wall-anchoring hardware to secure the cabinet to a wall, preventing tipping hazards, especially in households with children.
- Do not exceed the maximum weight limit of 15 kg per shelf/drawer.
- Keep small parts and packaging materials away from children.
Setup and Assembly
The Vicco Frank Filing Cabinet requires assembly. The package includes the multi-functional cabinet kit, an upper cabinet module, a drawer module, assembly instructions, and mounting hardware. Decorative items are not included.
Required Tools (Not Included):
- Screwdriver (Phillips head recommended)
- Hammer
- Drill (for wall anchoring)
- Measuring tape
Assembly Steps:
- Unpack Components: Carefully unpack all parts and verify against the included parts list in the assembly manual.
- Assemble Base Unit: Follow the step-by-step diagrams in the provided assembly manual to construct the main cabinet frame.
- Install Shelves: Insert shelf supports into the pre-drilled holes at your desired height. Place shelves onto the supports. The shelves are adjustable.
- Assemble Drawer Module: Construct the drawer module according to the instructions. Ensure drawer slides are correctly oriented.
- Attach Doors: Mount the cabinet doors using the provided hinges. Adjust hinges as necessary for proper alignment.
- Install Upper Module: Secure the upper cabinet module to the main cabinet.
- Wall Anchoring: Position the assembled cabinet in its desired location. Using the provided hardware, secure the cabinet to a sturdy wall stud to prevent tipping. This step is crucial for safety.

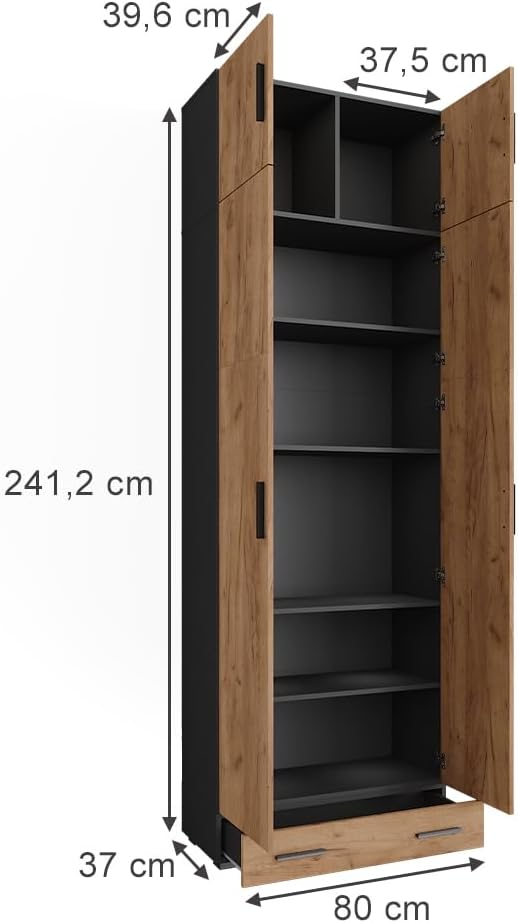

Image: Dimensional view of the cabinet, illustrating its structure and internal compartments.
Operating Instructions
The Vicco Frank Filing Cabinet is designed for versatile storage in both office and home environments. It features multiple compartments, adjustable shelves, and drawers for organized storage.
Storage Recommendations:
- Filing Shelves: Ideal for documents, binders, and file boxes.
- Drawers: Suitable for smaller items, office supplies, or personal belongings.
- Adjustable Shelves: Customize shelf height to accommodate various items such as books, shoes, or clothing.
- Weight Distribution: Distribute weight evenly across shelves and drawers. Place heavier items on lower shelves to maintain stability.
Image: Interior of the cabinet demonstrating organized storage of files and boxes.
Image: Cabinet interior configured for storing clothing and footwear.
Maintenance and Care
The cabinet is constructed from 16 mm particle board with an easy-care melamine resin coating, designed for durability and simple cleaning.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Spills: Clean up spills immediately to prevent staining or moisture damage.
- Hardware: Periodically check all screws and fittings to ensure they remain tight. Retighten if necessary.
- Sunlight Exposure: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration of the finish.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cabinet is wobbly or unstable. | Loose screws or uneven floor. | Check and tighten all assembly screws. Ensure the cabinet is on a level surface; use shims if necessary. Verify wall anchoring. |
| Doors do not align properly. | Hinges are not adjusted correctly. | Adjust the screws on the hinges to align the doors. Refer to the assembly manual for detailed hinge adjustment instructions. |
| Drawers do not slide smoothly. | Drawer slides are misaligned or obstructed. | Ensure drawer slides are installed correctly and free from debris. Check that the drawer is not overloaded. |
| Missing parts during assembly. | Packaging error or lost part. | Carefully re-check all packaging materials. If parts are still missing, contact Vicco customer support. |
Product Specifications
- Model Name: Frank
- Model Number: 55805
- Color: Anthracite/Golden Oak
- Material: 16 mm Particle Board with Melamine Resin Coating
- Overall Dimensions (H x W x D): 241.2 cm x 80 cm x 37 cm (94.96 in x 31.5 in x 14.57 in)
- Product Weight: 81.5 kg (179.68 lbs)
- Maximum Weight Limit (per shelf/drawer): 15 kg (33 lbs)
- Number of Doors: 4
- Number of Drawers: 2
- Number of Shelves: 9 (adjustable)
- Storage Options: Filing shelves, drawers, cabinet top
- Assembly Required: Yes
Warranty Information
Specific warranty details for the Vicco Frank Filing Cabinet are not provided in the product information. For warranty inquiries, please refer to the documentation included with your purchase or contact Vicco customer support directly.
Customer Support
If you have any questions regarding the assembly, operation, or maintenance of your Vicco Frank Filing Cabinet, please contact Vicco customer support. Contact information can typically be found on the manufacturer's website or on the packaging materials.
