MZK Cordless Grass Shear & Shrubbery Trimmer User Manual

1. Introduction

Thank you for choosing the MZK Cordless Grass Shear & Shrubbery Trimmer. This 2-in-1 tool is designed for efficient and convenient trimming of grass and shrubs in your garden. Powered by a 7.2V battery, it offers cordless operation for enhanced maneuverability. Please read this manual thoroughly before operating the device to ensure safe and effective use.

2. Important Safety Instructions

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Personal Safety: Always wear eye protection and gloves when operating the trimmer. Keep children and bystanders away. Do not operate when tired or under the influence of drugs or alcohol.
• Electrical Safety: Use only the charger supplied by the manufacturer. Do not expose the trimmer to rain or wet conditions. Avoid body contact with earthed or grounded surfaces.
• Tool Use and Care: Do not force the tool. Use the correct tool for your application. Disconnect the battery pack before making any adjustments, changing accessories, or storing the tool. Store idle tools out of the reach of children.
• Battery Pack Use and Care: Recharge only with the charger specified by the manufacturer. Do not disassemble the battery pack. Do not short-circuit the battery pack.
• Maintenance: Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

3. Package Contents

Please check the package to ensure all items are present and undamaged:

• MZK Cordless Grass Shear & Shrubbery Trimmer Main Unit
• Grass Shear Blade (installed or separate)
• Shrubbery Trimmer Blade
• Battery Charger
• User Manual

4. Product Overview

Familiarize yourself with the components of your MZK Cordless Trimmer:

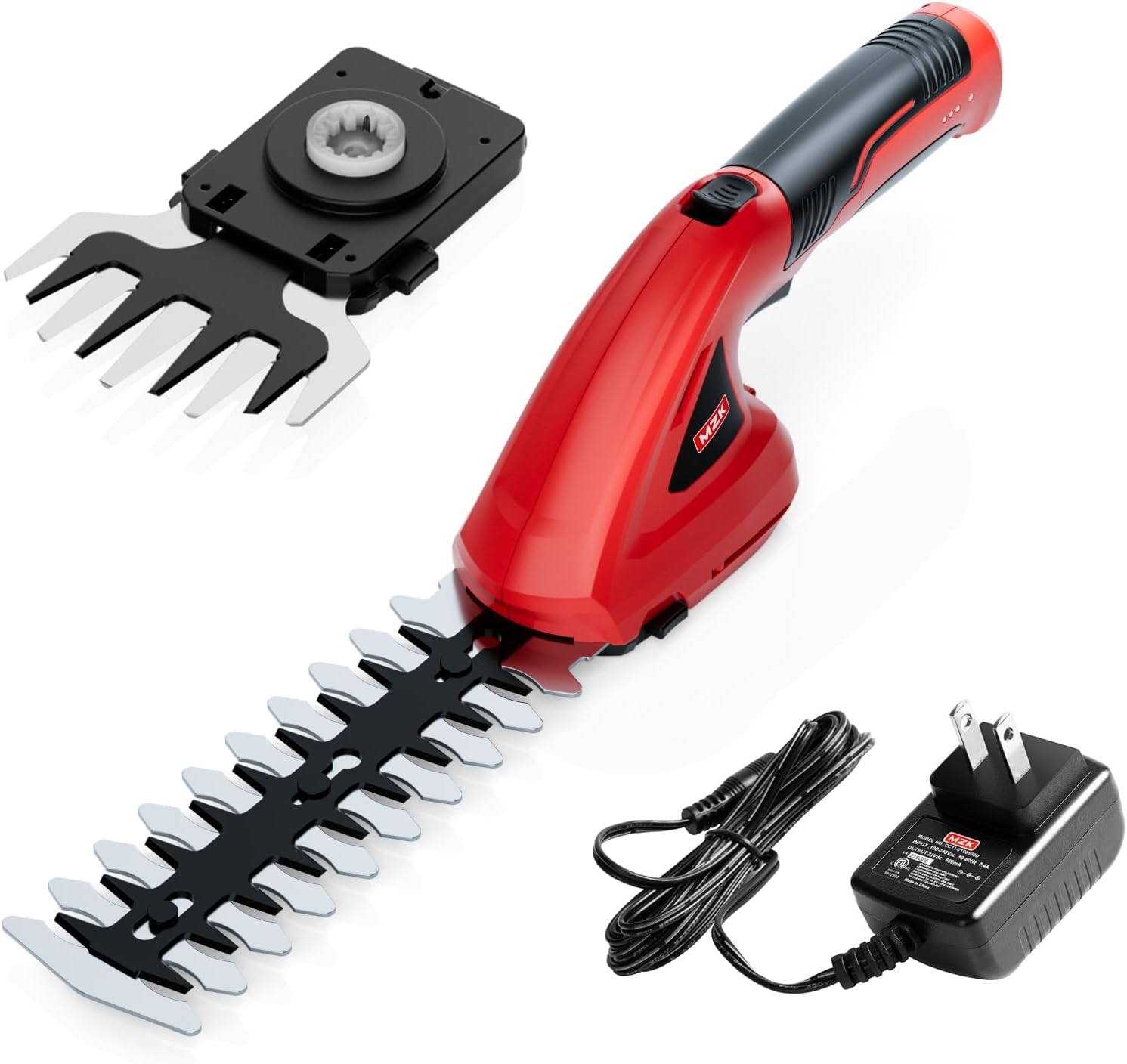

Figure 4.1: The MZK Cordless Grass Shear & Shrubbery Trimmer, showcasing the main unit, the grass shear blade, the shrubbery trimmer blade, and the battery charger. This image provides a comprehensive view of all included components.

Figure 4.2: A detailed view of the shrubbery trimmer blade, highlighting its dimensions. The blade has a cutting length of 7.8 inches and a cutting width of 3.9 inches, optimized for efficient shrub trimming.

Key Components:

• Main Unit: Contains the motor, battery compartment, handle, and safety switch.
• Grass Shear Blade: Shorter blade for precise grass trimming.
• Shrubbery Trimmer Blade: Longer blade for shaping hedges and shrubs.
• Safety Lock Button: Prevents accidental starting.
• Power Switch: Activates the motor.
• Blade Release Button: For easy blade changing.
• Charging Port: For connecting the battery charger.

5. Setup

5.1. Charging the Battery

1. Ensure the trimmer is turned off.
2. Connect the charger to the charging port on the trimmer.
3. Plug the charger into a standard electrical outlet.
4. The charging indicator light (if present) will illuminate, typically red during charging and green when fully charged.
5. Allow approximately 3-5 hours for a full charge. Do not overcharge the battery.

5.2. Installing/Changing Blades

Always ensure the trimmer is off and the battery is disconnected before handling blades.

1. Locate the blade release button, usually on the side or top of the blade housing.
2. Press and hold the blade release button.
3. Carefully slide the currently installed blade out from the housing.
4. Align the desired blade (grass shear or shrubbery trimmer) with the slots in the housing.
5. Slide the new blade into place until it clicks securely. Ensure it is firmly seated.
6. Release the blade release button. Gently tug on the blade to confirm it is locked.

6. Operating Instructions

6.1. Starting the Trimmer

1. Ensure the correct blade is securely installed.
2. Hold the trimmer firmly with both hands if possible, or one hand if comfortable and safe.
3. Press and hold the safety lock button (usually located near the power switch).
4. While holding the safety lock button, press the power switch to start the motor.
5. Release the safety lock button once the motor is running.

6.2. Using the Grass Shear Blade

The grass shear blade is ideal for trimming grass around flowerbeds, walkways, and other areas where a lawnmower cannot reach.

• Hold the trimmer with the grass shear blade parallel to the ground.
• Move the trimmer slowly and steadily along the edge of the grass.
• Avoid contact with hard objects like stones or metal, which can damage the blade.

6.3. Using the Shrubbery Trimmer Blade

The shrubbery trimmer blade is suitable for shaping small hedges, bushes, and ornamental plants.

• Hold the trimmer at a comfortable angle, ensuring a stable grip.
• Work in small sections, moving the blade smoothly across the shrubbery.
• Do not attempt to cut branches thicker than the recommended capacity (typically 0.3-0.4 inches).
• Always be aware of your surroundings and avoid cutting electrical wires or other hidden obstacles.

6.4. Stopping the Trimmer

Release the power switch to stop the motor. Always ensure the trimmer has come to a complete stop before setting it down or performing any maintenance.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your trimmer.

7.1. Cleaning

• After each use, disconnect the battery.
• Use a stiff brush or cloth to remove grass clippings, leaves, and debris from the blades and housing.
• Do not use water or cleaning solvents directly on the electrical components.
• Wipe the exterior with a damp cloth and dry thoroughly.

7.2. Blade Care

• Periodically apply a light machine oil or blade lubricant to the blades to prevent rust and ensure smooth operation.
• If blades become dull, they can be sharpened by a professional or replaced.
• Inspect blades for damage (bends, cracks) before each use. Replace damaged blades immediately.

7.3. Storage

• Store the trimmer in a dry, cool place, away from direct sunlight and moisture.
• Ensure the battery is partially charged (not fully depleted or fully charged) before long-term storage. Recharge every 3-6 months if not in use.
• Store out of reach of children.

8. Troubleshooting

9. Technical Specifications

• Model Number: SG2007
• Battery Voltage: 7.2V
• Grass Shear Blade Length: 2.4 inches (approx.)
• Shrubbery Trimmer Blade Length: 8 inches
• Product Dimensions: 12 x 3.8 x 1.9 inches
• Item Weight: 2.8 pounds
• Power Source: Battery Powered
• Color: Black, Red
• Manufacturer: MZK

10. Warranty and Customer Support

MZK is committed to providing high-quality products. For any questions, concerns, or technical support regarding your MZK Cordless Grass Shear & Shrubbery Trimmer, please refer to your purchase documentation for warranty details or contact the seller directly through the platform where you purchased the product. Please have your model number (SG2007) and purchase date ready when contacting support.
