Introduction
Thank you for choosing the JAMARA 406302 Volvo L260H RC Wheel Loader. This 1:14 scale, 2.4 GHz remote-controlled model is a highly detailed and functional replica of the Volvo L260H construction vehicle. This manual provides essential information for the safe and effective operation, setup, and maintenance of your new model.
Safety Information
- Age Recommendation: This product is suitable for users aged 14 years and older.
- Adult Supervision: Adult supervision is recommended, especially for younger users.
- Battery Safety: Always follow battery safety guidelines. Do not mix old and new batteries, or different types of batteries. Ensure correct polarity. Remove batteries when not in use for extended periods.
- Operating Environment: Operate the model in open areas, away from people, pets, and obstacles. Avoid operating near water, roads, or in adverse weather conditions.
- Moving Parts: Keep fingers, hair, and loose clothing away from moving parts such as wheels and the loader arm to prevent injury.
- Modifications: Do not modify the model or its components. Unauthorized modifications may compromise safety and void the warranty.
Package Contents
Please check the package contents carefully upon unboxing:
- JAMARA 406302 Volvo L260H RC Wheel Loader (1:14 scale)
- 2.4 GHz Remote Control
- Instruction Manual
Required for Operation (Not Included):
- 3 x AA batteries (LR6 alkaline or HR6 NiMH) for the remote control.
Product Overview and Features
The JAMARA Volvo L260H is an officially licensed, highly detailed remote-controlled wheel loader designed for realistic operation.
- Realistic Articulated Steering: Provides authentic maneuverability.
- Powerful Metal Front Loader: Features a metal bucket with a lifting force of 4500g and a volume of 780ml. The bucket and all front loader joints can be controlled individually.
- Robust Drivetrain: Equipped with two front and rear drive motors and a differential gearbox for even torque distribution, ensuring excellent traction and climbing ability on various terrains.
- Authentic Lighting and Sound: Features adjustable front/rear LED lights and signal lights with four flashing sequences. Realistic sound effects can be activated or deactivated as desired.
- Detailed Design: Includes manually adjustable exterior mirrors, an opening door, and an opening engine hood for enhanced realism.
Image: The JAMARA Volvo L260H RC Wheel Loader being operated by a user, highlighting its 2.4 GHz remote control, metal construction, and 4500g lifting capacity.
Image: A detailed view of the Volvo L260H model, pointing out features such as the manually opening engine hood, front/rear LED lights, horn, metal bucket, planetary gearbox for torque distribution, and manually opening door.
Setup
1. Remote Control Battery Installation
- Locate the battery compartment on the back of the remote control.
- Open the battery compartment cover.
- Insert 3 x AA batteries (LR6 alkaline or HR6 NiMH) according to the polarity markings (+/-).
- Close the battery compartment cover securely.
2. Vehicle Battery (If applicable)
The vehicle typically comes with a pre-installed rechargeable battery. Ensure the vehicle's battery is fully charged before first use. Refer to the charging instructions provided with the vehicle's charger (if external) or ensure the internal battery is charged via the designated port.
3. Pairing the Remote Control and Vehicle
The 2.4 GHz system usually pairs automatically. Follow these steps:
- Ensure the remote control has fresh batteries and is turned off.
- Turn on the vehicle's power switch.
- Turn on the remote control. The indicator light on the remote should flash, then become solid, indicating a successful connection.
- If pairing fails, turn off both the vehicle and remote, then repeat the steps.
Operating Instructions
Familiarize yourself with the remote control layout and functions before operating the vehicle.
1. Basic Driving Controls
- Forward/Backward: Use the left joystick (or designated lever) to move the loader forward or backward.
- Left/Right (Articulated Steering): Use the right joystick (or designated lever) to steer the loader left or right. The loader will bend at its articulation point for realistic turning.
2. Front Loader Operation
The front loader controls allow for precise manipulation of the bucket.
- Bucket Up/Down: Use the designated buttons or levers on the remote control to raise or lower the entire loader arm.
- Bucket Tilt: Use separate controls to tilt the bucket up (scoop) or down (dump).
- Individual Joint Control: Some models allow for individual control of different loader arm joints for more complex movements. Refer to your remote control's specific button layout.
3. Lights and Sound Functions
- LED Lights: Activate or deactivate the front and rear LED lights using the designated button.
- Signal Lights: Cycle through four flashing sequences for the signal lights.
- Sound Effects: Turn realistic engine and operational sounds on or off using the sound button.

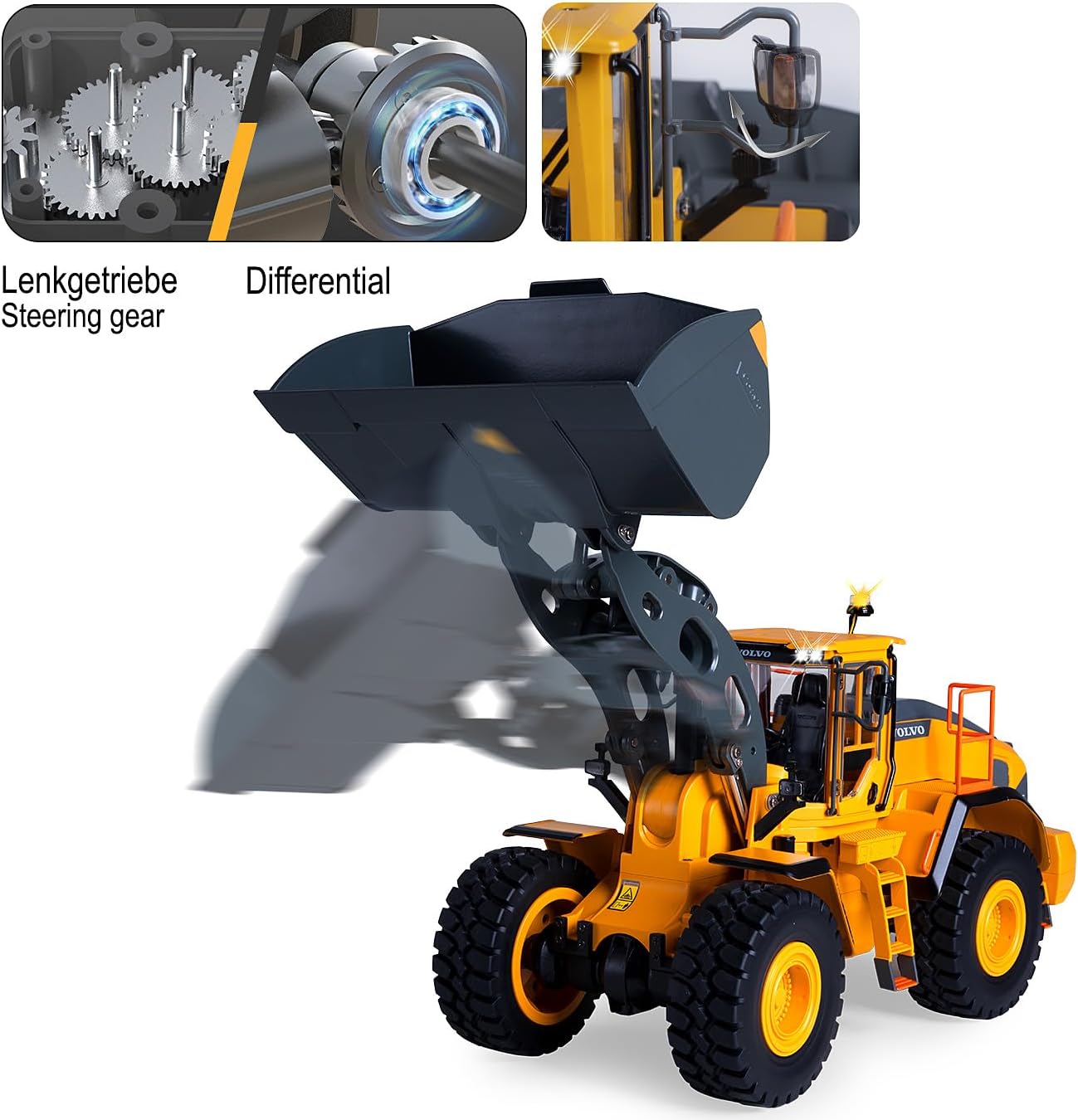

Image: An internal view highlighting the steering gear and differential components, crucial for the loader's articulated movement and torque distribution.
Maintenance
1. Cleaning
- After each use, especially in dusty or dirty environments, gently wipe down the model with a soft, dry cloth.
- Do not use water or chemical cleaners, as these can damage electronic components.
- Remove any debris from the wheels, axles, and loader mechanisms.
2. Storage
- Store the model in a cool, dry place, away from direct sunlight and extreme temperatures.
- Remove batteries from the remote control if the model will not be used for an extended period to prevent leakage.
- Ensure the vehicle's battery is partially charged (not fully depleted or fully charged) for long-term storage to prolong battery life.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not respond to remote control. | Low batteries in remote or vehicle; Remote and vehicle not paired; Out of range. | Replace remote batteries; Charge vehicle battery; Re-pair remote and vehicle; Operate within specified range. |
| Loader arm or bucket not moving. | Obstruction; Low vehicle battery; Damaged mechanism. | Check for obstructions; Charge vehicle battery; Contact support if mechanism is damaged. |
| Lights or sounds not working. | Feature deactivated; Low vehicle battery; Wiring issue. | Ensure feature is activated via remote; Charge vehicle battery; Contact support. |
| Poor performance or short range. | Interference; Low batteries; Obstacles. | Operate in an open area away from other 2.4 GHz devices; Replace/charge batteries; Avoid operating behind large obstacles. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Jamara |
| Model Name | JAMARA 406302 Radlader Volvo L260H Metal 1:14 2,4GHz |
| Toy Vehicle Form | Wheel Loader |
| Scale | 1:14 |
| Material | Metal |
| Color | Yellow |
| Age Range (Description) | Young (14+ years) |
| Theme | Construction Machinery |
| Power Source | Battery |
| Special Function | Remote Controlled |
| Lifting Force (Bucket) | 4500g |
| Bucket Volume | 780ml |
| Dimensions (Approx.) | Length: 55 cm, Width: 20.5 cm, Height: 24.5 cm |
Image: A diagram illustrating the approximate dimensions of the Volvo L260H RC Wheel Loader: Length 55 cm, Width 20.5 cm, Height 24.5 cm, and a scale of 1:14.
Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or contact the manufacturer directly. Keep your proof of purchase for warranty claims.
Manufacturer Contact Information (Example - please refer to your product packaging for actual details):
- Brand: Jamara
- Website: www.jamara-shop.com (This is a placeholder, please verify the official website)
