Introduction
The Maxi-Cosi Kani 4-in-1 Convertible Car Seat is engineered to provide safety and comfort for your child from infancy through the booster stage. This versatile car seat adapts to your child's growth, offering four distinct modes of use. It features a slim design for optimal vehicle fit, magnetic chest clip for ease of use, and premium fabrics for comfort and easy maintenance. Always refer to this manual for proper installation and usage to ensure your child's safety.
Image: The Maxi-Cosi Kani 4-in-1 Convertible Car Seat, showcasing its full form with headrest, harness, and cup holders.
Key Features
- 4-in-1 Convertible Design: This car seat transitions through rear-facing (5–40 lbs, 19"–40"), forward-facing (30–65 lbs, 34.4"–49"), belt-positioning booster (40–100 lbs, 43.4"–52"), and backless booster seat (40–100 lbs, 43.4"–57") modes.
- Slim 3-Across Fit: Designed with a narrow profile, the Kani car seat allows for three car seats to fit across most vehicle back seats, ideal for growing families.
- EcoCare & PureCosi Fabrics: Features EcoCare, a 100% recycled fabric made from plastic bottles, and PureCosi fabrics, which are ultra-soft, durable, and made without added fire retardant treatment. All fabrics are machine-washable and dryer-safe.
- ClipQuik Magnetic Chest Clip: The magnetic chest clip allows for easy, one-handed buckling and unbuckling, simplifying the process of getting your child in and out of the car.
- QuikFit Headrest & Harness System: A 10-position integrated headrest and harness system adjusts with one hand, eliminating the need for rethreading the harness as your child grows.
- ReclineFit 5-Position Recline: Offers 5 reclining positions that can be adjusted with one hand, ensuring comfort for your child and a secure fit in your vehicle.
- Side Impact Protection: Engineered and tested to meet or exceed federal safety standards, including the federal Side Impact standard, for enhanced protection.
- Removable Cup Holders: Includes two easy-to-clean, removable, BPA-free cup holders for convenience.
- 1-Click LATCH Connectors: For easier and secure installation.
Image: Visual representation of the car seat adapting to different stages: rear-facing, forward-facing, belt-positioning booster, and backless booster.
Image: Three car seats positioned to demonstrate the slim design, fitting within a 20-inch width.
Image: Detail of the car seat fabric, emphasizing the EcoCare recycled and PureCosi fire-retardant-free materials.
Image: The magnetic chest clip, highlighting its ease of use for buckling and unbuckling.

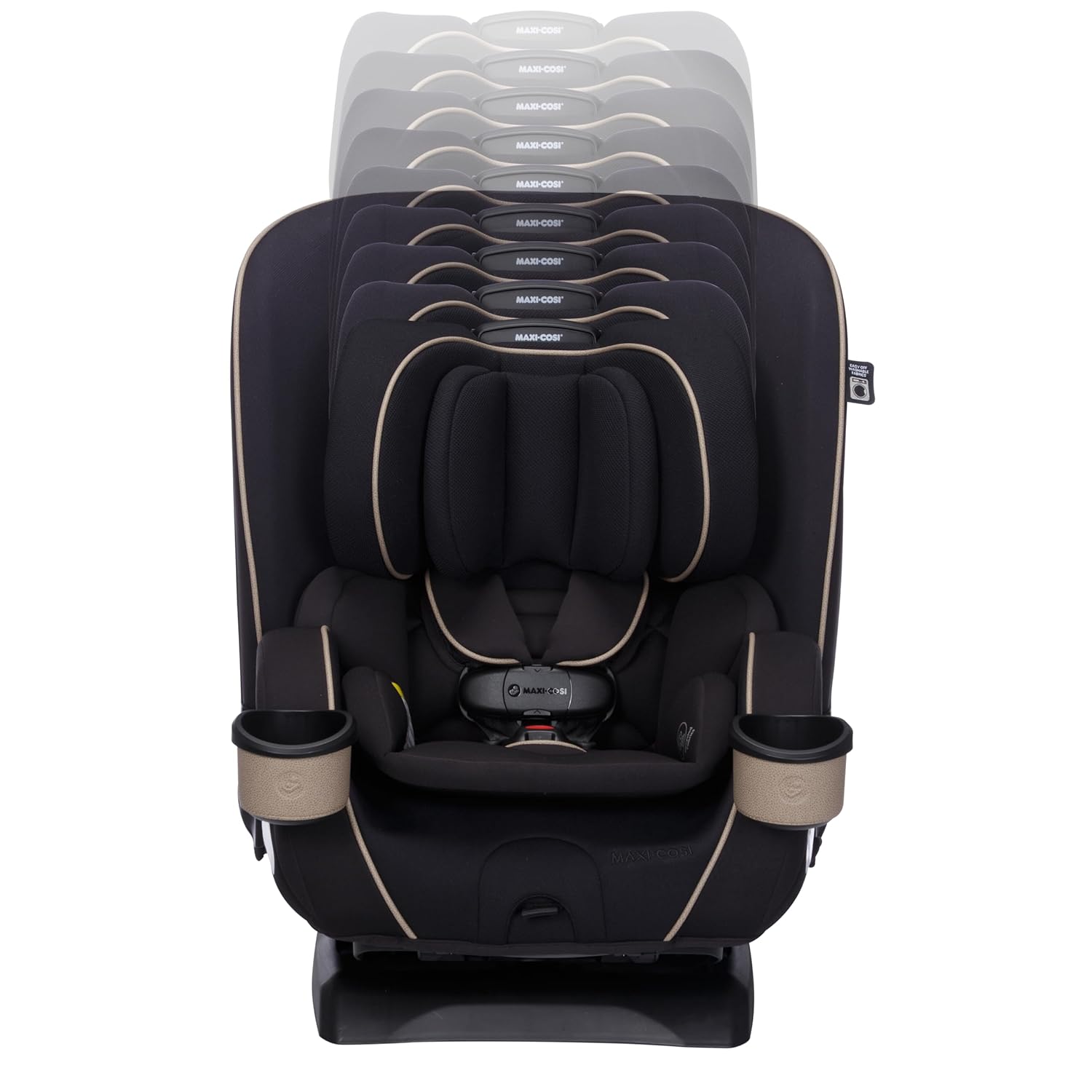

Image: The adjustable headrest and harness system, demonstrating its 10 positions for growth.

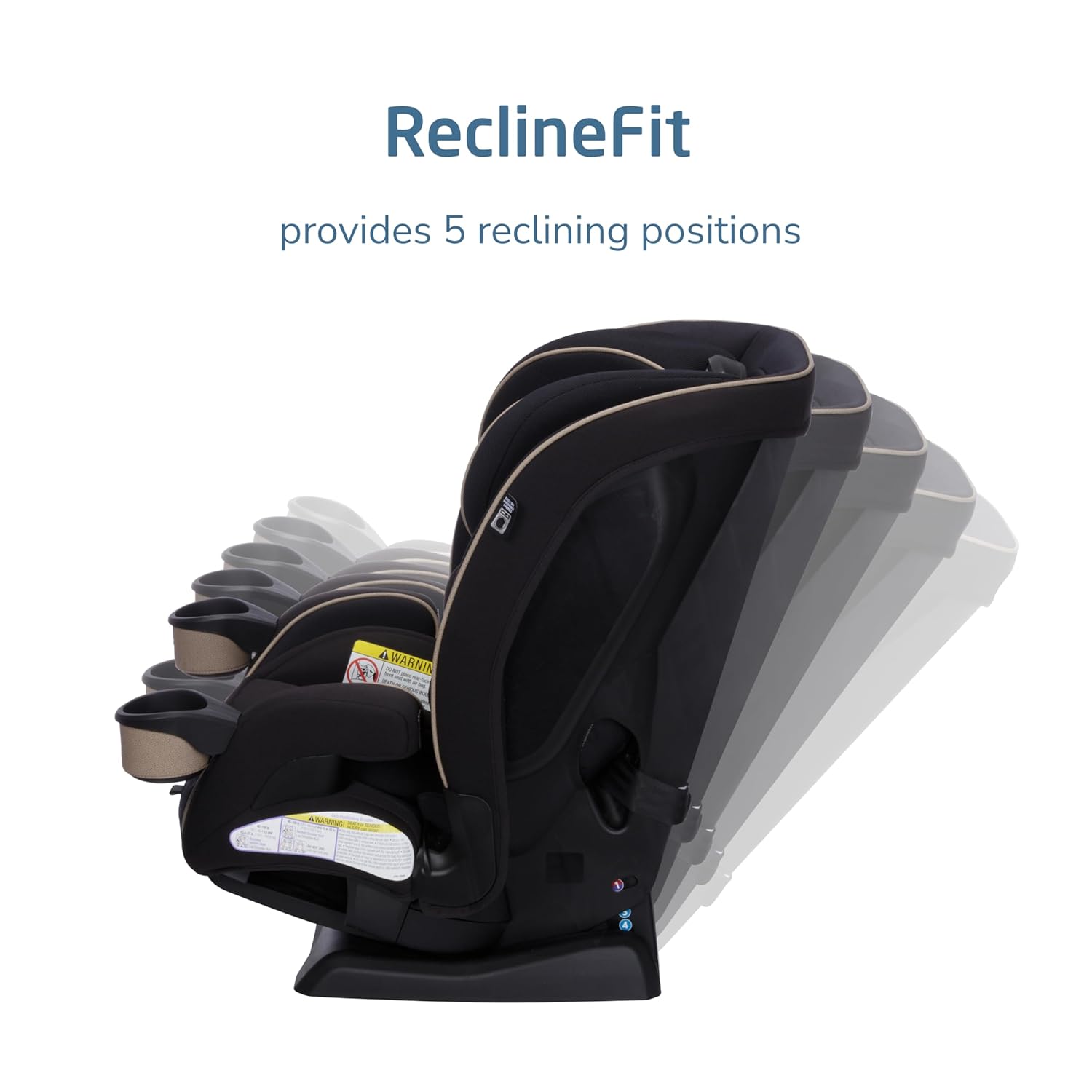

Image: The car seat's recline feature, showing its five adjustable positions.
Image: The headrest area, highlighting the side impact protection feature.
Official Product Video: Maxi Cosi Kani Car Seat Product Features
Video: This official product video from Maxi-Cosi provides an overview of the Kani car seat's key features and benefits, demonstrating its functionality and design.
Setup and Installation
Proper installation is crucial for your child's safety. Always read the full instruction manual provided with your car seat and your vehicle's owner's manual before installation. The Maxi-Cosi Kani can be installed using either your vehicle's LATCH system or the vehicle's seatbelt.
Rear-Facing Installation (5-40 lbs, 19"-40")
- Ensure the car seat is in the correct recline position for rear-facing use. Refer to the recline indicator on the side of the car seat.
- For children up to 35 lbs, you may use the lower anchors of the LATCH system. For children over 35 lbs, you must use the vehicle's seatbelt for installation.
- Route the LATCH connectors or vehicle seatbelt through the designated rear-facing belt path.
- Press firmly on the car seat while tightening the LATCH strap or seatbelt until the car seat moves no more than 1 inch side-to-side or front-to-back at the belt path.
- The top tether is not used in rear-facing mode.
Forward-Facing Installation (30-65 lbs, 34.4"-49")
- Ensure the car seat is in the correct recline position for forward-facing use.
- Route the LATCH connectors or vehicle seatbelt through the designated forward-facing belt path.
- Press firmly on the car seat while tightening the LATCH strap or seatbelt until the car seat moves no more than 1 inch side-to-side or front-to-back at the belt path.
- Always use the top tether when installing the car seat in forward-facing mode, regardless of whether you use LATCH or the vehicle seatbelt. Attach the top tether to the designated anchor point in your vehicle and tighten.
Booster Seat Mode (40-100 lbs, 43.4"-57")
- Remove the car seat's internal harness system.
- Position the booster seat on the vehicle seat.
- Secure your child using the vehicle's lap and shoulder belt, ensuring the shoulder belt lies flat across the center of your child's shoulder and chest, and the lap belt is low on the hips, touching the thighs.
- For backless booster mode, detach the backrest from the base with a one-handed release mechanism.
Image: The car seat transforming into a backless booster with a simple one-hand release.
Operating Instructions
Adjusting the Headrest and Harness (QuikFit)
- To adjust the headrest and harness height, locate the adjustment handle at the top of the headrest.
- Squeeze the handle and slide the headrest up or down to one of the 10 available positions.
- Ensure the harness straps are at or just below your child's shoulders for rear-facing, and at or just above your child's shoulders for forward-facing.
Adjusting Recline (ReclineFit)
- To adjust the recline position, locate the recline lever at the front of the car seat base.
- Pull the lever and adjust the seat to one of the 5 recline positions. Ensure the recline indicator is within the acceptable range for your chosen mode of use.
Securing Your Child (ClipQuik)
- Place your child in the car seat.
- Bring the harness straps over your child's shoulders and buckle the crotch buckle.
- Connect the two magnetic chest clip pieces together. Ensure the chest clip is positioned at armpit level.
- Tighten the harness straps until they are snug and you cannot pinch any excess webbing vertically at your child's shoulders.
Using Cup Holders
- The two cup holders can be inserted into the designated slots on either side of the car seat.
- To remove for cleaning, twist and pull them out.
Maintenance and Cleaning
Fabric Care
- The car seat fabrics are machine-washable and dryer-safe. Refer to the care labels on the fabric for specific washing instructions.
- Use mild detergent and cold water on a gentle cycle. Tumble dry on low heat or air dry.
Harness and Buckle Care
- Wipe harness straps with a damp cloth. Do not machine wash or immerse harness straps in water, as this may weaken them.
- Clean the buckle by rinsing it with warm water. Do not use soaps or detergents.
Shell and Base
- Wipe the car seat shell and base with a damp cloth and mild soap.
- Do not use abrasive cleaners or solvents.
Troubleshooting
Car Seat Moves More Than 1 Inch
- Ensure the LATCH strap or vehicle seatbelt is tightened sufficiently. Apply firm pressure to the car seat while tightening.
- Check that the belt path is correctly routed according to the chosen mode (rear-facing or forward-facing).
- For seatbelt installations, ensure the vehicle seatbelt is locked.
Harness Straps Are Not Snug
- Pull the harness adjustment strap at the front of the car seat until the straps are snug against your child.
- Ensure no twists in the harness straps.
- Verify the chest clip is at armpit level.
Child Outgrows Current Mode
- Refer to the weight and height limits for each mode of use (rear-facing, forward-facing, booster).
- Transition to the next appropriate mode when your child exceeds the limits for their current mode.
- Remove the infant insert when your child reaches 11 lbs.
- Harness strap pads are required for 4-22 lbs, optional for 22-40 lbs, and must be removed for 40+ lbs.
Product Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 29"D x 19"W x 29"H |
| Item Model Number | CC430HHK |
| Maximum Weight Recommendation | 100 Pounds |
| Number of Reclining Positions | 5 (ReclineFit) |
| Harness Type | 5-Point |
| Item Weight | 23.2 pounds |
| Orientation | Forward Facing, Rear Facing |
| Installation Type | Seatbelt, Latch |
Warranty Information
For detailed warranty information regarding your Maxi-Cosi Kani 4-in-1 Convertible Car Seat, please refer to the warranty card included with your product packaging or visit the official Maxi-Cosi website. Warranty terms and conditions may vary.
Customer Support
If you have any questions, require assistance with installation, or need to troubleshoot an issue not covered in this manual, please contact Maxi-Cosi customer support. You can find contact information on the official Maxi-Cosi website or in the documentation provided with your car seat.
