1. Introduction
Thank you for choosing the Lamomo COB LED Strip Light. This product is designed to provide high-quality, uniform warm white illumination for various indoor and outdoor applications. Featuring a flexible, waterproof silicone design, dimmable functionality, and convenient remote control, it offers versatile lighting solutions. Please read this manual thoroughly before installation and use to ensure proper operation and safety.
Image 1.1: Lamomo COB LED Strip Light, 5 meters, warm white.
2. Safety Information
- Ensure the power supply is disconnected before installation or maintenance.
- This product operates on 24V DC low voltage. Do not connect directly to 100-240V AC power without the provided adapter.
- The LED strip itself is IP65 waterproof, suitable for outdoor use and exposure to rain. However, the power adapter and end caps are NOT waterproof and must be protected from moisture.
- Do not bend the strip excessively or at sharp angles to avoid damaging the internal components.
- Keep the product away from flammable materials. The silicone material is non-flammable, but precautions should always be taken.
- Do not stare directly into the illuminated LEDs for extended periods.
- Only use the provided power adapter and accessories. Using incompatible components may cause damage or safety hazards.
Image 2.1: The included 24V power adapter ensures safe low-voltage operation.
3. Package Contents
Verify that all items listed below are included in your package:
- Lamomo COB LED Strip Light (5 meters)
- 24V Power Adapter
- Remote Control
- Dimmer Controller (integrated with receiver)
- Quick Connect Cables (for connecting cut sections)
- Mounting Clips and Screws (for secure installation)
Image 3.1: Illustration of all components included in the package.
4. Setup Instructions
4.1 Preparation
- Unroll the LED strip and inspect it for any physical damage.
- Choose a clean, dry, and smooth surface for installation. Ensure the surface is free from dust, oil, or moisture.
- Measure the desired length for your installation.
4.2 Cutting the LED Strip (Optional)
The LED strip can be cut every 5cm (1.96 inches) at designated marks. Use sharp scissors to ensure a clean cut. Do not cut at any other points, as this may damage the circuit.
Image 4.1: The LED strip can be cut every 5cm at marked intervals for custom lengths.
4.3 Connecting Sections (Optional)
If you cut the strip and need to connect sections or extend it, use the provided quick connect cables. Align the pins correctly and ensure a secure connection. No soldering is required.
Image 4.2: Quick connect cables allow for easy connection of cut LED strip sections.
4.4 Mounting the LED Strip
- Peel off the adhesive backing from the LED strip.
- Carefully press the strip onto the prepared surface, ensuring firm contact along its entire length.
- For added security, especially on uneven surfaces or for long-term outdoor use, use the included mounting clips and screws. Space the clips evenly along the strip.

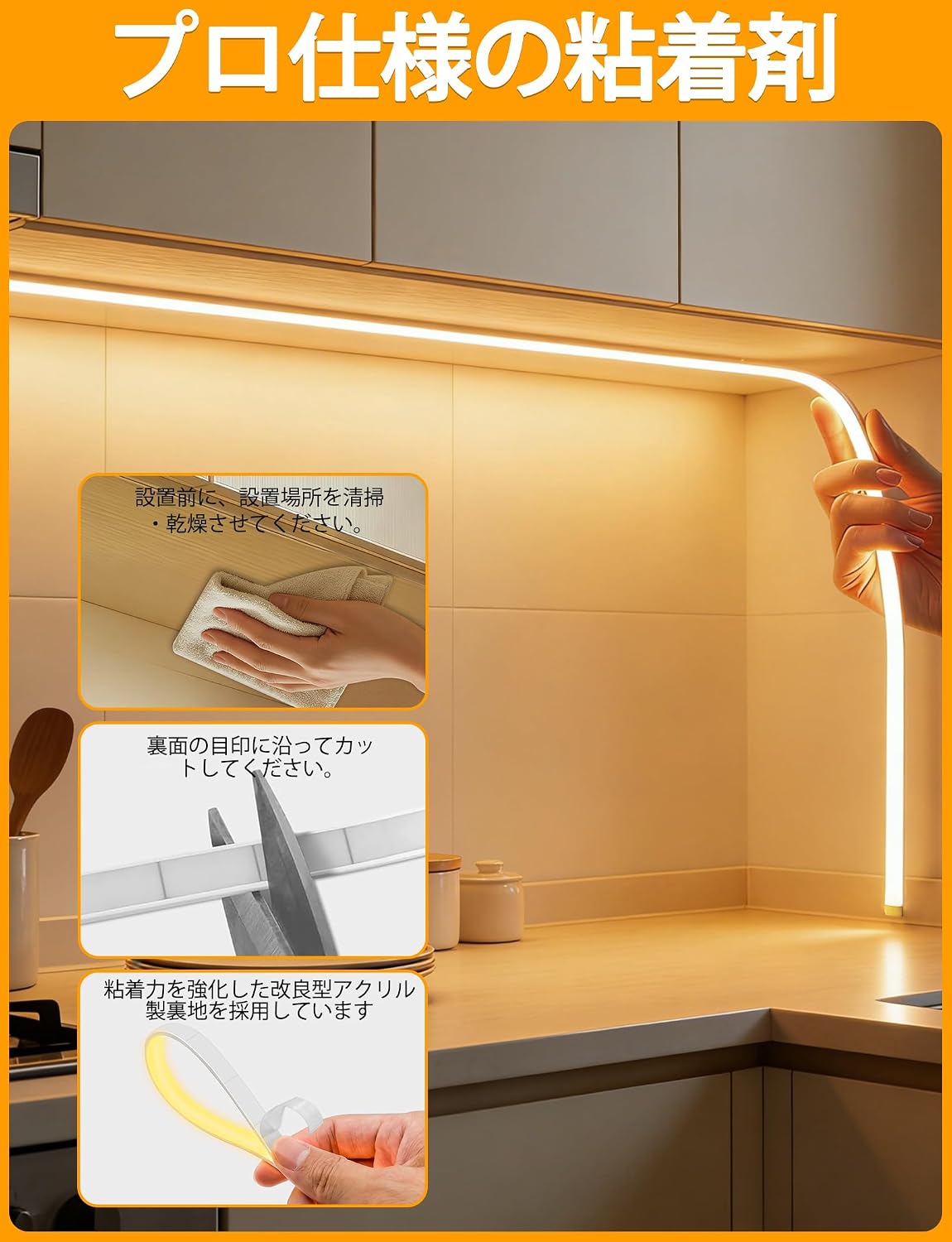

Image 4.3: Peel-and-stick installation with optional mounting clips for enhanced stability.
4.5 Power Connection
- Connect the dimmer controller to the LED strip.
- Connect the 24V power adapter to the dimmer controller.
- Plug the power adapter into a standard electrical outlet.
5. Operating Instructions
The Lamomo COB LED Strip Light is controlled using the included 15-key remote control.
5.1 Remote Control Functions
- ON/OFF: Press to turn the lights on or off.
- Brightness Adjustment: Use the '+' and '-' buttons to increase or decrease brightness (10% to 100%).
- Preset Brightness: Buttons for 10%, 50%, 75%, 100% brightness.
- Timer Functions: Set the lights to turn off after 10 seconds, 30 seconds, or 60 seconds.
- Lighting Modes: Select from Fade, Jump, or Flash modes for dynamic lighting effects.
- Memory Function: The light will remember the last setting when turned back on.
Image 5.1: Remote control demonstrating dimming capabilities from 0% to 100%.
5.2 Remote Control Range
The remote control operates within a 30-meter range and offers 360-degree control, allowing you to adjust the lights from various positions without direct line-of-sight.
6. Maintenance
- Cleaning: Gently wipe the LED strip with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the strip is powered off and unplugged before cleaning.
- Inspection: Periodically check the strip for any signs of wear, damage, or loose connections. Address any issues promptly to prevent further damage.
- Water Protection: For outdoor installations, regularly inspect the power adapter and end caps to ensure they remain protected from water exposure.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED strip does not light up. | No power, loose connection, faulty adapter. | Check power outlet, ensure all connections are secure, test with another power adapter if available. |
| Remote control not working. | Battery depleted, remote out of range, obstruction. | Replace remote battery, move closer to the receiver, remove any obstructions. |
| Lights flicker or dim unexpectedly. | Unstable power supply, loose connection, damaged strip. | Ensure stable power, check connections, inspect the strip for physical damage. |
| Adhesive not holding. | Surface not clean/dry, unsuitable surface material, excessive weight/tension. | Clean and dry surface thoroughly, use mounting clips and screws for better adhesion, ensure the strip is not under tension. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | COB-320WW-5MJP |
| Brand | Lamomo |
| Light Source Type | COB LED |
| Light Color | Warm White |
| Color Temperature | 3000 Kelvin |
| Length | 5 meters (500 cm) |
| Voltage | 24V DC |
| Wattage | 48 W |
| Water Resistance | IP65 (Strip only; adapter and end caps are NOT waterproof) |
| Material | Silicone |
| Control Method | Remote Control (15-key) |
| Dimmable | Yes (10% - 100%) |
| Cuttable Interval | Every 5 cm |
| Included Components | LED Strip, 24V Power Adapter, Remote Control, Dimmer Controller, Quick Connect Cables, Mounting Clips & Screws |
9. Warranty and Support
Lamomo products are manufactured with high-quality materials and undergo strict quality control. For warranty information, please refer to the specific terms provided at the time of purchase or contact your retailer.
If you encounter any issues or have questions regarding your Lamomo COB LED Strip Light, please contact our customer support team through the retailer's platform or visit the official Lamomo website for assistance. Please have your model number (COB-320WW-5MJP) and purchase details ready when contacting support.
