1. Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
2. Product Overview
The Generic Digital Air Fryer 12L is designed for efficient and versatile cooking. It features a large capacity, digital controls, and a stainless steel exterior.

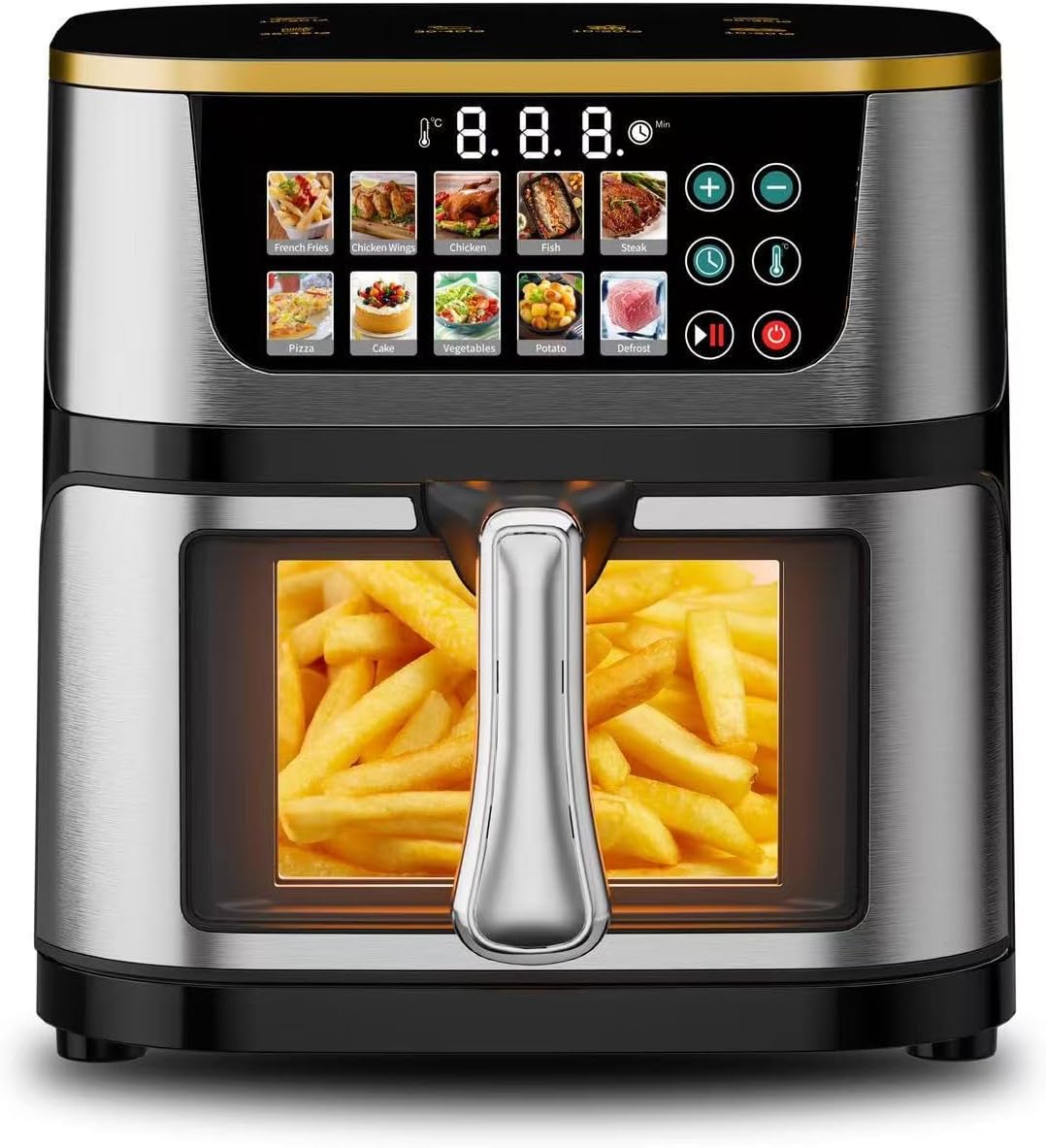

This image displays the front view of the Generic Digital Air Fryer. It features a brushed stainless steel finish, a large LED touch display panel at the top with various preset icons (French Fries, Chicken Wings, Chicken, Fish, Steak, Pizza, Cake, Vegetables, Potato, Defrost), and control buttons for temperature, time, and power. The transparent viewing window on the cooking basket shows french fries inside.
Components:
- Main Unit: Houses the heating element and fan.
- Control Panel: LED touch display with preset functions, temperature, and time controls.
- Cooking Basket: Removable, non-stick basket for food.
- Handle: For safe removal of the cooking basket.
- Air Inlet/Outlet: For proper air circulation during cooking.
3. Setup
- Unpacking: Carefully remove all packaging materials and any promotional labels or stickers from the air fryer.
- Initial Cleaning: Before first use, wipe the exterior of the appliance with a damp cloth. Wash the cooking basket and any removable accessories with hot, soapy water. Rinse thoroughly and dry completely.
- Placement: Place the air fryer on a stable, level, heat-resistant surface. Ensure there is at least 6 inches (15 cm) of clear space around the back and sides of the appliance to allow for proper air circulation. Do not place it directly against a wall or under cabinets.
- Power Connection: Plug the power cord into a grounded electrical outlet.
4. Operating Instructions
4.1 Powering On/Off
- To turn on the air fryer, press the Power button (ن) on the LED display. The display will illuminate.
- To turn off, press and hold the Power button until the display turns off.
4.2 Using Preset Functions
The air fryer comes with 10 pre-programmed cooking presets for common dishes:
- Ensure the air fryer is powered on.
- Place food into the cooking basket.
- Select the desired preset icon on the touch display (e.g., French Fries, Chicken Wings, Chicken, Fish, Steak, Pizza, Cake, Vegetables, Potato, Defrost). The air fryer will automatically set the optimal temperature and time for that dish.
- Press the Start/Pause button (▶‖) to begin cooking.
- During cooking, you may pause the process by pressing the Start/Pause button again. Press it once more to resume.
- The air fryer will beep when the cooking cycle is complete. Carefully remove the basket and food.
4.3 Manual Temperature and Time Adjustment
For custom cooking, you can manually set the temperature and time:
- Ensure the air fryer is powered on.
- Place food into the cooking basket.
- Press the Temperature button (🌡️) to adjust the temperature. Use the '+' and '-' buttons to increase or decrease the temperature (range: 100°F - 400°F).
- Press the Time button (🕒) to adjust the cooking time. Use the '+' and '-' buttons to increase or decrease the time.
- Press the Start/Pause button (▶‖) to begin cooking.
4.4 Shaking/Flipping Food
For even cooking and browning, it is recommended to shake or flip food halfway through the cooking process, especially for smaller items like fries or nuggets. Carefully pull out the cooking basket, shake or flip the food, and then reinsert the basket. The air fryer will automatically resume cooking.
5. Cleaning and Maintenance
Regular cleaning ensures optimal performance and extends the life of your air fryer.
- Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
- Cooking Basket and Accessories: The non-stick cooking basket and any removable accessories are dishwasher safe. Alternatively, wash them with hot, soapy water and a non-abrasive sponge. Rinse and dry thoroughly.
- Interior: Wipe the interior of the air fryer with a damp cloth. For stubborn residue, use a mild detergent. Avoid abrasive cleaners or scouring pads.
- Exterior: Wipe the exterior with a soft, damp cloth. Do not immerse the main unit in water or any other liquid.
- Heating Element: If necessary, gently clean the heating element with a soft brush to remove any food residue.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance not plugged in. Power outlet not working. | Ensure the power cord is securely plugged into a working outlet. Check the circuit breaker. |
| Food is not cooked evenly. | Basket overloaded. Food not shaken/flipped. | Do not overload the basket. Shake or flip food halfway through cooking. |
| White smoke coming from appliance. | Grease residue from previous use. Excess oil on food. | Clean the cooking basket and interior thoroughly. Reduce the amount of oil used. |
| Food is not crispy. | Temperature too low or cooking time too short. Too much moisture in food. | Increase temperature or cooking time. Pat food dry before cooking. |
7. Specifications
- Model Name: Digital 12L Air Fryer
- Model Number: AF12L-DS
- Capacity: 12 Liters (approximately 6 Quarts)
- Material: Stainless Steel (body), Plastic (components), Non-stick coating (basket)
- Product Dimensions: 11"D x 12"W x 14"H
- Item Weight: 8.5 Pounds
- Wattage: 2400 Watts
- Voltage: 110 Volts
- Control Method: Touch Screen Control, Digital Touch Panel, LED Display
- Temperature Range: 100°F - 400°F
- Special Feature: 10 Pre-programmed Presets
- Dishwasher Safe: Yes (removable parts)
8. Warranty and Support
For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
