1. Important Safety Instructions
Please read and understand all safety instructions before using this appliance to prevent injury or damage.
- Always unplug the air purifier before moving, cleaning, or performing any maintenance.
- Do not operate the appliance with a damaged cord or plug. If the cord or plug is damaged, contact customer support.
- Keep the air purifier away from water or other liquids. Do not use in wet environments.
- Ensure proper ventilation around the unit. Do not block air inlets or outlets.
- This appliance is for indoor use only.
- Keep out of reach of children and pets.
- Only use original Jafända replacement filters for optimal performance and to maintain warranty.
2. Product Overview
The Jafända JF068 Portable HEPA Air Purifier is designed to improve air quality in small to medium-sized spaces. It features a 3-in-1 filtration system, multiple fan speeds, ambient lighting, and an aromatherapy function.
Key Components and Features:
- 3-in-1 Composite Filter: Includes a pre-filter, True HEPA filter, and activated carbon filter.
- Portable Design: Compact size (6.22x6.22x9.49 inches) and lightweight (2.43lb) with a built-in silicone handle.
- Touch Controls: Intuitive control panel for easy operation.
- Multiple Fan Speeds: Three regular speeds plus a dedicated 20dB Quiet Sleep Mode.
- 7-Color Ambient Light: Customizable lighting options, including a cycling mode and off mode.
- Timer Function: Set for 4, 8, or 12 hours.
- Aromatherapy Function: Integrated compartment for essential oils (oils not included).
- Child Lock: Disables the control panel to prevent accidental changes.
- Filter Replacement Indicator: Alerts when the filter needs changing.
Figure 2.1: The Jafända JF068 Portable HEPA Air Purifier with its top control panel and portable handle.

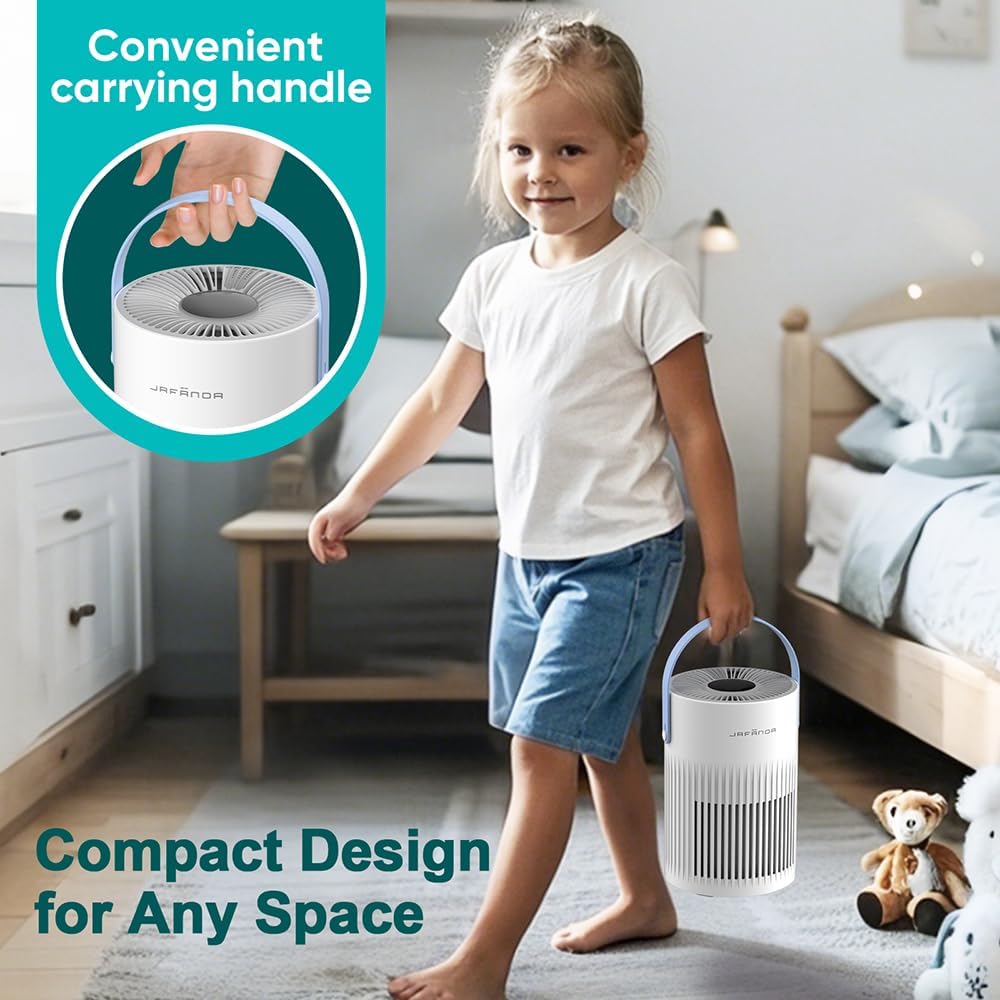

Figure 2.2: The compact design of the Jafända JF068, highlighting its portable handle for easy transport.
3. Setup
Follow these steps to prepare your Jafända JF068 Air Purifier for first use:
- Unpack the Unit: Carefully remove the air purifier from its packaging.
- Remove Filter Packaging: Turn the unit upside down. Twist the base cover counter-clockwise to unlock and remove it. Take out the 3-in-1 composite filter and remove all plastic packaging.
- Install the Filter: Place the unwrapped filter back into the unit with the 'TOP' side facing upwards. Align the tabs on the base cover with the slots on the unit and twist clockwise to secure.
- Attach Handle: Insert the silicone handle into the designated slots on the sides of the unit until it snaps securely into place.
- Connect Power: Plug the power adapter into the port on the back of the air purifier, then plug the adapter into a standard electrical outlet.
Figure 3.1: Illustration of how to correctly install the 3-in-1 composite filter into the Jafända JF068 unit.
Figure 3.2: Diagram showing the layers of the 3-stage filtration system: pre-filter, True HEPA, and activated carbon filter.
Video 3.1: A visual guide demonstrating the unboxing and initial setup of the Jafända JF068 Air Purifier, including filter installation and handle attachment.
4. Operating Instructions
The Jafända JF068 features a user-friendly touch control panel on its top surface.
Figure 4.1: Close-up view of the Jafända JF068's touch control panel, showing icons for power, fan speed, light, timer, filter reset, and child lock.
4.1 Power On/Off
- Press the Power Button () to turn the unit on or off.
4.2 Adjusting Fan Speed
- Press the Fan Speed Button () repeatedly to cycle through three regular fan speeds (Low, Medium, High) and a Sleep Mode.
- In Sleep Mode, the fan operates at its lowest speed (20dB) for quiet operation, and the ambient light can be turned off.
Figure 4.2: The air purifier operating in its ultra-quiet Sleep Mode, ideal for bedrooms and undisturbed environments.
Video 4.1: Demonstration of the Jafända JF068's quiet operation, particularly in sleep mode, suitable for nighttime use.
4.3 Ambient Light Control
- Press the Light Button () to activate the 7-color cycling ambient lights.
- Press again to lock the current color.
- Press a third time to turn the ambient light off completely.
Figure 4.3: The Jafända JF068 displaying its 7-color cycling ambient lights, which can be customized or turned off.
4.4 Timer Setting
- Press the Timer Button () to set the operating time for 4, 8, or 12 hours. The unit will automatically turn off after the set time.
4.5 Child Lock Function
- To activate the Child Lock (), press and hold the Child Lock button for 3 seconds until you hear a beep. The control panel will be disabled.
- To deactivate, press and hold the Child Lock button again for 3 seconds.
4.6 Aromatherapy Function
- Locate the small aromatherapy compartment on the top surface of the unit.
- Open the compartment and add a few drops of your preferred essential oil (not included) onto the aromatherapy pad.
- Close the compartment. The fan will diffuse the scent into the air along with purified air.
Figure 4.4: The aromatherapy compartment on the Jafända JF068, allowing users to add essential oils for a personalized scent.
5. Maintenance
5.1 Filter Replacement
The air purifier is equipped with a filter replacement indicator. When the indicator turns red, it is time to replace the composite filter.
- It is recommended to replace the filter every 3-6 months, or more frequently in environments with high odors or smoke.
- To replace, unplug the unit, twist off the base cover, remove the old filter, insert a new Jafända JF068 Filter (search for "Jafända JF068 Filter"), and secure the base cover.
- After replacing the filter, press and hold the Filter Reset Button () for 3 seconds until the indicator light turns off.
5.2 Cleaning the Unit
- Wipe the exterior of the air purifier with a soft, dry cloth.
- Do not use abrasive cleaners or solvents.
- The pre-filter layer of the composite filter can be gently cleaned with a vacuum cleaner to remove large dust particles, but the entire filter should still be replaced as recommended.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | Power cord not properly connected. | Ensure the power cord is securely plugged into the unit and the wall outlet. |
| Reduced airflow or purification efficiency. | Filter is dirty or clogged. | Check the filter replacement indicator. Replace the filter if necessary. |
| Unusual noise during operation. | Obstruction in the fan or unit. | Unplug the unit and check for any foreign objects. Ensure the filter is installed correctly. |
| Ambient light not working. | Light function is turned off. | Press the Light Button to cycle through light modes or turn it on. |
| Control panel unresponsive. | Child Lock is activated. | Deactivate the Child Lock by pressing and holding the button for 3 seconds. |
7. Specifications
- Model: JF068
- Brand: Jafända
- Product Dimensions: 6.22"D x 6.22"W x 9.49"H
- Weight: 2.43 lbs
- CADR: 42 CFM
- Coverage Area: Up to 650 ft² (refreshes air once per hour in 325ft² rooms, 5 times per hour in 65 ft² rooms)
- Noise Level: 20dB (Sleep Mode)
- Filter Type: 3-in-1 Composite Filter (Pre-filter, True HEPA, Activated Carbon)
- Timer Settings: 4H, 8H, 12H
- Light Features: 7-Color Ambient Light, Light On/Off
- Additional Features: Aromatherapy Function, Child Lock, Filter Replacement Indicator
- Certifications: CARB Certified, CA65, CE Certified, EPA Certified, ETL Certified, Energy Star Certified, FCC Certified
8. Warranty and Support
For warranty information or technical support, please refer to the official Jafända website or contact their customer service directly. Keep your purchase receipt for any warranty claims.
For replacement filters, please search for "Jafända JF068 Filter" to ensure compatibility and optimal performance.
