Introduction

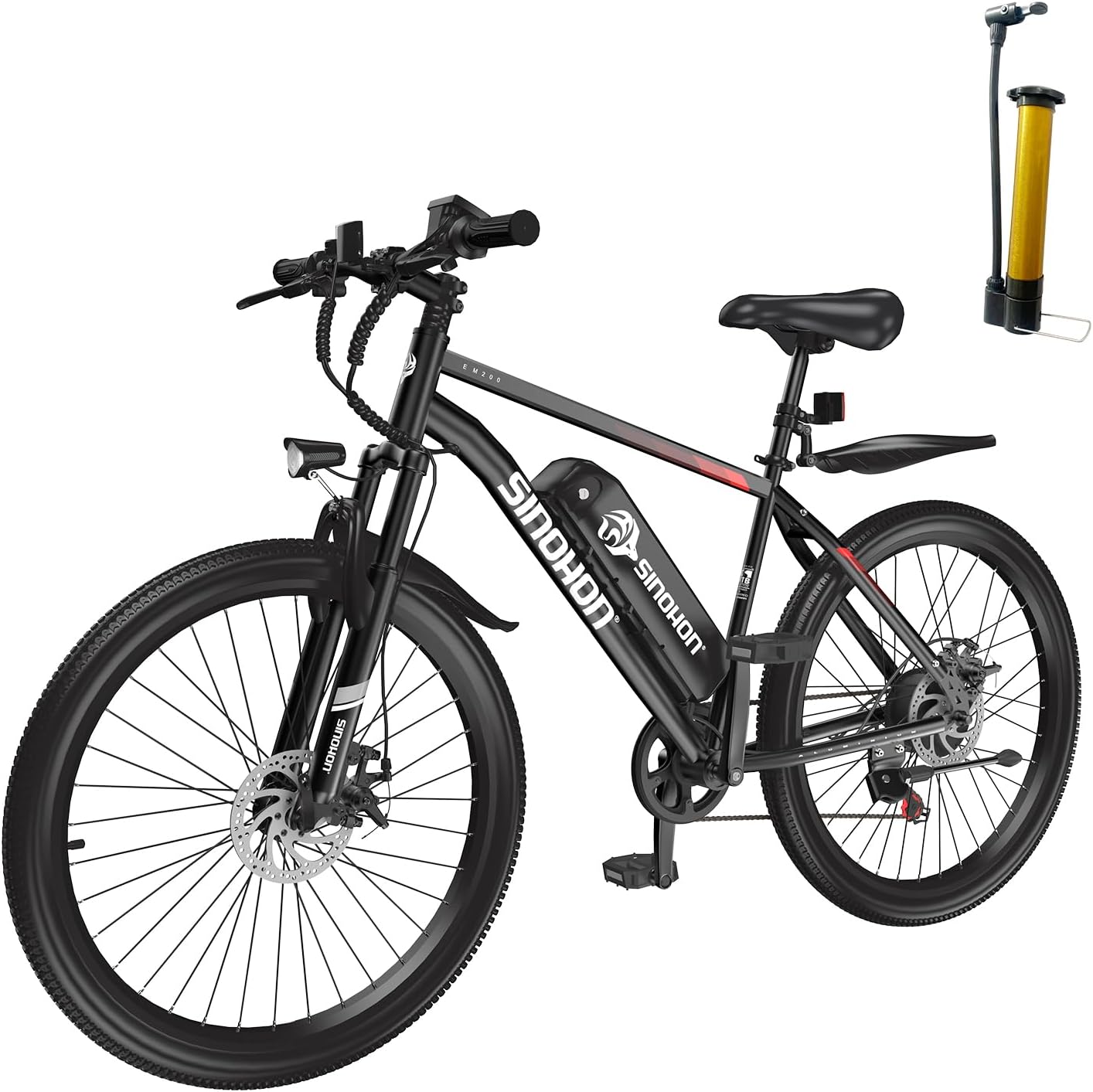

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your SINOHON EM200 26-inch Electric Bike. Please read this manual thoroughly before your first ride and retain it for future reference.
Safety Guidelines
Always prioritize safety when operating your electric bike. Adhere to local traffic laws and wear appropriate safety gear, including a helmet. Regular inspections and maintenance are crucial for safe operation.
- Always wear a helmet and other protective gear.
- Familiarize yourself with local e-bike regulations.
- Perform a pre-ride check before each use.
- Do not ride under the influence of alcohol or drugs.
- Ensure proper lighting for night riding.
- Do not exceed the maximum weight recommendation of 250 pounds.
Package Contents
Upon unpacking, verify that all components are present and undamaged.
- SINOHON EM200 Electric Bike (main frame, wheels, handlebars, seat, pedals)
- Removable 36V/10.4Ah Battery
- Battery Charger
- User Manual
- Basic Assembly Tools (may vary)
Setup and Assembly
The SINOHON EM200 electric bike requires some assembly. It is recommended to have basic tools available. Assembly typically takes approximately 45 minutes.
Initial Battery Charging
- Locate the 36V/10.4Ah removable battery.
- Connect the included original charger to the battery and a power outlet.
- Allow 4-6 hours for a full charge. The battery may arrive partially charged.
- Always use the original charger to ensure battery longevity and safety.
Operating Instructions
Powering On and Display
The EM200 features an LED large screen display that provides real-time information. This display is designed to be slightly waterproof.
Riding Modes
The EM200 offers four distinct riding modes to suit various preferences and terrains:
- Pure Electric Mode: The motor provides full power without pedal assistance. The bike can reach a top speed of 20 mph in this mode.
- Pedal Assist Mode: The motor provides assistance as you pedal, amplifying your effort.
- Manual Riding Mode: The bike operates as a traditional bicycle, with no motor assistance.
- Cruise Control Mode: Maintains a set speed without continuous throttle input.
Motor and Performance
The EM200 is equipped with a 500W brushless hub motor, providing power for various terrains. It can handle inclines up to 20% and offers a range of over 37 miles on a full charge. The bike features a 7-speed gear system for adaptable riding.
Braking System
The bike is fitted with dual mechanical disc brakes on both the front and rear wheels for reliable stopping power.
Suspension and Tires
A front suspension fork provides a smoother ride by absorbing shocks. The 26"x1.95" tires are designed to be puncture-resistant, suitable for various road conditions including beach roads, mud roads, and snow roads.
Lighting
The EM200 includes a powerful front light and integrated tail and brake lights to ensure visibility during day and night riding.
Maintenance
Battery Care
- Always use the original charger provided with the bike.
- Avoid exposing the battery to heavy rain or submerging it in water, despite its IPX5 waterproof rating for light rain.
- Store the battery in a cool, dry place when not in use.
Tire Maintenance
- Regularly check tire pressure to ensure optimal performance and safety.
- Inspect tires for wear and tear, especially the rubber, and replace as needed.
General Inspection
- Periodically check all bolts and fasteners for tightness.
- Ensure the brakes are functioning correctly.
- Inspect the plastic rear fender for any damage or looseness and tighten if necessary.
- Keep the bike clean and free of excessive dirt and debris.
Troubleshooting
This section addresses common issues you might encounter. For problems not listed here, or if solutions do not resolve the issue, please contact customer support.
Display Not Turning On
- Ensure the battery is properly seated and locked.
- Check if the battery has sufficient charge.
- Verify all cable connections to the display are secure.
- If the issue persists, contact SINOHON customer support for assistance.
Reduced Range or Power
- Check battery charge level.
- Ensure tires are properly inflated.
- Riding habits and load can affect range; consider pedal assist for longer distances.
Specifications
| Feature | Detail |
|---|---|
| Bike Type | Electric Bike |
| Model Name | EM200 |
| Brand | SINOHON |
| Motor | 500W Brushless Hub Motor |
| Battery | 36V/10.4Ah (375Wh), Removable, UL2849 Certified |
| Charging Time | 4-6 hours |
| Top Speed | 20 MPH |
| Max Range | 37+ Miles (varies by riding habits/load) |
| Number of Speeds | 7 |
| Wheel Size | 26 Inches |
| Tire Size | 26"x1.95" Puncture-Resistant |
| Frame Material | Carbon Steel |
| Suspension Type | Front |
| Brake Style | Dual Disc Brake |
| Item Weight | 52.9 Pounds |
| Maximum Weight Recommendation | 250 Pounds |
| Minimum User Height | 5.4 Feet |
| Assembly Required | Yes |
| Waterproof Rating | IPX5 (for battery) |
Warranty Information
The SINOHON EM200 Electric Bike comes with a one-year warranty from the date of purchase. Specific main components may have a 6-12 month warranty. Please refer to your purchase documentation for full warranty terms and conditions.
Customer Support
For any questions, assistance, or warranty claims regarding your SINOHON e-bike, our dedicated customer service team is available year-round. We aim to respond to all inquiries within 24 business hours.
Please visit the official SINOHON website or contact your retailer for support contact details.
