1. Introduction and Overview
Thank you for choosing the AMZCHEF 30-inch Under Cabinet Range Hood. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and keep it for future reference.
This range hood features a powerful dual-fan system with 1050 CFM ventilation, designed to efficiently remove smoke, grease, and odors from your kitchen. It offers versatile control options including touch, remote, and gesture control, along with energy-efficient LED lighting and dishwasher-safe baffle filters.
Image 1.1: AMZCHEF 30-inch Under Cabinet Range Hood in operation.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.
- Ensure the range hood is properly grounded.
- Do not operate the range hood with a damaged cord or plug.
- Maintain proper clearance between the cooking surface and the bottom of the range hood as specified by local building codes and the appliance manufacturer.
- Clean grease filters regularly to prevent grease buildup, which can be a fire hazard.
- Never leave cooking unattended, especially when using high heat.
- Disconnect power before servicing or cleaning the unit.
3. Package Contents
Verify that all components are present before beginning installation:
- AMZCHEF 30-inch Under Cabinet Range Hood Unit
- Stainless Steel Baffle Filters (2 included)
- Remote Control
- Mounting Hardware (screws, anchors, etc.)
- Duct Adapters (for various outlet configurations)
- Instruction Manual
4. Installation and Setup
This range hood is designed for under-cabinet mounting and ducted/vented operation. Professional installation is recommended.
4.1 Dimensions and Clearance
The product dimensions are approximately 29.8 inches (W) x 19.7 inches (D) x 5.98 inches (H). Ensure your cabinet space accommodates these measurements and that there is adequate clearance above your cooking surface as per local regulations.
Image 4.1: Range Hood Dimensions Diagram.
4.2 Ducting Options
The range hood offers a versatile three-outlet design to fit most kitchen vent openings. It supports:
- Top Round Vent (5.9 inch diameter)
- Horizontal Rectangle Vent (10x3.27 inch)
- Top Rectangle Vent (10x3.27 inch)
Adapters are provided to facilitate connection to your existing ductwork. The air outlet diameter is 6 inches.
Image 4.2: Three Outlet Design Options.
5. Operation
The AMZCHEF range hood provides multiple convenient ways to control its functions.
5.1 Control Methods
You can operate the range hood using the integrated touch controls on the LCD screen, the included remote control, or through gesture control.
Image 5.1: Gesture, Touch, and Remote Control Options.
5.2 Fan Speed Settings
The range hood features 3 fan speed levels. Adjust the speed according to your cooking needs, from low for light simmering to high for heavy frying or grilling.
5.3 LED Lighting
Two 1.5W LED lamps provide bright illumination for your cooking area. These lights are energy-efficient and adjustable.
5.4 Timer Function
Utilize the delayed shut-off function to allow the hood to continue ventilating for a set period after cooking, ensuring all residual smoke and odors are cleared.
5.5 Dual Fan System
The innovative dual-motor design provides powerful and efficient ventilation, capturing smoke and grease from both left and right cooking zones simultaneously.

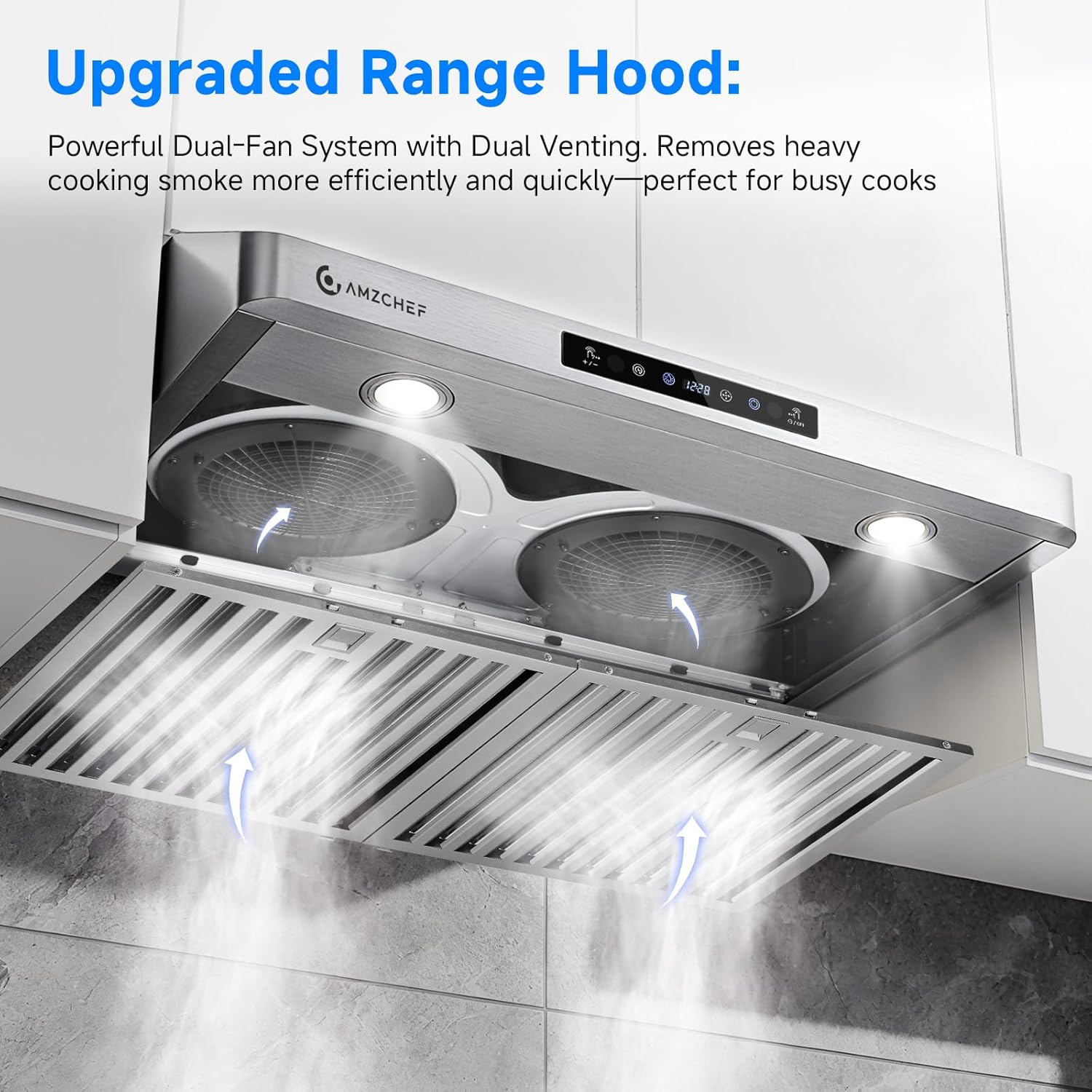

Image 5.2: View of the Dual Fan System.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your range hood.
6.1 Cleaning Baffle Filters
The stainless steel baffle filters are designed for easy removal and are dishwasher-safe. Clean them regularly (e.g., monthly, depending on cooking frequency) to prevent grease buildup and maintain suction efficiency.
- Ensure the range hood is turned off and disconnected from power.
- Locate the filter release latches and carefully remove the filters.
- Place the filters in a dishwasher or wash them by hand with warm, soapy water.
- Allow filters to dry completely before re-installing.
Image 6.1: Baffle Filter Removal and Cleaning.
6.2 Exterior Cleaning
Wipe the stainless steel exterior with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that could scratch the surface.
7. Troubleshooting
If you encounter issues with your range hood, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not operate | No power; Motor malfunction; Control panel issue | Check power supply and circuit breaker. Ensure unit is plugged in. Contact customer support if problem persists. |
| Lights do not work | LED bulb failure; Wiring issue | Check connections. If bulbs are replaceable, replace them. Contact customer support. |
| Low suction power | Clogged filters; Obstruction in ductwork; Incorrect installation | Clean or replace filters. Check ductwork for blockages. Verify proper installation. |
| Excessive noise | Loose parts; Motor issue; Improper ducting | Check for loose screws or components. Ensure ductwork is correctly installed and sealed. Contact customer support. |
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact AMZCHEF customer support.
8. Specifications
Detailed technical specifications for the AMZCHEF 30-inch Under Cabinet Range Hood:
| Feature | Specification |
|---|---|
| Model Number | UL-LF0376C1-ST |
| Air Flow Capacity | 1050 Cubic Feet Per Minute (CFM) |
| Material | Stainless Steel |
| Noise Level | 55 Decibels |
| Mounting Type | Under Cabinet Mount |
| Controls Type | Touch, Remote, Gesture |
| Number of Speeds | 3 |
| Light Source Type | LED (2x1.5W) |
| Filter Type | Baffle (Dishwasher-safe) |
| Ventilation Type | Ducted/Vented |
| Product Dimensions (D x W x H) | 19.7 x 29.8 x 5.98 inches |
| Item Weight | 38.1 pounds |
9. Product Video
Watch this video for a visual guide on the AMZCHEF 30-inch Under Cabinet Range Hood's features and operation.
Video 9.1: Overview of AMZCHEF Range Hood Features.
10. Warranty and Support
For warranty information, technical support, or any questions regarding your AMZCHEF range hood, please contact AMZCHEF customer service. Refer to the contact information provided with your purchase documentation or visit the official AMZCHEF website.
