Introduction
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your Aoxun 7x5 FT Outdoor Storage Shed. Please read this manual thoroughly before beginning assembly or use to ensure safe and proper installation and long-term performance of your shed. This shed is designed to provide secure and organized storage for tools, garden equipment, garbage cans, bikes, and mowers.
Image: The Aoxun 7x5 FT Outdoor Storage Shed, brown in color, with its double doors open, revealing a bicycle and storage shelves inside. The shed is situated on a paved area next to a brick wall, with a wheelbarrow nearby.
Safety Information
Your safety and the safety of others are very important. Please read and follow all safety instructions carefully. Failure to do so may result in serious injury or property damage.
- Site Preparation: Ensure the chosen site for the shed is level and clear of debris. A solid, level foundation is crucial for stability and proper door alignment.
- Assembly Safety:
- Wear appropriate personal protective equipment (PPE), including gloves to protect against sharp edges of metal panels and safety glasses.
- Assembly is recommended for 2-3 people. Do not attempt to assemble alone.
- Use a sturdy ladder or step stool when working on higher sections.
- Keep children and pets away from the assembly area.
- Do not assemble in strong winds or adverse weather conditions.
- Anchoring: The shed must be securely anchored to the ground to prevent wind damage. Consult local building codes for specific requirements.
- Ventilation: The shed is equipped with air vents. Ensure these are not blocked to allow for proper airflow and reduce condensation.
- Storage: Do not store flammable liquids, chemicals, or other hazardous materials inside the shed unless properly contained and ventilated.
- Maintenance: Regularly inspect the shed for any signs of damage, loose fasteners, or rust. Address issues promptly to maintain structural integrity.
Parts List
Before beginning assembly, verify that all parts are present and undamaged. Refer to the included packing list for a detailed inventory. Components are typically labeled for easy identification.
- Galvanized Steel Panels (walls, roof)
- Galvanized Steel Frame Components (base, uprights, roof supports)
- Double Doors with Lockable Latch
- Air Vents
- Stainless Steel Hinges
- Plastic Corner Protectors
- Fasteners (screws, bolts, washers, nuts)
- Assembly Gloves (typically included)
- Instruction Manual
Setup and Assembly
Assembly of the Aoxun storage shed requires careful attention to detail. It is recommended to have 2-3 people for assembly, which typically takes 3-5 hours. An online video guide is available to supplement the illustrated step-by-step manual.
Tools Required:
- Power Drill with Philips #2 driver bit
- Drill Bits (for potential minor adjustments)
- Adjustable Wrench or Socket Set
- Ladder or Step Stool
- Measuring Tape
- Level
- Work Gloves
- Optional: Caulk gun and silicone sealant, foam insulating tape for doors.
Assembly Steps:
- Site Preparation: Select a flat, level area for your shed. A solid foundation, such as a concrete slab or a treated wood base, is highly recommended to ensure stability and prevent moisture issues. The shed includes a thickened galvanized steel base designed to elevate the structure and adapt to various terrains.
- Unpacking and Sorting: Carefully unpack all components. Identify and sort parts according to the numbered labels and the provided parts list. Check for any shipping damage.
- Base Assembly: Assemble the galvanized steel base frame according to the instructions. Ensure it is perfectly square and level before proceeding.
- Wall Panel Installation: Attach the wall panels to the base frame. Panels feature pre-drilled holes for streamlined assembly. Ensure panels are correctly oriented as per the manual.
- Door Frame and Door Installation: Assemble the door frame and attach the double doors using the stainless steel hinges. Install the security door lock latch.
- Roof Assembly: Install the roof panels and supports. Pay close attention to the placement of the air vents to ensure proper ventilation. The sloped roof design aids in water runoff.
- Final Checks and Anchoring: Once fully assembled, ensure all fasteners are tightened. Securely anchor the shed to the ground using appropriate anchoring hardware (not always included, check local codes).
Image: A diagram illustrating the "High-quality and Solid Base" of the Aoxun storage shed, highlighting its elevating design to prevent direct ground contact and adapt to various terrains like lawn or sand, enhancing stability.

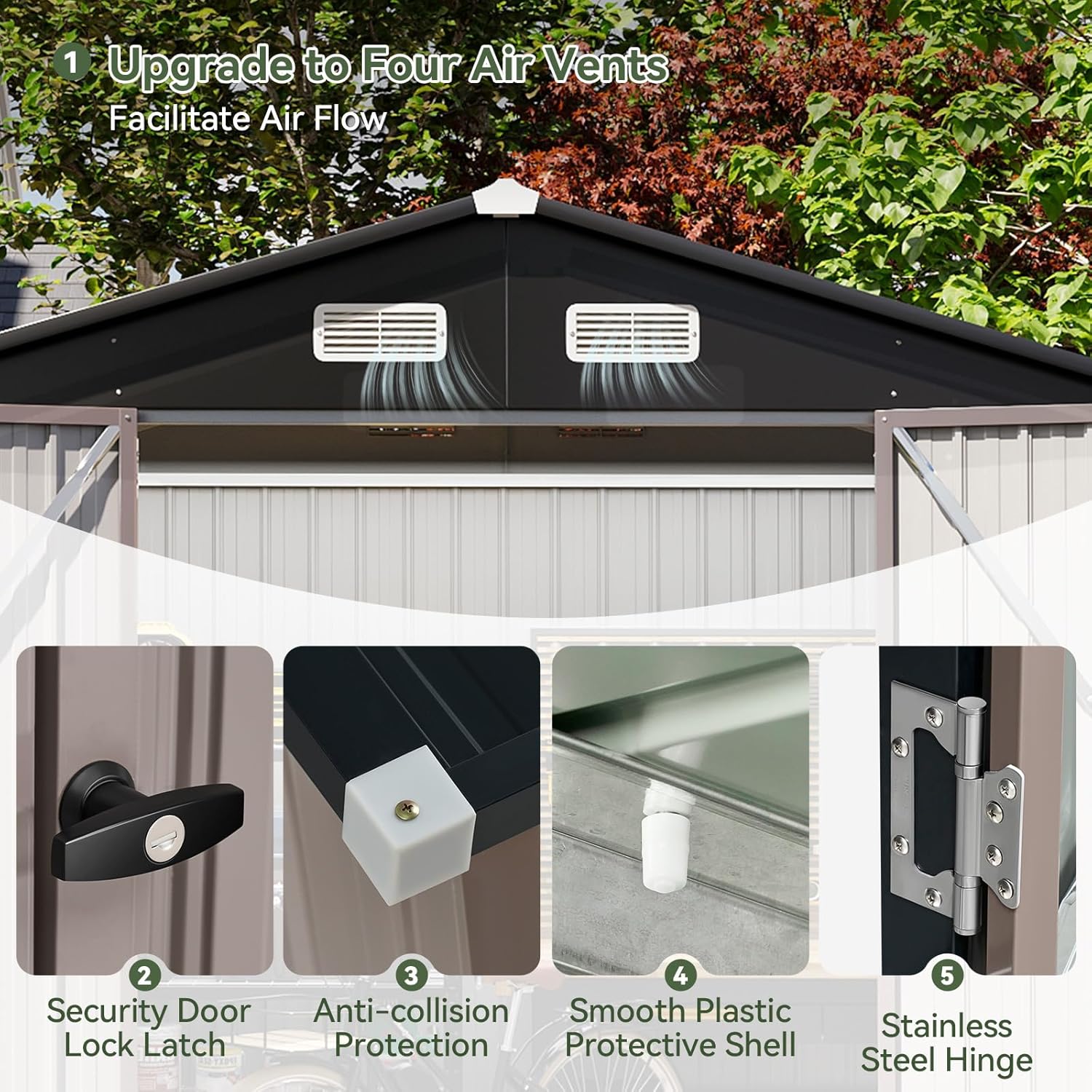

Image: A detailed view of key shed features, including four air vents for improved airflow, a security door lock latch, anti-collision plastic corner protectors, smooth plastic protective shells, and durable stainless steel hinges.
Operating Instructions
Using your Aoxun storage shed is straightforward, designed for convenience and security.
- Opening/Closing Doors: The shed features double doors for wide access. Use the handles to open and close the doors smoothly.
- Locking Mechanism: The doors are equipped with a pad-lockable hasp. For enhanced security, use a padlock (not included) to secure your stored items.
- Ventilation: The integrated top vents facilitate airflow, reducing condensation inside the shed. Ensure these vents remain unobstructed.
- Storage Capacity: The 7x5 FT dimensions provide ample space for various items. Organize your belongings efficiently to maximize storage.

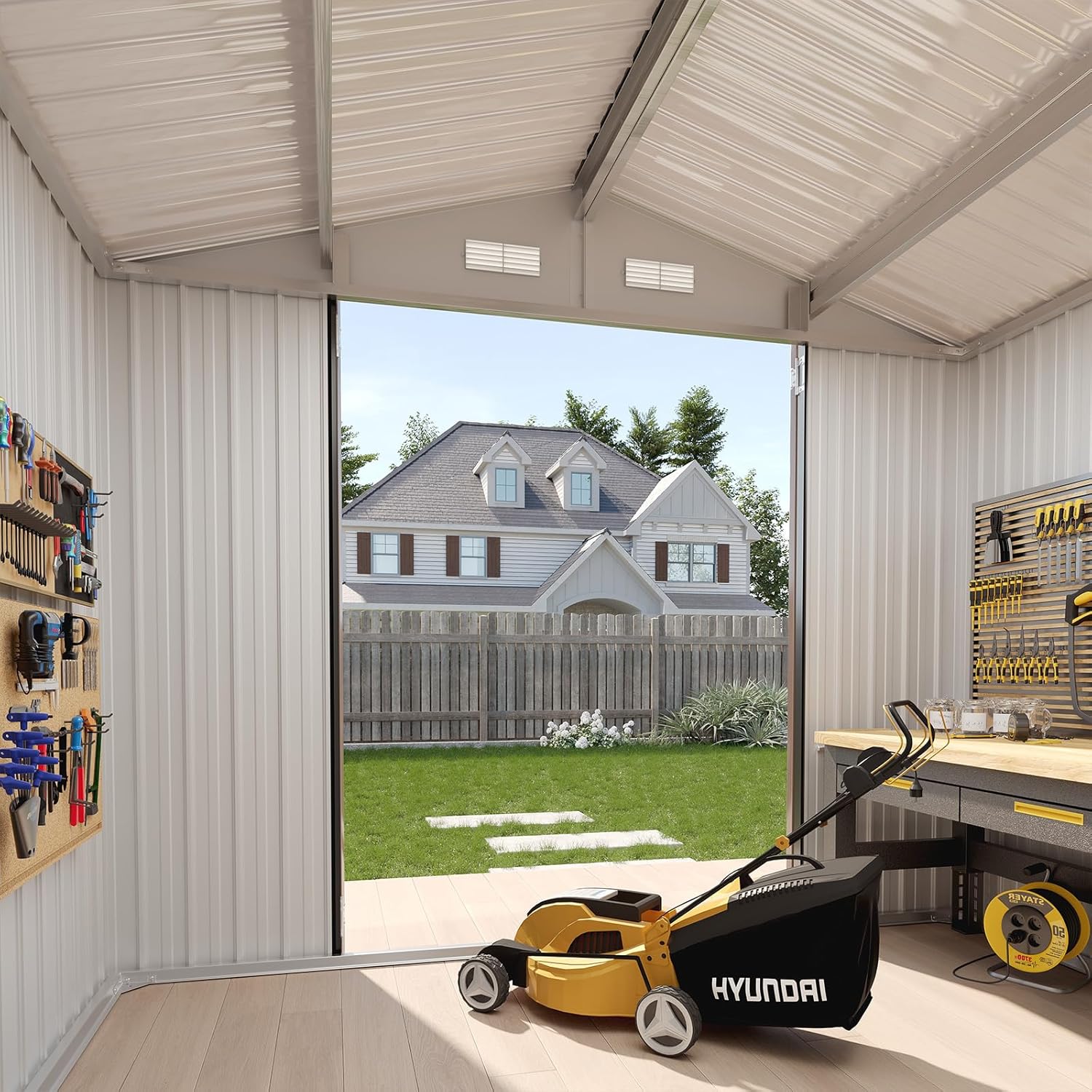

Image: An interior view of the Aoxun storage shed, showcasing its spaciousness with a lawnmower positioned inside. The shed's walls are light-colored, and the roof features visible air vents.
Maintenance
Regular maintenance will extend the life of your Aoxun storage shed and ensure its continued functionality.
- Cleaning: Clean the exterior of the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
- Rust Prevention: The shed features a galvanized steel frame with a powder-coated finish for superior rust resistance. However, inspect for any scratches or chips in the coating and touch up with appropriate rust-inhibiting paint if necessary.
- Drainage: Ensure the area around the shed has proper drainage to prevent water accumulation at the base. The sloped roof design helps with water runoff.
- Fastener Check: Periodically check all screws and bolts to ensure they remain tight. Re-tighten any loose fasteners to maintain structural integrity.
- Door Alignment: If doors become misaligned, check the base level and adjust hinges if possible. Lubricate hinges as needed.
- Ventilation: Keep the air vents clear of obstructions (e.g., leaves, debris) to ensure continuous airflow.
Image: A visual comparison highlighting Aoxun's upgraded coating on its metal panels, contrasting it with the appearance of other metal materials after prolonged use (showing rust) and other wood materials (showing weathering), emphasizing the shed's durability.
Troubleshooting
This section addresses common issues you might encounter with your storage shed.
| Problem | Possible Cause | Solution |
|---|---|---|
| Holes do not align during assembly. | Base not perfectly level or square; minor manufacturing tolerance. | Ensure the base is perfectly level. Apply gentle pressure to align panels. In rare cases, minor drilling may be required, but this should be a last resort. |
| Gaps around doors or panels. | Improper alignment during assembly; natural gaps in design. | Recheck alignment of panels and doors. Consider applying weather sealing tape or silicone sealant around door edges and panel overlaps for improved weather resistance. |
| Water accumulation inside shed. | Poor drainage around shed; unsealed gaps; blocked vents. | Ensure the ground around the shed slopes away for proper drainage. Seal any significant gaps. Ensure air vents are clear. |
| Shed feels unstable. | Not properly anchored; uneven base. | Verify the shed is securely anchored to the ground. Re-check the levelness of the base and adjust if necessary. |
| Minor dents on panels. | Occasional shipping or handling impact. | Minor dents typically do not affect the structural integrity or functionality of the shed. |
Specifications
Key specifications for the Aoxun 7x5 FT Outdoor Storage Shed (Model: G37009BR0705base).
- Brand: Aoxun
- Model Number: G37009BR0705base
- Color: Brown
- Material: Metal (Galvanized Steel with Powder-Coated Finish)
- Product Dimensions (External): 64"D x 88"W x 77"H (approximately 5.33'D x 7.33'W x 6.42'H)
- Item Weight: 66.6 Pounds
- Top Material Type: Metal
- Water Resistance Level: Water Resistant
- Assembly Required: Yes
- Door Width: 48 Inches
- Door Height: 63 Inches
Image: A detailed diagram showing the product dimensions of the Aoxun storage shed, including roof dimensions (L 93" x W 68"), internal dimensions (L 88" x W 63.4"), and door dimensions (L 47" x H 63").
Customer Support
For any questions, concerns, or assistance with your Aoxun storage shed, please contact our responsive customer service team. Refer to your purchase documentation for specific contact details or visit the Aoxun brand store on Amazon.
