1. Introduction
This manual provides essential information for the safe and efficient operation of your MERTTURM Heat-Powered Stove Fan. This fan is designed to circulate warm air generated by your wood stove or fireplace, improving heat distribution throughout your room without requiring electricity or batteries.
Image 1: The MERTTURM Heat-Powered Stove Fan actively circulating warm air from a wood stove.
2. Important Safety Instructions
- Always place the fan on a flat, stable surface on top of your stove.
- Ensure the fan is placed at the rear of the stove top, away from the chimney flue, to avoid direct contact with excessively high temperatures.
- The fan operates within a temperature range of approximately 60°C (140°F) to 345°C (653°F). Exceeding 345°C (653°F) can damage the fan.
- Do not handle the fan directly when it is hot. Always use gloves or wait for it to cool down.
- Keep children and pets away from the fan during operation.
- Never immerse the fan in water or any other liquid.
- If the fan stops working or shows signs of damage, discontinue use immediately.
Image 2: Proper placement of the stove fan on a fireplace, indicating safe operating zones and a warning against exceeding 345°C.
3. Product Overview
Key Features
- Dual Motor Design: Equipped with two motors and ten blades for enhanced airflow (590-650 m³/h).
- Heat-Powered Operation: Generates its own electricity from the stove's heat, requiring no external power.
- Durable Construction: Made from high-quality anodized aluminum for longevity and heat resistance.
- Quiet Operation: Operates at less than 25 dB, ensuring minimal noise disturbance.
- Overheating Protection: Features a bimetal strip that automatically lifts the fan to prevent damage if temperatures exceed 345°C.
Components
The MERTTURM stove fan consists of premium aluminum fan blades, durable silent motors, and a base with integrated overheating protection. Its compact design ensures efficient heat distribution.
Image 3: Detailed view of the MERTTURM Double-head Stove Fan components, including blades, motors, and base with safety features.
4. Setup and Placement
- Unpack the stove fan and ensure all components are intact.
- Place the fan on a smooth, flat surface on the top of your wood stove or fireplace.
- Position the fan towards the back of the stove, ensuring it is not directly in front of the chimney flue or in an area where temperatures exceed 345°C (653°F).
- For optimal performance, place the fan where it can draw cooler air from the back and push warm air forward into the room.
5. Operating Instructions
The MERTTURM stove fan operates automatically based on the heat generated by your stove. No manual intervention or external power source is required.
- Starting Temperature: The fan begins to operate when the stove surface temperature reaches approximately 60°C (140°F).
- Optimal Operation: The fan's speed increases as the stove temperature rises, reaching maximum efficiency between 60°C and 345°C (140°F - 653°F).
- Overheating Protection: If the temperature exceeds 345°C (653°F), the fan's bimetal strip will automatically lift the base to protect internal components.
- Stopping Operation: As the stove cools down, the fan's speed will decrease and eventually stop when the temperature falls below the starting threshold.

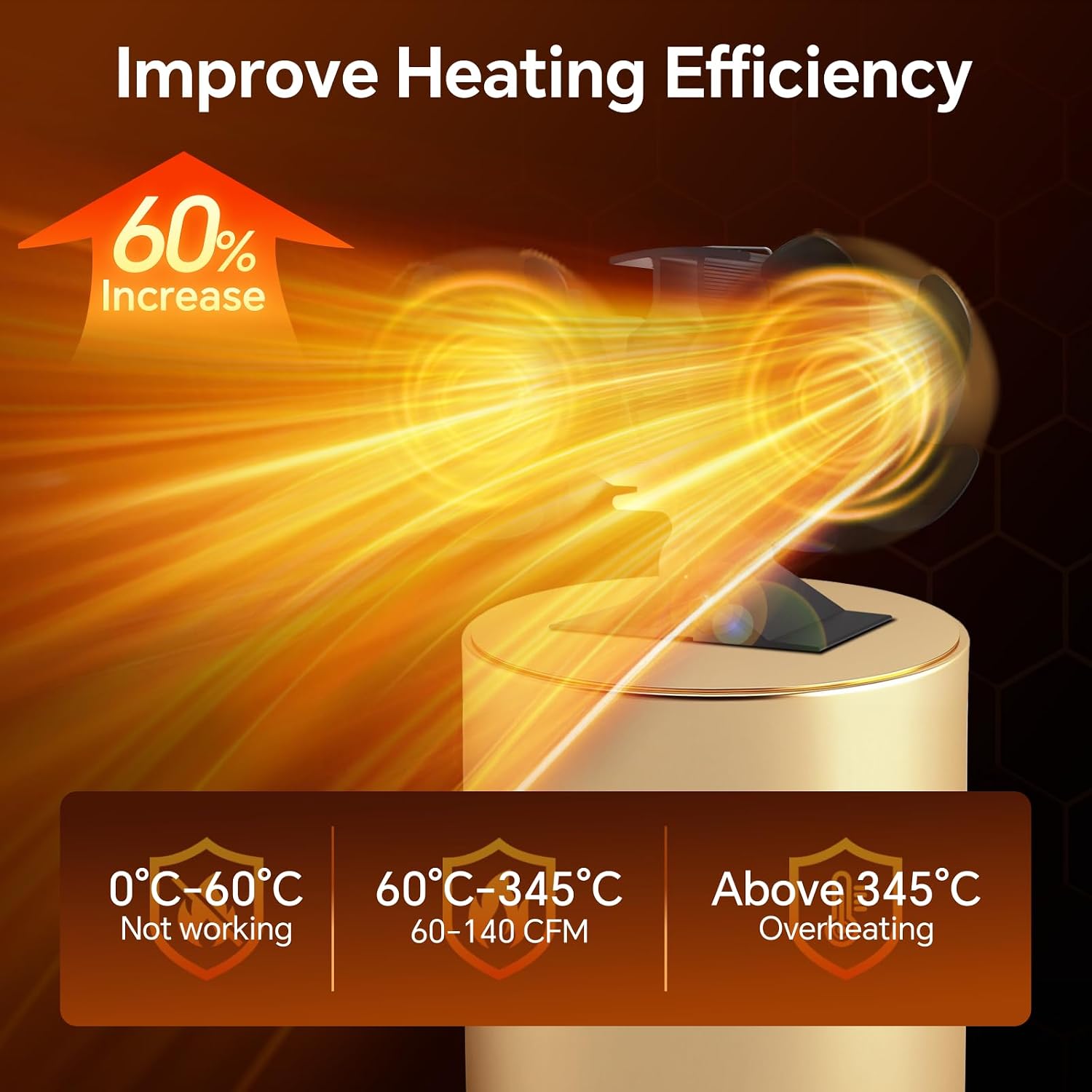

Image 4: Temperature ranges for the stove fan's operation, showing when it starts, operates optimally, and when overheating protection activates.
Image 5: Visual representation of improved warm air circulation with the MERTTURM stove fan compared to without it.
Image 6: The stove fan operates quietly, ensuring a peaceful environment while distributing heat.
6. Maintenance
- Cleaning: Periodically wipe the fan blades and base with a soft, damp cloth once the fan has completely cooled down. Do not use abrasive cleaners.
- Inspection: Regularly check for any signs of damage to the blades or base. Ensure the fan spins freely.
- Storage: When not in use for extended periods, store the fan in a cool, dry place.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not spin | Stove temperature is too low. | Ensure stove surface temperature is above 60°C (140°F). |
| Fan spins slowly | Stove temperature is not optimal. | Increase stove temperature or reposition the fan to a hotter spot on the stove top (within safe limits). |
| Fan is noisy | Fan blades are dirty or damaged; fan is not level. | Clean blades. Check for damage. Ensure fan is on a flat, stable surface. |
| Fan stops unexpectedly | Stove temperature exceeded 345°C (653°F) and overheating protection activated. | Allow stove to cool down. Reposition fan to a slightly cooler area if possible. |
8. Product Specifications
| Specification | Detail |
|---|---|
| Brand | MERTTURM |
| Model | B0FM2NDSBZ |
| Material | Anodized Aluminium |
| Number of Blades | 10 |
| Noise Level | Less than 25 Decibels |
| Operating Temperature Range | Approx. 60°C (140°F) to 345°C (653°F) |
| Airflow | 590-650 m³/h |
| Product Dimensions | 23.4D x 13.8W x 10.5H centimetres |
| Item Weight | 650 Grams |
| Power Source | Heat-powered (No batteries or electricity required) |
9. Warranty and Customer Support
For warranty information or customer support inquiries, please refer to the product packaging or contact the MERTTURM customer service directly through your purchase platform. Please have your model number (B0FM2NDSBZ) and purchase details ready when contacting support.
