Nutricook Frost FRS330 2-in-1 Ice Cream and Slushie Maker Instruction Manual

Introduction

Welcome to the Nutricook Frost FRS330 2-in-1 Ice Cream and Slushie Maker. This appliance is designed to create a variety of frozen desserts, including ice cream, slushies, milkshakes, and sorbets, with ease and convenience. Its built-in compressor eliminates the need for pre-freezing, allowing for quick preparation of your favorite treats. Please read this manual thoroughly before first use to ensure safe and optimal operation.

Image: The Nutricook Frost FRS330 Ice Cream and Slushie Maker, a compact appliance for creating frozen desserts.

Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons.

• Read all instructions before operating the appliance.
• Do not immerse the main unit in water or other liquids.
• Supervise children closely when the appliance is in use.
• Unplug from the outlet when not in use and before cleaning.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Use only attachments recommended by the manufacturer.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Avoid contact with moving parts.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always ensure the lid is securely in place before operation.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Product Components

The Nutricook Frost FRS330 includes the following main components:

• Main Unit with Built-in Compressor
• 1.8L Double-Walled Mixing Cylinder
• Mixing Paddle
• Lid for Mixing Cylinder
• Dispensing Handle
• Drip Tray
• Cleaning Brush
• User Manual

Image: An internal view of the Nutricook Frost FRS330, highlighting the built-in compressor that eliminates the need for pre-freezing.

Setup and First Use

1. Unpack: Carefully remove all components from the packaging.
2. Clean: Wash the mixing cylinder, lid, mixing paddle, and drip tray with warm, soapy water. Rinse thoroughly and dry all parts completely. The mixing cylinder is dishwasher safe.
3. Assemble:
   • Place the main unit on a stable, flat, and dry surface.
   • Insert the mixing paddle into the center of the mixing cylinder.
   • Place the mixing cylinder into the main unit, ensuring it is seated correctly.
   • Secure the lid onto the mixing cylinder.
   • Attach the dispensing handle and decorative cover.
   • Position the drip tray under the dispensing spout.
4. Connect Power: Plug the appliance into a grounded electrical outlet.

Operating Instructions

The Nutricook Frost FRS330 offers a simple three-step process for creating frozen treats.

1. Prepare Mixture: Prepare your desired ice cream, slushie, milkshake, or sorbet mixture according to your recipe. Ensure the mixture is chilled for best results.
2. Pour Ingredients: Open the ingredient chute on the lid and carefully pour your prepared mixture into the mixing cylinder. Do not fill above the MAX fill line.
3. Select Mode and Texture:
   • Press the Menu button to cycle through the 5 preset modes: Slushie, Soft Ice Cream, Spiked Slushie, Cold Drink, Milkshake.
   • For ice cream and slushie modes, you can further customize the texture. Use the texture adjustment settings (7 levels available) to achieve your preferred consistency (soft, creamy, thick, or icy).
   • Once your desired mode and texture are selected, press the Start/Stop button to begin the freezing process.
4. Dispense: Once the cycle is complete (typically 15-45 minutes depending on the mode and texture), pull the dispensing handle to serve your frozen treat directly into a cone or bowl.

Image: A visual guide showing the three simple steps: pouring ingredients, selecting the mode, and dispensing the finished product.

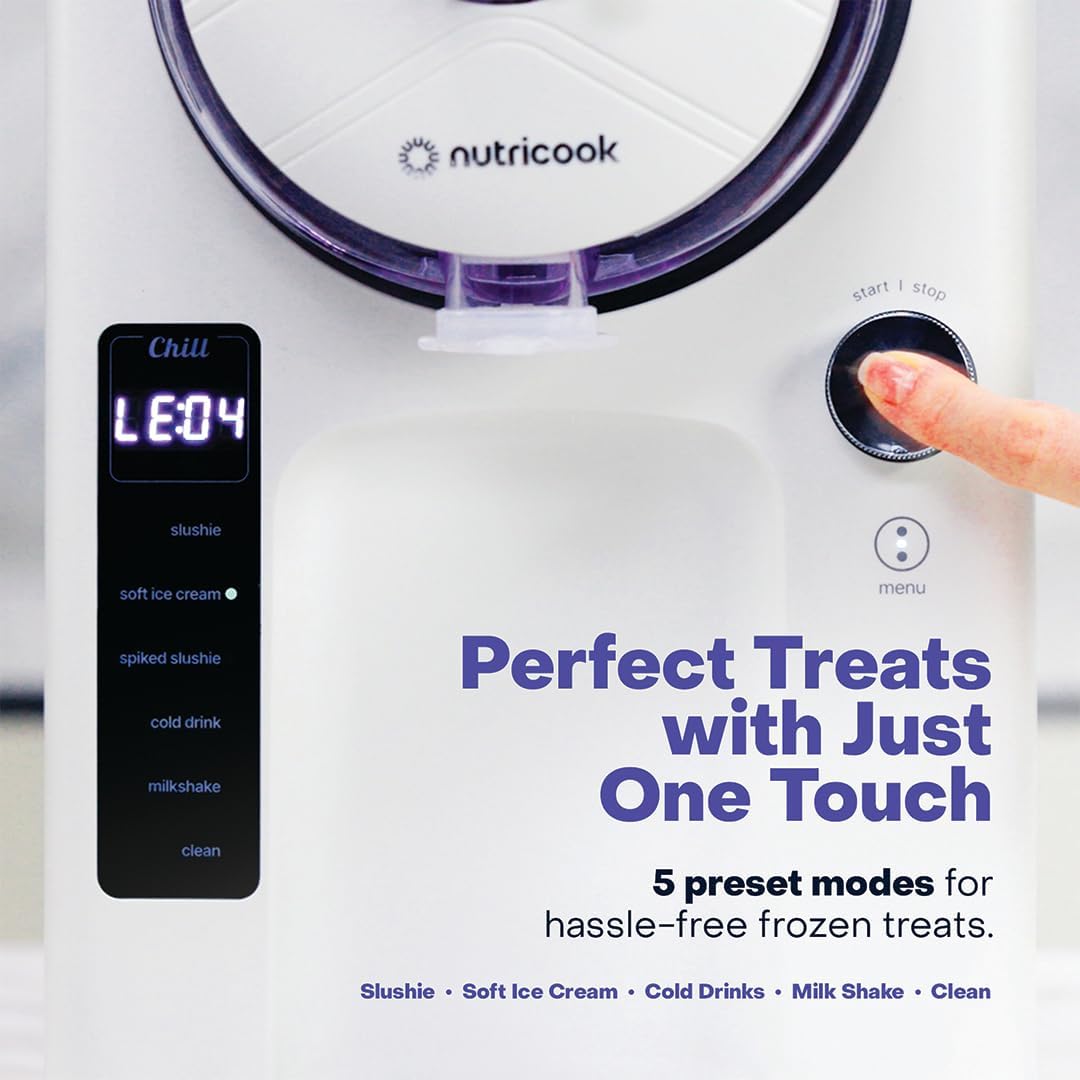

Image: A close-up of the control panel, illustrating the 5 preset modes and the Start/Stop button for easy operation.

Note: The machine features a quiet motor, making it suitable for home use at any time.

Image: People enjoying frozen drinks, demonstrating the quiet operation of the Nutricook Frost FRS330.

Image: The Nutricook Frost FRS330 demonstrating its dual functionality, producing both slushies and soft-serve ice cream.

Cleaning and Maintenance

Regular cleaning ensures the longevity and hygiene of your Nutricook Frost FRS330.

1. Self-Cleaning Function: The appliance features a built-in self-cleaning cycle. After dispensing, add a small amount of water and a drop of mild dish soap to the mixing cylinder, then select the Clean mode. Run the cycle, then discard the water.
2. Disassemble: Unplug the unit. Carefully remove the mixing cylinder, lid, mixing paddle, dispensing handle, and drip tray.
3. Wash: Wash all removable parts (mixing cylinder, lid, mixing paddle, dispensing handle, drip tray) with warm, soapy water using the provided cleaning brush. The mixing cylinder is dishwasher safe.
4. Wipe Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
5. Dry: Ensure all parts are completely dry before reassembling or storing.

Image: The Nutricook Frost FRS330 shown alongside a dishwasher, emphasizing that its barrel is dishwasher safe for effortless cleanup.

Storage

When not in use, store the Nutricook Frost FRS330 in a clean, dry place. Ensure all components are clean and dry before storage. The compact footprint allows it to fit easily on most kitchen counters.

Image: The Nutricook Frost FRS330 displayed on a kitchen counter, highlighting its sleek design and compact footprint suitable for any kitchen.

Troubleshooting Guide

Technical Specifications

Warranty Information

Nutricook products are manufactured to the highest quality standards. For detailed warranty information, please refer to the warranty card included with your product or visit the official Nutricook website. Keep your purchase receipt as proof of purchase for any warranty claims.

Customer Support

If you have any questions, concerns, or require assistance with your Nutricook Frost FRS330, please contact Nutricook customer support.

• Online Support: Visit the official Nutricook website for FAQs and support resources.
• Contact Information: Refer to the contact details provided in your product packaging or on the Nutricook website.
