DazzlingStage ZQ06190

DazzlingStage 60W 9LED RGBW Stage Wall Wash Bar Light Instruction Manual

Model: ZQ06190

1. Introduction

Thank you for choosing the DazzlingStage 60W 9LED RGBW Stage Wall Wash Bar Light. This manual provides essential information for the safe and effective operation of your lighting fixture. Please read it thoroughly before installation and use, and retain it for future reference.

This stage light bar features 9 high-power RGBW LEDs, offering a wide spectrum of colors and dynamic lighting effects suitable for various events and venues.

Multiple DazzlingStage 60W 9LED RGBW Stage Wall Wash Bar Lights displaying various colors.

Image 1.1: Overview of the DazzlingStage 60W 9LED RGBW Stage Wall Wash Bar Lights in various colors.

2. Safety Instructions

  • Electrical Safety: Ensure the power supply voltage matches the specifications of the fixture. Always disconnect power before cleaning, servicing, or moving the unit.
  • Installation: Install the fixture in a well-ventilated area, away from heat sources. Ensure secure mounting to prevent accidental falls.
  • Operation: Do not look directly into the light source when the fixture is operating, as it can cause eye damage. Avoid operating the unit in wet or damp conditions.
  • Maintenance: Refer all servicing to qualified personnel. Do not attempt to repair the unit yourself.
  • Children: Keep the device out of reach of children.

3. Package Contents

Upon unpacking, please verify that all items listed below are included and in good condition:

  • DazzlingStage 60W 9LED RGBW Stage Wall Wash Bar Light (x1 per pack)
  • Power Cord (x1 per pack)
  • Remote Control (x1 per pack)
  • Mounting Bracket (x1 per pack)
  • Knobs (x2 per pack)
  • Black Gaskets (x2 per pack)
  • Instruction Manual (x1 per pack)
Packing list showing the light bar, power cord, remote control, bracket, knobs, gaskets, and instruction manual.

Image 3.1: Contents included in the product package.

4. Product Components

Familiarize yourself with the main components of the light bar:

  • LED Array: 9 RGBW LEDs for color mixing.
  • Control Panel: Features a 4-digit LED display and control buttons (MENU, UP, DOWN, ENTER) for mode selection and parameter adjustment.
  • DMX IN/OUT Ports: For connecting to a DMX controller or linking multiple units.
  • Power IN/OUT: For power connection and daisy-chaining power to other units.
  • Mounting Bracket: Adjustable bracket for floor standing or truss mounting.
  • Heat Sink: Integrated cooling system to maintain optimal operating temperature.
Detailed view of the DazzlingStage light bar showing dimensions, DMX IN/OUT ports, 4-digit display, console connection, and heat sink.

Image 4.1: Key components and dimensions of the light bar.

5. Setup and Installation

The DazzlingStage Wall Wash Bar Light offers flexible installation options:

5.1 Mounting the Bracket

Attach the included mounting bracket to the light bar using the provided knobs and gaskets. Ensure the bracket is securely fastened.

5.2 Placement Options

  • Floor Standing: The bracket allows the light bar to stand upright on a flat surface. Adjust the angle as needed.
  • Truss Mounting: Use appropriate clamps (not included) to attach the bracket to a lighting truss. Ensure the truss and clamps can support the weight of the fixture.

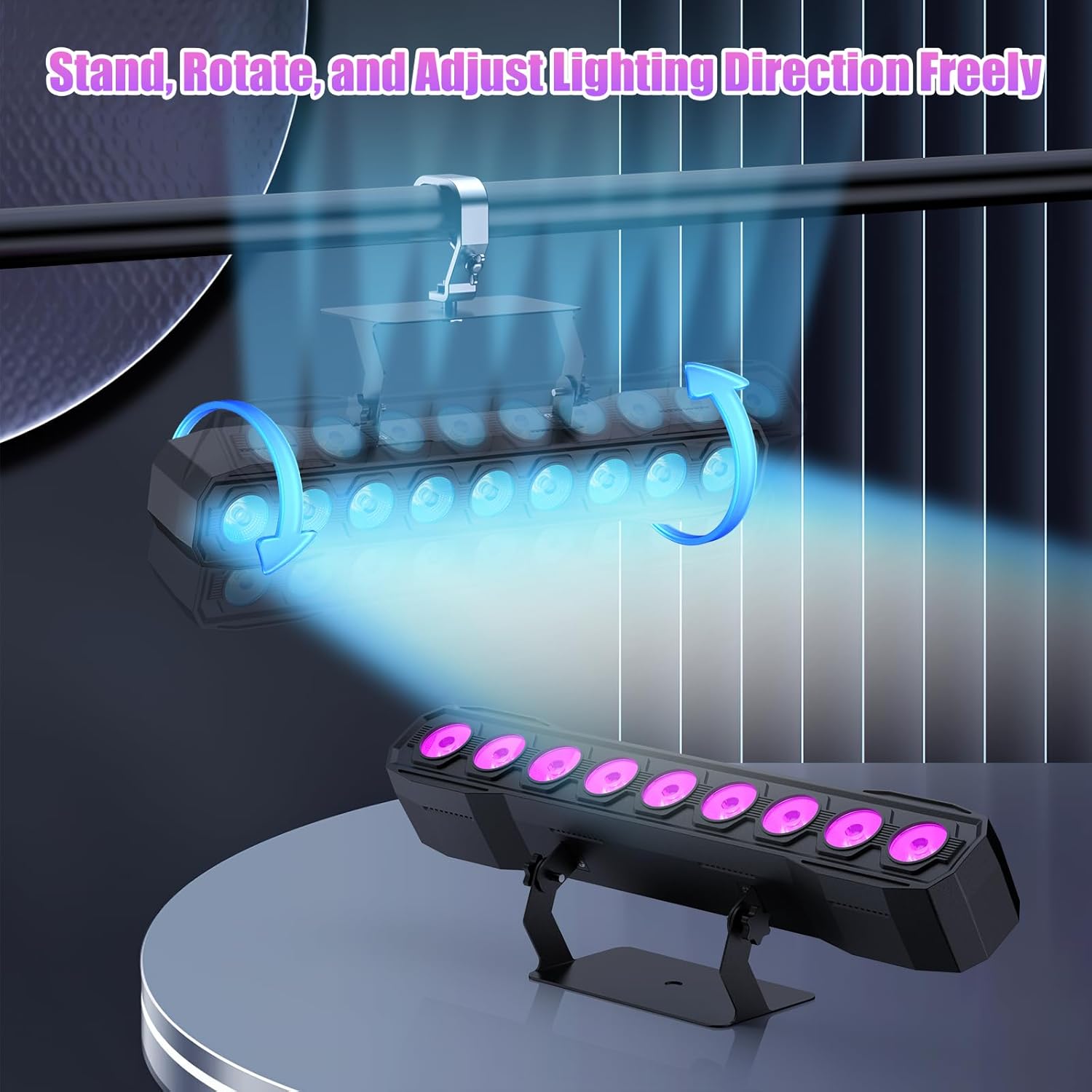

Diagram showing the light bar mounted on a truss and standing on a flat surface, with arrows indicating adjustable rotation.

Image 5.1: Illustration of mounting and angle adjustment options.

5.3 Power Connection

Connect the power cord to the Power IN port on the back of the fixture and then to a suitable power outlet. Multiple units can be daisy-chained using the Power OUT port to simplify wiring for larger setups.

6. Operating Modes

The DazzlingStage Wall Wash Bar Light supports several control modes:

  • DMX512 Control: For professional control via a DMX console.
  • Auto Mode: Pre-programmed lighting sequences.
  • Sound-Activated Control: Lights react to ambient sound.
  • Remote Control: Convenient wireless control using the included remote.
  • Master-Slave Mode: Link multiple units where one acts as a master and others as slaves, synchronizing effects.

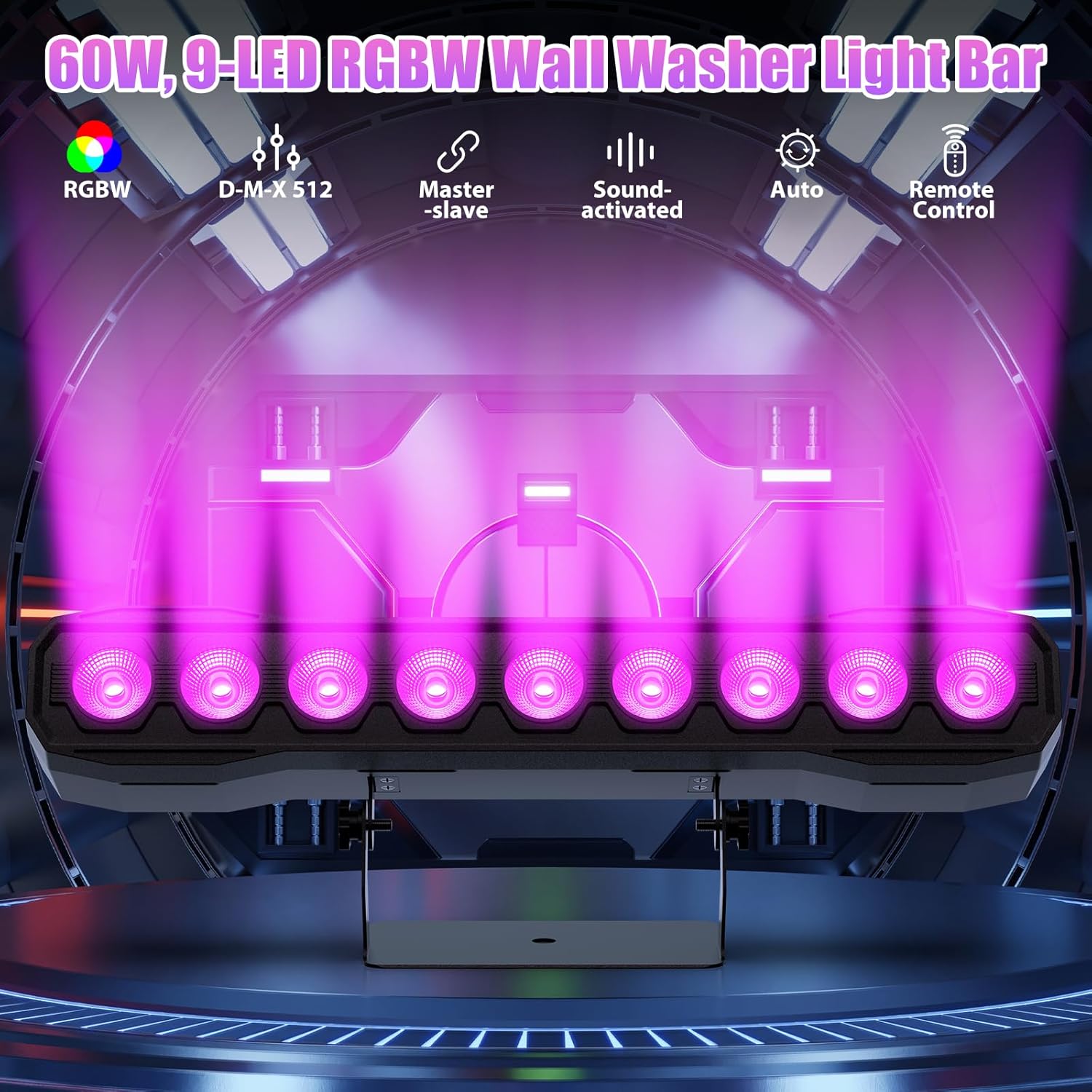

Icons representing RGBW, DMX512, Master-slave, Sound-activated, Auto, and Remote Control modes.

Image 6.1: Overview of available control modes.

6.1 Display Panel Operation

Use the buttons on the back of the fixture to navigate the menu and select modes:

  • MENU: Cycles through main menu options.
  • UP/DOWN: Adjusts values or navigates sub-menus.
  • ENTER: Confirms selection.

6.2 Lighting Effects

The fixture supports various dynamic effects:

  • Color Mixing: Over 16.7 million color combinations with 0-100% linear dimming.
  • Strobe: Flashing effect.
  • Jump: Instant color changes.
  • Fade: Smooth transitions between colors.
  • Pulse: Gradual changing effects.

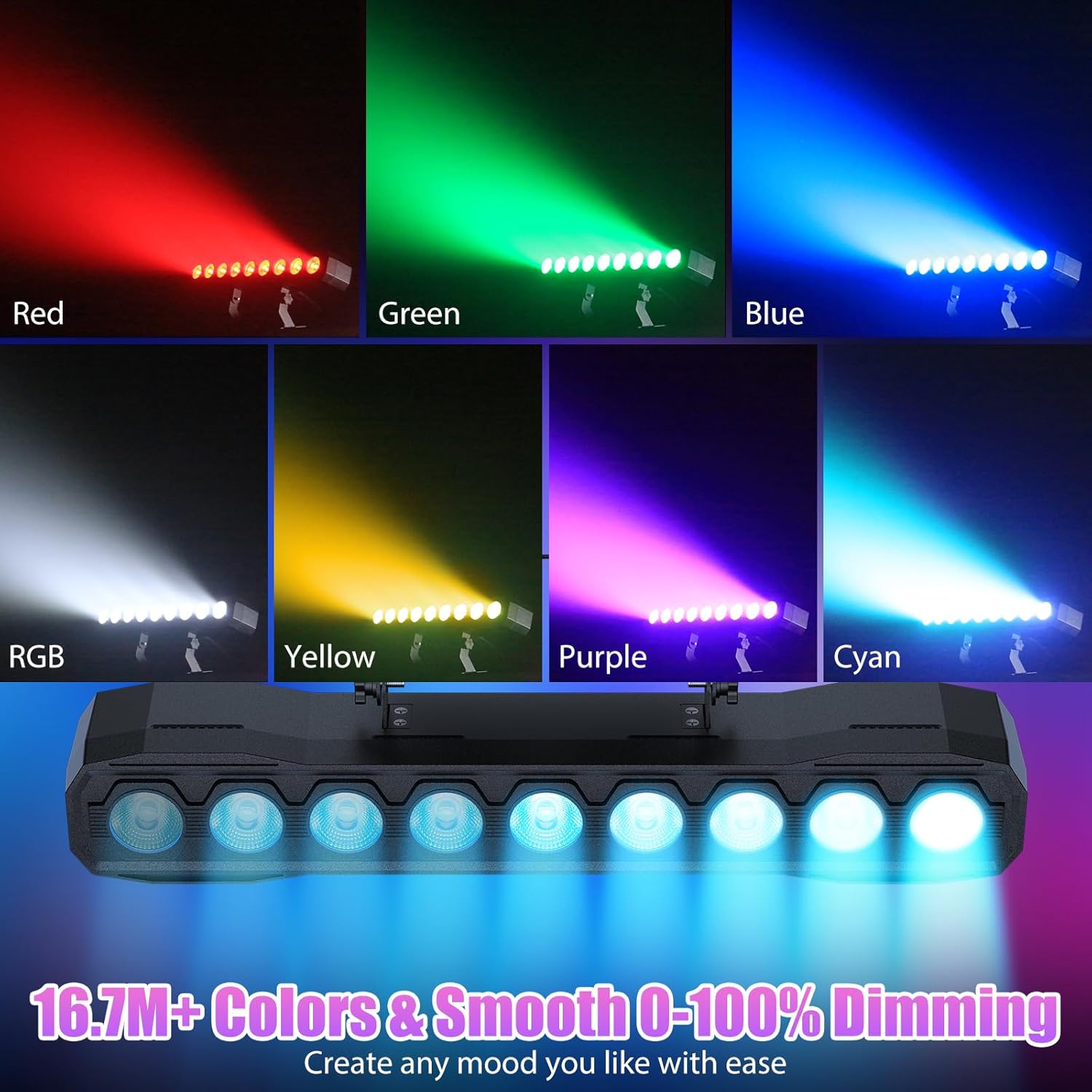

Image showing various color outputs including Red, Green, Blue, RGB, Yellow, Purple, and Cyan, highlighting 16.7M+ colors and smooth 0-100% dimming.

Image 6.2: Examples of color mixing and dimming capabilities.

Grid of images demonstrating Strobe, Jump, Fade, and Pulse lighting effects with various color combinations.

Image 6.3: Visual representation of Strobe, Jump, Fade, and Pulse effects.

7. Remote Control Functions

The included remote control provides convenient access to various functions:

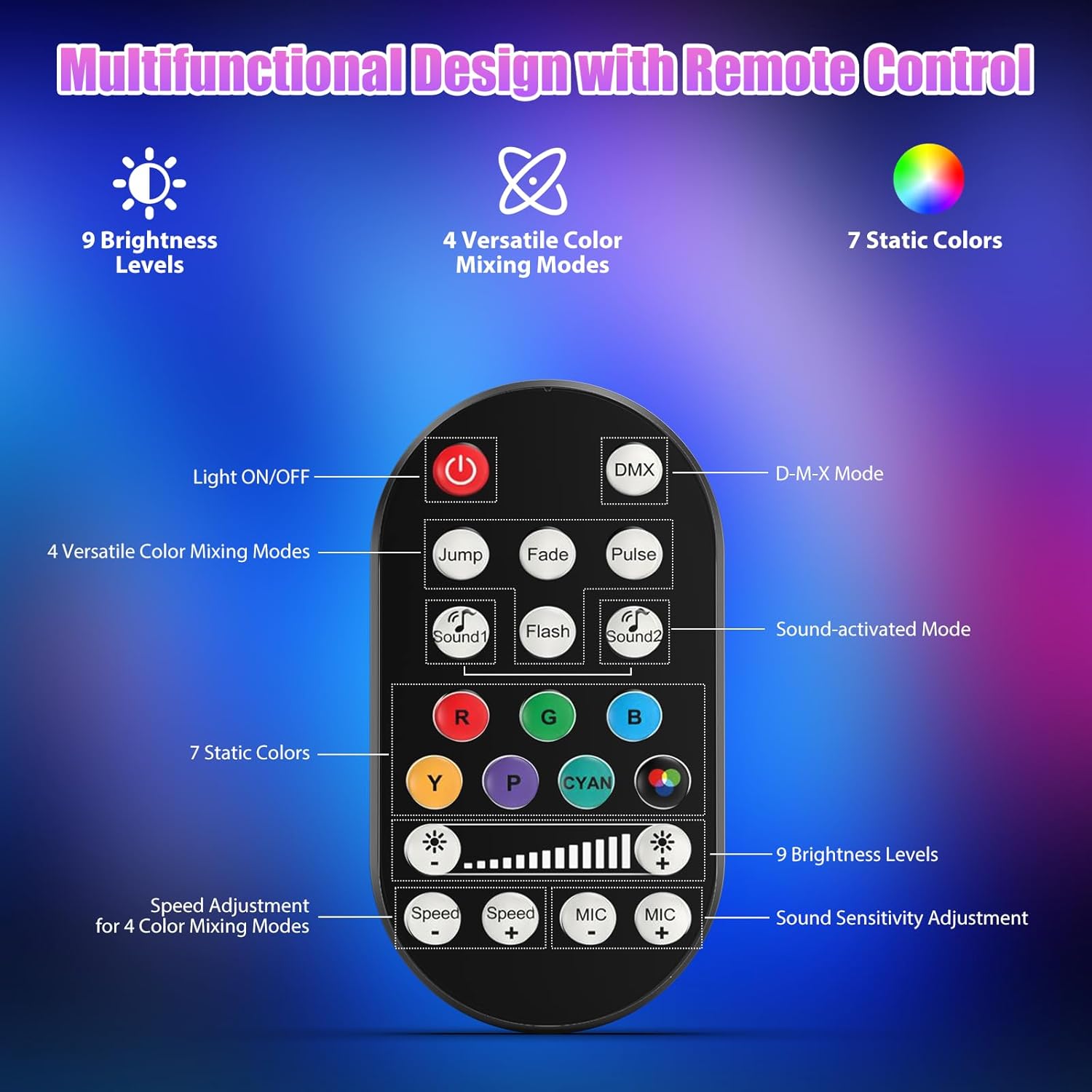

Diagram of the remote control with buttons labeled for Light ON/OFF, DMX Mode, 4 Versatile Color Mixing Modes (Jump, Fade, Pulse, Flash), Sound-activated Mode (Sound1, Sound2), 7 Static Colors (R, G, B, Y, P, Cyan, White), 9 Brightness Levels, Speed Adjustment, and Sound Sensitivity Adjustment.

Image 7.1: Remote control layout and functions.

  • Light ON/OFF: Powers the unit on or off.
  • DMX: Activates DMX control mode.
  • Jump, Fade, Pulse, Flash: Selects different color mixing modes.
  • Sound1, Sound2: Activates sound-activated modes with different sensitivities.
  • R, G, B, Y, P, Cyan, White: Selects static colors.
  • Brightness Levels: Adjusts the overall intensity of the light (9 levels).
  • Speed +/-: Adjusts the speed of dynamic effects.
  • MIC +/-: Adjusts the sound sensitivity for sound-activated modes (15 levels).

8. DMX512 Control

For advanced control, connect the fixture to a DMX512 controller. The light bar typically uses 4 or 8 DMX channels. Refer to the display panel for DMX address setting and channel assignments.

8.1 DMX Address Setting

Use the MENU, UP, DOWN, and ENTER buttons on the fixture's display panel to set the DMX starting address. The display will show 'AXXX' where XXX is the address (e.g., A001).

8.2 DMX Channel Functions (Example - 8 Channel Mode)

ChannelFunctionValue RangeDescription
CH1Master Dimmer0-255Overall brightness (0% to 100%)
CH2Red Intensity0-255Red LED brightness (0% to 100%)
CH3Green Intensity0-255Green LED brightness (0% to 100%)
CH4Blue Intensity0-255Blue LED brightness (0% to 100%)
CH5White Intensity0-255White LED brightness (0% to 100%)
CH6Strobe/Effect0-2550-10: No function; 11-255: Strobe speed (slow to fast)
CH7Auto Program0-255Selects and controls speed of built-in auto programs
CH8Sound Active0-255Activates sound mode and adjusts sensitivity

Table 8.1: Example DMX Channel Functions (may vary slightly by firmware version).

9. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your fixture.

  • Cleaning: Periodically clean the lens and housing with a soft, lint-free cloth. Do not use abrasive cleaners or solvents. Ensure the fixture is powered off and cool before cleaning.
  • Inspection: Regularly check power cables, DMX cables, and mounting hardware for any signs of wear or damage. Replace damaged components immediately.
  • Storage: When not in use for extended periods, store the fixture in a dry, dust-free environment.

10. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

ProblemPossible CauseSolution
No powerPower cable disconnected; No power from outlet; Blown fuseCheck power cable connection; Test outlet with another device; Replace fuse if necessary
No light outputDimmer channel at 0%; Incorrect mode selected; DMX signal issueIncrease dimmer level; Select desired operating mode; Check DMX cable and address settings
Incorrect colors/effectsIncorrect DMX channel values; Remote control interferenceVerify DMX channel settings; Ensure remote is pointed directly at the sensor; Check for other IR interference
Sound-activated mode not workingMicrophone sensitivity too low; No sound inputIncrease MIC sensitivity via remote or display; Ensure sufficient sound is present near the fixture
Fixture overheatingPoor ventilation; Blocked heat sinkEnsure adequate airflow around the unit; Clean any dust or debris from the heat sink fins

11. Specifications

FeatureDetail
BrandDazzlingStage
Model NumberZQ06190
Light Source9 x 60W RGBW LEDs
Color MixingRGBW 4-in-1, 16.7 million colors
Dimming0-100% linear electronic dimming
Beam Angle35° Wide Angle
Control ModesDMX512, Auto, Sound-Activated, Remote Control, Master-Slave
DMX Channels4 or 8 Channels (selectable)
Display4-digit LED display
MaterialAcrylonitrile Butadiene Styrene (ABS)
Product Dimensions18.1 x 5.5 x 5.1 inches (46 x 14 x 13 cm)
Item WeightApprox. 1.98 lbs (0.9 kg)
Power InputAC 100-240V, 50/60Hz
ManufacturerShenzhen Zhuoqiong Technology Co., Ltd.

12. Warranty and Support

DazzlingStage products are designed for reliability and performance. For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your retailer.

If you require technical assistance or have questions not covered in this manual, please contact DazzlingStage customer support through the retailer's platform or the official brand website. Please have your model number (ZQ06190) and purchase details ready when contacting support.
