Introduction
Thank you for choosing the HOBOT S7 Pro Window Cleaning Robot. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before first use and retain it for future reference.
Safety Precautions
To ensure safe operation and prevent damage, observe the following safety guidelines:
- Always attach the safety rope securely to an indoor fixture before operating the robot, especially on high-rise windows.
- Ensure the power adapter is correctly connected and the DC power jack is secure to prevent accidental disconnection.
- Do not use the robot on cracked or damaged glass surfaces.
- Keep hands, hair, and loose clothing away from moving parts of the robot during operation.
- The robot is equipped with an Uninterruptible Power System (UPS) providing approximately 20 minutes of backup power in case of a power outage. Retrieve the robot promptly if power is lost.
- Operate the robot only in temperatures between 0°C (32°F) and 40°C (104°F).
- Keep the robot away from children and pets.
Package Contents
Verify that all items are present in your package:
- HOBOT S7 Pro Window Cleaning Robot
- Power Adapter and AC Power Cord
- DC Extension Cable
- Safety Rope
- Remote Control
- Cleaning Cloths (multiple pairs)
- HOBOT Window Detergent
- User Manual

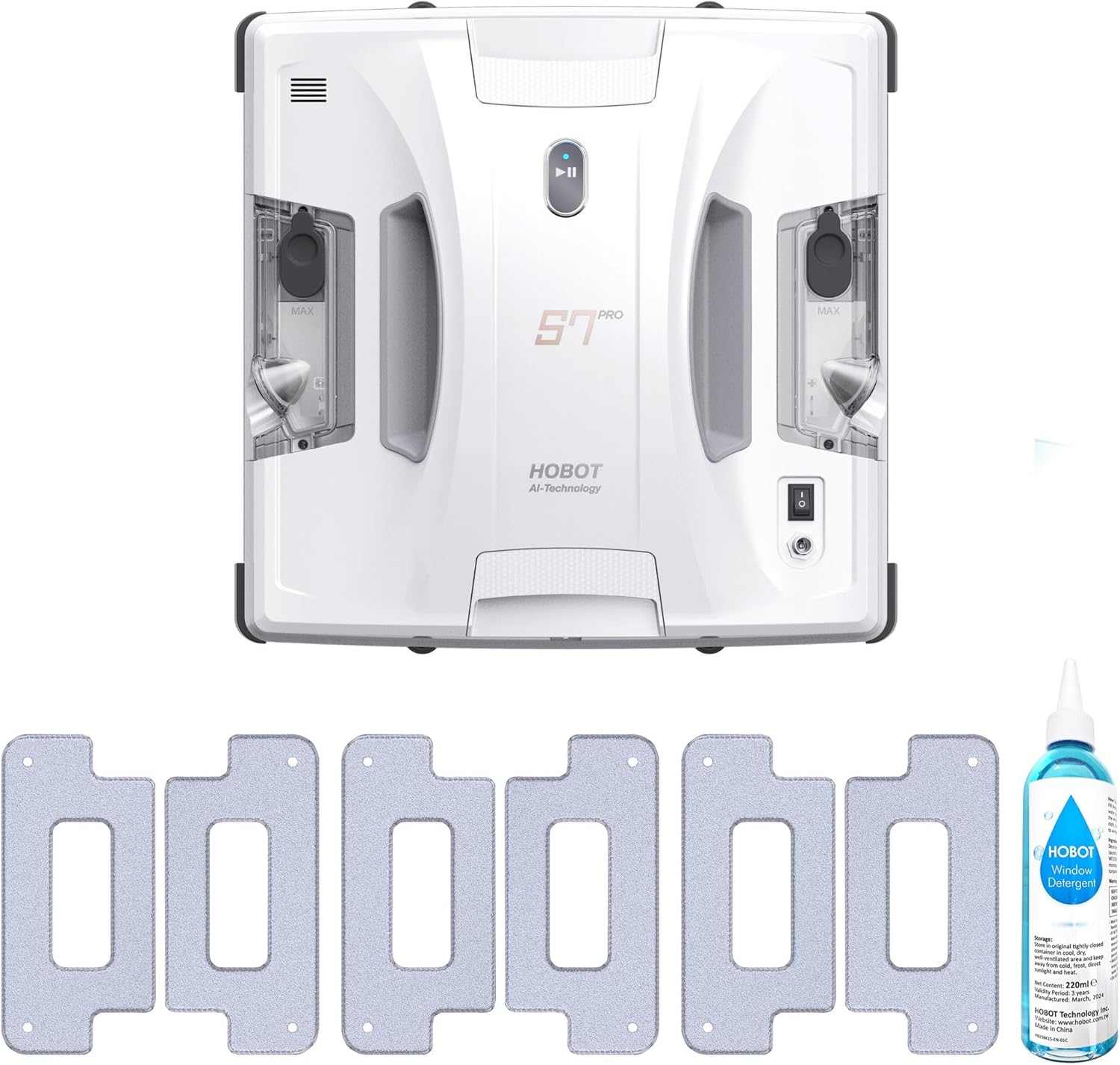

Image: The HOBOT S7 Pro robot, several pairs of cleaning cloths, and a bottle of HOBOT window detergent are shown, representing the typical package contents.
Product Overview
The HOBOT S7 Pro features advanced technology for efficient window cleaning:
- Dual Mop Polish & Hand Wiping Technology: Replicates human hand-wiping with 600 strokes per minute and a 4mm stroke length for thorough cleaning and static neutralization.
- Dual Ultrasonic Water Spray: Atomizes water into 15-nanometer mist particles for streak-free cleaning.
- Edge Leakage Bumper Sensors (ELB™): Detects air leakage from window seals or frameless edges and bumps against window frames, ensuring safe operation on various window types.
- Silicone-Covered Bumpers: Provides gentle contact with window frames, preventing scratches.
- Roller-Assisted Turning: Enhances movement stability.
Image: A detailed view of the HOBOT S7 Pro's underside, highlighting the dual mop polish mechanism with arrows indicating reciprocating motion.
Image: A close-up of the HOBOT S7 Pro's side, showing the ultrasonic sprayer emitting a fine mist, with an icon indicating 15µm particle size.
Image: Two panels illustrating the robot's safety features. The top panel shows the Edge-Leakage Bumper Sensors (ELB™) on the robot's underside. The bottom panel depicts the robot on a window, highlighting silicone-covered bumpers and roller-assisted turning for window frame protection.
Setup
- Charge the Robot: Before first use, fully charge the robot. Connect the power adapter to the robot and a power outlet. The charging indicator will show the status.
- Attach Cleaning Cloths: Securely attach a pair of clean microfiber cloths to the robot's cleaning pads. Ensure they are flat and cover the entire pad surface.
- Fill Detergent Tank: Open the water tank cap and fill it with HOBOT Window Detergent. Do not overfill. Close the cap tightly.
- Connect Safety Rope: Tie the safety rope to a sturdy indoor object, such as a heavy piece of furniture or a window handle. Ensure the rope is taut but allows the robot to reach all areas of the window.
- Connect Power: Connect the DC extension cable to the robot and then to the power adapter. Plug the power adapter into a wall outlet.
- Place Robot on Window: Hold the robot firmly against the glass surface. Press the power button on the robot or the remote control. The robot will adhere to the window using its vacuum suction. Ensure it has a strong grip before releasing.
Operating Instructions
The HOBOT S7 Pro offers various cleaning modes for optimal results:
- Automatic Cleaning Modes: The robot features three automatic cleaning modes for full window coverage. Select the desired mode using the remote control or the HOBOT app. The robot will automatically stop upon completion.
- Manual Control: Use the directional buttons on the remote control or app to guide the robot manually for spot cleaning or specific areas.
- Water Spray Function: The dual ultrasonic sprayers will automatically apply a fine mist of detergent during cleaning. This helps dissolve dirt without leaving streaks.
- Versatile Compatibility: The HOBOT S7 Pro is designed for both framed and frameless windows of any glass thickness. It can also clean various other smooth surfaces like tiles or mirrors.
Image: A graphic illustrating the HOBOT S7 Pro's movement, indicating an 18% increase in moving speed due to its reciprocating dual mop system reducing friction.
Image: The HOBOT S7 Pro positioned on a dark surface, surrounded by various types of stains such as ink, paint, bird drops, water stains, and general dirt, demonstrating its capability to clean stubborn marks.
Image: A collage of five images showing the HOBOT S7 Pro's versatility: cleaning frameless windows, glass of all thicknesses, working on multi-surfaces, cleaning solar panels at an angle greater than 25 degrees, and cleaning large areas of glass with an 8m extension cord.
Maintenance
Regular maintenance ensures optimal performance and longevity of your HOBOT S7 Pro:
- Clean the Robot: After each use, wipe the robot's exterior with a dry cloth. Ensure no debris is lodged in the sensors or cleaning pads.
- Wash Cleaning Cloths: The microfiber cloths are washable and reusable. Remove them from the robot and wash them by hand or machine with mild detergent. Air dry completely before reuse.
- Refill Detergent: Refill the detergent tank as needed. Use only HOBOT Window Detergent or distilled water.
- Store the Robot: Store the robot in a cool, dry place away from direct sunlight when not in use.
Image: A diagram illustrating the layered structure of the high-performance microfiber cloth, highlighting its washable nature, ability to capture dirt, and tight attachment to the robot.
Troubleshooting
If you encounter issues with your HOBOT S7 Pro, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Robot not adhering to window | Insufficient vacuum suction; power not connected; surface too dirty/wet. | Ensure power is connected. Clean the window surface. Check for air leaks around the robot. |
| Streaks left on window | Dirty cleaning cloths; insufficient detergent; excessive detergent. | Replace or wash cleaning cloths. Ensure detergent tank is filled. Use recommended HOBOT detergent. |
| Robot stops unexpectedly | Power disconnected; low battery; error detected by sensors. | Check power connection. Robot has 20-minute UPS backup; retrieve promptly. Refer to error codes in the full manual if available. |
| Robot not moving smoothly | Dirty driving wheels; obstruction. | Clean the driving wheels. Remove any obstructions. |
Specifications
- Model: HOBOT S7 Pro
- Cleaning Speed: Approximately 1m² in 2.6 minutes
- Mop Polishing Speed: 600 strokes per minute
- Mop Stroke Length: 4mm
- Water Spray: Dual ultrasonic, 15nm mist particles
- Safety Features: Anti-fall algorithm, secure DC power jack, Uninterruptible Power System (UPS) with 20 minutes backup, safety rope attachment point.
- Window Compatibility: Framed and frameless windows of any glass thickness.
Warranty Information
The HOBOT S7 Pro Window Cleaning Robot comes with a limited manufacturer's warranty. Please refer to the warranty card included in your package or visit the official HOBOT website for detailed terms and conditions regarding coverage, duration, and service procedures.
Customer Support
For further assistance, technical support, or inquiries regarding your HOBOT S7 Pro, please contact HOBOT customer service. Contact details can typically be found on the official HOBOT website or in the product packaging.
