Mainstays Black Single-Serve Blender Instruction Manual

Important Safety Information

Please read all instructions carefully before using your Mainstays Single-Serve Blender. Failure to follow these safety guidelines may result in injury or damage to the appliance.

• Always unplug the blender from the power outlet before cleaning or when not in use.
• Do not immerse the motor base in water or other liquids.
• Keep hands and utensils out of the blending jar while blending to prevent severe injury.
• Ensure the blade assembly is securely attached to the blending cup before placing it on the motor base.
• Do not blend hot liquids, as pressure buildup can cause the cup to burst and result in burns.
• This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Supervise children to ensure they do not play with the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• Use only attachments recommended or sold by the manufacturer.

Product Overview

Familiarize yourself with the components of your Mainstays Single-Serve Blender.

Image: The Mainstays Single-Serve Blender showing its key components: the 16 oz (0.5 L) dishwasher-safe travel cup, stainless steel blades, the motor base with its power button, skid-resistant feet, and the travel cup lid.

• Motor Base: Contains the 220-watt motor and the "POWER + PULSE" button for operation. Features skid-resistant feet for stability.
• Blending Cup (16 oz / 473 ml): BPA-free AS plastic cup that serves as both the blending jar and a portable drinking vessel.
• Blade Assembly: Features durable 301 stainless-steel blades for efficient blending. This screws onto the blending cup.
• Travel Lid: A PP plastic lid designed to fit the blending cup, allowing for spill-resistant portability.

Setup

Before first use, wash all parts that will come into contact with food (blending cup, blade assembly, travel lid) in warm, soapy water. Rinse thoroughly and dry.

1. Place the motor base on a clean, dry, and stable surface.
2. Ensure the motor base is unplugged from the power outlet.

Operating Instructions

Follow these steps to blend your ingredients:

1. Prepare Ingredients: Add your desired ingredients to the blending cup. For best results, add liquids first, then soft ingredients, and finally harder ingredients or ice. Do not overfill past the MAX fill line.
2. Attach Blade Assembly: Screw the blade assembly firmly onto the open end of the blending cup until it is tightly sealed.
3. Place on Base: Invert the blending cup so the blade assembly is facing down, and place it onto the motor base. Align the tabs on the cup with the slots on the base and twist clockwise until it locks into place.
4. Blend: Plug the blender into a standard 120V AC outlet. Press and hold the "POWER + PULSE" button to begin blending. Release the button to stop. For optimal blending and to prevent motor overheating, use short pulses rather than continuous operation. Do not operate for more than 60 seconds continuously.
5. Serve: Once blending is complete, twist the blending cup counter-clockwise to unlock it from the motor base. Carefully remove the blade assembly by unscrewing it from the cup.
6. Travel: Attach the travel lid to the blending cup for on-the-go consumption. Ensure the lid is securely fastened to prevent spills.

Image: The Mainstays Single-Serve Blender in operation, blending a red smoothie. Fresh strawberries and blueberries are visible nearby, indicating typical ingredients for use.

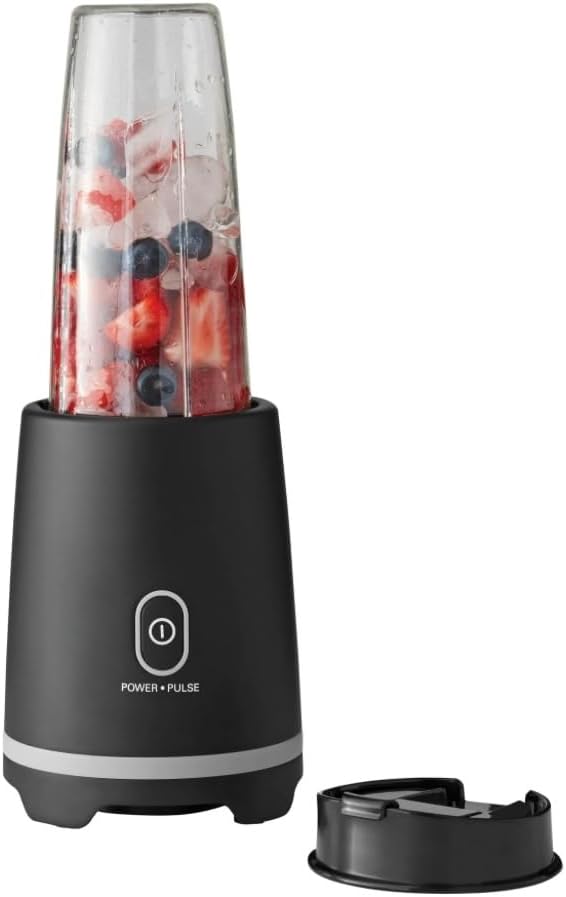

Image: The Mainstays Single-Serve Blender with a blended drink inside the cup, and the travel lid placed next to it, ready for attachment. This illustrates the blend-and-go functionality.

Maintenance and Cleaning

Proper cleaning ensures the longevity and hygiene of your blender.

• Motor Base: Unplug the motor base before cleaning. Wipe the exterior with a damp cloth. Do not immerse the motor base in water or any other liquid.
• Blending Cup and Travel Lid: These parts are dishwasher safe (top rack recommended). Alternatively, wash them by hand with warm, soapy water, rinse thoroughly, and dry.
• Blade Assembly: Carefully rinse the blade assembly under running water immediately after use. Use a brush to remove any food residue. Exercise extreme caution when handling the sharp blades. The blade assembly is also dishwasher safe.

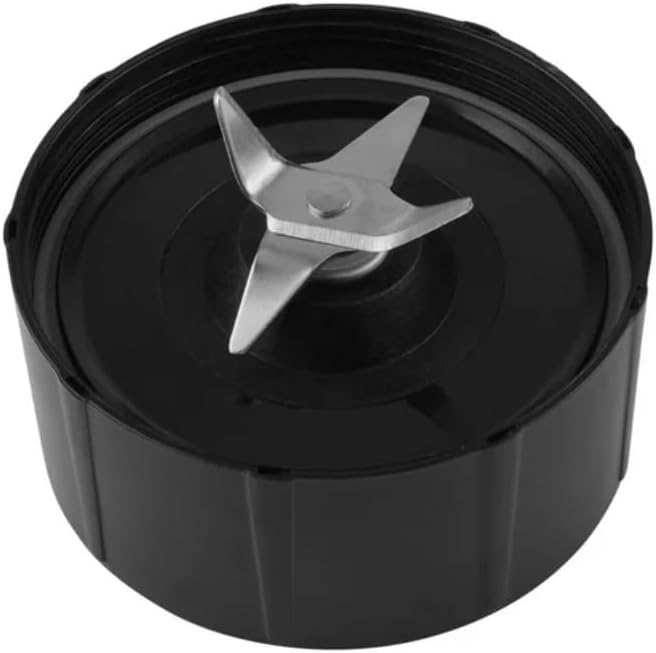

Image: A close-up view of the stainless steel blade assembly, detached from the blending cup. This component requires careful handling during cleaning due to its sharp blades.

Troubleshooting

If you encounter issues with your blender, refer to the following common problems and solutions:

Specifications

• Model: MS61100016716
• Power: 220 Watts (Motor), 120 Volts
• Capacity: 16 oz (473 Milliliters)
• Dimensions: 4.71"D x 4.71"W x 12.59"H
• Weight: 2 pounds
• Material: BPA-free AS plastic (cup), PP plastic (lid), Stainless Steel (blades)
• Controls: Push Button (One Speed)
• Color: Black

Warranty and Support

This Mainstays Single-Serve Blender typically comes with a 1-year limited warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

For technical support, warranty service, or replacement parts, please contact the retailer where the product was purchased or refer to the contact information provided on the product packaging.
