NEEWER N22 10.5" Desk Ring Light Instruction Manual

1. Introduction

The NEEWER N22 10.5" Desk Ring Light is an entry-level lighting solution designed for simplicity and affordability, ideal for beginners. This versatile device provides optimal illumination for various activities including streaming, recording, makeup application, selfies, and video conferencing on laptops, computer monitors, webcams, and Zoom calls.

Equipped with 120 high-performance LEDs, it delivers continuous, soft, and evenly diffused light, enhancing skin tone and reducing blemishes without harsh glare. The light offers three color temperatures (warm, neutral, cool) and ten dimming levels, along with a convenient timer function for extended use.

Its adjustable height and angle, combined with a flexible phone holder, allow for versatile positioning and compatibility with a wide range of smartphones, making it an essential tool for content creators and professionals alike.

2. Safety Information

Please read and understand all safety instructions before using this product.

• Do not expose the device to water or excessive moisture.
• Do not attempt to disassemble or modify the product. This may void the warranty and pose a safety risk.
• Use only with a compatible USB power adapter (not included) that meets the specified power requirements.
• Keep the device away from heat sources and direct sunlight.
• Ensure the base is placed on a stable, flat surface to prevent tipping.
• Keep out of reach of children and pets.
• Avoid direct eye exposure to the LED light for prolonged periods.

3. Package Contents

Verify that all items listed below are included in your package:

• 1 x N22 Ring Light with Flexible Phone Holder
• 1 x Telescopic Center Column and Base
• 1 x Bluetooth Remote
• 1 x USB A to USB C Adapter
• 1 x USB Type C Cable

4. Setup

4.1 Assembly

1. Attach the Telescopic Column to the Base: Screw the telescopic center column firmly into the wide, non-slip metal base.
2. Attach the Ring Light: Secure the ring light unit to the top of the telescopic column using the provided knob.
3. Insert Phone Holder: The flexible phone holder is integrated into the center of the ring light. Ensure it is securely positioned.

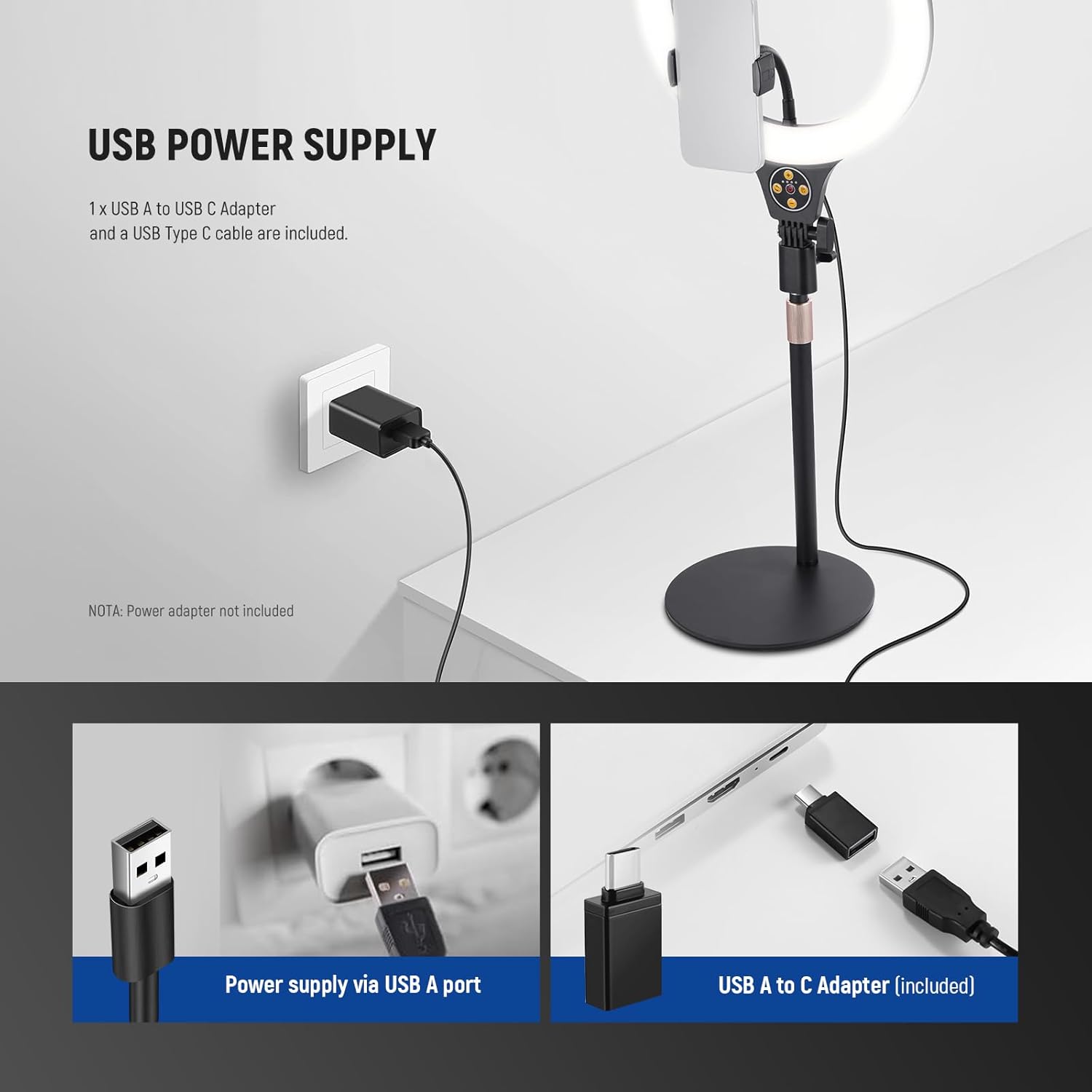

4.2 Power Connection

1. Connect the USB Type C cable to the ring light's power input.
2. Plug the USB A end of the cable into a compatible USB power adapter (not included) or a USB port on your computer/laptop.

4.3 Bluetooth Remote Pairing

1. Turn on the small Bluetooth remote by sliding the ON/OFF switch.
2. Enable Bluetooth on your smartphone.
3. Search for available devices and select the remote to pair. Once paired, you can use it to control your phone's camera shutter wirelessly.

5. Operating Instructions

5.1 Power On/Off

Press the ON/OFF button (labeled '1' on the inline controller) to turn the ring light on or off.

5.2 Adjusting Brightness

Use the + button (labeled '4') to increase brightness and the - button (labeled '5') to decrease brightness. There are 10 dimming levels available.

5.3 Changing Color Temperature

Press the Lighting Mode Button (labeled '2', circular arrows icon) to cycle through the three available color temperatures: Warm (3000K), Neutral (4500K), and Cool (7000K).

5.4 Timer Function

Press the Timer Button (labeled '3', clock icon) to set the lighting duration to 3, 6, 9, or 12 hours. This is useful for long sessions like live streaming or video calls.

5.5 Adjusting Height and Angle

• Height Adjustment: Loosen the knob on the telescopic column to extend or retract the stand, adjusting the height up to 31"/78cm. Tighten the knob to secure the desired height.
• Angle Adjustment: The LED selfie light can tilt 180° back and forth, allowing for flexible angle adjustments to suit various shooting needs.
• Phone Holder Orientation: The flexible phone holder can be adjusted to mount your phone vertically or horizontally.

5.6 Eye-Friendly Soft Lighting

The ring light is equipped with 120 high-performance LEDs and a premium diffuser, providing continuous, soft, and evenly diffused illumination up to 598Lux at 0.5m. This design minimizes shadows and harsh glare, making it gentle on the eyes and ideal for enhancing skin tone.

5.7 Usage Scenarios

The NEEWER N22 Desk Ring Light is suitable for various applications:

• Live Streaming: Provides consistent and flattering light for live broadcasts.
• Video Conferencing: Improves your appearance during Zoom calls, online meetings, and virtual presentations.
• Makeup Application: Offers bright, even lighting for precise makeup.
• Selfies & Photography: Enhances photos and videos with professional-quality lighting.

5.8 Official Product Video

6. Maintenance

• Cleaning: Use a soft, dry cloth to wipe down the ring light and stand. Do not use abrasive cleaners or solvents.
• Storage: When not in use, disassemble the ring light and store it in a cool, dry place away from direct sunlight and moisture.
• Cable Care: Avoid bending or twisting the power cable excessively to prevent damage.

7. Troubleshooting

Light not turning on:

Ensure the USB cable is securely connected to both the ring light and a functioning power source. Verify that the USB power adapter (if used) is working correctly and provides sufficient power.

Bluetooth remote not pairing:

Make sure the remote is turned on and within range of your smartphone. Check your phone's Bluetooth settings to ensure it's enabled and try re-pairing the remote. Replace the remote's battery if necessary.

Stand instability:

Ensure the base is placed on a flat, stable surface. Tighten all adjustment knobs on the telescopic column and ring light securely to prevent wobbling.

8. Specifications

9. Warranty & Support

For warranty information, technical support, or any inquiries regarding your NEEWER N22 Desk Ring Light, please contact NEEWER customer service through their official website or the retailer where the product was purchased. Please have your model number (N22) and proof of purchase ready when contacting support.
