Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Patiowell 6x6 FT Outdoor Storage Shed. Please read this manual thoroughly before beginning assembly or use to ensure proper installation and safe operation. Keep this manual for future reference.
Image Description: A Patiowell 6x6 FT Outdoor Storage Shed, light gray in color, situated in a green backyard with a wooden fence in the background. The shed features double doors and a small window on the side.
Safety Information
- Always wear appropriate safety gear, including gloves and eye protection, during assembly.
- Assembly requires at least two to three people. Do not attempt to assemble alone.
- Ensure the assembly area is clear of obstructions and hazards.
- Verify all parts are present and undamaged before starting assembly.
- Do not climb on the shed roof.
- Secure the shed to a level, stable foundation to prevent tipping.
- Check local HOA policies and building codes regarding shed installation.
- Keep children and pets away from the assembly area.
- Do not store flammable liquids or hazardous materials inside the shed without proper ventilation and safety precautions.
Package Contents
The Patiowell 6x6 FT Outdoor Storage Shed is shipped in multiple packages (typically 3). Please ensure all packages have arrived before beginning assembly. Refer to the packing list included with your shipment to verify all components are present.
If any parts are missing or damaged, contact customer service immediately.
Note: Components are pre-labeled for easier identification. Assembly gloves and necessary hardware are included.
Setup and Assembly
1. Site Preparation
Select a level, stable area for the shed. A perfectly flat base is crucial for structural integrity and proper door function.
Clear the area of debris, rocks, and vegetation.
Consider drainage to prevent water accumulation around the shed base.
2. Unpacking and Part Identification
Carefully unpack all boxes.
Lay out all components and compare them against the parts list. Group similar parts together.
Image Reference:
Image Description: An image showing the Patiowell 6x6 FT Outdoor Storage Shed with its overall dimensions: 72.6"L x 72.6"W x 83"H. The image highlights the storage capacity of 162.15 cubic feet and a roof weight capacity of 620 lbs.
3. Assembly Steps
Follow the clear step-by-step instructions provided in the physical manual. The assembly process involves connecting pre-labeled plastic panels, reinforced resin floor sections, and alloy steel frame components.
Key Assembly Points:
- Start with the base frame and floor panels, ensuring they are securely interlocked.
- Attach wall panels, paying attention to the tongue-and-groove connections.
- Install the roof structure and panels, ensuring proper alignment for waterproofing.
- Assemble and attach the lockable double doors.
- Install windows and any ventilation components.
Image Reference:
Image Description: An interior view of the Patiowell 6x6 FT Outdoor Storage Shed, showing ample space for storage. The image displays various tools, shelves, and equipment stored neatly inside, demonstrating the shed's capacity and potential for organization.
Image Reference:

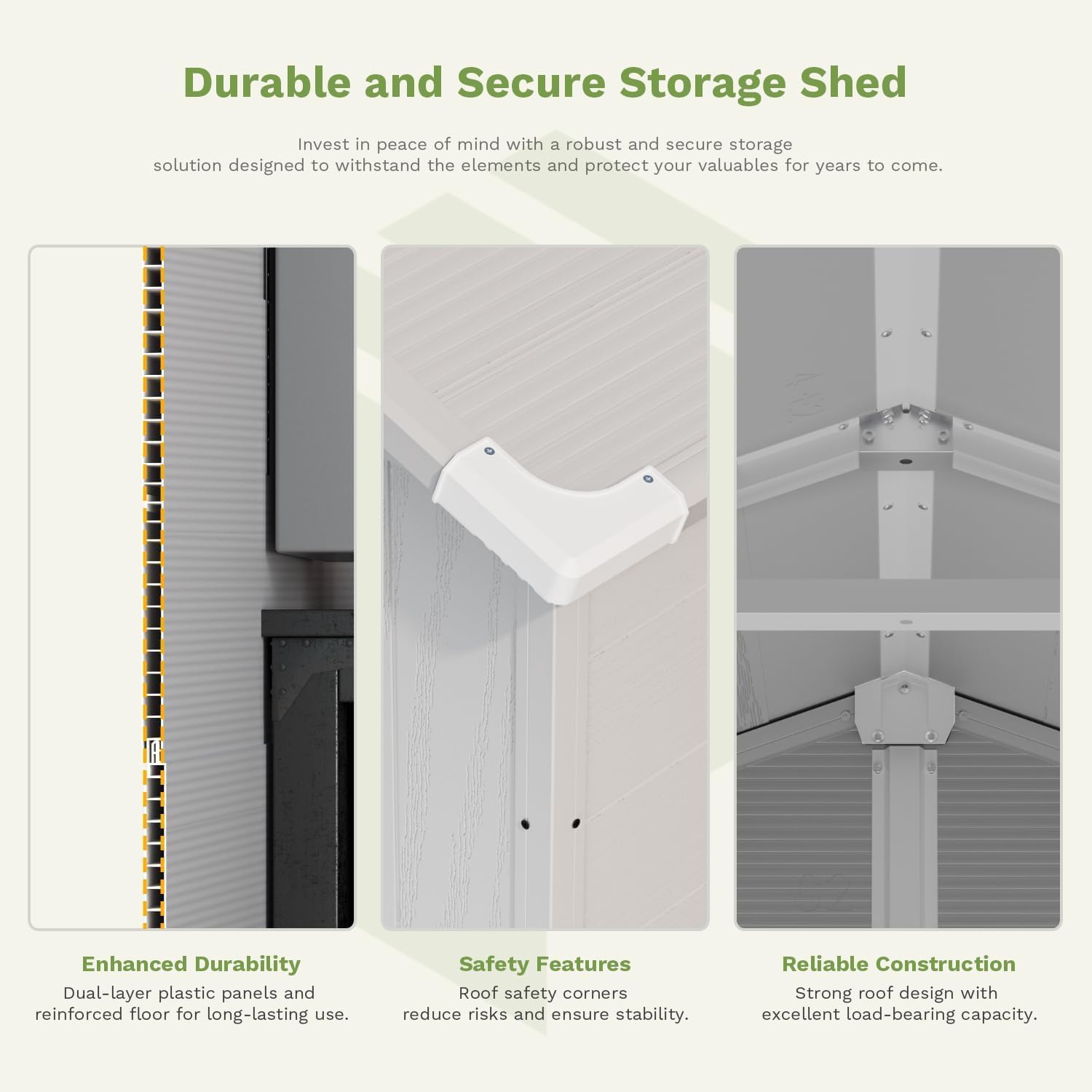

Image Description: A detailed image highlighting the construction features of the Patiowell 6x6 FT Outdoor Storage Shed. It shows dual-layer plastic panels for enhanced durability, roof safety corners for stability, and a strong roof design for reliable load-bearing capacity.
Operation
Door Usage
The shed features lockable double doors. Ensure the doors are properly aligned and closed to maintain weather resistance. Use the provided locking mechanism for security.
Window and Ventilation
The shed includes two windows for natural light and a vent design for proper airflow. Ensure vents are not obstructed to prevent moisture buildup.
Image Reference:

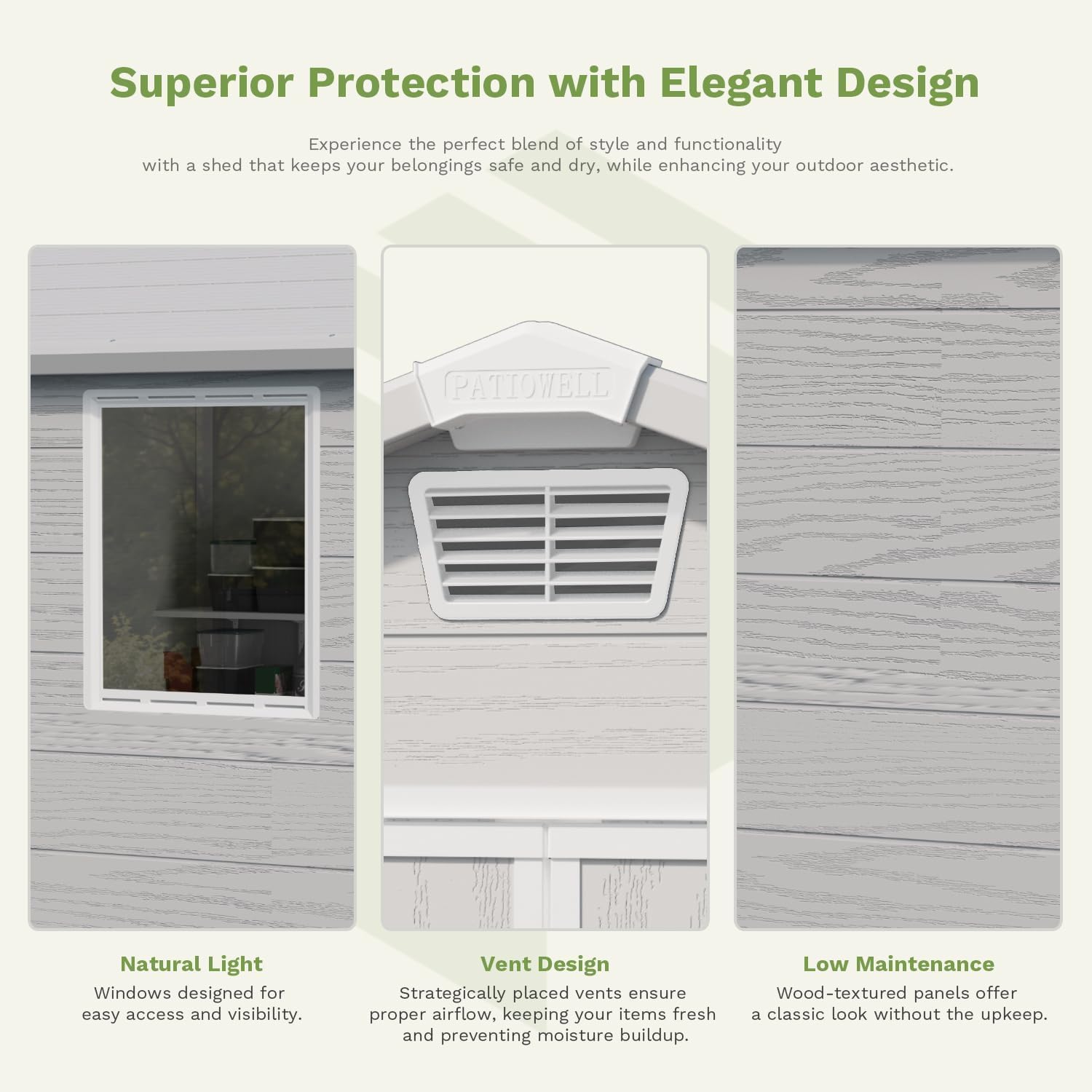

Image Description: An image showcasing the design elements of the Patiowell 6x6 FT Outdoor Storage Shed. It highlights the windows for natural light, the strategically placed vent design for airflow, and the wood-textured panels that offer low maintenance.
Maintenance
- Cleaning: Clean the shed exterior periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals.
- Inspection: Regularly inspect the shed for any loose screws, damaged panels, or signs of wear. Tighten fasteners as needed.
- Drainage: Ensure the area around the shed remains clear of debris to allow for proper water drainage.
- Snow Load: While the roof has a high weight capacity, it is advisable to remove excessive snow accumulation to prolong the shed's lifespan.
Image Reference:
Image Description: An image illustrating the all-weather capabilities of the Patiowell 6x6 FT Outdoor Storage Shed. One half shows rain falling on the shed, emphasizing its waterproof design, while the other half shows sunlight, highlighting its UV-resistant materials.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors do not close properly or are misaligned. | Uneven foundation; incorrect door assembly; loose hinges. | Ensure the shed is on a perfectly level surface. Recheck door assembly and tighten all hinge screws. |
| Water leakage inside the shed. | Improperly sealed roof or wall panels; obstructed drainage. | Inspect all panel connections and roof seams for proper sealing. Clear any debris from around the base. |
| Panels appear flimsy or unstable. | Incomplete assembly; missing fasteners; incorrect frame installation. | Review assembly instructions to ensure all steps were followed and all fasteners are securely in place. |
Specifications
| Feature | Detail |
|---|---|
| Model | PS24-0696-L4 |
| Dimensions (L x W x H) | 72.6" x 72.6" x 83" (6x6 FT) |
| Storage Capacity | 162.15 CU.FT |
| Roof Weight Capacity | 620 LBS |
| Material | Resin (Panels, Floor), Alloy Steel (Frame) |
| Color | Light Gray |
| Door Style | Double Hinged, Lockable |
| Windows | 2 |
| Item Weight | 180 Pounds |
| Water Resistance | Water Resistant |
Warranty and Support
For warranty information or assistance with assembly, missing parts, or any other issues, please contact Patiowell customer service.
Customer support is available to resolve questions within 24 hours. Refer to your purchase documentation for specific contact details.
Online Resources: You may also find additional support and assembly guides on the official Patiowell website.
