Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your BACODLUL CXCD-XCN Plug-in Valve. Please read this manual thoroughly before using the product and retain it for future reference.
The BACODLUL CXCD-XCN is a solenoid valve designed for various industrial and scientific applications, specifically within hydraulics, pneumatics, and plumbing systems.
Product Overview

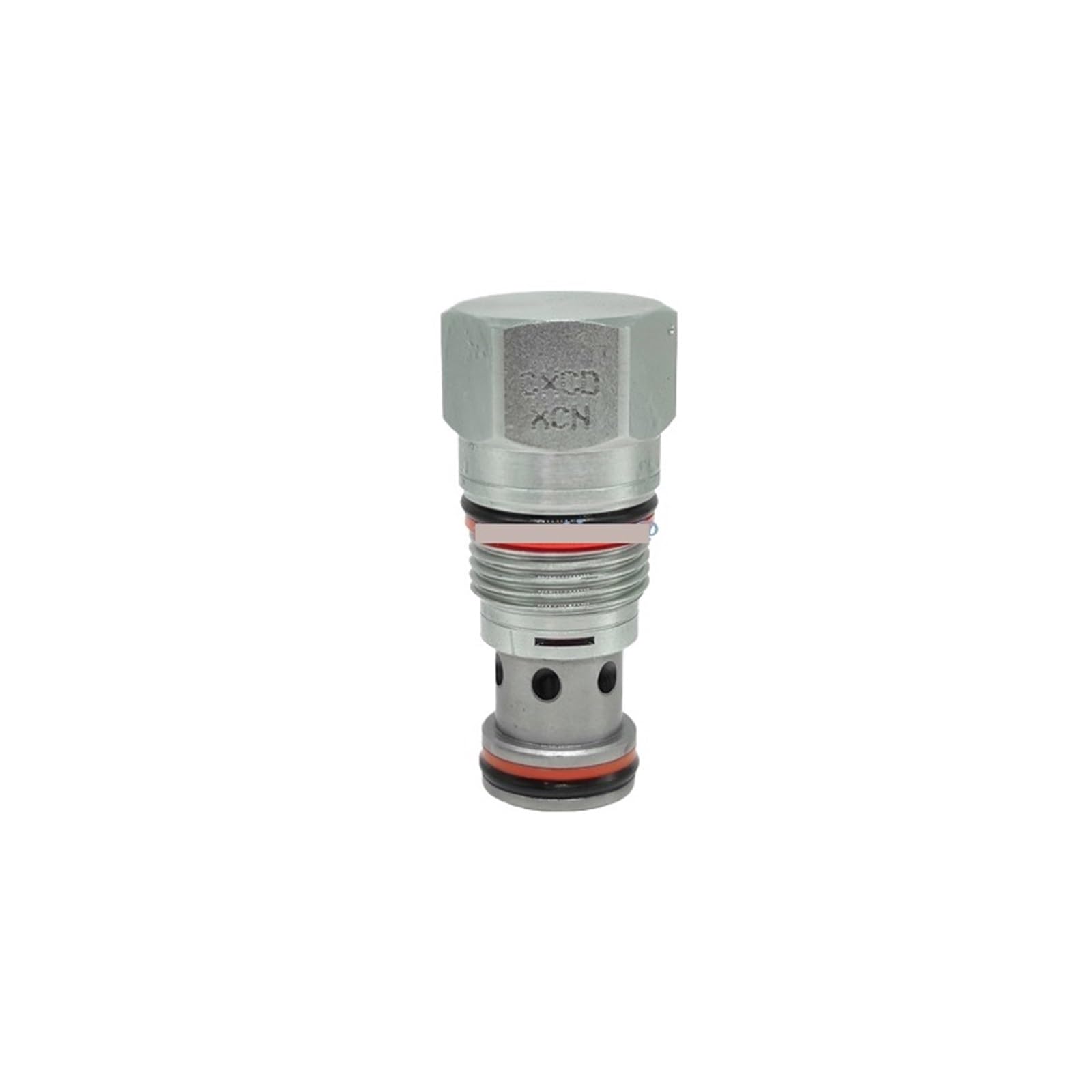

Figure 1: BACODLUL CXCD-XCN Plug-in Valve. This image shows the general appearance of the solenoid valve, including its main body and electrical connection point.
The CXCD-XCN is a compact and reliable plug-in solenoid valve. It is designed for easy integration into existing systems. Key features include its robust construction and straightforward electrical connection.
Safety Information
WARNING:
- Always disconnect power before installation, maintenance, or troubleshooting.
- Ensure proper grounding to prevent electrical shock.
- Do not exceed the specified operating pressure or temperature ranges.
- Installation should be performed by qualified personnel only.
- Wear appropriate personal protective equipment (PPE) during installation and maintenance.
Setup and Installation
- Unpacking: Carefully remove the valve from its packaging. Inspect for any signs of damage during transit.
- Mounting: Securely mount the valve in the desired position using appropriate fasteners. Ensure the valve is oriented correctly according to flow direction indicators (if present).
- Pneumatic/Hydraulic Connections: Connect the fluid lines to the valve's inlet and outlet ports. Use appropriate sealing materials (e.g., thread sealant, PTFE tape) to prevent leaks. Ensure connections are tight but do not overtighten.
- Electrical Connection:
- Ensure power is OFF before making electrical connections.
- Connect the power supply wires to the valve's electrical terminals. Refer to the wiring diagram (if provided with the product) for correct polarity and voltage.
- Verify that the supply voltage matches the valve's coil voltage rating.
- Secure all electrical connections to prevent accidental disconnection or short circuits.
- Initial Check: Before applying full system pressure, perform a visual inspection of all connections.
Operating Instructions
The BACODLUL CXCD-XCN valve operates by receiving an electrical signal to open or close the fluid path. Its operation is typically integrated into a larger control system.
- Power On: Once all connections are secure and verified, apply power to the control system and the valve.
- System Activation: Activate the control system to send the appropriate electrical signal to the valve.
- Function Verification: Observe the system to ensure the valve is operating as expected (e.g., fluid flow starts/stops).
- Monitoring: Continuously monitor the valve and system for any unusual noises, leaks, or performance issues during operation.
Note: Specific operational parameters (e.g., cycle times, pressure settings) will depend on your application and control system configuration.
Maintenance
Regular maintenance ensures the longevity and reliable performance of your valve.
- Periodic Inspection: Regularly inspect the valve for signs of wear, corrosion, or damage. Check for leaks around connections.
- Cleaning: Keep the exterior of the valve clean. Avoid using harsh chemicals that could damage the housing or seals.
- Electrical Connections: Periodically check electrical connections for tightness and corrosion.
- Seal Replacement: If leaks occur or performance degrades, internal seals may need replacement. Consult a qualified technician for internal servicing.
- Fluid Quality: Ensure the fluid passing through the valve is clean and free of particulates that could cause blockages or wear.
CAUTION: Always depressurize the system and disconnect power before performing any maintenance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Valve does not actuate | No power to coil; Incorrect voltage; Damaged coil; Blocked pilot orifice. | Check power supply and connections; Verify voltage matches valve rating; Replace coil; Clean pilot orifice. |
| Valve leaks externally | Loose connections; Damaged seals; Cracked housing. | Tighten connections; Replace seals; Replace valve if housing is cracked. |
| Valve does not fully open/close | Contamination in fluid; Worn internal components; Insufficient pressure. | Flush system and clean valve; Replace worn components; Verify system pressure. |
If troubleshooting steps do not resolve the issue, contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Model | CXCD-XCN |
| Brand | BACODLUL |
| Type | Plug-in Solenoid Valve |
| Item Weight | 200 Grams |
| Assembly Required | No |
| Number of Pieces | 1 |
| ASIN | B0FK2KS3DC |
| Manufacturer | BACODLUL |
Note: Additional specifications (e.g., voltage, pressure range, temperature range, port size) may be printed directly on the product label or provided in supplementary documentation.
Warranty Information
BACODLUL products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official BACODLUL website. Typically, warranty covers manufacturing defects under normal use conditions for a specified period from the date of purchase.
Customer Support
If you have any questions, require technical assistance, or need to report an issue, please contact BACODLUL customer support. Refer to your purchase documentation or the manufacturer's website for contact details.
When contacting support, please have the following information ready:
- Product Model: CXCD-XCN
- ASIN: B0FK2KS3DC
- Date of Purchase
- Detailed description of the issue
