Generico 16 Liter Manual Backpack Sprayer Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and efficient use, assembly, operation, and maintenance of your Generico 16 Liter Manual Backpack Sprayer, model Irr16l. Please read this manual thoroughly before first use and keep it for future reference. This sprayer is designed for applying liquids such as herbicides, pesticides, and fertilizers in garden and agricultural settings.

Safety Information

• Always wear appropriate personal protective equipment (PPE) including gloves, eye protection, and a mask when handling chemicals and operating the sprayer.
• Do not use the sprayer with flammable, corrosive, or highly viscous liquids.
• Ensure the sprayer is clean and free from residue before switching between different types of chemicals.
• Keep out of reach of children and pets.
• Operate in well-ventilated areas.

2. Product Components

Familiarize yourself with the main components of your Generico 16 Liter Manual Backpack Sprayer.

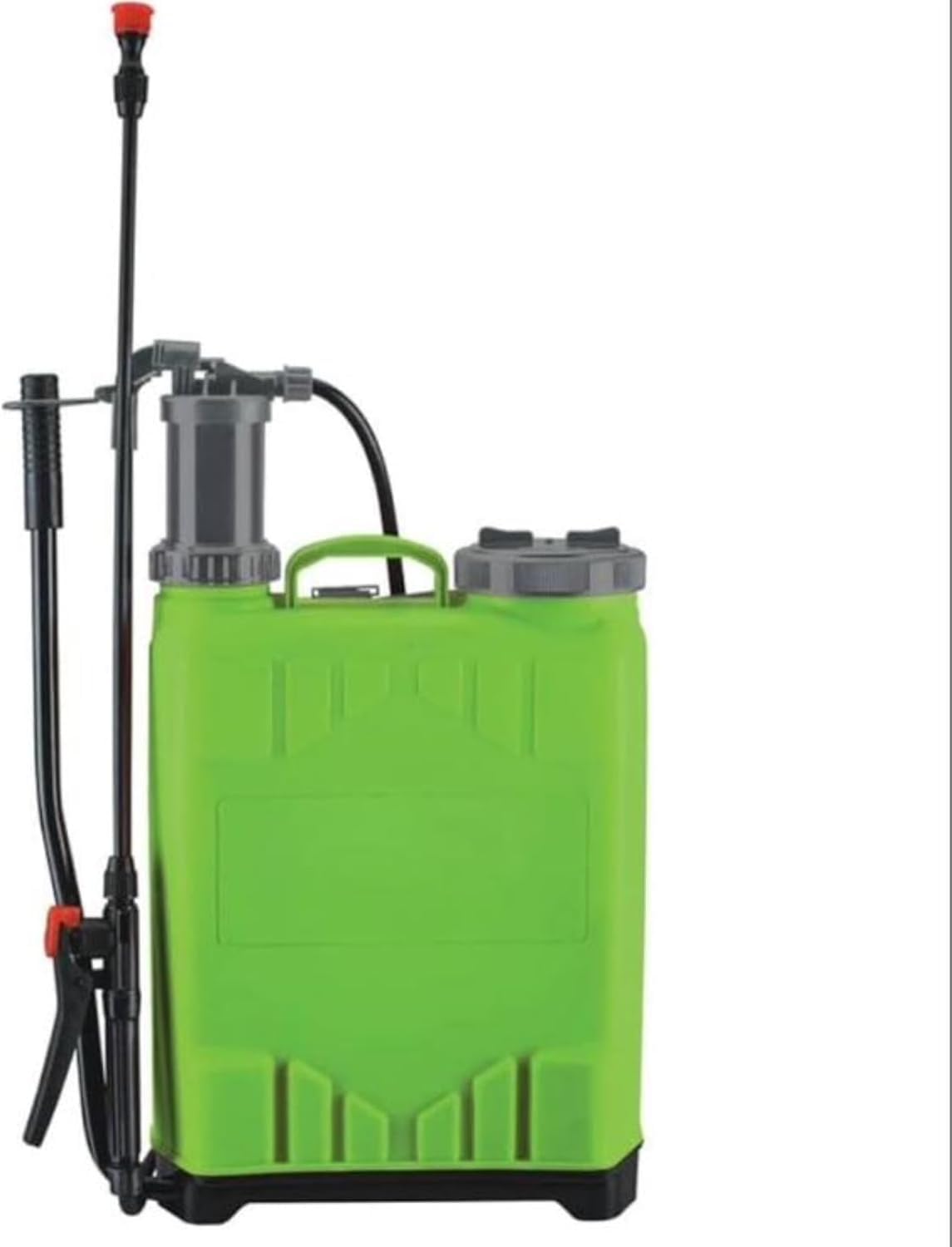

Figure 2.1: Overview of the Generico 16 Liter Manual Backpack Sprayer. This image displays the complete sprayer unit, including the tank, pump lever, shoulder straps, and spray wand with nozzle.

• Tank: 16-liter capacity, made of durable polyethylene.
• Pump Lever: Manual pumping mechanism, typically located on the left side for ergonomic operation.
• Shoulder Straps: Adjustable straps for comfortable backpack-style carrying.
• Spray Wand: Connects to the pump, delivering liquid to the nozzle.
• Nozzles: Interchangeable nebulizer nozzles for various spray patterns.
• Lid: Securely seals the tank opening.
• Hose: Connects the tank to the spray wand.

3. Setup

3.1 Assembly

1. Attach Shoulder Straps: Securely fasten the adjustable shoulder straps to the designated points on the sprayer tank. Ensure they are properly threaded and tightened for a comfortable fit.
2. Connect Hose: Attach one end of the hose to the outlet port on the sprayer tank and the other end to the base of the spray wand. Hand-tighten connections to prevent leaks.
3. Install Pump Lever: Insert the pump lever into its designated slot on the side of the sprayer. Ensure it moves freely and engages with the internal pumping mechanism.
4. Select Nozzle: Choose the appropriate nebulizer nozzle for your application and screw it onto the end of the spray wand.

3.2 Filling the Tank

1. Place the sprayer on a stable, flat surface.
2. Unscrew the tank lid.
3. Carefully pour the desired liquid (herbicide, pesticide, fertilizer solution) into the tank, ensuring not to exceed the 16-liter capacity mark. Use a funnel to prevent spills.
4. Securely replace and tighten the tank lid.

3.3 Adjusting Straps

Put on the backpack sprayer and adjust the shoulder straps so that the unit sits comfortably and securely on your back. The weight should be evenly distributed to minimize strain during operation.

4. Operating Instructions

4.1 Pumping Mechanism

1. With the sprayer on your back, grasp the pump lever.
2. Pump the lever up and down steadily to build pressure inside the tank. You will feel resistance as pressure builds.
3. Continue pumping until the desired spray pressure is achieved.

4.2 Spraying Technique

1. Once pressure is built, aim the spray wand at the target area.
2. Press the trigger on the spray wand handle to release the liquid.
3. Move the spray wand evenly across the target area to ensure uniform coverage.
4. Periodically pump the lever to maintain consistent pressure during spraying.

4.3 Nozzle Adjustment

The sprayer comes with interchangeable nebulizer nozzles. To change the spray pattern or flow, unscrew the current nozzle and replace it with another. Some nozzles may allow for adjustment by twisting the nozzle tip itself.

5. Maintenance

5.1 Cleaning After Use

1. Empty Tank: After each use, completely empty any remaining liquid from the tank. Dispose of chemicals according to local regulations.
2. Rinse Tank: Fill the tank with clean water and pump it through the sprayer until the water runs clear from the nozzle. Repeat this process several times, especially when switching between different chemicals.
3. Clean Nozzles: Remove the nozzle and clean it thoroughly to prevent blockages. A small brush or pin can be used to clear any debris.
4. Wipe Exterior: Wipe down the exterior of the sprayer with a damp cloth.

5.2 Storage

• Store the clean and dry sprayer in a cool, dry place, away from direct sunlight and freezing temperatures.
• Ensure the tank lid is loosely secured to allow for air circulation, preventing moisture buildup.
• Keep out of reach of children and unauthorized persons.

5.3 Checking for Wear

Regularly inspect the hose, seals, and nozzles for any signs of wear, cracks, or damage. Replace worn parts immediately to ensure optimal performance and prevent leaks.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For specific warranty information regarding your Generico 16 Liter Manual Backpack Sprayer, please refer to the documentation provided at the time of purchase or contact your retailer directly. Warranty terms and conditions may vary.

For technical support or inquiries about replacement parts, please contact the retailer from whom you purchased this product. Provide your model number (Irr16l) and purchase date when seeking assistance.
