Ejoyous Digital Meat Thermometer User Manual

1. Introduction

This manual provides instructions for the safe and effective use of your Ejoyous Digital Meat Thermometer. Please read this manual thoroughly before operating the device and retain it for future reference.

The Ejoyous Digital Meat Thermometer is designed for accurate temperature measurement of various food items, including meat, liquids, fried foods, and confectionery. Its pen-style design ensures portability and ease of use in kitchen and outdoor cooking environments.

2. Product Overview

2.1 Components

• Digital Thermometer Unit
• Stainless Steel Probe
• Protective Sheath
• Built-in Battery (160mAh)

2.2 Key Features

• Automatic Calibration Function: Ensures long-term accuracy.
• Precise Temperature Control: Provides fast and accurate readings.
• Pen-Style Design: Compact and portable for convenient use.
• Wide Application: Suitable for meat, liquids, frying, and candy making.
• Food-Grade Materials: Constructed with ABS and stainless steel.

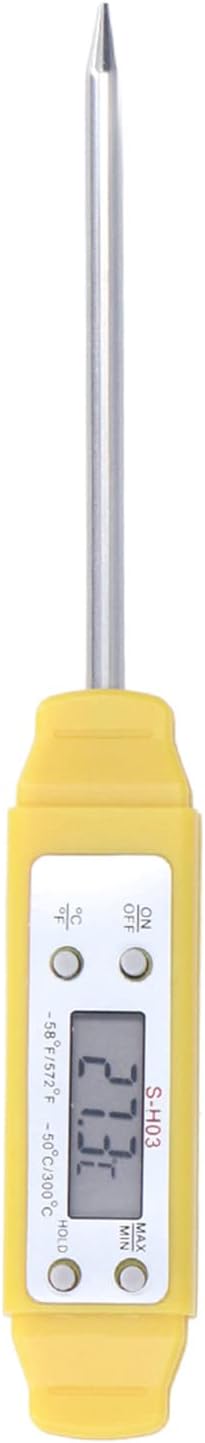

Figure 1: Ejoyous Digital Meat Thermometer. This image displays the main unit of the thermometer, featuring its digital display, control buttons, and the stainless steel probe.

3. Setup

The Ejoyous Digital Meat Thermometer comes ready for use with a built-in battery. No initial assembly is required.

1. Remove Protective Sheath: Carefully pull off the protective sheath from the stainless steel probe.
2. Power On: Press the ON/OFF button to turn on the thermometer. The display will illuminate.
3. Unit Selection: If desired, press the °C/°F button to switch between Celsius and Fahrenheit temperature units.

Figure 2: Thermometer with Sheath Removed. This image shows the thermometer unit alongside its yellow protective sheath, indicating readiness for use.

4. Operating Instructions

4.1 Taking a Temperature Reading

1. Ensure the thermometer is powered on.
2. Insert the stainless steel probe into the center of the food item, avoiding bones, until the tip is fully immersed. For liquids, ensure the probe is submerged without touching the bottom or sides of the container.
3. Wait for the temperature reading on the digital display to stabilize. This typically takes a few seconds.
4. Read the displayed temperature.
5. After use, clean the probe thoroughly (see Section 6: Care and Maintenance).
6. Press the ON/OFF button to turn off the thermometer, or it will automatically shut off after a period of inactivity to conserve battery.

Figure 3: Thermometer in Use. The image illustrates the thermometer probe inserted into a cooked steak, demonstrating its application for measuring food temperature.

4.2 Button Functions

Figure 4: Control Buttons Diagram. This diagram labels the functions of each button on the thermometer: ON/OFF, Celsius/Fahrenheit conversion, MAX/MIN conversion, and HOLD.

• ON/OFF Button: Powers the thermometer on or off.
• °C/°F Button: Toggles between Celsius and Fahrenheit temperature display units.
• MAX/MIN Button: Press once to display the maximum temperature recorded since power-on. Press again to display the minimum temperature recorded. Press a third time to return to current temperature display.
• HOLD Button: Freezes the current temperature reading on the display. Press again to release and resume live temperature monitoring.

5. Automatic Calibration Function

The Ejoyous Digital Meat Thermometer features an automatic calibration function designed to maintain its accuracy over time. This function typically operates in the background and does not require manual intervention under normal circumstances.

If you suspect the thermometer's accuracy is compromised, you can perform a simple ice-bath test to verify its calibration:

1. Fill a glass with crushed ice and add a small amount of cold water, ensuring the ice is tightly packed.
2. Insert the thermometer probe into the center of the ice bath, making sure the probe tip is fully submerged and not touching the bottom or sides of the glass.
3. Allow the reading to stabilize. A properly calibrated thermometer should read 0°C (32°F).
4. If the reading deviates significantly, the automatic calibration system may adjust it over time, or you may need to contact customer support for further assistance.

6. Care and Maintenance

• Cleaning: After each use, wipe the stainless steel probe with a damp cloth and mild detergent. Rinse with clean water and dry thoroughly. Do not immerse the entire thermometer unit in water. The main unit is not waterproof.
• Storage: Store the thermometer in its protective sheath when not in use to prevent damage to the probe. Keep it in a clean, dry place away from extreme temperatures.
• Battery: The thermometer uses a built-in 160mAh battery. If the display becomes dim or unresponsive, the battery may need recharging or replacement. Consult customer support for battery service.
• Material Safety: The probe is made of food-grade stainless steel, and the body from ABS material, ensuring safety for food contact.

Figure 5: Food-Grade Stainless Steel. This image highlights the stainless steel probe, emphasizing its food-safe material.

7. Troubleshooting

8. Specifications

• Model: Ejoyouszkoyegr1h3-11
• Material: ABS, Stainless Steel
• Temperature Range: -50°C to 300°C (-58°F to 572°F)
• Battery: 1 x Built-in (160mAh capacity)
• Weight: Approximately 37g (1.3 oz)
• Probe Length: Approximately 150mm (5.9 inches)
• Unit Dimensions (Overall): Approximately 7.48 x 1.97 x 0.79 inches (Package Dimensions)

Figure 6: Product Dimensions. This image provides a visual representation of the thermometer's length and probe length, along with its approximate weight.

9. Warranty and Support

For warranty information or technical support, please refer to the purchase documentation or contact your retailer. Keep your purchase receipt as proof of purchase.

For general inquiries, you may visit the Ejoyous Store on Amazon.
